SP0638B BT LED TOUCH TOP SPEAKER Block... - FCC ID 2ADM5-SP-0638B

FCC ID 2ADM5-SP-0638B

Blcok Diagram

BT LED TOUCH TOP SPEAKER

by Zeeva International Limited

Document preview loads when visible.

Document Details

FCC ID2ADM5-SP-0638B
Document ID5336695
Document TypeBlock Diagram

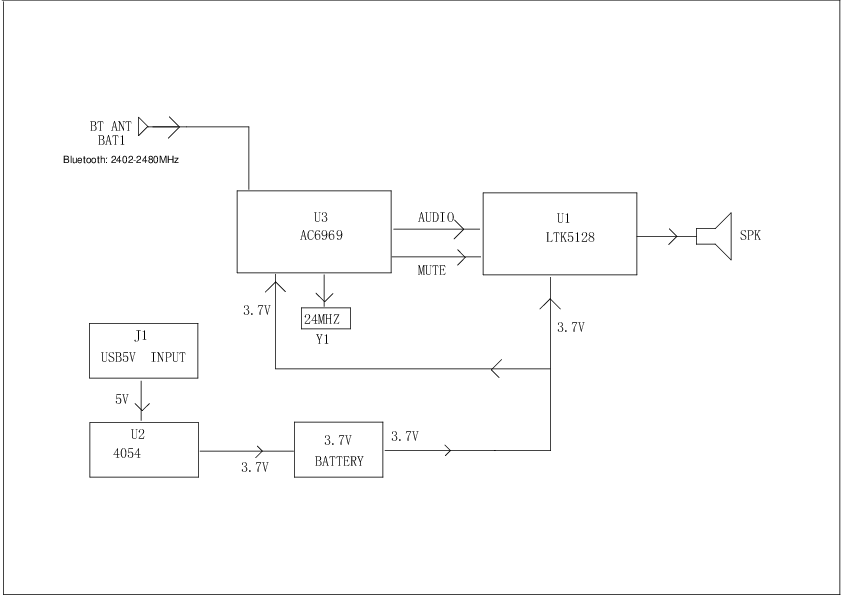

DescriptionBlcok Diagram
Document Title6969D-BLOCK-FCC
ApplicantZeeva International Limited
Equipment ClassBT LED TOUCH TOP SPEAKER
Product CodeSP0638B
Application IDWxyNfSTe4SoZBrHeWVvP4Q==
Application PurposeOriginal Equipment
Application Date2021-07-12
Frequency Range2402-2480 MHz
FRN0024102113
Test FirmBay Area Compliance Laboratories Corp. (Shenzhen)
Certified ByAkshay P Butani
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2021-07-12
Available2021-07-12
Created2021-06-07
Modified2021-07-12
Pages1
File TypeAdobe Acrobat PDF
File Size11613
File SHA-256385656472473d334d145c813bd78663e5c19cb32e5b913e16e6cf7e60188a70c
FCC.gov SourcesFCC.gov 5336695
