FCC ID 2ADM8-MASC09
C09 BY MASON
by NXL, LLC.
Grantee Code: 2ADM8 Product Code: MASC09
Latest application date: 2015-10-23
Device Images
FCC ID Device Details
| FCC ID | 2ADM8-MASC09 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADM8 |
| Product Code | MASC09 |
| Applicant Business | NXL, LLC. 🇺🇸 |
| Related Domains |  bymason.com |
| Equipment Class | C09 BY MASON |
| Test Firm | Bay Area Compliance Laboratory Corp. (Shenzhen) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-10-23 |
| 2402-2480 MHz | Original Equipment | 2015-10-23 |
| 824.2-848.8 MHz | Original Equipment | 2015-10-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-10-23 | PDF 344.1 KB |

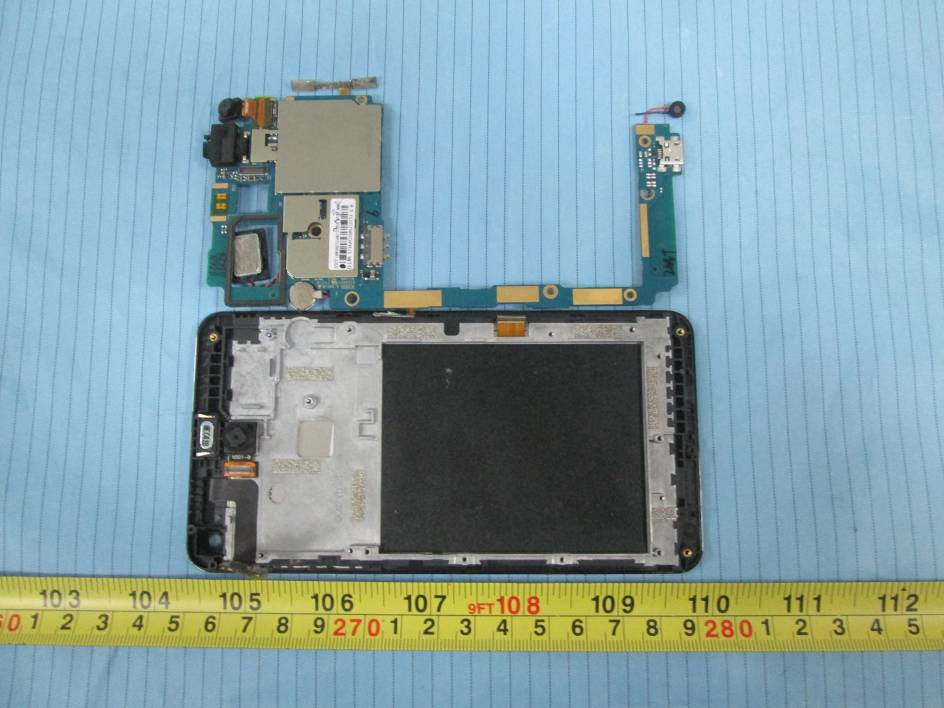

| Internal Photos | Internal Photos | 2015-10-23 | PDF 708.5 KB |
| External Photos | External Photos | 2015-10-23 | PDF 430.2 KB |
| FCC ID Label | ID Label/Location Info | 2015-10-23 | PDF 47.5 KB |

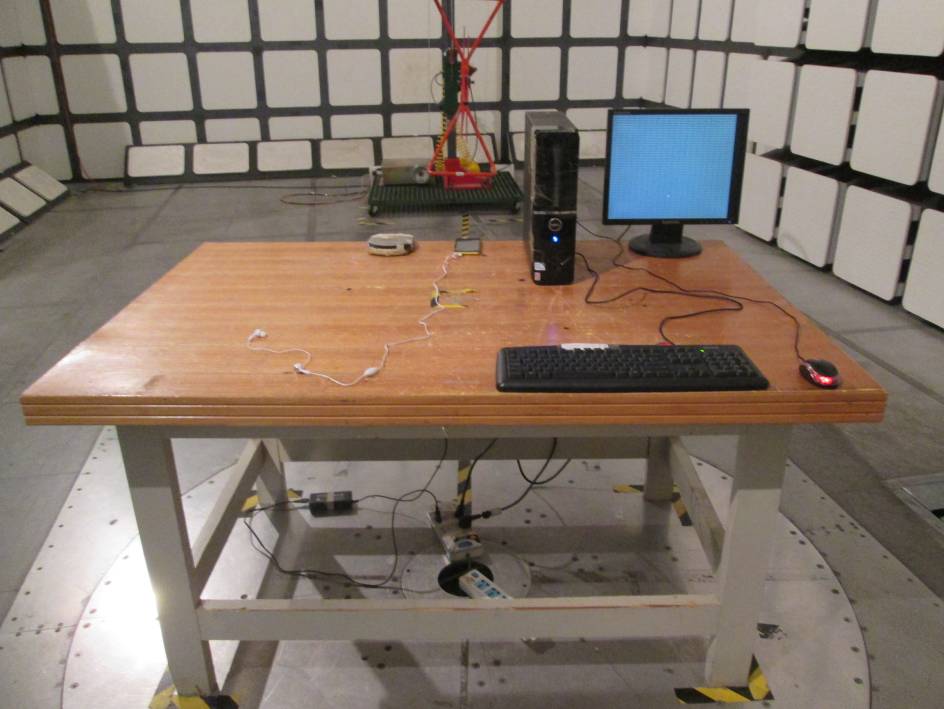

| Test Setup Photos | Test Setup Photos | 2015-10-23 | PDF 269.4 KB |
| Test Setup Photos | Test Setup Photos | 2015-10-23 | PDF 417.1 KB |
| Test Setup Photos | Test Setup Photos | 2015-10-23 | PDF 112.6 KB |
| Test Setup Photos | Test Setup Photos | 2015-10-23 | PDF 272 KB |
| SAR Test Report | RF Exposure Info | 2015-10-23 | PDF 3.2 MB |
| Test Report | Test Report | 2015-10-23 | PDF 945.5 KB |
| Test Report | Test Report | 2015-10-23 | PDF 999.7 KB |
| Test Report | Test Report | 2015-10-23 | PDF 762.2 KB |
| Test Report | Test Report | 2015-10-23 | PDF 346.8 KB |
| Confidential Request Letter | Cover Letter(s) | 2015-10-23 | PDF 63.9 KB |
| Confidential Request Letters | Cover Letter(s) | 2015-10-23 | PDF 63.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 13.1 KB | |
| Schematics Metadata only | Schematics | PDF 1.1 MB | |
| Operational Description Metadata only | Operational Description | PDF 141.4 KB | |
| Operational Descrition Metadata only | Operational Description | PDF 141.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 92.8 KB | |
| Turn Up Information Metadata only | Parts List/Tune Up Info | PDF 613.3 KB |
Application Information
| Application ID | s5/lb7Bi+uLsL2YgFo/kSw== |
|---|---|
| Final Action Date | 2015-10-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024103467 |
| Model | MASC09 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | C09 BY MASON |
| Responsible Party | Jim Xiao, jim@bymason.com , 3133386477 |
| Test Firm | John Chan, Bay Area Compliance Laboratory Corp. (Shenzhen), john.chan@baclcorp.com  , 08675533320018 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | The power listed were conducted power. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| s5/lb7Bi+uLsL2YgFo/kSw== | 2015-10-23 | Original Equipment |
| H0T73u5QCByxKJvwt2C7/g== | 2015-10-23 | Original Equipment |
| 5N3hqJAX5+4JeUfBgDAOrQ== | 2015-10-23 | Original Equipment |
| 3tXYbaYPkDloR/iIZxK3uA== | 2015-10-23 | Original Equipment |
