FCC ID 2ADNIR50
RedDot Phone
by Worldlinks Communications, L.L.C.
Grantee Code: 2ADNI Product Code: R50
Latest application date: 2015-10-12
Device Images
FCC ID Device Details
| FCC ID | 2ADNIR50 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADNI |
| Product Code | R50 |
| Applicant Business | Worldlinks Communications, L.L.C. 🇺🇸 |
| Related Domains |  worldlinkscorp.net |
| Equipment Class | RedDot Phone |
| Test Firm | SIEMIC (Shenzhen-China) Laboratories |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2015-10-12 |
| 2402-2480 MHz | Original Equipment | 2015-10-12 |
| 2402-2480 MHz | Original Equipment | 2015-10-12 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-10-12 | PDF 286.3 KB |
| User manual | Users Manual | 2015-10-12 | PDF 286.3 KB |
| Internal Photos | Internal Photos | 2015-10-12 | PDF 676.5 KB |
| External Photos | External Photos | 2015-10-12 | PDF 484.4 KB |
| Label & Label Location | ID Label/Location Info | 2015-10-12 | PDF 64.4 KB |
| Label and Label Location | ID Label/Location Info | 2015-10-12 | PDF 64.4 KB |

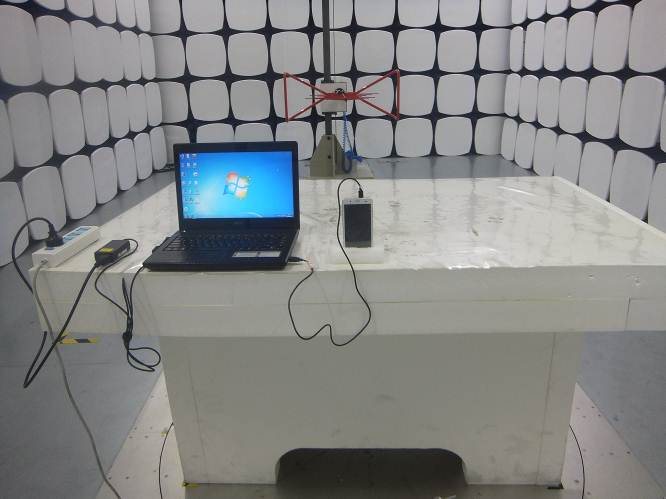

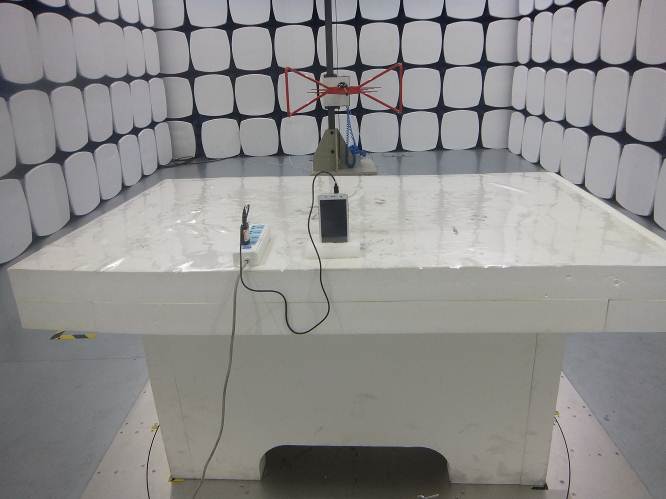

| RF Test Set-Up Photos | Test Setup Photos | 2015-10-12 | PDF 145.7 KB |
| RF Test Set-Up Photos | Test Setup Photos | 2015-10-12 | PDF 206.1 KB |
| RF Test Set-Up Photos-BLE | Test Setup Photos | 2015-10-12 | PDF 204.6 KB |
| Test Set-Up Photos | Test Setup Photos | 2015-10-12 | PDF 208.2 KB |
| Part 15B Test Report | Test Report | 2015-10-12 | PDF 1.4 MB |
| RF Test Report | Test Report | 2015-10-12 | PDF 1.7 MB |
| RF Test Report | Test Report | 2015-10-12 | PDF 3 MB |
| RF Test Report-BLE | Test Report | 2015-10-12 | PDF 1.8 MB |
| RF Test Report-WLAN | Test Report | 2015-10-12 | PDF 3.3 MB |
| SAR Test Report | RF Exposure Info | 2015-10-12 | PDF 4.6 MB |
| Authorization Letter | Cover Letter(s) | 2015-10-12 | PDF 191.4 KB |
| DTS 12-13 ch Declaration Letter | Cover Letter(s) | 2015-10-12 | PDF 115.3 KB |
| LTC Letter | Cover Letter(s) | 2015-10-12 | PDF 183.4 KB |
| RF Exposure Report | RF Exposure Info | 2015-10-12 | PDF 223.2 KB |
| SAR System PHOTOS | RF Exposure Info | 2015-10-12 | PDF 481.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 969 KB | |
| Schematics Metadata only | Schematics | PDF 2.7 MB | |
| Operational Description Metadata only | Operational Description | PDF 61 KB | |
| BOM List Metadata only | Parts List/Tune Up Info | PDF 66.1 KB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 213.3 KB |
Application Information
| Application ID | ofVjCPeT1Wz8WD+o69odhw== |
|---|---|
| Final Action Date | 2015-10-12 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024109555 |
| Model | R50 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | RedDot Phone |
| Responsible Party | Elie Maloof, Jamal@worldlinkscorp.net , +1-847-281-9714 |
| Test Firm | Leslie Bai, SIEMIC (Shenzhen-China) Laboratories, leslie.bai@siemic.com  , 86-0755-2601-4629 |
| TCB Email | tcb@siemic.com |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is ERP for Part 22 and EIRP for Part 24 This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. Highest reported SAR for Head, Body-worn accessory are: 0.44 W/kg, 0.88 W/kg,. |
