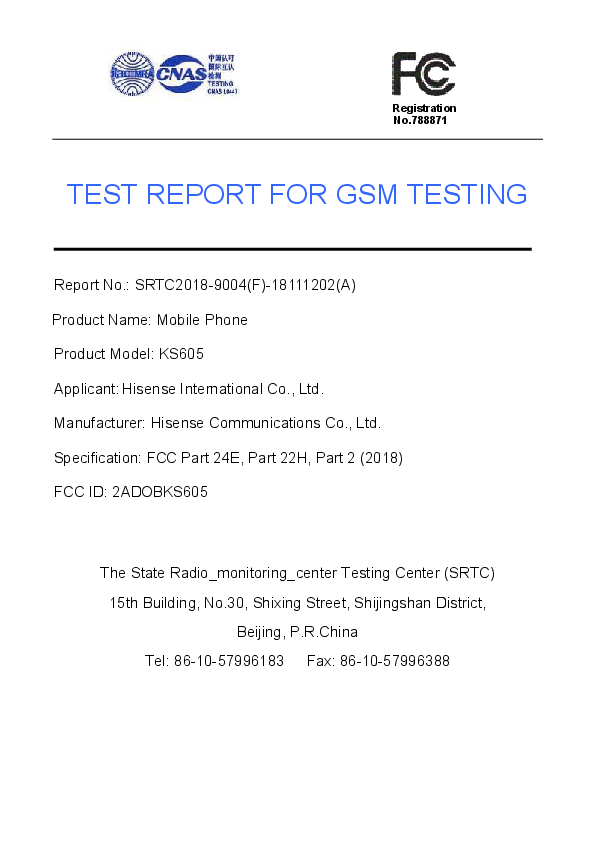

Registration
No.788871
TEST REPORT FOR GSM TESTING
Report No.: SRTC2018-9004(F)-18111202(A)
Product Name: Mobile Phone
Product Model: KS605
Applicant: Hisense International Co., Ltd.
Manufacturer: Hisense Communications Co., Ltd.
Specification: FCC Part 24E, Part 22H, Part 2 (2018)
FCC ID: 2ADOBKS605
The State Radio_monitoring_center Testing Center (SRTC)
15th Building, No.30, Shixing Street, Shijingshan District,
Beijing, P.R.China
Tel: 86-10-57996183
Fax: 86-10-57996388
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
CONTENTS
1. GENERAL INFORMATION....................................................................................................................................2
1.1 NOTES OF THE TEST REPORT .................................................................................................................................... 2
1.2 INFORMATION ABOUT THE TESTING LABORATORY ..................................................................................................... 2
1.3 APPLICANT’S DETAILS ................................................................................................................................................ 2
1.4 MANUFACTURER’S DETAILS ....................................................................................................................................... 2
1.5 TEST ENVIRONMENT .................................................................................................................................................. 3
2 DESCRIPTION OF THE DEVICE UNDER TEST ..................................................................................................4
2.1FINAL EQUIPMENT BUILD STATUS......................................................................................................................................... 4
2.2 SUPPORT EQUIPMENT....................................................................................................................................................... 5
2.3 SUMMARY TABLE. ............................................................................................................................................................ 5
3 REFERENCE SPECIFICATION .............................................................................................................................6
4 KEY TO NOTES AND RESULT CODES ...............................................................................................................7
5 RESULT SUMMARY ...............................................................................................................................................8
6 TEST RESULT .........................................................................................................................................................9
6.1 RF POWER OUTPUT-FCC PART 2.1046 ............................................................................................................................... 9
6.2 EFFECTIVE RADIATED POWER-FCC PART 22.913(A)/PART 24.232(C) .................................................................................... 10
6.3 OCCUPIED BANDWIDTH-FCC PART 2.1049 ........................................................................................................................ 12
6.4 EMISSION BANDWIDTH-FCC PART 22.917(B)/PART 24.238(B) ............................................................................................ 13
6.5 SPURIOUS EMISSIONS AT ANTENNA TERMINAL-FCC PART 2.1051/ 22.917(A) /PART 24.238(A) ................................................. 14
6.6 BAND EDGES COMPLIANCE- FCC PART 2.1051/ 22.917(A) /PART 24.238(A) ......................................................................... 15
6.7 FREQUENCY STABILITY- FCC PART 2.1055/22.355 /PART 24.235 ......................................................................................... 16
6.8 RADIATED SPURIOUS EMISSIONS-FCC PART2.1053/ 22.917(A)/PART 24.238(A) .................................................................... 17
6.9 PEAK-AVERAGE RATIO -FCC PART 24.232(D) ..................................................................................................................... 21
7 MEASUREMENT UNCERTAINTIES ...................................................................................................................22
8 TEST EQUIPMENTS .............................................................................................................................................23
APPENDIX A – TEST DATA OF CONDUCTED EMISSION .................................................................................24
APPENDIX B – TEST DATA OF RADIATED EMISSION ...................................................................................... 47
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 1 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
1. GENERAL INFORMATION
1.1 Notes of the test report
The test report may only be reproduced or published in full. Reproduction or publication of
extracts from the report requires the prior written permission of The State
Radio_monitoring_center Testing Center (SRTC).
The test results relate only to individual items of the samples which have been tested.
1.2 Information about the testing laboratory
Company:
Address:
City:
Country or Region:
Contacted person:
Tel:
Fax:
Email:
The State Radio_monitoring_center Testing Center (SRTC)
15th Building, No.30 Shixing Street, Shijingshan District, P.R.China
Beijing
P.R.China
Liu Jia
+86 10 57996183
+86 10 57996388
liujiaf@srtc.org.cn
1.3 Applicant’s details
Company:
Address:
City:
Country or Region:
Contacted person:
Tel:
Fax:
Email:
Hisense International Co., Ltd.
Floor 22, Hisense Tower, 17 Donghai Xi Road, Qingdao, China
Qingdao
China
Geng Ruifeng
+86-532-80877742
--gengruifeng@hisense.com
1.4 Manufacturer’s details
Company:
Address:
City:
Country or Region:
Contacted person:
Tel:
Fax:
Email:
Hisense Communications Co., Ltd.
218 Qianwangang Road, Qingdao
Development Zone, Qingdao, China
Qingdao
China
Dai Qingtao
+86-532-55753749
--daiqingtao@hisense.com
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Economic
Technological
Page number: 2 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
1.5 Test Environment
Date of Receipt of test sample at SRTC:
2018-11-12
Testing Start Date:
2018-11-12
Testing End Date:
2018-12-11
Environmental Data:
Temperature (°C)
Humidity (%)
Ambient
25
30
Maximum Extreme
55
---
Minimum Extreme
-10
---
Normal Supply Voltage (V d.c.):
3.80
Maximum Extreme Supply Voltage (V d.c.):
4.35
Minimum Extreme Supply Voltage (V d.c.):
3.50
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 3 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
2 DESCRIPTION OF THE DEVICE UNDER TEST
2.1Final Equipment Build Status
Frequency Range
Rated Output Power
Modulation Type
GSM850:
Tx:824~849MHz Rx:869~894MHz
PCS1900:
Tx:1850~1910MHz Rx:1930~1990MHz
GSM850:33.0dBm
PCS1900:30.0dBm
GSM/GPRS:GMSK
EDGE: GMSK(Uplink direction)
8PSK(Downlink direction)
Emission Designator
300KGXW/300KG7W
Duplex Mode
FDD
Antenna Type
GSM850:45MHz
PCS1900:80MHz
Fixed Internal Antenna
Power Supply
Battery/AC adapter
Duplex Spacing
HW Version
V1.00
SW Version
Hisense_U605_01_S02_20181102
IMEI
866747040002841
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 4 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
2.2 Support Equipment
The following support equipment was used to exercise the DUT during testing:
Charger
Equipment
Manufacturer
SHENZHEN TIANYIN
Model Number
TPA-97050070UU
Serial Number
---
Equipment
Battery
Manufacturer
Shenzhen Utility Power Source Co.,Ltd
Model Number
LIW38150A
Serial Number
---
ELECTRONICS
CO.,LTD
The products are different on the supplier of TP/LCM/Memory/Camera.
The Second Supply worst case test result pleases refer to the Annex B.
2.3 Summary table.
FCC
Rule
Part
22
22
24
24
Mode
Frequency
Range(MHz)
GSM850
EDGE850
GSM1900
EDGE1900
824.2-848.8
824.2-848.8
1850.2-1909.8
1850.2-1909.8
Conducted
(Average)
(dBm)
33.50
33.34
30.42
30.33
、
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Antenna
Gain
0.70
0.70
1.60
1.60
ERP/
EIRP
(W)
1.603
1.545
1.592
1.560
Frequency
Tolerance
(ppm)
0.019
0.016
0.018
0.032
Emission
Designator
251KGXW
248KG7W
249KGXW
245KG7W
Page number: 5 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
3 REFERENCE SPECIFICATION
Specification
Version
Title
2.1046
2018
Measurements required: RF power output.
2.1049
2018
Measurements required: Occupied bandwidth.
2.1051
2018
Measurements required: Spurious emissions at antenna terminals.
2.1053
2018
Measurements required: Field strength of spurious radiation.
2.1055
2018
Measurements required: Frequency stability.
22.355
2018
Frequency tolerance.
22.913
2018
Effective radiated power limits.
22.917
2018
Emission limitations for cellular equipment.
24.232
2018
Power and antenna height limits.
24.235
2018
Frequency stability.
24.238
2018
Emission limitations for Broadband PCS equipment.
ANSI C63.26
2015
American National Standard for Compliance Testing of Transmitters
Used in Licensed Radio Services
KDB 971168
April 9,
MEASUREMENT GUIDANCE FOR CERTIFICATION OF LICENSED DIGITAL
D01
2018
TRANSMITTERS
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 6 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
4 KEY TO NOTES AND RESULT CODES
The following are the definition of the test result.
Code
Meaning
PASS
Test result shows that the requirements of the relevant specification have been
met.
FAIL
Test result shows that the requirements of the relevant specification have not been
met.
N/T
Test case is not tested.
NTC
Nominal voltage, Normal Temperature
HV
High voltage, Normal Temperature
LV
Low voltage, Normal Temperature
HTHV
high voltage, High Temperature
LTHV
High voltage, Low Temperature
HTLV
Low voltage, High Temperature
LTLV
Low voltage, Low Temperature
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 7 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
5 RESULT SUMMARY
No.
Test case
FCC reference
Verdict
RF Power Output
2.1046
Pass
22.913(a)/24.232(c)
Pass
Effective Radiated Power and
Effective Isotropic Radiated Power
Occupied Bandwidth
2.1049
Pass
Emission Bandwidth
22.917(b)/24.238(b)
Pass
Spurious Emissions at antenna terminals
2.1051/22.917(a)/24.238(a)
Pass
Band Edges Compliance
2.1051/22.917(a)/24.238(a)
Pass
Frequency Stability
2.1055/22.355/24.235
Pass
Radiated Spurious Emissions
2.1053/22.917(a)/24.238(a)
Pass
Peak-Average Ratio
24.232(d)
Pass
This Test Report Is Issued by:
Mr. Peng Zhen
Checked by:
Mr. Li Bin
Tested by:
Mr. He Dengshun
Issued date:
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
20181211
Page number: 8 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6 TEST RESULT
6.1 RF Power Output-FCC Part 2.1046
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test Setup:
RF output
GSM Mobile Station Tester
EUT
GSM850
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. Then the test data can be read at the tester screen. The loss between RF
output port of the EUT and the input port of the tester will be taken into consideration.
The measurement will be conducted at three channels No128, No189 and No251 (Bottom,
middle and top channels of GSM850 band)
Limits
≤33.0dBm
PCS1900
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. Then the test data can be read at the tester screen. The loss between RF
output port of the EUT and the input port of the tester will be taken into consideration.
The measurement will be conducted at three channels No512, No661 and No810 (Bottom,
middle and top channels of PCS1900 band)
Limits
≤30.0dBm
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 9 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.2 Effective Radiated Power-FCC Part 22.913(a)/Part 24.232(c)
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test Setup:
RF output
EUT
GSM Mobile Station Tester
GSM850
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. Then the test data can be read at the tester screen. The loss between RF
output port of the EUT and the input port of the tester will be taken into consideration.
Power (EIRP) = Pmea + Ga
This value is EIRP since the measurement is calibrated using an antenna of known gain
(2.15dB) and known input power. ERP can be calculated from EIRP by subtracting the gain
of the dipole, ERP = EIRP – 2.15 (dB).
The measurement will be done at three channels No128, No189 and No251 (Bottom, middle
and top channels of GSM850 band)
Limits:
Operation Mode
GSM
GPRS
EDGE
Power Step
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
E.R.P. (dBm)
≤38.45
≤38.45
≤38.45
Page number: 10 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
PCS1900
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. Then the test data can be read at the tester screen. The loss between RF
output port of the EUT and the input port of the tester will be taken into consideration.
Power (EIRP) = Pmea + Ga
The measurement will be done at three channels No512, No661 and No810 (Bottom, middle
and top channels of PCS1900 band)
Limits:
Operation Mode
Power Step
E.I.R.P. (dBm)
GSM
≤33
GPRS
≤33
EDGE
≤33
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 11 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.3 Occupied Bandwidth-FCC Part 2.1049
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test Setup:
GSM Mobile Station Tester
RF output
EUT
Power
Splitter
Spectrum Analyzer
GSM850
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The occupied bandwidth is measured using spectrum analyzer. RBW is set
to 3kHz on spectrum analyzer. The bandwidth of 99% power can be read on spectrum
analyzer.
The measurement will be conducted at three channels No128, No189 and No251 (Bottom,
middle and top channels of GSM850 band)
Limits: No specific occupied bandwidth requirements in part 2.1049
PCS1900
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The occupied bandwidth is measured using spectrum analyzer. RBW is set
to 3kHz on spectrum analyzer. The bandwidth of 99% power can be read on spectrum
analyzer.
The measurement will be conducted at three channels No512, No661 and No810 (Bottom,
middle and top channels of PCS1900 band)
Limits: No specific occupied bandwidth requirements in part 2.1049
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 12 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.4 Emission Bandwidth-FCC Part 22.917(b)/Part 24.238(b)
Ambient condition:
Temperature
Relative humidity
Pressure
25°C
30%
101.9kPa
Test Setup:
GSM Mobile Station Tester
RF output
EUT
Power
Splitter
Spectrum Analyzer
GSM850
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The emission bandwidth is measured using spectrum analyzer. RBW is set
to 3kHz on spectrum analyzer. The bandwidth of -26dB transmitter power can be read on
spectrum analyzer.
The measurement will be conducted at three channels No128, No189 and No251 (Bottom,
middle and top channels of GSM850 band)
Limits: No specific emission bandwidth requirements in part 22.917(b)
PCS1900
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The emission bandwidth is measured using spectrum analyzer. RBW is set
to 3kHz on spectrum analyzer. The bandwidth of -26dB transmitter power can be read on
spectrum analyzer.
The measurement will be conducted at three channels No512, No661 and No810 (Bottom,
middle and top channels of PCS1900 band)
Limits: No specific emission bandwidth requirements in part 24.238(b)
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 13 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.5 Spurious Emissions at antenna terminal-FCC Part 2.1051/ 22.917(a) /Part 24.238(a)
Ambient condition:
Temperature
Relative humidity
Pressure
25°C
30%
101.9kPa
Test Setup:
GSM Mobile Station Tester
RF output
EUT
Power
Splitter
Spectrum Analyzer
GSM850
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The measurement is carried out using a spectrum analyzer. The spectrum
analyzer scans from 30MHz to 9GHz (higher than the 10th harmonic of the carrier). The peak
detector is used and RBW is set to 1MHz on spectrum analyzer.
The measurement will be conducted at one channel No189 (middle channel of GSM850
band)
Limits
≤-13dBm
PCS1900
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The measurement is carried out using a spectrum analyzer. The spectrum
analyzer scans from 30MHz to 20GHz (higher than the 10th harmonic of the carrier). The
peak detector is used and RBW is set to 1MHz on spectrum analyzer.
The measurement will be conducted at one channel No661 (middle channel of PCS1900
band)
Limits
≤-13dBm
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 14 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.6 Band Edges Compliance- FCC Part 2.1051/ 22.917(a) /Part 24.238(a)
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test Setup:
GSM Mobile Station Tester
RF output
EUT
Power
Splitter
Spectrum Analyzer
GSM850
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The measurement is carried out using a spectrum analyzer. The peak
detector is used and RBW is set to at least 1% of the emission bandwidth on spectrum
analyzer.
The measurement will be conducted at two channels No128 and No251 (Bottom and top
channels of GSM850 band)
Limits
≤-13dBm
PCS1900
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The measurement is carried out using a spectrum analyzer. The peak
detector is used and RBW is set to at least 1% of the emission bandwidth on spectrum
analyzer.
The measurement will be conducted at two channels No512 and No810 (Bottom and top
channels of PCS1900 band)
Limits
≤-13dBm
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 15 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.7 Frequency Stability- FCC Part 2.1055/22.355 /Part 24.235
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test setup:
Climate Chamber
EUT
GSM Mobile Station Tester
DC
Power Supply
GSM850
Test Procedure:
A radio link shall be established between EUT and Tester. The tester will sample the
transmitter RF output signal and measure its frequency. The temperature inside the climate
chamber is varied from -30 to +50°C in 10°C step size, and also the DC power supply
voltage to the EUT is varied from LV to HV. The measurement will be conducted at three
channels No128, No189 and No251 (Bottom, middle and top channels of GSM850 band).
Limits: No specific frequency stability requirements in part 2.1055 and part 22.355.
PCS1900
Test Procedure:
A radio link shall be established between EUT and Tester. The tester will sample the
transmitter RF output signal and measure its frequency. The temperature inside the climate
chamber is varied from -30 to +50°C in 10°C step size, and also the DC power supply
voltage to the EUT is varied from LV to HV. The measurement will be conducted at three
channels No512, No661 and No810 (Bottom, middle and top channels of PCS1900 band).
Limits: No specific frequency stability requirements in part 2.1055 and part 24.235.
Test result:
The test results are shown in Appendix A.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 16 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.8 Radiated Spurious Emissions-FCC Part2.1053/ 22.917(a)/Part 24.238(a)
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test Setup:
Step 1
Step 2
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 17 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
GSM850
Test procedure:
The measurements procedures in TIA-603C-2004 are used.
The spectrum was scanned from 30MHz to the 10th harmonic of the highest frequency
generated within the equipment.
Step 1:
The measurement is carried out in the fully anechoic chamber. EUT was placed on a 2.4
meter high non-conductive table at a 3 meter test distance from the test receive antenna. A
receiving antenna was placed on the antenna mast 3 meters from the EUT. The height of
receiving antenna is 2.4m and varies in certain range to find the maximum power value. A
radio link shall be established between EUT and Tester. The output power of the cell signal
of the tester will be decreased until the output power of the EUT reach a maximum value.
The measurement is carried out using a spectrum analyzer or receiver. The spectrum
analyzer scans from 30MHz to 20GHz (higher than the 10th harmonic of the carrier). The
peak detector is used and RBW is set to 1MHz on spectrum analyzer. Then the antenna
height and turn table rotation is adjusted till the maximum power value is founded on
spectrum analyzer or receiver. A notch filter is necessary in the band near to the carrier
frequency. A high pass filter is needed to avoid the distortion of the testing equipment in the
band above the carrier frequency.
Step 2:
A log-periodic antenna or double-ridged waveguide horn antenna shall be substituted in
place of the EUT. The log-periodic antenna will be driven by a signal generator and the level
will be adjusted till the same power value on the spectrum analyzer or receiver. The level of
the spurious emissions can be calculated through the level of the signal generator, cable
loss, the gain of the substitution antenna and the reading of the spectrum analyzer or
receiver.
A power (Pmea) is applied to the input of the substitution antenna, and adjusts the level of
the signal generator output until the value of the receiver reach the previously recorded (Pr).
The power of signal source (Pmea) is recorded. The test should be performed by rotating the
test item and adjusting the receiving antenna polarization.
A “reference path loss” should be calculated after test. The attenuation of “reference path
loss” is the cable loss between the Signal Source with the Substitution Antenna (Pca) and
the Substitution Antenna Gain (Ga).
Calculation procedure:
The data of cable loss and antenna gain has been calibrated in full testing frequency range
before the testing.
The power of the Radiated Spurious Emissions is calculated by adding the cable loss and
antenna gain. The basic equation with a sample calculation is as followed:
Power(EIRP) = Pmea+ Pca + Ga
This value is EIRP since the measurement is calibrated using an antenna of known gain
(2.15dB) and known input power. ERP can be calculated from EIRP by subtracting the gain
of the dipole, ERP = EIRP – 2.15 (dB).
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 18 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
Assumed the power of signal source record is -20dBm. A cable loss of -30dB, and an
antenna gain of 11dB are added.
P=Pmea+Pca+Ga=(-20dBm)+(-30dB)+(11dB)= -39dBm
The measurement will be done at carrier frequencies that pertain to bottom (Channel 128),
middle (Channel 189) and top (Channel 251) channels of the GSM 850 band.
PCS1900
Test procedure:
The measurements procedures in TIA-603C-2004 are used.
The spectrum was scanned from 30MHz to the 10th harmonic of the highest frequency
generated within the equipment.
Step 1:
The measurement is carried out in the fully anechoic chamber. EUT was placed on a 2.4
meter high non-conductive table at a 3 meter test distance from the test receive antenna. A
receiving antenna was placed on the antenna mast 3 meters from the EUT. The height of
receiving antenna is 2.4m and varies in certain range to find the maximum power value. A
radio link shall be established between EUT and Tester. The output power of the cell signal
of the tester will be decreased until the output power of the EUT reach a maximum value.
The measurement is carried out using a spectrum analyzer or receiver. The spectrum
analyzer scans from 30MHz to 20GHz (higher than the 10th harmonic of the carrier). The
peak detector is used and RBW is set to 1MHz on spectrum analyzer. Then the antenna
height and turn table rotation is adjusted till the maximum power value is founded on
spectrum analyzer or receiver. A notch filter is necessary in the band near to the carrier
frequency. A high pass filter is needed to avoid the distortion of the testing equipment in the
band above the carrier frequency.
Step 2:
A log-periodic antenna or double-ridged waveguide horn antenna shall be substituted in
place of the EUT. The log-periodic antenna will be driven by a signal generator and the level
will be adjusted till the same power value on the spectrum analyzer or receiver. The level of
the spurious emissions can be calculated through the level of the signal generator, cable
loss, the gain of the substitution antenna and the reading of the spectrum analyzer or
receiver.
A power (Pmea) is applied to the input of the substitution antenna, and adjusts the level of
the signal generator output until the value of the receiver reach the previously recorded (Pr).
The power of signal source (Pmea) is recorded. The test should be performed by rotating the
test item and adjusting the receiving antenna polarization.
A “reference path loss” should be calculated after test. The attenuation of “reference path
loss” is the cable loss between the Signal Source with the Substitution Antenna (Pca) and
the Substitution Antenna Gain (Ga).
Calculation procedure:
The data of cable loss and antenna gain has been calibrated in full testing frequency range
before the testing.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 19 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
The power of the Radiated Spurious Emissions is calculated by adding the cable loss and
antenna gain. The basic equation with a sample calculation is as followed:
Power(EIRP) = Pmea+ Pca + Ga
This value is EIRP since the measurement is calibrated using an antenna of known gain
(2.15dB) and known input power. ERP can be calculated from EIRP by subtracting the gain
of the dipole, ERP = EIRP – 2.15 (dB).
Assumed the power of signal source record is -20dBm. A cable loss of -30dB and an
antenna gain of 11dB are added.
P=Pmea+Pca+Ga=(-20dBm)+(-30dB)+(11dB)= -39dBm
The measurement will be done at carrier frequencies that pertain to bottom (Channel 512),
middle (Channel 661) and top (Channel 810) channels of PCS 1900 band.
Test result:
The test results are shown in Appendix B.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 20 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
6.9 Peak-Average Ratio -FCC Part 24.232(d)
Ambient condition:
Temperature
25°C
Relative humidity
30%
Pressure
101.9kPa
Test Setup:
Mobile Station Tester
RF output
EUT
Power
Splitter
Spectrum Analyzer
Test procedure:
After a radio link has been established between EUT and Tester, the output power of the cell
signal of the testing equipment will be decreased until the output power of the EUT reach a
maximum value. The Peak-Average Ratio is measured using spectrum analyzer. RBW is set
to 30kHz on spectrum analyzer. The Peak-Average Ratio can be read on spectrum analyzer.
Limits: the peak-to-average ratio (PAR) of the transmission may not exceed 13 dB.
Test result:
The test results are shown in Appendix A
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 21 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
7 MEASUREMENT UNCERTAINTIES
Items
Uncertainty
Occupied Bandwidth
3kHz
Peak power output
0.67dB
Band edge compliance
1.20dB
Spurious emissions
30MHz~1GHz
1GHz~12.75GHz
12.75GHz~25GHz
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
2.83dB
2.50dB
2.75dB
Page number: 22 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)-18111202(A)
FCC ID: 2ADOBKS605
8 TEST EQUIPMENTS
No.
Name/Model
E5515C(8960) Mobile Station
Tester
N9020A
Spectrum Analyzer
Manufacturer
S/N
Calibration
Date
Calibration
Due Date
Agilent
MY50266302
2018.8.20
2019.8.19
Agilent
MY48010771
2018.8.20
2019.8.19
DC Power Supply E3645A
Agilent
MY40000741
2018.3.01
2019.2.28
Temperature chamber SH241
ESPEC
92013758
2018.8.20
2019.8.19
FRANKONIA
-----
-----
-----
FRANKONIA
---
-----
-----
12.65m×8.03m×7.50m
Fully-Anechoic Chamber
23.18m×16.88m×9.60m
Semi-Anechoic Chamber
Turn table Diameter:1m
FRANKONIA
-----
-----
-----
Turn table Diameter:5m
FRANKONIA
-----
-----
-----
10
Antenna master FAC(MA4.0)
MATURO
-----
-----
-----
11
Antenna master SAC(MA4.0)
MATURO
-----
-----
-----
FRANKONIA
-----
-----
-----
R&S
100512
2018.08.20
2019.08.19
R&S
100513
2018.08.20
2019.08.19
12
13
14
9.080m×5.255m×3.525m
Shielding room
HF 907 Double-Ridged
Waveguide Horn Antenna
HF 907 Double-Ridged
Waveguide Horn Antenna
15
HL562 Ultra log antenna
R&S
100016
2018.08.20
2019.08.19
16
3160-09 Receive antenna
SCHWARZ-BECK
002058-002
2018.08.20
2019.08.19
17
ESI 40 EMI test receiver
R&S
100015
2018.08.20
2019.08.19
18
ESCS30 EMI test receiver
R&S
100029
2018.08.20
2019.08.19
19
HL562 Receive antenna
R&S
100167
2018.08.20
2019.08.19
20
ENV216 AMN
R&S
3560.6550.12
2018.08.20
2019.08.19
APPENDIX A – TEST DATA OF CONDUCTED EMISSION
Please refer to the attachment.
APPENDIX B – TEST DATA OF RADIATED EMISSION
Please refer to the attachment.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 23 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
APPENDIX A – TEST DATA OF CONDUCTED EMISSION
RF Power Output-FCC Part2.1046
GSM850
Antenna Gain=0.7dBi
GSM/GPRS MODE:
Carrier frequency
(MHz)
824.2
836.4
848.8
EDGE MODE:
Carrier frequency
(MHz)
824.2
836.4
848.8
Channel No.
128
189
251
Channel No.
128
189
251
RF Power Output
(dBm)
33.45
33.50
33.31
ERP
(dBm)
32.00
32.05
31.86
RF Power Output
(dBm)
33.24
33.26
33.34
ERP
(dBm)
31.79
31.81
31.89
RF Power Output
(dBm)
30.42
30.24
30.18
EIRP
(dBm)
32.02
31.84
31.78
RF Power Output
(dBm)
30.33
30.17
30.15
EIRP
(dBm)
31.93
31.77
31.75
PCS1900
Antenna Gain=1.6dBi
GSM/GPRS MODE:
Carrier frequency
(MHz)
1850.2
1880.0
1909.8
EDGE MODE:
Carrier frequency
(MHz)
1850.2
1880.0
1909.8
Channel No.
512
661
810
Channel No.
512
661
810
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 24 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Occupied Bandwidth-FCC Part2.1049
GSM850
GSM/GPRS MODE:
Carrier frequency
(MHz)
824.2
836.4
848.8
EDGE (GMSK) MODE:
Carrier frequency
(MHz)
824.2
836.4
848.8
Channel No.
128
189
251
Channel No.
128
189
251
Bandwidth of 99% Power
(kHz)
243.30
250.23
250.65
Bandwidth of 99% Power
(kHz)
241.69
247.53
244.42
PCS1900
GSM/GPRS MODE:
Carrier frequency
(MHz)
1850.2
1880.0
1909.8
EDGE (GMSK) MODE:
Carrier frequency
(MHz)
1850.2
1880.0
1909.8
Channel No.
512
661
810
Channel No.
512
661
810
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Bandwidth of 99% Power
(kHz)
249.11
243.07
247.42
Bandwidth of 99% Power
(kHz)
242.38
245.40
242.09
Page number: 25 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
GSM850
GSM/GPRS MODE:
Channel 128
Channel 189
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 26 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 251
EDGE (GMSK) MODE:
Channel 128
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 27 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 189
Channel 251
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 28 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
PCS1900
GSM/GPRS MODE:
Channel 512
Channel 661
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 29 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 810
EDGE (GMSK) MODE:
Channel 512
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 30 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 661
Channel 810
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 31 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Emission Bandwidth-FCC Part 22.917(b)/Part 24.238(b)
GSM850
GSM/GPRS MODE:
Carrier frequency
(MHz)
824.2
836.4
848.8
EDGE (GMSK) MODE:
Carrier frequency
(MHz)
824.2
836.4
848.8
Channel No.
128
189
251
Channel No.
128
189
251
Bandwidth of -26dB
transmitter power (kHz)
315.3
316.3
323.5
Bandwidth of -26dB
transmitter power (kHz)
314.1
314.7
313.2
PCS1900
GSM/GPRS MODE:
Carrier frequency
(MHz)
1850.2
1880.0
1909.8
EDGE (GMSK) MODE:
Carrier frequency
(MHz)
1850.2
1880.0
1909.8
Channel No.
512
661
810
Channel No.
512
661
810
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Bandwidth of -26dB
transmitter power (kHz)
312.5
304.3
312.6
Bandwidth of -26dB
transmitter power (kHz)
314.3
312.3
311.6
Page number: 32 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Spurious Emissions at antenna terminal- FCC Part 2.1051/ 22.917(a) /Part 24.238(a)
GSM850
GSM/GPRS MODE:
Channel 189, 30MHz~824MHz
Channel 189, 824MHz~849MHz
Note: The signal beyond the limit is the signal transmitted by EUT.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 33 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 189, 849MHz~9GHz
EDGE (GMSK) MODE:
Channel 189, 30MHz~824MHz
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 34 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 189, 824MHz~849MHz
Note: The signal beyond the limit is the signal transmitted by EUT.
Channel 189, 849MHz~9GHz
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 35 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
PCS1900
GSM/GPRS MODE:
Channel 661, 30MHz~1850MHz
Channel 661, 1850MHz~1910MHz
Note: The signal beyond the limit is the signal transmitted by EUT.
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 36 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 661, 1910MHz~20GHz
EDGE (GMSK) MODE:
Channel 661, 30MHz~1850MHz
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 37 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Channel 661, 1850MHz~1910MHz
Note: The signal beyond the limit is the signal transmitted by EUT.
Channel 661, 1910MHz~20GHz
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 38 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Band Edges Compliance- FCC Part 2.1051/ 22.917(a) /Part 24.238(a)
GSM850
GSM/GPRS MODE:
Channel 128
Channel 251
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 39 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
EDGE (GMSK) MODE:
Channel 128
Channel 251
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 40 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
PCS1900
GSM/GPRS MODE:
Channel 512
Channel 810
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 41 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
EDGE (GMSK) MODE:
Channel 512
Channel 810
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 42 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Frequency Stability- FCC Part 2.1055/22.355 /Part 24.235
GSM850
GSM/GPRS MODE:
Temperature(°C)
-10
+10
+20
+30
+40
+50
+55
Voltage
LV
HV
Channel 128
0.011
0.007
0.008
0.009
0.010
0.014
0.012
0.012
Test Result (ppm)@NV
Channel 189
0.013
0.014
0.015
0.016
0.012
0.011
0.010
0.010
Channel 251
0.013
0.013
0.012
0.012
0.015
0.011
0.017
0.019
Channel 128
0.010
0.013
Test Result (ppm)@NT
Channel 189
0.009
0.011
Channel 251
0.012
0.011
Channel 128
0.011
0.007
0.006
0.009
-0.010
0.012
0.012
0.015
Test Result (ppm)@NV
Channel 189
0.013
0.011
0.013
0.012
0.012
0.011
-0.010
0.010
Channel 251
0.012
0.013
0.012
0.016
0.015
0.011
0.012
0.012
Channel 128
0.011
0.008
Test Result (ppm)@NT
Channel 189
0.010
0.016
Channel 251
0.012
0.013
EDGE (GMSK) MODE:
Temperature(°C)
-10
+10
+20
+30
+40
+50
+55
Voltage
LV
HV
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 43 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
PCS1900
GSM/GPRS MODE:
Temperature(°C)
-10
+10
+20
+30
+40
+50
+55
Voltage
LV
HV
Channel 512
0.011
0.012
0.006
0.013
0.010
0.012
0.014
0.012
Test Result (ppm)@NV
Channel 661
0.013
0.011
0.008
0.012
0.012
0.011
0.010
0.010
Channel 810
0.013
0.013
0.018
0.011
0.015
0.011
0.012
0.012
Channel 512
0.011
0.013
Test Result (ppm)@NT
Channel 661
0.013
0.009
Channel 810
0.011
0.012
Channel 512
-0.011
0.007
0.006
-0.009
0.010
-0.012
0.015
0.012
Test Result (ppm)@NV
Channel 661
0.034
-0.011
0.015
0.012
0.012
-0.011
0.017
-0.010
Channel 810
0.013
0.013
0.027
-0.012
0.015
0.017
0.012
0.012
Channel 512
0.024
0.017
Test Result (ppm)@NT
Channel 661
0.032
0.026
Channel 810
0.004
0.021
EDGE (GMSK) MODE:
Temperature(°C)
-10
+10
+20
+30
+40
+50
+55
Voltage
LV
HV
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 44 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Peak-Average Ratio -FCC Part 24.232(d)
PCS1900
GSM/GPRS MODE:
EDGE (GMSK) MODE:
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 45 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
GSM850
GSM/GPRS MODE:
EDGE (GMSK) MODE:
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 46 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
APPENDIX B – TEST DATA OF RADIATED EMISSION
Main Supply Test Result
GSM850 Test result:
GSM/GPRS MODE Channel 128:
Frequency (MHz)
1649.53
1666.84
2535.18
2575.59
8964.95
9969.06
EDGE (GMSK) MODE Channel 128:
Frequency (MHz)
Power
(dBm)
-52.26
-50.88
-43.66
-43.91
-39.79
-36.71
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Power
(dBm)
-52.18
-51.49
-43.62
-43.75
-39.48
-36.06
Limited
(dBm)
-13
-13
-13
-13
-13
-13
1648.99
1666.59
2534.48
2574.15
8965.01
9968.49
GSM/GPRS MODE Channel 189:
Power
Frequency (MHz)
(dBm)
1647.82
-52.67
1665.90
-51.36
2535.24
-44.04
2575.39
-43.45
8962.03
-39.62
9969.03
-36.52
EDGE (GMSK) MODE Channel 189:
Power
Frequency (MHz)
(dBm)
1647.04
-52.33
1667.18
-51.37
2535.02
-43.96
2575.16
-44.36
8961.95
-39.63
9971.59
-36.13
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
Page number: 47 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
GSM/GPRS MODE Channel 251:
Power
Frequency (MHz)
(dBm)
1648.88
-52.41
1665.60
-50.74
2533.67
-44.33
2576.47
-44.39
8963.99
-39.51
9969.66
-36.35
EDGE (GMSK) MODE Channel 251:
Power
Frequency (MHz)
(dBm)
1647.19
-52.97
1666.45
-51.30
2536.52
-43.67
2576.84
-44.06
8963.01
-40.05
9971.38
-35.93
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
GSM1900 Test result:
GSM/GPRS MODE Channel 512
Frequency (MHz)
2458.14
2777.21
3729.64
6679.49
9959.18
17823.15
EDGE (GMSK) MODE Channel 512:
Frequency (MHz)
2460.00
2777.18
3727.93
6679.05
9961.55
17820.64
Power
(dBm)
-48.91
-47.57
-40.35
-40.46
-37.31
-34.22
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Power
(dBm)
-49.62
-48.06
-40.95
-39.76
-36.85
-34.52
Limited
(dBm)
-13
-13
-13
-13
-13
-13
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Horizontal
Page number: 48 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
GSM/GPRS MODE Channel 661:
Frequency (MHz)
2457.98
2777.62
3727.32
6679.06
9962.14
17822.11
Power
(dBm)
-49.16
-47.79
-40.68
-40.09
-37.72
-34.11
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Power
(dBm)
-49.13
-47.71
-40.07
-40.54
-37.14
-34.51
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Power
(dBm)
-49.41
-47.82
-40.84
-39.63
-37.01
-33.82
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Power
(dBm)
-49.07
-47.80
-40.15
-40.00
-36.95
-34.47
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
EDGE (GMSK) MODE Channel 661:
Frequency (MHz)
2457.92
2779.50
3726.17
6677.95
9961.95
17824.16
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
GSM/GPRS MODE Channel 810:
Frequency (MHz)
2456.81
2778.59
3727.74
6677.64
9961.81
17820.65
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
EDGE (GMSK) MODE Channel 810:
Frequency (MHz)
2456.88
2778.31
3726.94
6679.57
9960.00
17821.76
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Horizontal
Page number: 49 of 50
20170515V1.0.0
No.: SRTC2018-9004(F)- 18111202(A)
FCC ID: 2ADOBKS605
Second Supply Worst Case Test Result
GSM Mode:
GSM/GPRS MODE Channel 189:
Power
Frequency (MHz)
(dBm)
1646.29
-52.16
1665.29
-51.33
2535.15
-43.76
2574.80
-43.62
8961.47
-39.31
9971.93
-36.44
Limited
(dBm)
-13
-13
-13
-13
-13
-13
Polarization
Vertical
Vertical
Vertical
Vertical
Vertical
Vertical
---End of Test Report---
The State Radio_monitoring_center Testing Center (SRTC)
Tel: 86-10-57996183
Fax: 86-10-57996388
Page number: 50 of 50
20170515V1.0.0
Download: KS605 Mobile Phone ( with BT,WIFI,GSM,WCDMA) Test Report _PCE_GSM Hisense International Co.,Ltd
Mirror Download [FCC.gov]KS605 Mobile Phone ( with BT,WIFI,GSM,WCDMA) Test Report _PCE_GSM Hisense International Co.,Ltd
Document ID4119177
Application IDaBPo5aEFMa7oVooS4jY2CA==
Document DescriptionTest Report_PCE_GSM
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize425.44kB (5317990 bits)
Date Submitted2018-12-27 00:00:00
Date Available2018-12-27 00:00:00
Creation Date2018-12-21 11:28:12
Document Lastmod2018-12-24 11:14:30
Document TitleTest Report_PCE_GSM
Document CreatorDoro PDF Writer [1.92] [http://j.mp/the_sz]

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.3
Linearized                      : No
XMP Toolkit                     : Adobe XMP Core 5.6-c015 81.157285, 2014/12/12-00:43:15
Create Date                     : 2018:12:21 11:28:12+08:00
Creator Tool                    : Doro PDF Writer [1.92] [http://j.mp/the_sz]
Modify Date                     : 2018:12:24 11:14:30+08:00
Metadata Date                   : 2018:12:24 11:14:30+08:00
Format                          : application/pdf
Description                     : SRTC2018-9004F-18111202A FCC GSM RF Test Report_Main
Creator                         :
Title                           : SRTC2018-9004F-18111202A FCC GSM RF Test Report_Main
Producer                        :
Document ID                     : uuid:6fb76410-64d3-47cf-8769-33ed27a1eb94
Instance ID                     : uuid:8057faef-d01e-4220-8f4b-c25430fe9879
Page Count                      : 51
Author                          :
Keywords                        : SRTC2018-9004F-18111202A, FCC, GSM, RF, Test, Report_Main
Subject                         : SRTC2018-9004F-18111202A FCC GSM RF Test Report_Main
