FCC ID 2ADQY-525824
High-Power Wireless AC600 Outdoor Access Point / Repeater
by Intracom Asia Co., Ltd.
Grantee Code: 2ADQY Product Code: 525824
Latest application date: 2016-03-15
Device Images
FCC ID Device Details
| FCC ID | 2ADQY-525824 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADQY |
| Product Code | 525824 |
| Applicant Business | Intracom Asia Co., Ltd. 🇹🇼 |
| Related Domains |  icintracom.com |
| Equipment Class | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Test Firm | Shenzhen SEM.Test Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-03-15 |
| 5180-5240 MHz | Original Equipment | 2016-03-15 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual Rev.2 Metadata only | Users Manual | 2016-03-15 | PDF 2.8 MB |
| User Manual Revised | Users Manual | 2016-03-15 | PDF 2.8 MB |
| Users Manual | Users Manual | 2016-03-15 | PDF 2.8 MB |
| Internal Photos | Internal Photos | 2016-03-15 | PDF 2.3 MB |
| External Photos | External Photos | 2016-03-15 | PDF 449.1 KB |
| Label & Label Location | ID Label/Location Info | 2016-03-15 | PDF 69.2 KB |

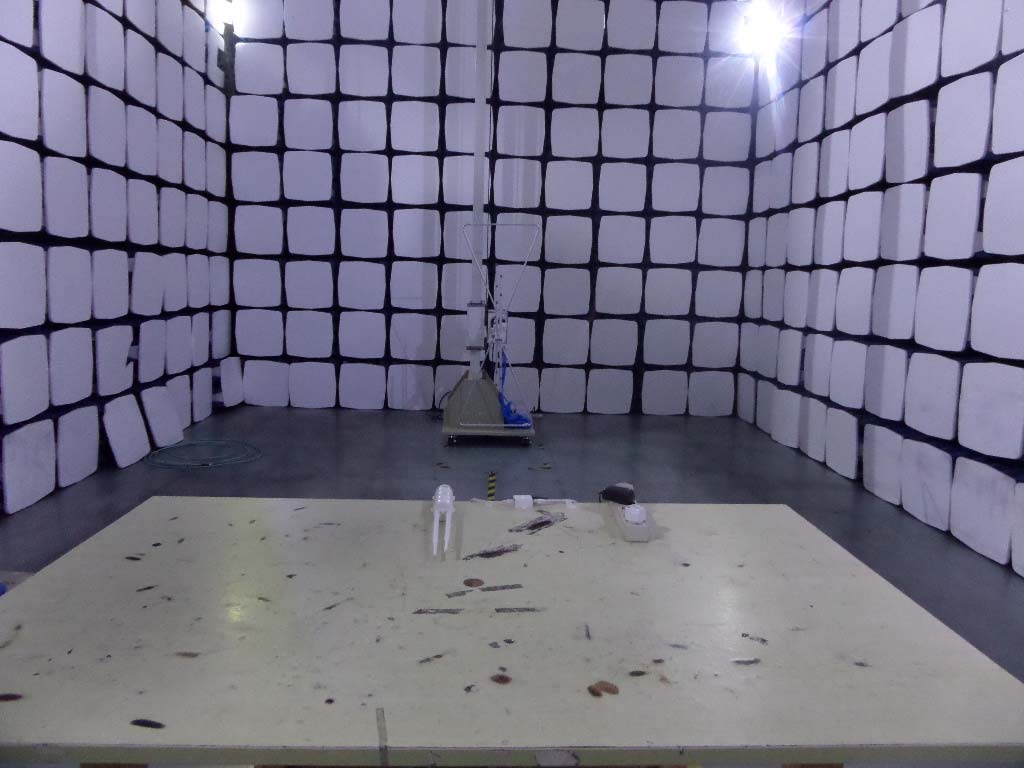

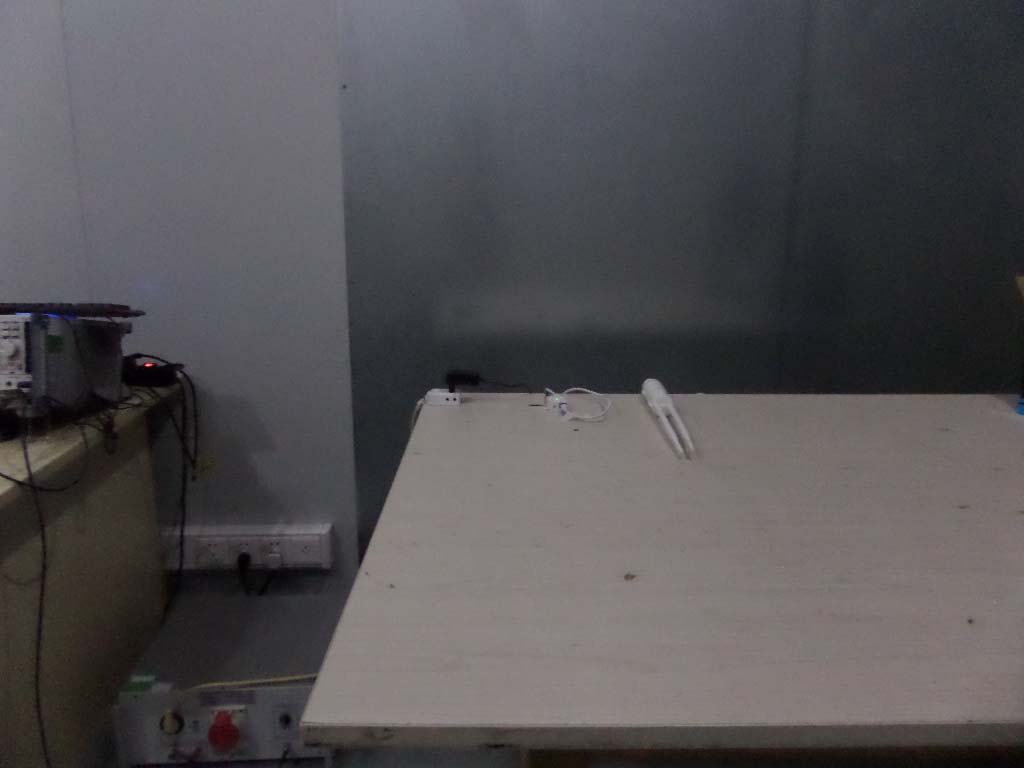

| Test Setup Photos DTS + NII | Test Setup Photos | 2016-03-15 | PDF 201.7 KB |
| Test Setup Photos JBP | Test Setup Photos | 2016-03-15 | PDF 114 KB |
| RF Emission Co-Location | Test Report | 2016-03-15 | PDF 25.2 KB |
| Test Report DTS | Test Report | 2016-03-15 | PDF 752.1 KB |
| Test Report JBP | Test Report | 2016-03-15 | PDF 134 KB |
| Test Report NII | Test Report | 2016-03-15 | PDF 3.6 MB |
| Test Report NII Rev.2 Metadata only | Test Report | 2016-03-15 | PDF 4.4 MB |
| Test Report Revised | Test Report | 2016-03-15 | PDF 3.6 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-03-15 | PDF 165.1 KB |
| Cover Letter | Cover Letter(s) | 2016-03-15 | PDF 123.3 KB |
| Power of Attorney | Cover Letter(s) | 2016-03-15 | PDF 145.1 KB |
| RF Exposure | RF Exposure Info | 2016-03-15 | PDF 31.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 76.1 KB | |
| Schematics Metadata only | Schematics | PDF 300.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 68.8 KB | |
| Operational Description Antenna Spec for 2.4G Metadata only | Operational Description | PDF 404 KB | |
| Operational Description Antenna Spec for 5G Metadata only | Operational Description | PDF 663.4 KB | |
| Operational Description Antenna Specification for 5G Metadata only | Operational Description | PDF 208.8 KB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 194.2 KB |
Application Information
| Application ID | ldMctBMh2tz2jvRxd5rn3w== |
|---|---|
| Final Action Date | 2016-03-15 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024131906 |
| Model | 525824 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Responsible Party | Amy Zhong, Category Manager, amyzhong@icintracom.com , 86-769-8539-1645 |
| Test Firm | Jandy So, Shenzhen SEM.Test Technology Co., Ltd., jandyso@semtest.com.cn  , 086-755-33663308 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth. The maximum antenna gain is 7dBi. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| ldMctBMh2tz2jvRxd5rn3w== | 2016-03-15 | Original Equipment |
| eSdwuvfR3C/vy1g5d1f2uQ== | 2016-03-15 | Original Equipment |
| MuC6oV5P8ouCLlT2RTUcxg== | 2016-03-15 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application MuC6oV5P8ouCLlT2RTUcxg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/15/2016 Application Dated: 02/24/2016 |
| Intracom Asia Co., Ltd. |
| 4F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., |
| New Taipei City 221,Taiwan |
| New Taipei, Taiwan |
| Attention: Amy Zhong , Category Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADQY-525824 |
| Name of Grantee: | Intracom Asia Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.0366 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.0267 |
| Power listed is conducted. Professional installation is required for outdoor operations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz, 40MHz and 80MHz bandwidth. The maximum antenna gain is 7dBi. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application MuC6oV5P8ouCLlT2RTUcxg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Intracom Asia Co., Ltd. 4F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221,Taiwan New Taipei, Taiwan |
Date of Grant: 03/15/2016 Application Dated: 02/24/2016 |
| Attention: Amy Zhong , Category Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADQY-525824 |
| Name of Grantee: | Intracom Asia Co., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.0366 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.0267 |
| Power listed is conducted. Professional installation is required for outdoor operations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz, 40MHz and 80MHz bandwidth. The maximum antenna gain is 7dBi. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/15/2016 Application Dated: 02/24/2016 |
| Intracom Asia Co., Ltd. |
| 4F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., |
| New Taipei City 221,Taiwan |
| New Taipei, Taiwan |
| Attention: Amy Zhong , Category Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADQY-525824 |
| Name of Grantee: | Intracom Asia Co., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0977 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth. The maximum antenna gain is 7dBi. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application ldMctBMh2tz2jvRxd5rn3w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Intracom Asia Co., Ltd. 4F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221,Taiwan New Taipei, Taiwan |
Date of Grant: 03/15/2016 Application Dated: 02/24/2016 |
| Attention: Amy Zhong , Category Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADQY-525824 |
| Name of Grantee: | Intracom Asia Co., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0977 |
| Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Installers and end-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz and 40MHz bandwidth. The maximum antenna gain is 7dBi. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/15/2016 Application Dated: 02/24/2016 |
| Intracom Asia Co., Ltd. |
| 4F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., |
| New Taipei City 221,Taiwan |
| New Taipei, Taiwan |
| Attention: Amy Zhong , Category Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADQY-525824 |
| Name of Grantee: | Intracom Asia Co., Ltd. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application eSdwuvfR3C/vy1g5d1f2uQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Intracom Asia Co., Ltd. 4F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221,Taiwan New Taipei, Taiwan |
Date of Grant: 03/15/2016 Application Dated: 02/24/2016 |
| Attention: Amy Zhong , Category Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADQY-525824 |
| Name of Grantee: | Intracom Asia Co., Ltd. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | High-Power Wireless AC600 Outdoor Access Point / Repeater |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
