SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
No. 1 Workshop, M-10, Middle section, Science & Technology Park,
Shenzhen, Guangdong, China 518057
Telephone:
Fax:
Email:
Report No.: SZEM180100078003
Page:
1 of 7
+86 (0) 755 2601 2053
+86 (0) 755 2671 0594
ee.shenzhen@sgs.com

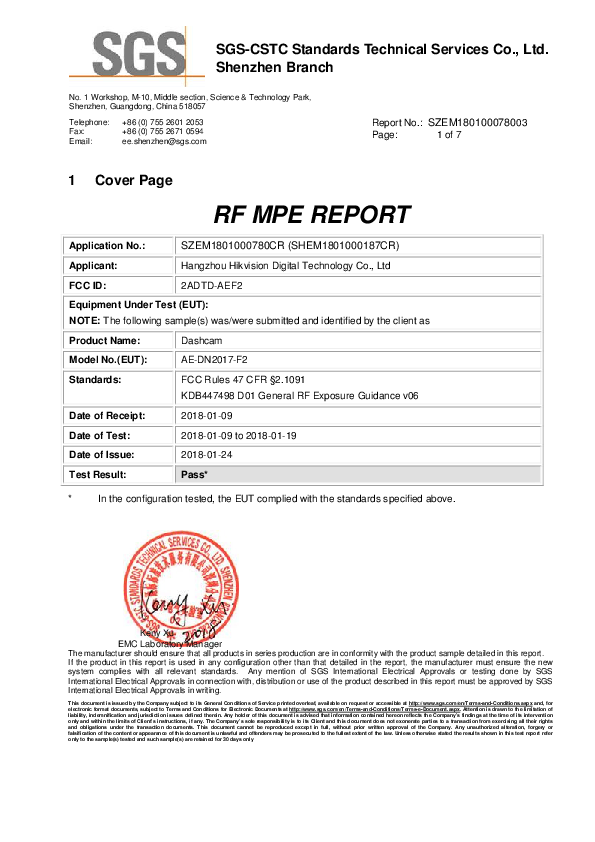

Cover Page
RF MPE REPORT
Application No.:
SZEM1801000780CR (SHEM1801000187CR)
Applicant:
Hangzhou Hikvision Digital Technology Co., Ltd
FCC ID:
2ADTD-AEF2
Equipment Under Test (EUT):
NOTE: The following sample(s) was/were submitted and identified by the client as
Product Name:
Dashcam
Model No.(EUT):
AE-DN2017-F2
Standards:
FCC Rules 47 CFR §2.1091
KDB447498 D01 General RF Exposure Guidance v06
Date of Receipt:
2018-01-09
Date of Test:
2018-01-09 to 2018-01-19
Date of Issue:
2018-01-24
Test Result:
Pass*
In the configuration tested, the EUT complied with the standards specified above.
Keny Xu
EMC Laboratory Manager
The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report.
If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new
system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS
International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS
International Electrical Approvals in writing.
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for
electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of
liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention
only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or
falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer
only to the sample(s) tested and such sample(s) are retained for 30 days only
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM180100078003
Page:
2 of 7
Revision Record
Version
Chapter
Date
Modifier
00
2018-01-24
Remark
Original
Authorized for issue by:
2018-01-24
Foray Chen /Project Engineer
2018-01-24
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at
www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at
www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this
document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s
instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction
documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification
of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results
shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM180100078003
Page:
3 of 7
Contents
Page
COVER PAGE ................................................................................................................................................. 1
CONTENTS ..................................................................................................................................................... 3
GENERAL INFORMATION ......................................................................................................................... 4
3.1
CLIENT INFORMATION.................................................................................................................................... 4
3.1
GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4
3.2
TECHNICAL SPECIFICATIONS .......................................................................................................................... 4
3.3
TEST LOCATION ............................................................................................................................................. 5
3.4
TEST FACILITY ............................................................................................................................................... 5
TEST STANDARDS AND LIMITS ............................................................................................................... 6
4.1
FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................. 6
MEASUREMENT AND CALCULATION ................................................................................................... 6
5.1
MAXIMUM TRANSMIT POWER ........................................................................................................................ 6
5.2
MPE CALCULATION....................................................................................................................................... 7
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at
www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at
www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this
document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s
instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction
documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification
of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results
shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM180100078003
Page:
4 of 7
General Information
3.1 Client Information
Applicant:
Hangzhou Hikvision Digital Technology Co., Ltd.
Address of Applicant:
No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Manufacturer:
Hangzhou Hikvision Digital Technology Co.
Address of Manufacturer:
No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Factory:
1. Hangzhou Hikvision Technology Co., Ltd.
2. Hangzhou Hikvision Electronics Co., Ltd.
Address of Factory:
1. No.700, Dongliu Road, Binjiang District, Hangzhou Ctiy,Zhejiang,
310052, China
2. No.299, Qiushi Road,Tonglu Economic Development Zone,Tonglu
County, Hangzhou,Zhejiang,310052,China.
3.1 General Description of E.U.T.
Brand Name:
HIKVISION
Product Description:
Mobile product with WiFi function
Rated Input:
DC 5V via USB port
Test Voltage:
DC 5V by Car Charger
Model No.:
Rated Input:
Car Charger:
Rated Output:
Cable length:
C10
INPUT:DC 12/24V 2.5A MAX
OUTPUT 1:DC 5.0V 1A MAX
OUTPUT 2:DC 5.0V 2.1A MAX(For test)
Input port:
0 cm
USB port:
400 cm
3.2 Technical Specifications
Operation Frequency:
Modulation Technique:
Number of Channel:
Data Rate:
Antenna Type:
Antenna Gain:
802.11 b/g/n(HT20): 2412MHz-2462MHz
802.11 b DSSS(CCK, DQPSK, DBPSK)
802.11 g/n(OFDM(64QAM, 16QAM, QPSK, BPSK)
802.11 b/g/n(HT20): 11
802.11b: 1/2/5.5/11Mbps,
802.11g: 6/9/12/18/24/36/48/54Mbps
802.11n: 13/26/39/52/78/104/117/135Mbps
PCB Antenna
1 dBi
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at
www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at
www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this
document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s
instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction
documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification
of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results
shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM180100078003
Page:
5 of 7
3.3 Test Location
All tests were performed at:
SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch
No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Shenzhen, Guangdong, China.
518057.
Tel: +86 755 2601 2053
Fax: +86 755 2671 0594
3.4 Test Facility
The test facility is recognized, certified, or accredited by the following organizations:
• CNAS (No. CNAS L2929)
CNAS has accredited SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC
Lab to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration
Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration
Laboratories) for the competence in the field of testing.
• A2LA (Certificate No. 3816.01)
SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the
American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01.
• VCCI
The 10m Semi-anechoic chamber and Shielded Room of SGS-CSTC Standards Technical Services
Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures
with Registration No.: G-823, R-4188, T-1153 and C-2383 respectively.
• FCC –Designation Number: CN1178
SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been
recognized as an accredited testing laboratory.
Designation Number: CN1178. Test Firm Registration Number: 406779.
• Industry Canada (IC)
Two 3m Semi-anechoic chambers and the 10m Semi-anechoic chamber of SGS-CSTC Standards
Technical Services Co., Ltd. Shenzhen Branch EMC Lab have been registered by Certification and
Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 4620C-1,
4620C-2, 4620C-3.
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at
www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at
www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this
document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s
instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction
documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification
of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results
shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM180100078003
Page:
6 of 7
Test Standards and Limits
4.1 FCC Radiofrequency radiation exposure limits:
According to§1.1310, the limit for general population/uncontrolled exposures
Frequency
Power density(mW/cm2)
Averaging time(minutes)
300MHz~1.5GHz
f/1500
30
1.5GHz~100GHz
1.0
30
Measurement and Calculation
5.1 Maximum transmit power
The Power Data is based on the RF Test Report SZEM180100078002.
Test Mode
Test Channel
Power[dBm]
Power (mW)
11B
2412
15.60
36.31
11B
2437
15.51
35.56
11B
2462
15.54
35.81
11G
2412
13.96
24.89
11G
2437
13.81
24.04
11G
2462
13.85
24.27
11N20SISO
2412
13.20
20.89
11N20SISO
2437
13.21
20.94
11N20SISO
2462
13.12
20.51
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at
www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at
www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this
document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s
instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction
documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification
of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results
shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only
SGS-CSTC Standards Technical Services Co., Ltd.
Shenzhen Branch
Report No.: SZEM180100078003
Page:
7 of 7
5.2 MPE Calculation
The best case gain of the antenna is 1 dBi. 1dB logarithmic terms convert to numeric result is nearly
1.26.
The Max Conducted Average Output Power is 36.31mW);
For FCC:
According to the formula S=
PG
, we can calculate S which is MPE.
4R 2π
Note:
dBm
1) P (Watts) =Power Input to antenna = 10 10 / 1000
2) G (Antenna gain in numeric) = 10^ (Antenna gain in dBi /10)
3) R = distance to the center of radiation of antenna (in meter) = 20cm
4) MPE limit = 1mW/cm²
WiFi: S=
36.31 × 1.26
PG
=0.0091 mW/cm2
400
.1
×
×
4R π
So the device is exclusion from SAR test.
--End of the Report--
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at
www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at
www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this
document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s
instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights
and obligations under the transaction
documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification
of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results
shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only
Download: AEF2 Dashcam RF Exposure Info SZEM180100078003CR-187CR-MPE Hangzhou Hikvision Digital Technology Co., Ltd.
Mirror Download [FCC.gov]AEF2 Dashcam RF Exposure Info SZEM180100078003CR-187CR-MPE Hangzhou Hikvision Digital Technology Co., Ltd.
Document ID3745162
Application IDoBLU7N7YV6e26A7EjDKHVQ==
Document DescriptionRF Exposure Info
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize8.46kB (105769 bits)
Date Submitted2018-02-08 00:00:00
Date Available2018-02-08 00:00:00
Creation Date2018-02-07 18:49:06
Producing SoftwareGPL Ghostscript 8.64
Document Lastmod2018-02-07 10:49:07
Document TitleSZEM180100078003CR-187CR-MPE
Document CreatorPScript5.dll Version 5.2.2
Document Author: Eddy_Zong

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.3
Linearized                      : No
Encryption                      : Standard V2.3 (128-bit)
User Access                     : Print, Print high-res
Page Count                      : 7
Create Date                     : 2018:02:07 18:49:06+08:00
Title                           : Microsoft Word - SZEM180100078003CR-187CR-MPE.doc
Producer                        : GPL Ghostscript 8.64
Author                          : Eddy_Zong
Creator                         : PScript5.dll Version 5.2.2
Modify Date                     : 2018:02:07 10:49:07Z
