FCC ID 2ADUX-ELD200
RapidLog ELD 200
by Eclipse Software Systems, LLC
Grantee Code: 2ADUX Product Code: ELD200
Latest application date: 2015-09-17
Device Images
FCC ID Device Details
| FCC ID | 2ADUX-ELD200 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADUX |
| Product Code | ELD200 |
| Applicant Business | Eclipse Software Systems, LLC 🇺🇸 |
| Related Domains |  rapidlog.com |
| Equipment Class | RapidLog ELD 200 |
| Test Firm | Shenzhen STS Test Services Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.7-848.31 MHz | Original Equipment | 2015-09-17 |
| 2412-2462 MHz | Original Equipment | 2015-09-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2015-09-17 | PDF 748.7 KB |

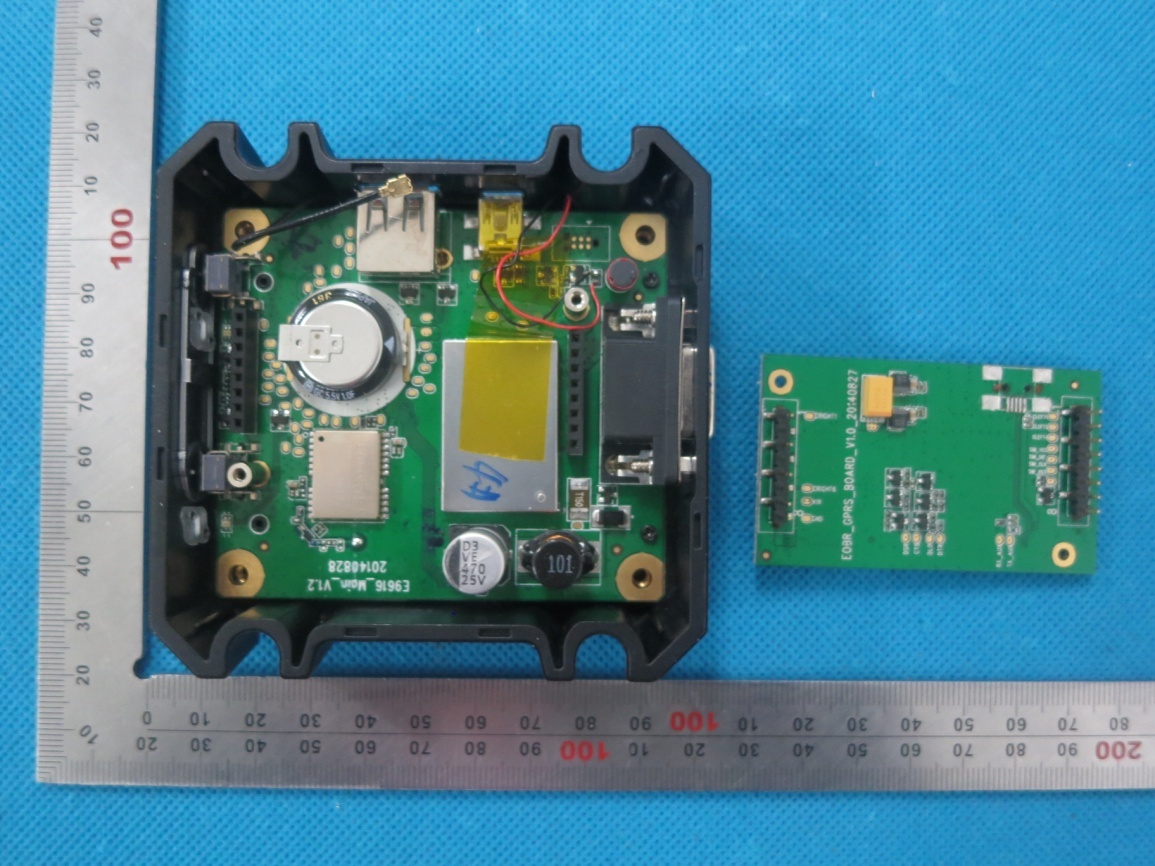

| Internal Photos | Internal Photos | 2015-09-17 | PDF 2.3 MB |

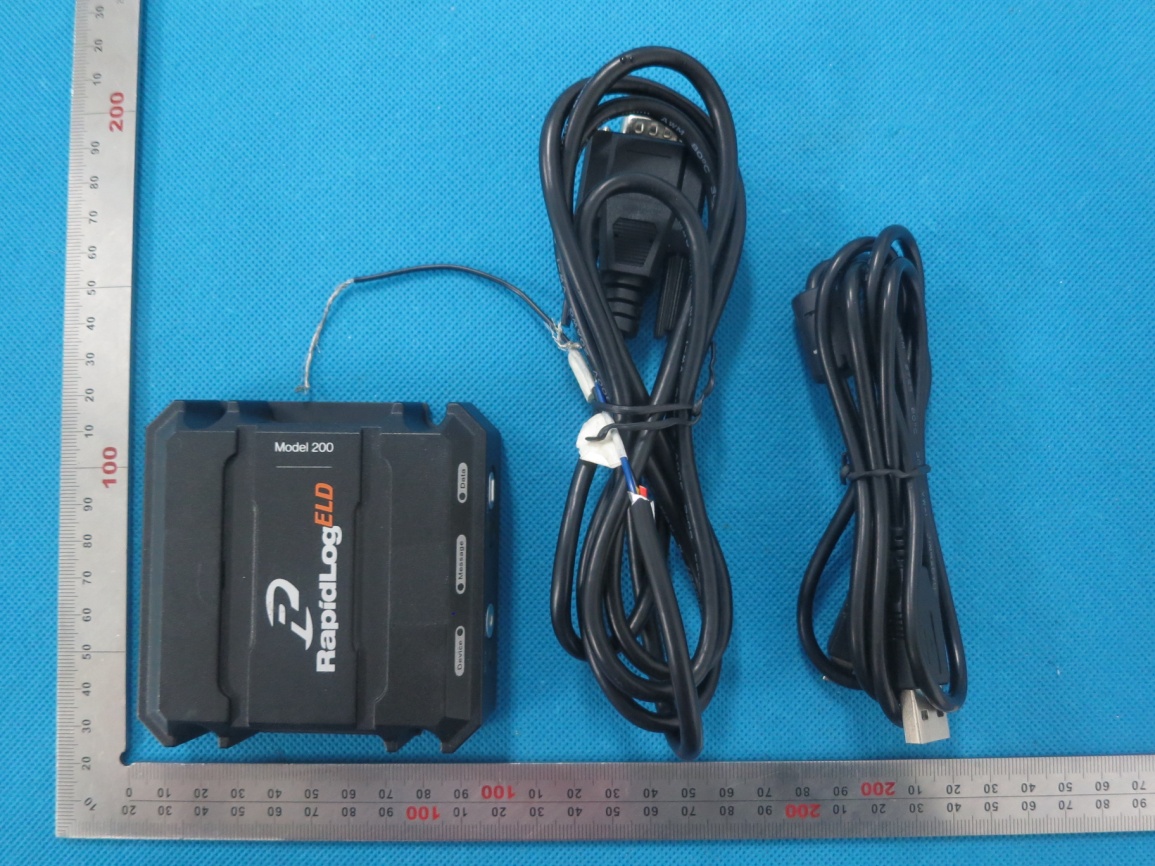

| External Photos | External Photos | 2015-09-17 | PDF 1.9 MB |
| Label | ID Label/Location Info | 2015-09-17 | PDF 334.6 KB |

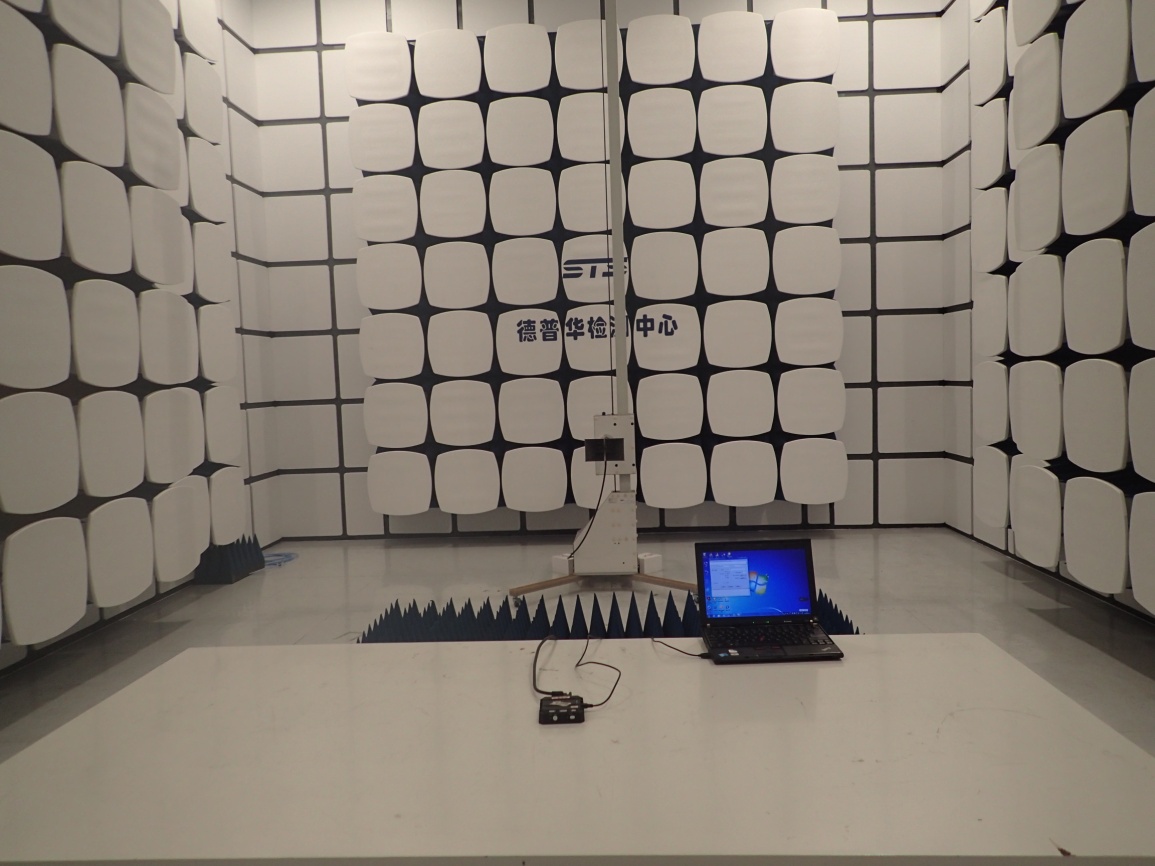

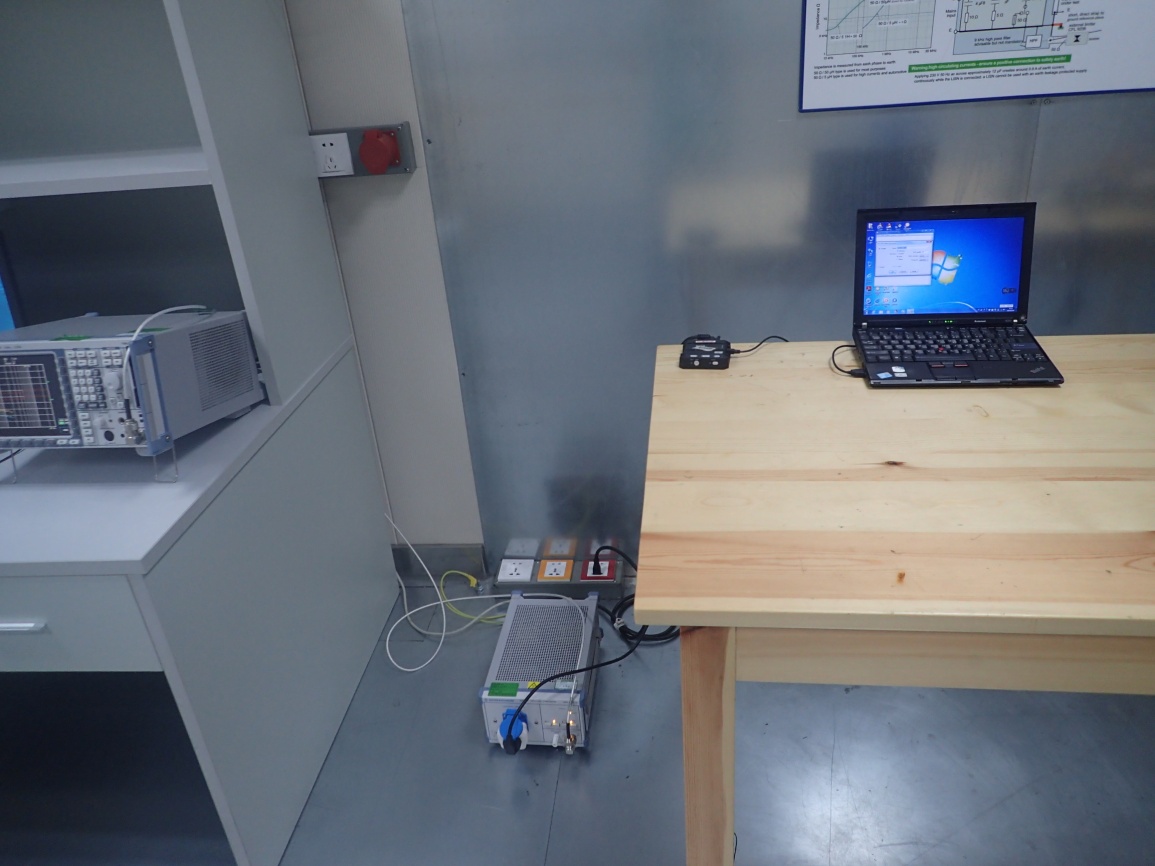

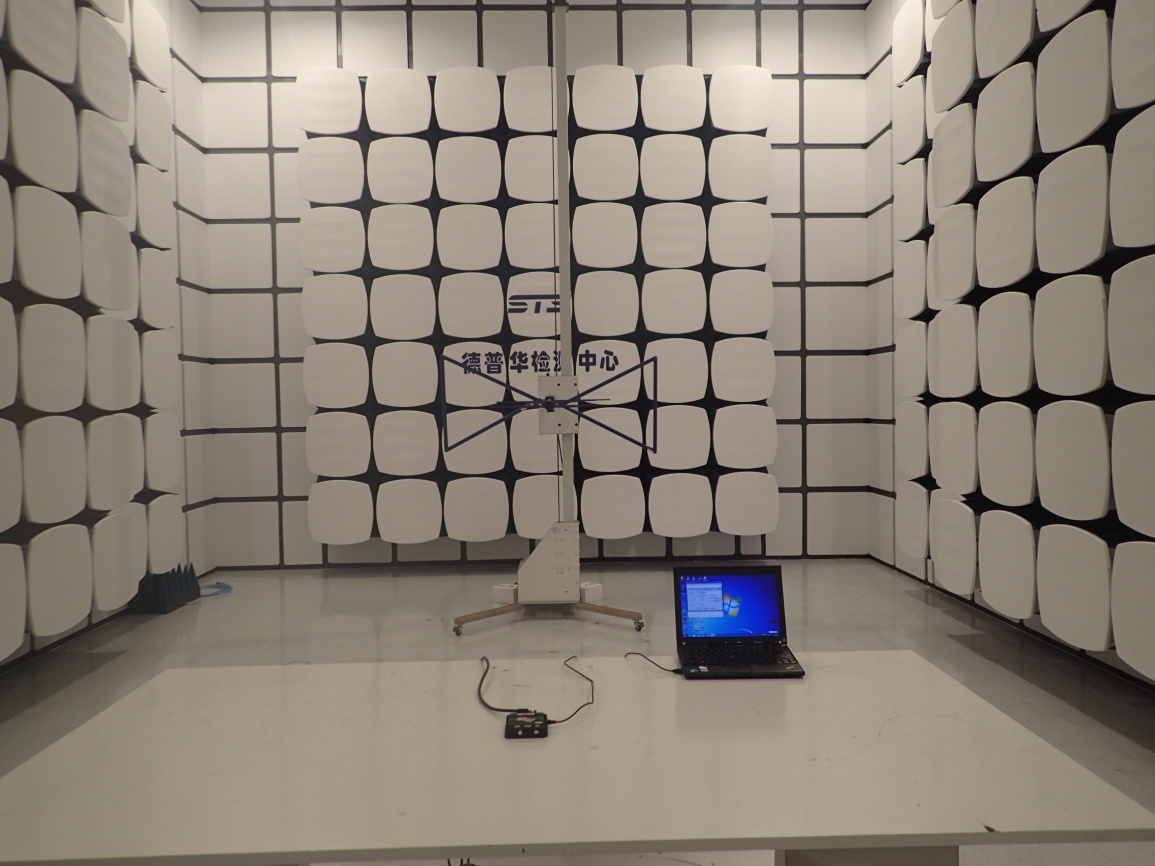

| Test Setup Photos | Test Setup Photos | 2015-09-17 | PDF 650.4 KB |
| Test Report | Test Report | 2015-09-17 | PDF 1.7 MB |
| Test Report | Test Report | 2015-09-17 | PDF 1.6 MB |
| Test Report | Test Report | 2015-09-17 | PDF 5.7 MB |
| Attestation | Attestation Statements | 2015-09-17 | PDF 18 KB |
| Confidentiality Letter | Cover Letter(s) | 2015-09-17 | PDF 20.7 KB |
| RF Exposure Report | RF Exposure Info | 2015-09-17 | PDF 92 KB |
| Block Diagram Metadata only | Block Diagram | PDF 34.3 KB | |
| Schematics Metadata only | Schematics | PDF 268.4 KB | |
| Schematics Metadata only | Schematics | PDF 294.2 KB | |
| Schematics II Metadata only | Schematics | PDF 137.7 KB | |
| Operating Description Metadata only | Operational Description | PDF 90.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 8.6 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 153.3 KB | |
| Parts List II Metadata only | Parts List/Tune Up Info | PDF 65.3 KB | |
| Tune up Metadata only | Parts List/Tune Up Info | PDF 105.4 KB |
Application Information
| Application ID | z3D5tywUE3Axj99PXUI+uQ== |
|---|---|
| Final Action Date | 2015-09-17 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024134058 |
| Model | ELD200 |
| Frequency Range | 824.7-848.31 MHz |
| Equipment Class | PCB - PCS Licensed Transmitter |
| Device Description | RapidLog ELD 200 |
| Responsible Party | Larry Steinbecker, larry-public001@rapidlog.com , 9709788118 |
| Test Firm | Bovey Yang, Shenzhen STS Test Services Co., Ltd., bovey@stsapp.com  , (86)-0755-61996328 |
| TCB Email | VKerai@tuvam.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power for Part 22H is ERP, for Part 24E is EIRP. The antenna used for this device must provide a separation distance of at least 20cm from all persons. End users must be informed of the requirements for satisfying RF Exposure requirements. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| z3D5tywUE3Axj99PXUI+uQ== | 2015-09-17 | Original Equipment |
| RCjCD2VsQEq/e+NpoYNYOQ== | 2015-09-17 | Original Equipment |
| 6HHWAKHG+jcRSMaHfeL7rw== | 2015-09-17 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application z3D5tywUE3Axj99PXUI+uQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Eclipse Software Systems, LLC |
| 8201 W 20th Street |
| Greeley, CO 80634 |
| Attention: Larry Steinbecker |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADUX-ELD200 |
| Name of Grantee: | Eclipse Software Systems, LLC |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | RapidLog ELD 200 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.7 - 848.31 | 0.24 | 0.04 PM | 1M43F9W | |
| 24E | 1851.25 - 1908.75 | 0.23 | 0.02 PM | 1M45F9W |
| Output power for Part 22H is ERP, for Part 24E is EIRP. The antenna used for this device must provide a separation distance of at least 20cm from all persons. End users must be informed of the requirements for satisfying RF Exposure requirements. |
EAS Grant - Application z3D5tywUE3Axj99PXUI+uQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Eclipse Software Systems, LLC 8201 W 20th Street Greeley, CO 80634 United States |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Attention: Larry Steinbecker |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADUX-ELD200 |
| Name of Grantee: | Eclipse Software Systems, LLC |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | RapidLog ELD 200 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.7 - 848.31 | 0.24 | 0.04 PM | 1M43F9W | |
| 24E | 1851.25 - 1908.75 | 0.23 | 0.02 PM | 1M45F9W |
| Output power for Part 22H is ERP, for Part 24E is EIRP. The antenna used for this device must provide a separation distance of at least 20cm from all persons. End users must be informed of the requirements for satisfying RF Exposure requirements. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Eclipse Software Systems, LLC |
| 8201 W 20th Street |
| Greeley, CO 80634 |
| Attention: Larry Steinbecker |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADUX-ELD200 |
| Name of Grantee: | Eclipse Software Systems, LLC |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | RapidLog ELD 200 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application RCjCD2VsQEq/e+NpoYNYOQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Eclipse Software Systems, LLC 8201 W 20th Street Greeley, CO 80634 United States |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Attention: Larry Steinbecker |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADUX-ELD200 |
| Name of Grantee: | Eclipse Software Systems, LLC |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | RapidLog ELD 200 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD BABT Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL United Kingdom |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Eclipse Software Systems, LLC |
| 8201 W 20th Street |
| Greeley, CO 80634 |
| Attention: Larry Steinbecker |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADUX-ELD200 |
| Name of Grantee: | Eclipse Software Systems, LLC |
| Equipment Class: | Digital Transmission System |
| Notes: | RapidLog ELD 200 |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.015 |
| Output Power is conducted. The antenna used for this device must provide a separation distance of at least 20cm from all persons. End users must be informed of the requirements for satisfying RF Exposure requirements. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 6HHWAKHG+jcRSMaHfeL7rw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Eclipse Software Systems, LLC 8201 W 20th Street Greeley, CO 80634 United States |
Date of Grant: 09/17/2015 Application Dated: 09/17/2015 |
| Attention: Larry Steinbecker |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADUX-ELD200 |
| Name of Grantee: | Eclipse Software Systems, LLC |
| Equipment Class: | Digital Transmission System |
| Notes: | RapidLog ELD 200 |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.015 |
| Output Power is conducted. The antenna used for this device must provide a separation distance of at least 20cm from all persons. End users must be informed of the requirements for satisfying RF Exposure requirements. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
