FCC ID 2ADWUP4005A
Mobile Phone
by ONE DIAMOND ELECTRONICS INC.
Grantee Code: 2ADWU Product Code: P4005A
Latest application date: 2016-03-30
Device Images
FCC ID Device Details
| FCC ID | 2ADWUP4005A |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADWU |
| Product Code | P4005A |
| Applicant Business | ONE DIAMOND ELECTRONICS INC. 🇺🇸 |
| Related Domains |  diamond-electronics.com |
| Equipment Class | Mobile Phone |
| Test Firm | Bay Area Compliance Laboratory Corp. (Shenzhen) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-03-30 |
| 2402-2480 MHz | Original Equipment | 2016-03-30 |
| 824.2-848.8 MHz | Original Equipment | 2016-03-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-03-30 | PDF 451.4 KB |

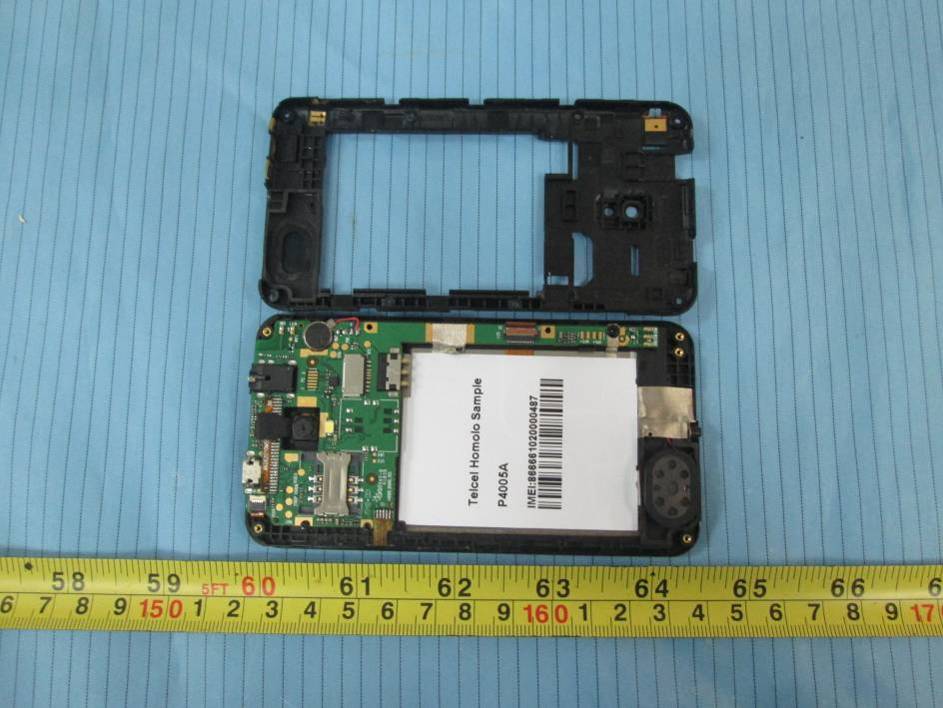

| Int Photos | Internal Photos | 2016-03-30 | PDF 503 KB |

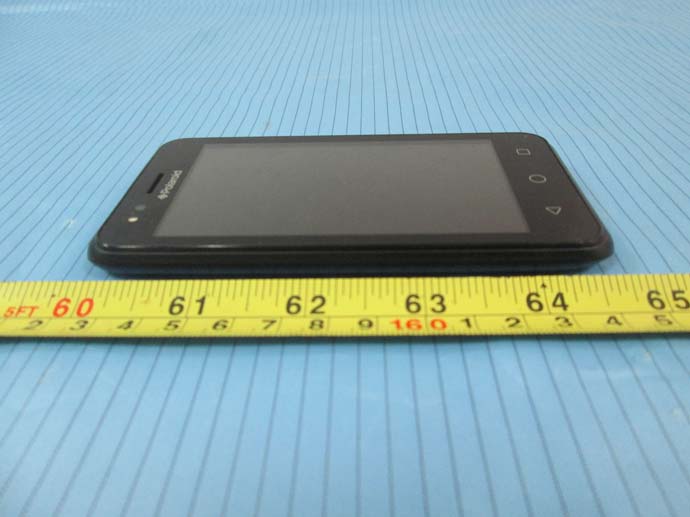

| Ext Photos | External Photos | 2016-03-30 | PDF 485.1 KB |
| FCC ID Label | ID Label/Location Info | 2016-03-30 | PDF 126.9 KB |
| Setup Photos | Test Setup Photos | 2016-03-30 | PDF 153.8 KB |
| Setup Photos | Test Setup Photos | 2016-03-30 | PDF 422.3 KB |
| Setup Photos | Test Setup Photos | 2016-03-30 | PDF 169.4 KB |
| Test Report | Test Report | 2016-03-30 | PDF 930.7 KB |
| Test Report | Test Report | 2016-03-30 | PDF 638 KB |
| Test Report | Test Report | 2016-03-30 | PDF 1,003.8 KB |
| Test Report | Test Report | 2016-03-30 | PDF 361.5 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-30 | PDF 320.3 KB |
| POA | Cover Letter(s) | 2016-03-30 | PDF 321.6 KB |
| SAR Report | RF Exposure Info | 2016-03-30 | PDF 3.3 MB |
| Block Diagram Metadata only | Block Diagram | PDF 102 KB | |
| Schematics Metadata only | Schematics | PDF 1.3 MB | |
| Circuit Description Metadata only | Operational Description | PDF 81 KB | |
| Operation Description Metadata only | Operational Description | PDF 81 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 54.2 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 816.4 KB |
Application Information
| Application ID | vUC87erMHfYT37MhmNtXhA== |
|---|---|
| Final Action Date | 2016-03-30 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024180390 |
| Model | P4005A |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | Mobile Phone |
| Responsible Party | Octavio Garcia, ggarcia@diamond-electronics.com , 619 278 0714 |
| Test Firm | John Chan, Bay Area Compliance Laboratory Corp. (Shenzhen), john.chan@baclcorp.com  , 08675533320018 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| vUC87erMHfYT37MhmNtXhA== | 2016-03-30 | Original Equipment |
| q9D/fQQBmC0hvz8yvIdqRA== | 2016-03-30 | Original Equipment |
| Iyc1LJpbX3OixFMIT++EsA== | 2016-03-30 | Original Equipment |
| 78+NFPe/SXZMUiAo1vtYaA== | 2016-03-30 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application vUC87erMHfYT37MhmNtXhA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| ONE DIAMOND ELECTRONICS INC. |
| 1450 Frazee Road, Suite 303, |
| San Diego, CA 92108 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application vUC87erMHfYT37MhmNtXhA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ONE DIAMOND ELECTRONICS INC. 1450 Frazee Road, Suite 303, San Diego, CA 92108 United States |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| ONE DIAMOND ELECTRONICS INC. |
| 1450 Frazee Road, Suite 303, |
| San Diego, CA 92108 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0007 | ||
| CC | 15C | 2412.0 - 2472.0 | 0.0568 |
| Output power listed is peak conducted. This device supports 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application q9D/fQQBmC0hvz8yvIdqRA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ONE DIAMOND ELECTRONICS INC. 1450 Frazee Road, Suite 303, San Diego, CA 92108 United States |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0007 | ||
| CC | 15C | 2412.0 - 2472.0 | 0.0568 |
| Output power listed is peak conducted. This device supports 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| ONE DIAMOND ELECTRONICS INC. |
| 1450 Frazee Road, Suite 303, |
| San Diego, CA 92108 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0035 |
| Output power listed is peak conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application Iyc1LJpbX3OixFMIT++EsA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ONE DIAMOND ELECTRONICS INC. 1450 Frazee Road, Suite 303, San Diego, CA 92108 United States |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0035 |
| Output power listed is peak conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| ONE DIAMOND ELECTRONICS INC. |
| 1450 Frazee Road, Suite 303, |
| San Diego, CA 92108 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.8 | 2.5 PM | 242KGXW | |
| 22H | 826.4 - 846.6 | 0.13 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.437 | 2.5 PM | 244KGXW | |
| 24E | 1852.4 - 1907.6 | 0.107 | 2.5 PM | 4M17F9W |
| Power output listed is ERP for part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except for the co-location described in the filing For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10mm from the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessories, product specific, and simultaneous transmission exposure conditions are 0.42 W/kg, 0.91 W/kg, 1.10 W/kg, and 1.10 W/kg, respectively. This device also contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
EAS Grant - Application 78+NFPe/SXZMUiAo1vtYaA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ONE DIAMOND ELECTRONICS INC. 1450 Frazee Road, Suite 303, San Diego, CA 92108 United States |
Date of Grant: 03/30/2016 Application Dated: 03/30/2016 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP4005A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.8 | 2.5 PM | 242KGXW | |
| 22H | 826.4 - 846.6 | 0.13 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.437 | 2.5 PM | 244KGXW | |
| 24E | 1852.4 - 1907.6 | 0.107 | 2.5 PM | 4M17F9W |
| Power output listed is ERP for part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except for the co-location described in the filing For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10mm from the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessories, product specific, and simultaneous transmission exposure conditions are 0.42 W/kg, 0.91 W/kg, 1.10 W/kg, and 1.10 W/kg, respectively. This device also contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
| Mail To: |
