FCC ID 2ADWUP5526A
Mobile Phone
by ONE DIAMOND ELECTRONICS INC.
Grantee Code: 2ADWU Product Code: P5526A
Latest application date: 2017-02-10
Device Images
FCC ID Device Details
| FCC ID | 2ADWUP5526A |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADWU |
| Product Code | P5526A |
| Applicant Business | ONE DIAMOND ELECTRONICS INC. 🇺🇸 |
| Related Domains |  diamond-electronics.com |
| Equipment Class | Mobile Phone |
| Test Firm | Bay Area Compliance Laboratories Corp.(kunshan) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2017-02-10 |
| 2402-2480 MHz | Original Equipment | 2017-02-10 |
| 824.2-848.8 MHz | Original Equipment | 2017-02-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2017-02-10 | PDF 160.1 KB |
| Internal Photos | Internal Photos | 2017-02-10 | PDF 460.9 KB |

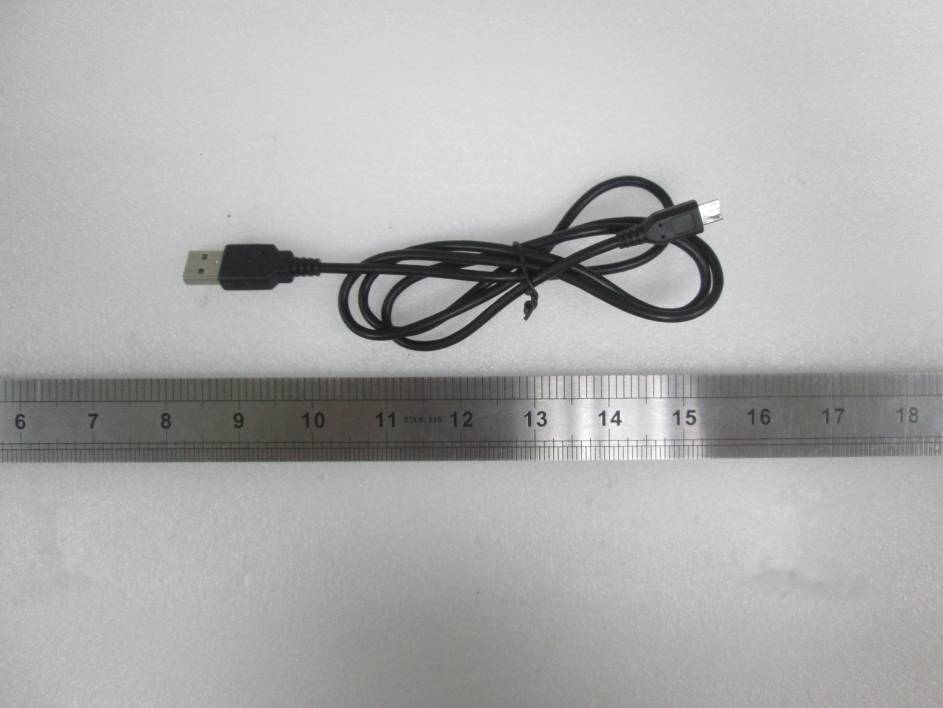

| External Photos | External Photos | 2017-02-10 | PDF 513.8 KB |
| Label & Label Location | ID Label/Location Info | 2017-02-10 | PDF 74.7 KB |

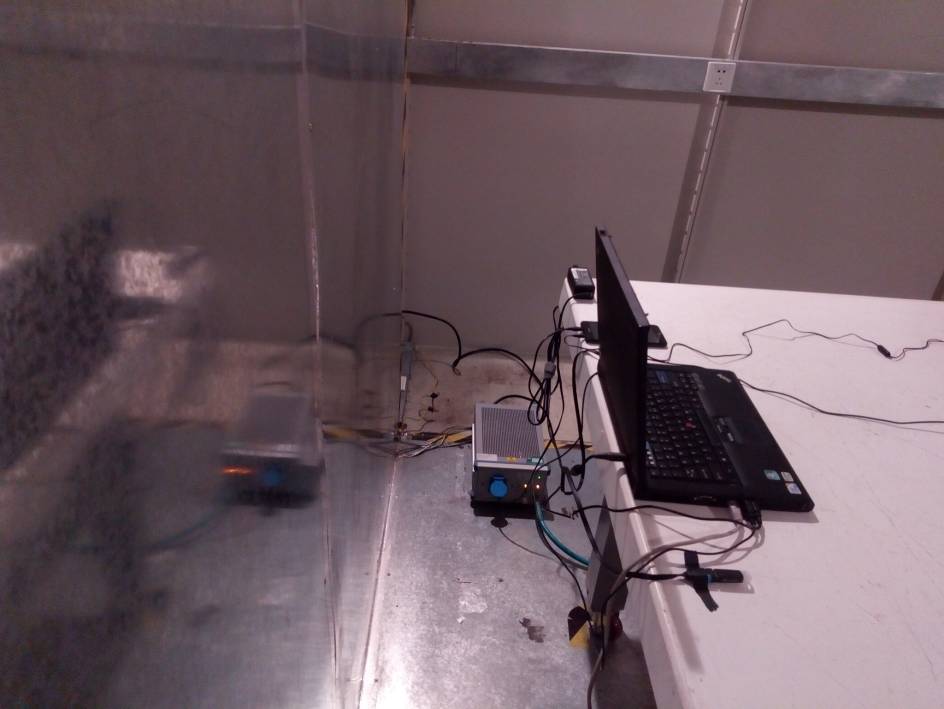

| Test setup Photos | Test Setup Photos | 2017-02-10 | PDF 201.9 KB |
| Test setup Photos | Test Setup Photos | 2017-02-10 | PDF 338.7 KB |
| SAR Test Report | RF Exposure Info | 2017-02-10 | PDF 715.7 KB |
| Test Report | Test Report | 2017-02-10 | PDF 391.9 KB |
| Test Report | Test Report | 2017-02-10 | PDF 1 MB |
| Test Report | Test Report | 2017-02-10 | PDF 1,000.4 KB |
| Test report | Test Report | 2017-02-10 | PDF 706.1 KB |
| Authorization letter | Cover Letter(s) | 2017-02-10 | PDF 16.3 KB |
| Confidential Letter | Cover Letter(s) | 2017-02-10 | PDF 20.8 KB |
| SAR Probe & Dipole Cal Cert | RF Exposure Info | 2017-02-10 | PDF 2.1 MB |
| SAR Setup Photos | RF Exposure Info | 2017-02-10 | PDF 328.2 KB |
| SAR System Validation & Scan Plots | RF Exposure Info | 2017-02-10 | PDF 2.3 MB |
| Block Diagram Metadata only | Block Diagram | PDF 84.1 KB | |
| Schematics Metadata only | Schematics | PDF 369.7 KB | |
| Operational Description Metadata only | Operational Description | PDF 90.5 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 49.5 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 359.5 KB |
Application Information
| Application ID | oj5+xstNuMdD0v9aQnSHeg== |
|---|---|
| Final Action Date | 2017-02-10 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024180390 |
| Model | P5526A |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Mobile Phone |
| Responsible Party | Octavio Garcia, ggarcia@diamond-electronics.com , 619 278 0714 |
| Test Firm | john chan, Bay Area Compliance Laboratories Corp.(kunshan), john.chan@baclcorp.com  , 86051286175000 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| oj5+xstNuMdD0v9aQnSHeg== | 2017-02-10 | Original Equipment |
| nFyWMajBXd3OOj9FHqrKeQ== | 2017-02-10 | Original Equipment |
| jrHNgNalinmphB3KMV315A== | 2017-02-10 | Original Equipment |
| XYt3dzhh5ZBvt1W6VUTHsQ== | 2017-02-10 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | CC | ||||
| 824.2-848.8 MHz | 1.045 | 2.5ppm | 245KGXW | 22H | |
| 824.2-848.8 MHz | 0.195 | 2.5ppm | 249KG7W | 22H | |
| 826.4-846.6 MHz | 0.109 | 2.5ppm | 4M17F9W | 22H | |
| 1850.2-1909.8 MHz | 0.574 | 2.5ppm | 245KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.151 | 2.5ppm | 247KG7W | 24E | |
| 1852.4-1907.6 MHz | 0.148 | 2.5ppm | 4M17F9W | 24E | |
| 2402-2480 MHz | 0.0005 | 15C | CC | ||
| 2402-2480 MHz | 0.0044000 | 15C | CC | ||
| 2412-2472 MHz | 0.0289 | 15C | CC |
Grants
TCB Grant - Application XYt3dzhh5ZBvt1W6VUTHsQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 02/10/2017 Application Dated: 02/10/2017 |
| ONE DIAMOND ELECTRONICS INC. |
| 1450 Frazee Road, Suite 303, |
| San Diego, CA 92108 |
| Attention: Octavio Garcia |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADWUP5526A |
| Name of Grantee: | ONE DIAMOND ELECTRONICS INC. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.045 | 2.5 PM | 245KGXW | |
| 22H | 824.2 - 848.8 | 0.195 | 2.5 PM | 249KG7W | |
| 22H | 826.4 - 846.6 | 0.109 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.574 | 2.5 PM | 245KGXW | |
| 24E | 1850.2 - 1909.8 | 0.151 | 2.5 PM | 247KG7W | |
| 24E | 1852.4 - 1907.6 | 0.148 | 2.5 PM | 4M17F9W |
| Output power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 10 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.29 W/kg, 1.23 W/kg, 1.41 W/kg, and 1.41 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
