FCC ID 2ADXM5B197BT
Bluetooth Speaker
by SHENZHEN TEKSUN TECHNOLOGY CO.,LTD
Grantee Code: 2ADXM Product Code: 5B197BT
Latest application date: 2016-02-10
Device Images
FCC ID Device Details
| FCC ID | 2ADXM5B197BT |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADXM |
| Product Code | 5B197BT |
| Applicant Business | SHENZHEN TEKSUN TECHNOLOGY CO.,LTD 🇨🇳 |
| Related Domains |  teksun.net |
| Equipment Class | Bluetooth Speaker |
| Test Firm | STC (Dongguan) Company Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-02-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-02-10 | PDF 4.1 MB |

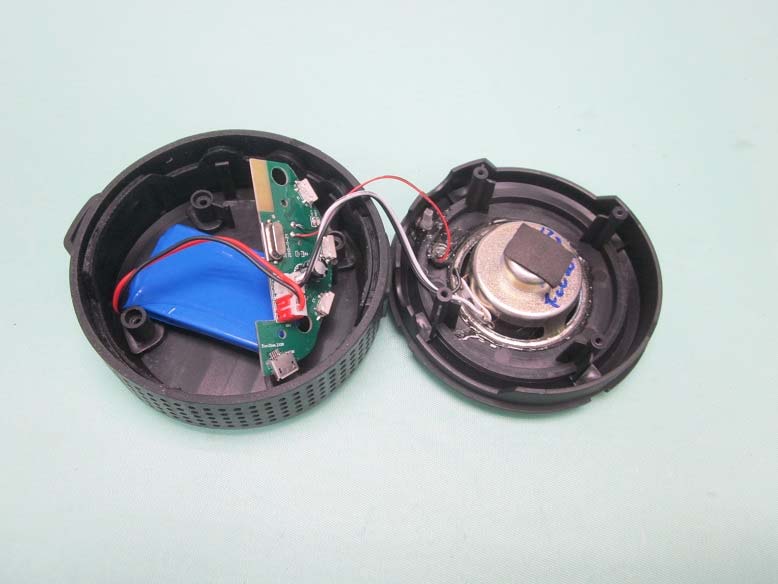

| internal photo | Internal Photos | 2016-02-10 | PDF 150.1 KB |

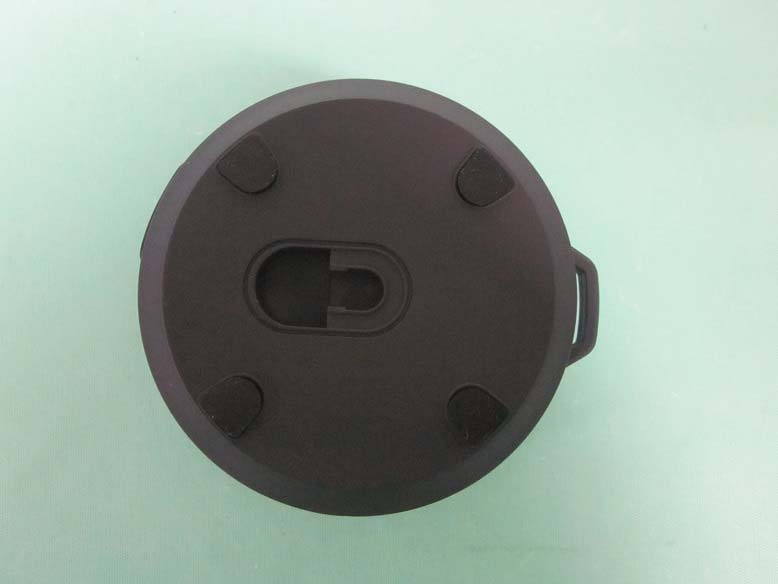

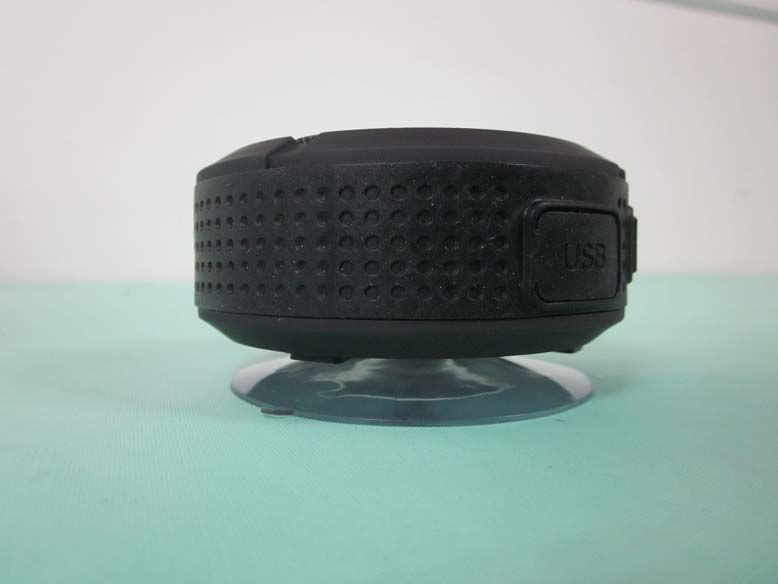

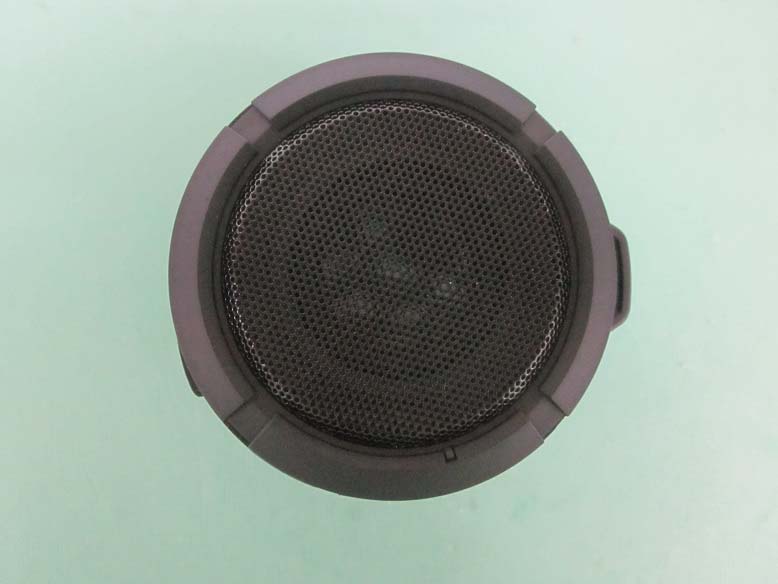

| External photo | External Photos | 2016-02-10 | PDF 245.4 KB |
| Label | ID Label/Location Info | 2016-02-10 | PDF 280.1 KB |
| Label Location | ID Label/Location Info | 2016-02-10 | PDF 27.3 KB |

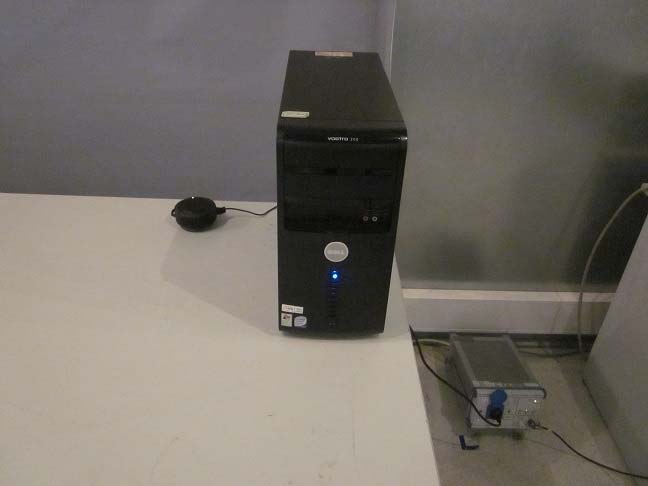

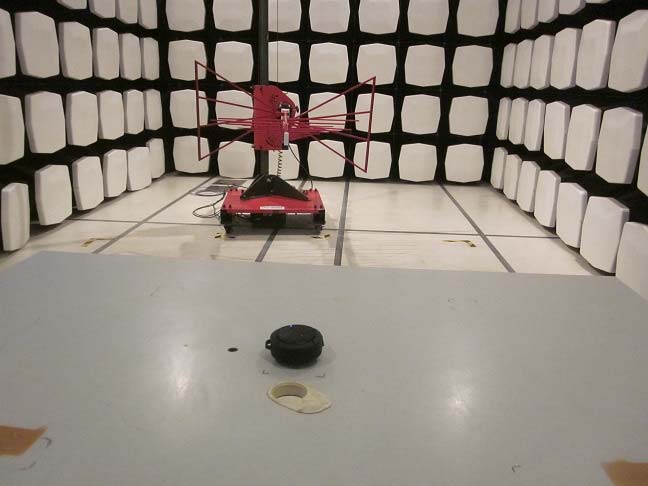

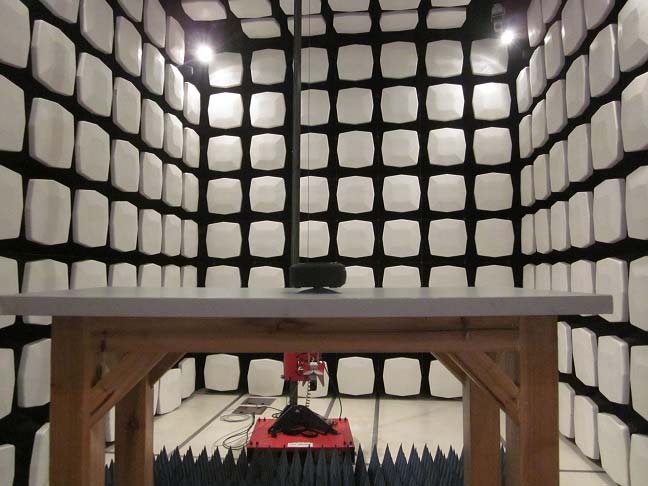

| test photo | Test Setup Photos | 2016-02-10 | PDF 167.2 KB |
| Test Report | Test Report | 2016-02-10 | PDF 1.2 MB |
| Agent Authorization Letter | Cover Letter(s) | 2016-02-10 | PDF 53.3 KB |
| Long Term Confidentiality Request Letter | Cover Letter(s) | 2016-02-10 | PDF 59.7 KB |
| Antenna Specification | RF Exposure Info | 2016-02-10 | PDF 139.6 KB |
| Block diagram Metadata only | Block Diagram | PDF 173.5 KB | |
| PCB Metadata only | Schematics | PDF 245.7 KB | |
| Schematics Metadata only | Schematics | PDF 48.1 KB | |
| Operation principle of description Metadata only | Operational Description | PDF 66.5 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 50.6 KB |
Application Information
| Application ID | WCrMpWDZ2vEvqF+k5Y8r1A== |
|---|---|
| Final Action Date | 2016-02-10 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024195042 |
| Model | 5B197BT |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Bluetooth Speaker |
| Responsible Party | Mandy Peng, PMC, gongcheng01@teksun.net , 0755-29402650 |
| Agent | Long Long Long, STC(Dongguan) Company Limited, a_long@hkstc.com.cn  , 0769-81119888 |
| Technical Contact | Long Yun Jian, STC(Dongguan) Company Limited, a_long@hkstc.com.cn , 0769-81119888 |
| Test Firm | Wilson Wong, STC (Dongguan) Company Ltd., wilson_wong@hkstc.org  , 85226661888 |
| TCB Email | tcbinfo@metlabs.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| WCrMpWDZ2vEvqF+k5Y8r1A== | 2016-02-10 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0003670 | 15C |
Grants
TCB Grant - Application WCrMpWDZ2vEvqF+k5Y8r1A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 02/10/2016 Application Dated: 02/10/2016 |
| SHENZHEN TEKSUN TECHNOLOGY CO.,LTD |
| 3F, bldg F7, F518 Idea Land ,Baoyuan Road, |
| Xixiang Avenue, Bao'an District, |
| Shenzhen, China |
| Attention: Mandy Peng , PMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADXM5B197BT |
| Name of Grantee: | SHENZHEN TEKSUN TECHNOLOGY CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Bluetooth Speaker |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.000367 |
| Output Power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
EAS Grant - Application WCrMpWDZ2vEvqF+k5Y8r1A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN TEKSUN TECHNOLOGY CO.,LTD 3F, bldg F7, F518 Idea Land ,Baoyuan Road, Xixiang Avenue, Bao'an District, Shenzhen, China |
Date of Grant: 02/10/2016 Application Dated: 02/10/2016 |
| Attention: Mandy Peng , PMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2ADXM5B197BT |
| Name of Grantee: | SHENZHEN TEKSUN TECHNOLOGY CO.,LTD |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Bluetooth Speaker |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.000367 |
| Output Power listed is conducted. This transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
| Mail To: |
