FCC ID 2ADZC-HLWH005
Wireless Video Transmission System
by Shenzhen Hollyland Technology Co.,Ltd
Grantee Code: 2ADZC Product Code: HLWH005
Latest application date: 2016-06-01
Device Images
FCC ID Device Details
| FCC ID | 2ADZC-HLWH005 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2ADZC |
| Product Code | HLWH005 |
| Applicant Business | Shenzhen Hollyland Technology Co.,Ltd 🇨🇳 |
| Related Domains |  hollyland-tech.com |
| Equipment Class | Wireless Video Transmission System |
| Test Firm | Shenzhen CTL Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5190-5230 MHz | Original Equipment | 2016-06-01 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-06-01 | PDF 1.1 MB |
| Internal Photos | Internal Photos | 2016-06-01 | PDF 311.1 KB |
| External Photos | External Photos | 2016-06-01 | PDF 471.7 KB |
| FCC ID Label and Location | ID Label/Location Info | 2016-06-01 | PDF 32.3 KB |

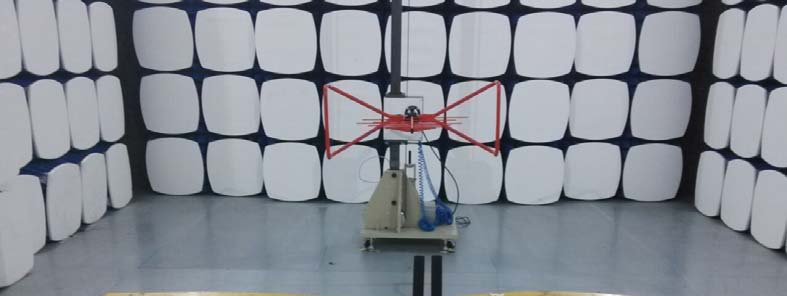

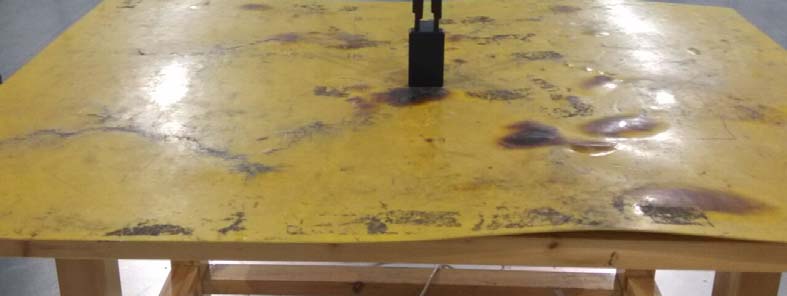

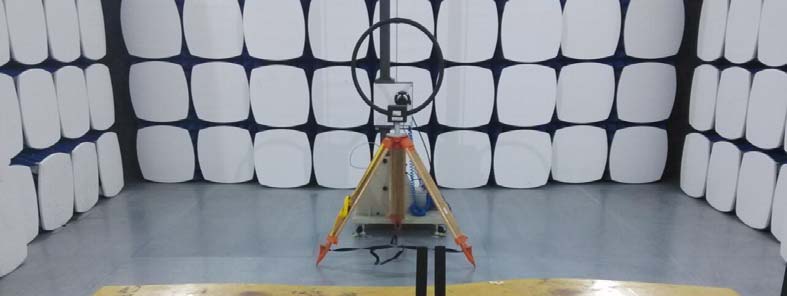

| Test Setup Photos | Test Setup Photos | 2016-06-01 | PDF 177.3 KB |
| Test Report_NII | Test Report | 2016-06-01 | PDF 3 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-06-01 | PDF 18.5 KB |
| Declaration Letter of Software Security Requirements | Cover Letter(s) | 2016-06-01 | PDF 52.2 KB |
| MPE Report | RF Exposure Info | 2016-06-01 | PDF 176.2 KB |
| Block Diagrams Metadata only | Block Diagram | PDF 87.5 KB | |
| Schematics Metadata only | Schematics | PDF 180.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 296.9 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 49.8 KB |
Application Information
| Application ID | gU8v/fzExd7bpEZfZ1OEOw== |
|---|---|
| Final Action Date | 2016-06-01 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024211138 |
| Model | HLWH005 |
| Frequency Range | 5190-5230 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless Video Transmission System |
| Responsible Party | Vincent Ma, Sales Director, vincent.ma@hollyland-tech.com , +86-755-86000682 |
| Test Firm | Tracy Qi, Shenzhen CTL Testing Technology Co., Ltd., qihui@ctl-lab.com  , 86-755-89486194 |
| TCB Email | bentje.holger@phoenix-testlab.de  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is the maximum combined conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. This device is restricted to indoor usage only. This device has only 40MHz BW mode. |
