FCC ID 2AE62-TLR500
Rugged Mobile Phone
by Antel Communications LLC
Grantee Code: 2AE62 Product Code: TLR500
Latest application date: 2015-12-10
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-12-10 |
| 824.2-848.8 MHz | Original Equipment | 2015-12-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

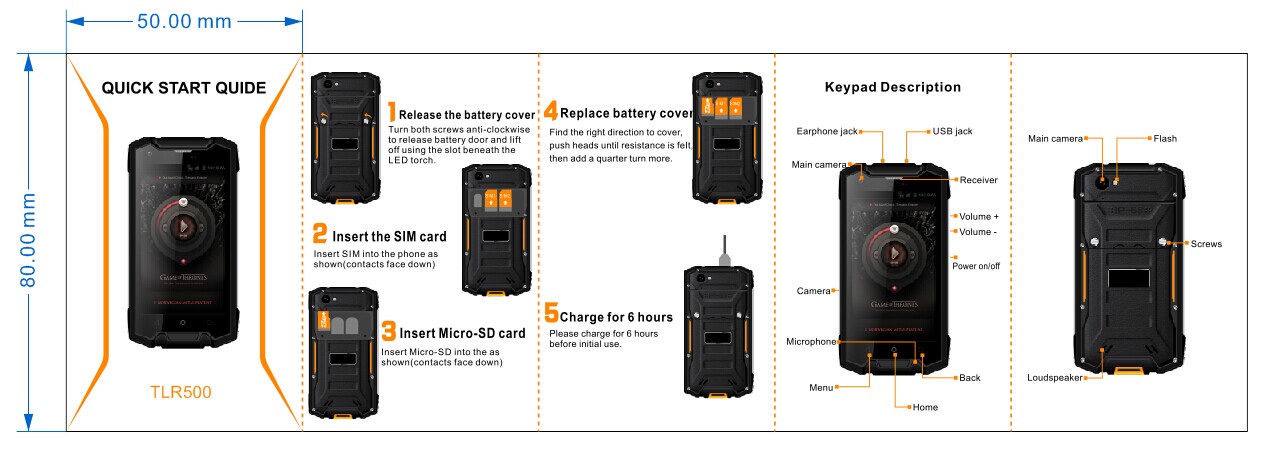

| Users Manual | Users Manual | 2015-12-10 | PDF 120.1 KB |

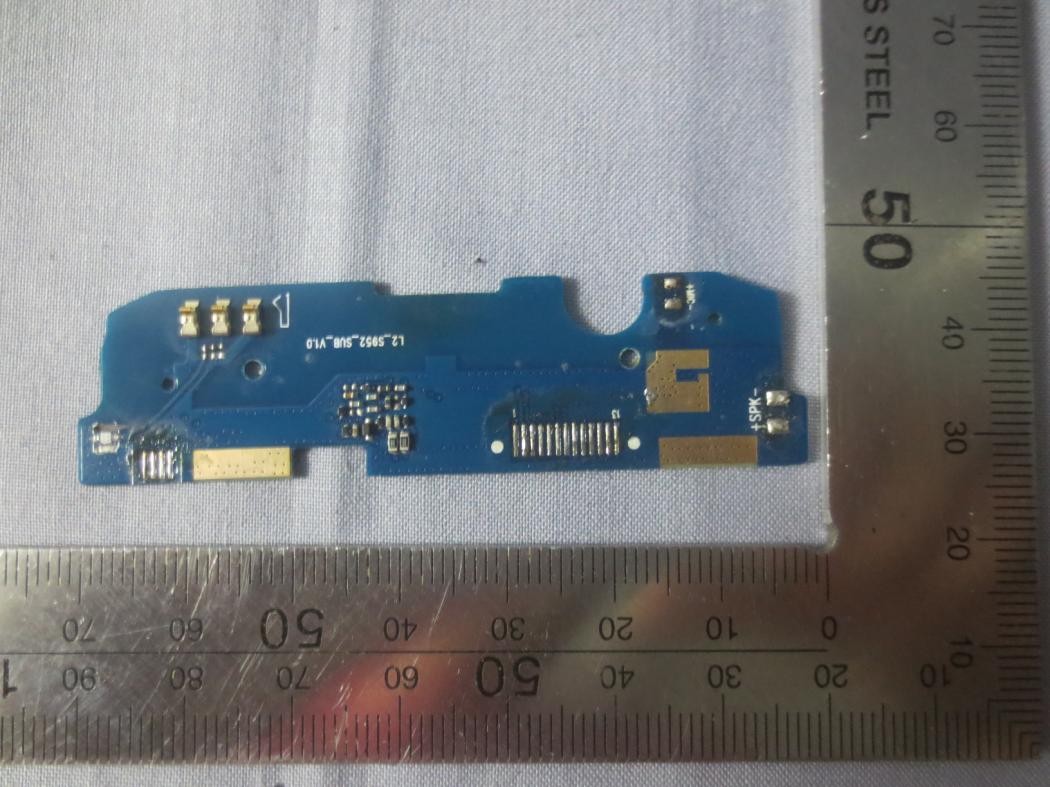

| Internal Photos | Internal Photos | 2015-12-10 | PDF 972.4 KB |
| External Photos | External Photos | 2015-12-10 | PDF 479.2 KB |
| External photos | External Photos | 2015-12-10 | PDF 479.2 KB |
| Labe and Label Location | ID Label/Location Info | 2015-12-10 | PDF 160.8 KB |
| Label and Label Location | ID Label/Location Info | 2015-12-10 | PDF 107.8 KB |
| Label and Label Location | ID Label/Location Info | 2015-12-10 | PDF 160.8 KB |
| Label and Label location | ID Label/Location Info | 2015-12-10 | PDF 107.8 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-10 | PDF 312.5 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-10 | PDF 281.9 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-10 | PDF 179.1 KB |
| Test Report | Test Report | 2015-12-10 | PDF 3.9 MB |
| Test Report | Test Report | 2015-12-10 | PDF 1.5 MB |
| Test Report | Test Report | 2015-12-10 | PDF 5.1 MB |
| Cover Letters | Cover Letter(s) | 2015-12-10 | PDF 176 KB |
| Cover letters | Cover Letter(s) | 2015-12-10 | PDF 176 KB |
| RF Exposure info | RF Exposure Info | 2015-12-10 | PDF 5.6 MB |
| Block Diagram Metadata only | Block Diagram | PDF 85.9 KB | |
| Schematics Metadata only | Schematics | PDF 3.9 MB | |
| Operational Description Metadata only | Operational Description | PDF 4 MB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 156.1 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 44.1 KB |
Application Information
| Application ID | xmSN5dz4zoe62at4YyG6Qw== |
|---|---|
| Final Action Date | 2015-12-10 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024706962 |
| Model | TLR500 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Rugged Mobile Phone |
| Responsible Party | Kostas Kastamonitis, CTO, kkastamonitis@antel.us  , 6316898000 |
| Test Firm | Bruce Zhang, Shenzhen Zhongjian Nanfang Testing Co.,Ltd, bruce.zhang@ccis-cb.com  , 86-755-23118282 |
| TCB Email | Stuart.Beck@nemko.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.528W/kg, 0.684 W/kg, 0.772 W/kg, and 0.991 W/kg, respectively |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| xmSN5dz4zoe62at4YyG6Qw== | 2015-12-10 | Original Equipment |
| eMkGB/AfnoZxmjPVkoKpJQ== | 2015-12-10 | Original Equipment |
| 2BcMXGsZ2ZqTzUTDaA4XTw== | 2015-12-10 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 824.2-848.8 MHz | 0.3221 | 0.196032ppm | 248KG7W | 22H | |
| 826.4-846.6 MHz | 0.2723 | 0.198422ppm | 4M18F9W | 22H | |
| 1710.7-1754.3 MHz | 0.3289 | 0.106782ppm | 1M10W7D | 27 | |
| 1712.4-1752.6 MHz | 0.5888 | 0.091192ppm | 4M18F9W | 27 | |
| 1720-1745 MHz | 0.335 | 0.10043ppm | 18M0W7D | 27 | |
| 1850.2-1909.8 MHz | 0.6982 | 0.097872ppm | 246KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.4955 | 0.090426ppm | 250KG7W | 24E | |
| 1850.7-1909.3 MHz | 0.3236 | 0.094149ppm | 1M10W7D | 24E | |
| 1852.4-1907.6 MHz | 0.2037 | 0.094681ppm | 4M18F9W | 24E | |
| 1860-1900 MHz | 0.3373 | 0.088298ppm | 18M0W7D | 24E | |
| 2402-2480 MHz | 0.0012 | 15C | CC | ||
| 2412-2462 MHz | 0.0376 | 15C | CC | ||
| 2422-2452 MHz | 0.013 | 15C | CC |
Grants
TCB Grant - Application xmSN5dz4zoe62at4YyG6Qw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 12/10/2015 Application Dated: 12/10/2015 |
| Antel Communications LLC |
| 21 Bennetts Rd. Suite 201 |
| Setauket, NY 11733 |
| Attention: Kostas Kastamonitis , CTO |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AE62-TLR500 |
| Name of Grantee: | Antel Communications LLC |
| Equipment Class: | Digital Transmission System |
| Notes: | Rugged Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0376 | ||
| CC | 15C | 2422.0 - 2452.0 | 0.013 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0012 |
| Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.528W/kg, 0.684 W/kg, 0.772 W/kg, and 0.991 W/kg, respectively |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
