FCC ID 2AEB4AC20

GPS Tracker

by Connected Holdings LLC

Grantee Code: 2AEB4   Product Code: AC20
Latest application date: 2016-04-04

Device Images

FCC ID 2AEB4AC20 Internal Photos
Internal Photos

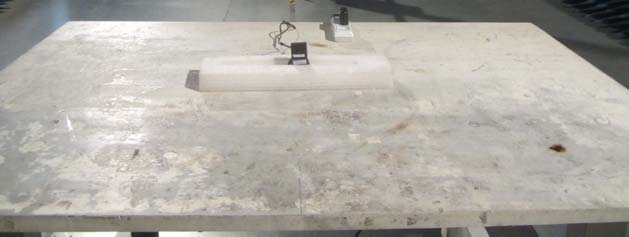

FCC ID 2AEB4AC20 Test Setup Photos
Test Setup Photos

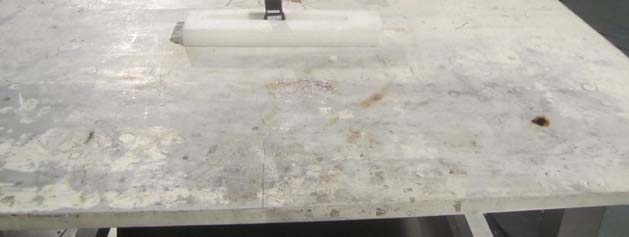

FCC ID 2AEB4AC20 Test Setup Photos
Test Setup Photos

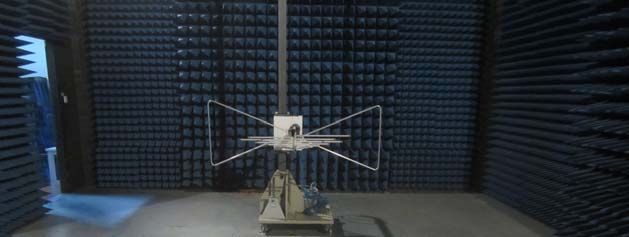

FCC ID 2AEB4AC20 Test Setup Photos
Test Setup Photos
FCC ID 2AEB4AC20 Test Setup Photos
Test Setup Photos

FCC ID Device Details

FCC ID2AEB4AC20
Mirrorsfcc.id | gov | fccid.ai
Grantee Code2AEB4
Product CodeAC20
Applicant BusinessConnected Holdings LLC 🇺🇸
Related Domains connected-holdings.com
Equipment ClassGPS Tracker
Test FirmGlobal United Technology Service Co., Ltd

Operating Frequencies

Frequency RangeApplication PurposeFinal Action Date
824.7-848.31 MHzOriginal Equipment2016-04-04

Exhibits

DocumentTypeAvailableFile
User manualUsers Manual2016-04-04PDF 1.9 MB
Internal PhotosInternal Photos2016-04-04PDF 262.7 KB
External PhotosExternal Photos2016-04-04PDF 144.3 KB
LabelID Label/Location Info2016-04-04PDF 1.3 MB
Test Set Up PhotosTest Setup Photos2016-04-04PDF 74.5 KB
Test ReportTest Report2016-04-04PDF 777.6 KB
Authority to Act as AgentCover Letter(s)2016-04-04PDF 29.1 KB
ConfidentialityCover Letter(s)2016-04-04PDF 192.3 KB
Model Differences LetterCover Letter(s)2016-04-04PDF 685.8 KB
RF ExposureRF Exposure Info2016-04-04PDF 23.8 KB
RF Safety Metadata onlyRF Exposure Info2016-04-04PDF 25 KB
Block Diagram Metadata onlyBlock DiagramPDF 123.7 KB
Schematics Metadata onlySchematicsPDF 210.7 KB
Operational Description Metadata onlyOperational DescriptionPDF 25.4 KB
Tune Up Info Metadata onlyParts List/Tune Up InfoPDF 47.8 KB

Application Information

Application IDTmtwxqM5s3nEw5eCJEXBAQ==
Final Action Date2016-04-04
Application PurposeOriginal Equipment
Applicant FRN0024395774
ModelAC20
Frequency Range824.7-848.31 MHz
Equipment ClassPCB - PCS Licensed Transmitter
Device DescriptionGPS Tracker
Responsible PartyWilliam Essex Cheney, Chief Operating Officer, william.cheney@connected-holdings.com , 949-330-7794
Test FirmRobinson Lo, Global United Technology Service Co., Ltd, robinson.lo@gtstest.com , 86-755-27798480
TCB Emailstuart.beck@nemko.com
TCB ScopeB1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27
Short-Term ConfidentialityNo
Long-Term ConfidentialityYes
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Cognitive RadioNo
Authorization WaiverNo
Authorization Waiver ApprovedNo
Section 5301 CertificationYes
Related OET Knowledge DataBase InquiryNo
Grant CommentsPower listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Applications

Application IDDatePurpose
TmtwxqM5s3nEw5eCJEXBAQ==2016-04-04Original Equipment

Equipment Authorization

FrequencyOutputToleranceEmissionRules
824.7-848.31 MHz0.29650.06ppm1M26F9W22H
1851.25-1908.75 MHz0.24320.05ppm1M27F9W24E

Grants

TCB Grant - Application TmtwxqM5s3nEw5eCJEXBAQ==

TCB GRANT OF EQUIPMENT
AUTHORIZATION		 TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

  Nemko North America, INC.
303 River Road
Ottawa, Ontario, K1V 1H2
Canada 		Date of Grant: 04/04/2016

Application Dated: 03/29/2016
Connected Holdings LLC
4740 Von Karman Avenue, Suite 120
Newport Beach, CA 92660

Attention: William Cheney , Chief Operating Officer

NOT TRANSFERABLE
EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:  2AEB4AC20
Name of Grantee:  Connected Holdings LLC
Equipment Class: PCS Licensed Transmitter
Notes: GPS Tracker
Grant Notes  FCC Rule Parts Frequency
Range (MHZ) 		Output
Watts 		Frequency
Tolerance 		Emission
Designator
22H 824.7  -  848.31 0.2965 0.06  PM 1M26F9W
24E 1851.25  -  1908.75 0.2432 0.05  PM 1M27F9W

Power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

EAS Grant - Application TmtwxqM5s3nEw5eCJEXBAQ==

COPY FEDERAL COMMUNICATIONS
COMMISSION
WASHINGTON, D.C. 20554

GRANT OF EQUIPMENT
AUTHORIZATION		 COPY
Certification

Connected Holdings LLC
4740 Von Karman Avenue, Suite 120
Newport Beach, CA 92660
United States 		  Date of Grant: 04/04/2016

Application Dated: 03/29/2016

Attention: William Cheney , Chief Operating Officer

NOT TRANSFERABLE
EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:  2AEB4AC20
Name of Grantee:  Connected Holdings LLC
Equipment Class: PCS Licensed Transmitter
Notes: GPS Tracker
Modular Type: Does not apply
Grant Notes  FCC Rule Parts Frequency
Range (MHZ) 		Output
Watts 		Frequency
Tolerance 		Emission
Designator
22H 824.7  -  848.31 0.2965 0.06  PM 1M26F9W
24E 1851.25  -  1908.75 0.2432 0.05  PM 1M27F9W

Power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
