FCC ID 2AEE8LAVAGRAND2

Mobile Phone

by LAVA INTERNATIONAL (H.K) LIMITED

Grantee Code: 2AEE8 Product Code: LAVAGRAND2

Latest application date: 2016-02-29

Device Images

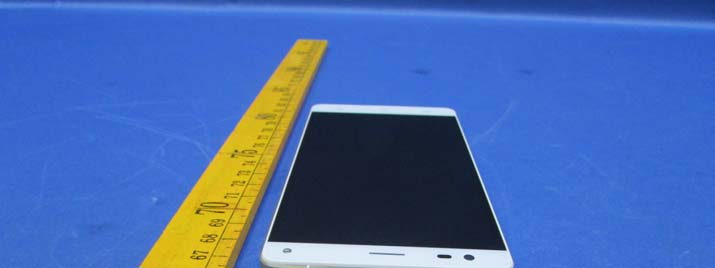

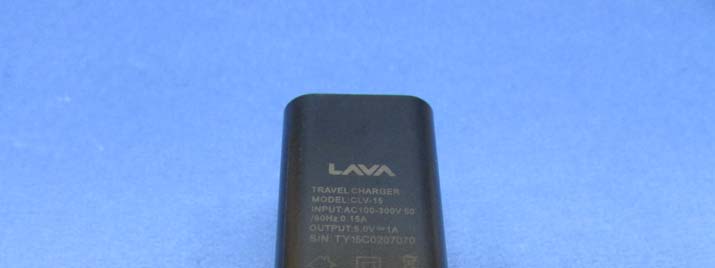

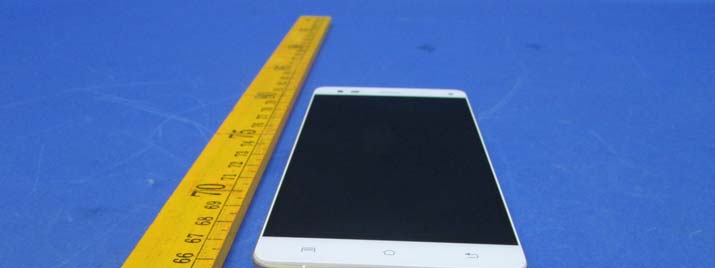

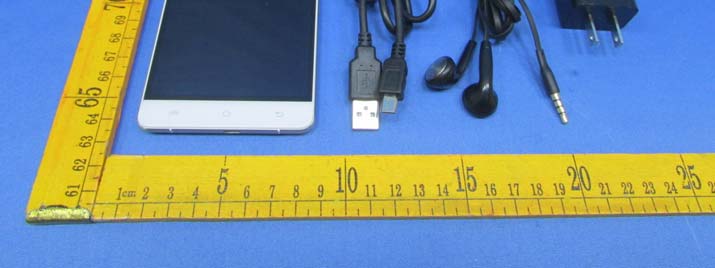

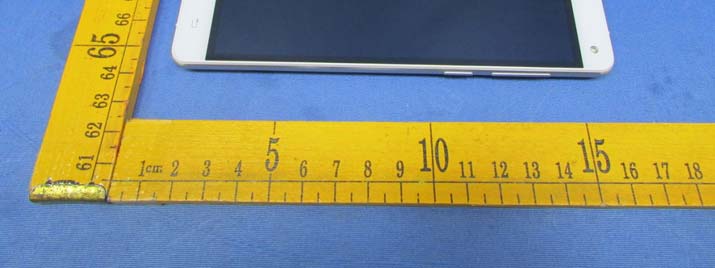

FCC ID 2AEE8LAVAGRAND2 External Photos — External Photos

FCC ID 2AEE8LAVAGRAND2 Internal Photos — Internal Photos

FCC ID Device Details

FCC ID	2AEE8LAVAGRAND2
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	2AEE8
Product Code	LAVAGRAND2
Applicant Business	LAVA INTERNATIONAL (H.K) LIMITED
Related Domains	lavaintenational.com
Equipment Class	Mobile Phone
Test Firm	Waltek Services(Shenzhen) Co., Ltd.

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
2402-2480 MHz	Original Equipment	2016-02-29
2402-2480 MHz	Original Equipment	2016-02-29
824.2-848.8 MHz	Original Equipment	2016-02-29

Exhibits

Document	Type	Available	File
User Manual	Users Manual	2016-02-29	PDF 254 KB
Users Manual	Users Manual	2016-02-29	PDF 254 KB
Internal Photos	Internal Photos	2016-02-29	PDF 811.4 KB
External Photos	External Photos	2016-02-29	PDF 336.2 KB
Label Location	ID Label/Location Info	2016-02-29	PDF 64.2 KB
Test Setup Photos	Test Setup Photos	2016-02-29	PDF 4.3 MB
Test Setup Photos 15B	Test Setup Photos	2016-02-29	PDF 109.1 KB
Test Setup Photos PCE	Test Setup Photos	2016-02-29	PDF 76.7 KB
Test Setup Photos RF	Test Setup Photos	2016-02-29	PDF 139.7 KB
Test Setup Photos WiFi BT	Test Setup Photos	2016-02-29	PDF 4.3 MB
SAR Test Report Part 1	RF Exposure Info	2016-02-29	PDF 5.5 MB
SAR Test Report Part 2	RF Exposure Info	2016-02-29	PDF 5.2 MB
SAR Test Report Part 3	RF Exposure Info	2016-02-29	PDF 5.2 MB
Test Report	Test Report	2016-02-29	PDF 1.7 MB
Test Report 2G-3G	Test Report	2016-02-29	PDF 3.3 MB
Test Report 4G	Test Report	2016-02-29	PDF 4 MB
Test Report Band 2 Band Edge Part 1	Test Report	2016-02-29	PDF 4 MB
Test Report Band 2 Band Edge Part 2	Test Report	2016-02-29	PDF 3.5 MB
Test Report Band 2 Peak to Average Ratio	Test Report	2016-02-29	PDF 3.5 MB
Test Report Band 2 Transmitter Spurious Emissions	Test Report	2016-02-29	PDF 646.2 KB
Test Report Band 4 Band Edge Part 1	Test Report	2016-02-29	PDF 4 MB
Test Report Band 4 Band Edge Part 2	Test Report	2016-02-29	PDF 3.5 MB
Test Report Band 4 Peak to Average Ratio	Test Report	2016-02-29	PDF 3.5 MB
Test Report Band 4 Transmitter Spurious Emissions	Test Report	2016-02-29	PDF 641.9 KB
Test Report Band 7 Band Edge	Test Report	2016-02-29	PDF 1.3 MB
Test Report Band 7 Peak to Average Ratio	Test Report	2016-02-29	PDF 2.3 MB
Test Report Band 7 Transmitter Spurious Emissions	Test Report	2016-02-29	PDF 442.7 KB
Test Report Part 15B	Test Report	2016-02-29	PDF 508.1 KB
Test Report WiFi	Test Report	2016-02-29	PDF 2.4 MB
Confidentiality Letter	Cover Letter(s)	2016-02-29	PDF 34.1 KB
Confidentiality Requst Letter	Cover Letter(s)	2016-02-29	PDF 34.1 KB
Justification Letter	Cover Letter(s)	2016-02-29	PDF 26.2 KB
Label Justification Letter	Cover Letter(s)	2016-02-29	PDF 26.2 KB
POA	Cover Letter(s)	2016-02-29	PDF 50.5 KB
BOM	Parts List/Tune Up Info	2016-02-29	PDF 70.9 KB
Parts List	Parts List/Tune Up Info	2016-02-29	PDF 70.9 KB
Tune Up Procedure	Parts List/Tune Up Info	2016-02-29	PDF 162.8 KB
Tune Up Procedures	Parts List/Tune Up Info	2016-02-29	PDF 162.8 KB
Block Diagram Metadata only	Block Diagram		PDF 91 KB
PCB Layout Metadata only	Schematics		PDF 4.1 MB
Part Placement Metadata only	Schematics		PDF 498 KB
Schematics Metadata only	Schematics		PDF 1.5 MB
Schematics PCB Layout Metadata only	Schematics		PDF 4.1 MB
Schematics Part Placement Metadata only	Schematics		PDF 498 KB
Operational Description Metadata only	Operational Description		PDF 185.9 KB

Application Information

Application ID	VPtsOQpxQ2Oiosi+RO7+YA==
Final Action Date	2016-02-29
Application Purpose	Original Equipment
Applicant FRN	0024439960
Model	LAVAGRAND2
Frequency Range	2402-2480 MHz
Equipment Class	DTS - Digital Transmission System
Device Description	Mobile Phone
Responsible Party	Doris Deng, project, Doris.deng@lavaintenational.com , (86)13534031523
Test Firm	philo zhong, Waltek Services(Shenzhen) Co., Ltd., philo@waltek.com.cn , 8675527553488
TCB Email	TEI@TIMCOENGR.COM
TCB Scope	A4: UNII devices & low power transmitters using spread spectrum techniques
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	Yes
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	No
Grant Comments	Power listed is conducted. This device has 20MHz and 40MHz bandwidth.

Applications

Application ID	Date	Purpose
VPtsOQpxQ2Oiosi+RO7+YA==	2016-02-29	Original Equipment
PDM9faMQ+ujcosn5OoUFtw==	2016-02-29	Original Equipment
F8/D+eDaVhgY5ygMZQ/xBg==	2016-02-29	Original Equipment
6kNU1bhhUg3xmY8j/1g1kg==	2016-02-29	Original Equipment

Equipment Authorization

Frequency	Output	Tolerance	Emission	Rules	Grant Notes
				15B	CC
824.2-848.8 MHz	0.332	0.0155ppm	243KG7W	22H
826.4-846.6 MHz	0.057	0.0131ppm	4M21F9W	22H
1710.7-1754.3 MHz	0.143	0.0081ppm	1M16W7D	27
1720-1745 MHz	0.141	0.0075ppm	17M9G7D	27
1720-1745 MHz	0.13	0.0075ppm	17M9W7D	27
1850.2-1909.8 MHz	0.986	0.0074ppm	243KGXW	24E
1850.2-1909.8 MHz	0.378	0.009ppm	245KG7W	24E
1850.7-1909.3 MHz	0.161	0.008ppm	1M16G7D	24E
1850.7-1909.3 MHz	0.146	0.0074ppm	1M16W7D	24E
1852.4-1907.6 MHz	0.153	0.0069ppm	4M21F9W	24E
1860-1900 MHz	0.136	0.0043ppm	17M9W7D	24E
1860-1900 MHz	0.137	0.0048ppm	17M9G7D	24E
2402-2480 MHz	0.0010000			15C	CC
2402-2480 MHz	0.0003			15C	CC
2412-2462 MHz	0.0088			15C	CC
2510-2560 MHz	0.152	0.0047ppm	17M9G7D	27
2510-2560 MHz	0.148	0.0039ppm	17M9W7D	27

Grants

TCB Grant - Application VPtsOQpxQ2Oiosi+RO7+YA==

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

Timco Engineering, Inc.
849 NW State Road 45
Newberry, FL 32669

Date of Grant: 02/29/2016

Application Dated: 02/29/2016

LAVA INTERNATIONAL (H.K) LIMITED

UNIT L 1/F MAU LAM COMM BLDG

16-18 MAU LAM ST

JORDAN KL, 999077
Hong Kong

Attention: Doris Deng , project

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	2AEE8LAVAGRAND2

Name of Grantee:	LAVA INTERNATIONAL (H.K) LIMITED

Equipment Class:	Digital Transmission System
Notes:	Mobile Phone

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2412.0 - 2462.0	0.0088
CC	15C	2402.0 - 2480.0	0.0003

Power listed is conducted. This device has 20MHz and 40MHz bandwidth.
