FCC ID 2AEIE-JM01
Vehicle GPS tracker
by Shenzhen Jimi Electronic Co., Ltd.
Grantee Code: 2AEIE Product Code: JM01
Latest application date: 2015-11-24
Device Images
FCC ID Device Details
| FCC ID | 2AEIE-JM01 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AEIE |
| Product Code | JM01 |
| Applicant Business | Shenzhen Jimi Electronic Co., Ltd. 🇨🇳 |
| Related Domains |  jimilab.com |
| Equipment Class | Vehicle GPS tracker |
| Test Firm | Shenzhen Zhongjian Nanfang Testing Co.,Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2015-11-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2015-11-24 | PDF 597.8 KB |
| Internal photos | Internal Photos | 2015-11-24 | PDF 851.9 KB |

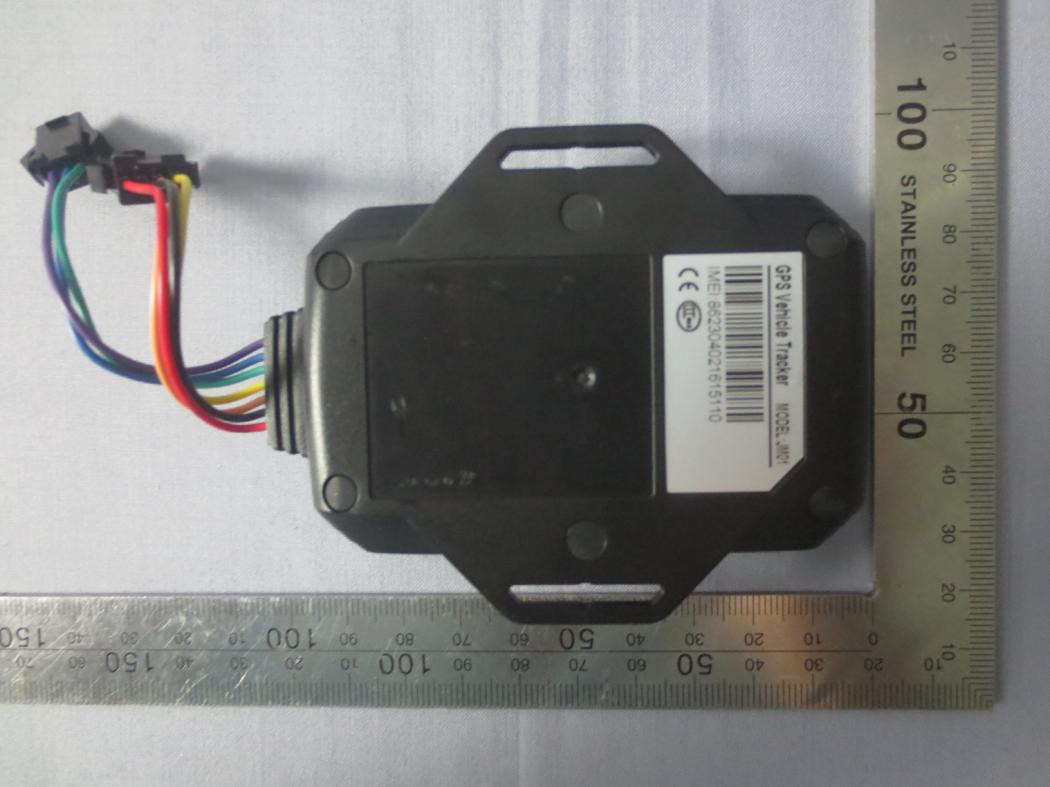

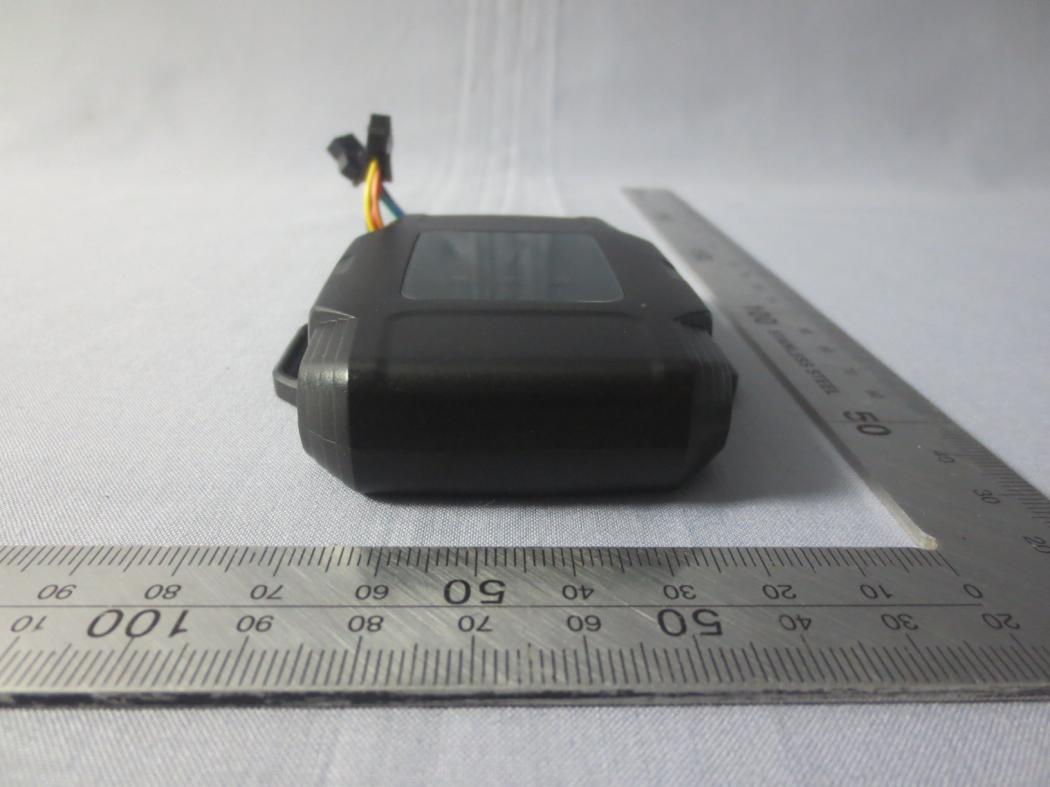

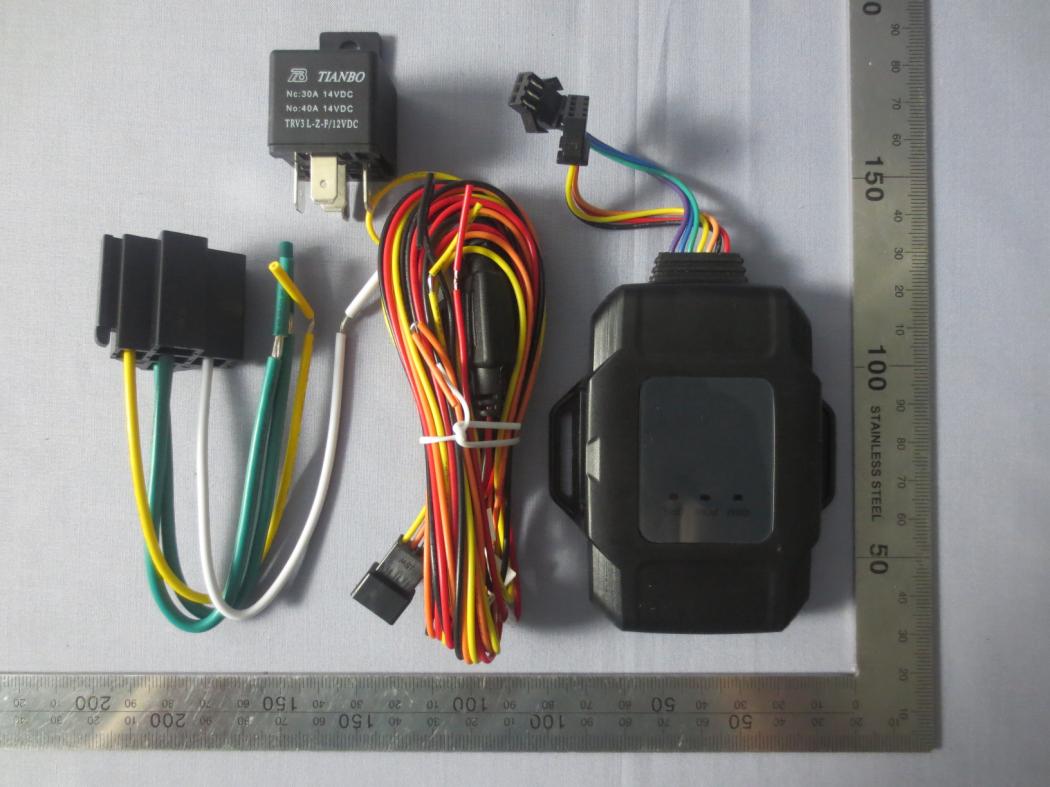

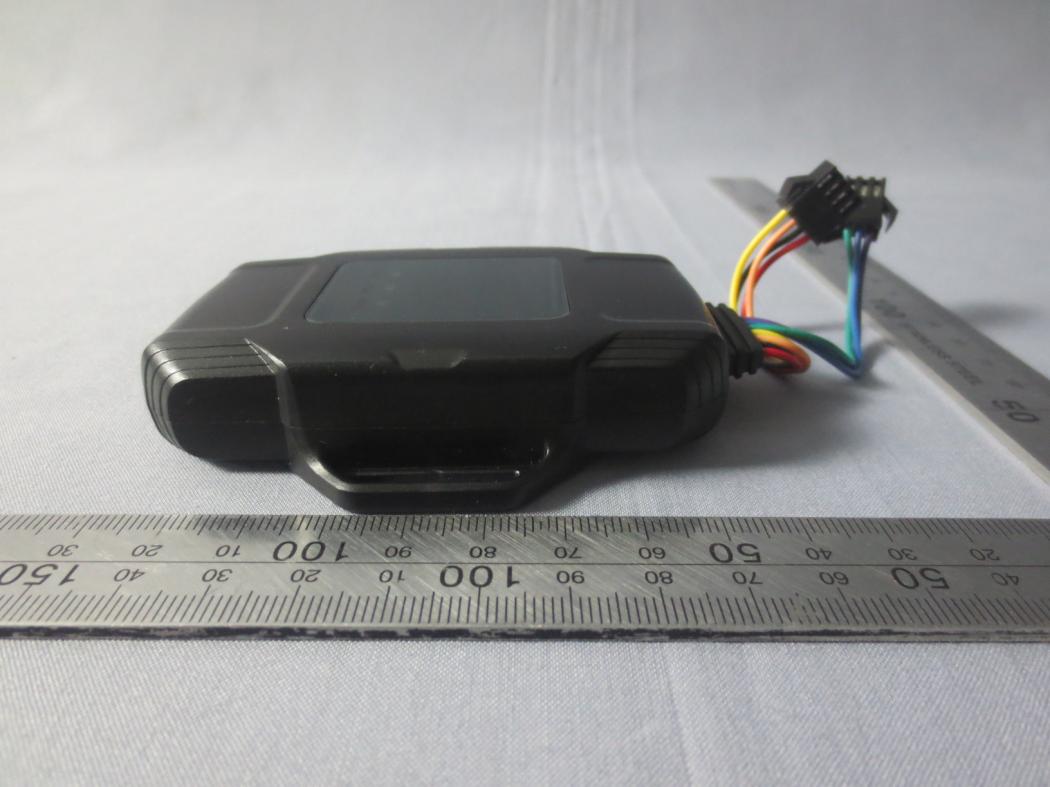

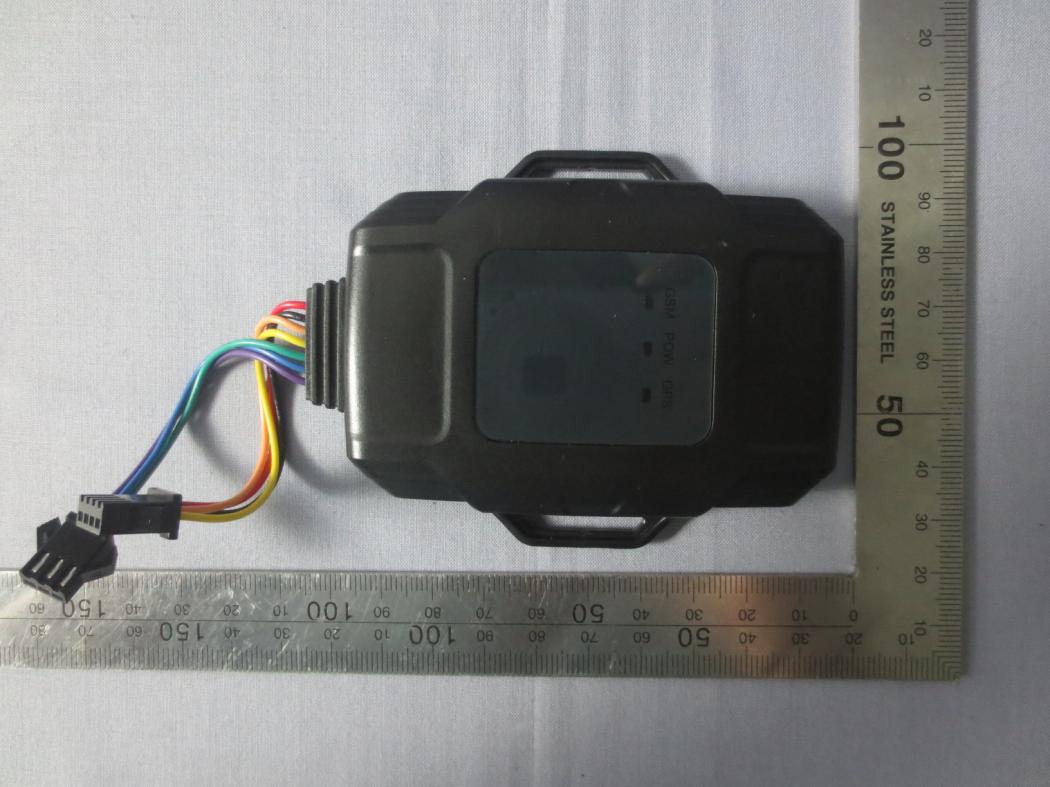

| External photos | External Photos | 2015-11-24 | PDF 684.9 KB |
| Label | ID Label/Location Info | 2015-11-24 | PDF 609.9 KB |

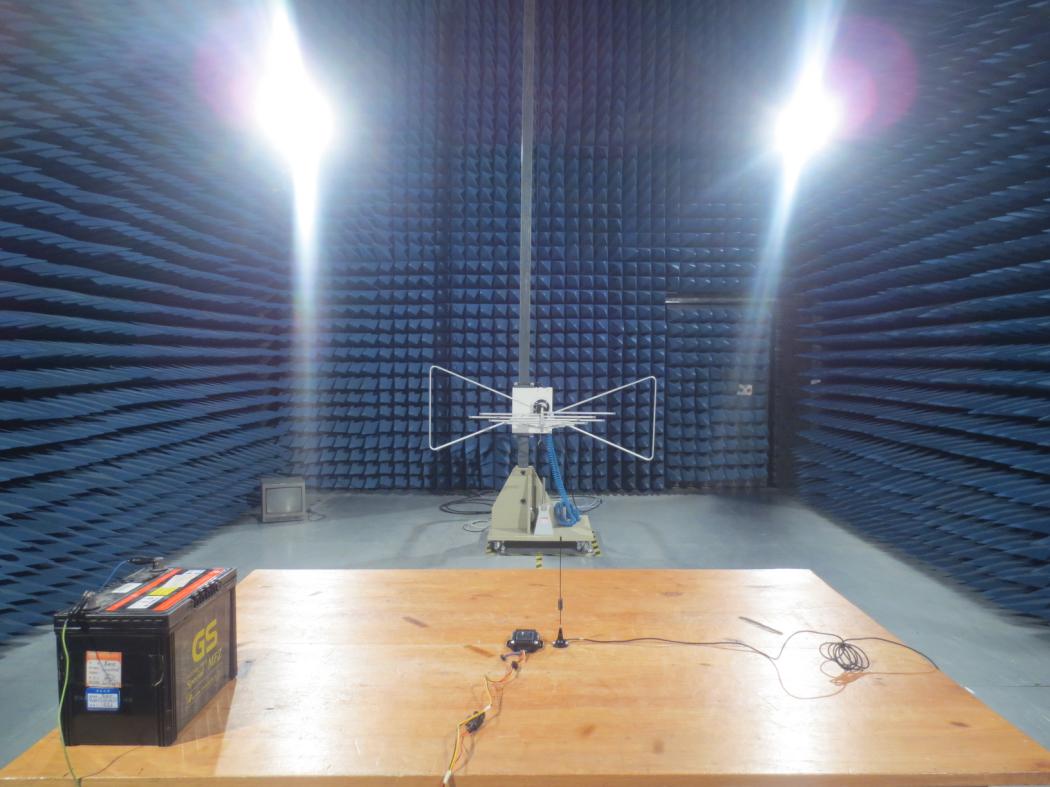

| Test setup | Test Setup Photos | 2015-11-24 | PDF 227 KB |
| Test report | Test Report | 2015-11-24 | PDF 841.4 KB |
| Cover letter | Cover Letter(s) | 2015-11-24 | PDF 377.2 KB |
| RF Exposure | RF Exposure Info | 2015-11-24 | PDF 23.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 107.4 KB | |
| Schematics Metadata only | Schematics | PDF 137.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 91.5 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 139.6 KB | |
| Tune up Metadata only | Parts List/Tune Up Info | PDF 12.4 KB |
Application Information
| Application ID | j6SdiKOzX8PajdsCiFHJSw== |
|---|---|
| Final Action Date | 2015-11-24 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024480790 |
| Model | JM01 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCB - PCS Licensed Transmitter |
| Device Description | Vehicle GPS tracker |
| Responsible Party | Aven Ru, info@jimilab.com , 0086-755 6664 |
| Test Firm | Bruce Zhang, Shenzhen Zhongjian Nanfang Testing Co.,Ltd, bruce.zhang@ccis-cb.com  , 86-755-23118282 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is ERP for part 22 and EIRP for part 24. The antenna(s) used for this transmitter must be installed to provide separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| j6SdiKOzX8PajdsCiFHJSw== | 2015-11-24 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application j6SdiKOzX8PajdsCiFHJSw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Shenzhen Jimi Electronic Co., Ltd. |
| No.1005, B3 building, Kexing Science Park, |
| Keyuan North Rd, Nanshan District |
| Shenzhen, China |
| Attention: Aven Ru |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEIE-JM01 |
| Name of Grantee: | Shenzhen Jimi Electronic Co., Ltd. |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Vehicle GPS tracker |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.4757 | 0.24 PM | 246KGXW | |
| 24E | 1850.2 - 1909.8 | 0.6745 | 0.1 PM | 250KGXW |
| Power listed is ERP for part 22 and EIRP for part 24. The antenna(s) used for this transmitter must be installed to provide separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
EAS Grant - Application j6SdiKOzX8PajdsCiFHJSw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Jimi Electronic Co., Ltd. No.1005, B3 building, Kexing Science Park, Keyuan North Rd, Nanshan District Shenzhen, China |
Date of Grant: 11/24/2015 Application Dated: 11/24/2015 |
| Attention: Aven Ru |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEIE-JM01 |
| Name of Grantee: | Shenzhen Jimi Electronic Co., Ltd. |
| Equipment Class: | PCS Licensed Transmitter |
| Notes: | Vehicle GPS tracker |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.4757 | 0.24 PM | 246KGXW | |
| 24E | 1850.2 - 1909.8 | 0.6745 | 0.1 PM | 250KGXW |
| Power listed is ERP for part 22 and EIRP for part 24. The antenna(s) used for this transmitter must be installed to provide separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
| Mail To: |
