FCC ID 2AEN3NITRO55M
Mobile Phone
by MAXWEST INTERNATIONAL LIMITED.
Grantee Code: 2AEN3 Product Code: NITRO55M
Latest application date: 2016-12-06
Device Images
FCC ID Device Details
| FCC ID | 2AEN3NITRO55M |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AEN3 |
| Product Code | NITRO55M |
| Applicant Business | MAXWEST INTERNATIONAL LIMITED. 🇨🇳 |
| Equipment Class | Mobile Phone |
| Test Firm | Bay Area Compliance Laboratories Corp. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Original Equipment | 2016-12-06 |
| 2402-2480 MHz | Original Equipment | 2016-12-06 |
| 2402-2480 MHz | Original Equipment | 2016-12-06 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-12-06 | PDF 2.6 MB |
| Users Manual | Users Manual | 2016-12-06 | PDF 2.6 MB |
| Int Photos | Internal Photos | 2016-12-06 | PDF 1 MB |
| Ext Photos | External Photos | 2016-12-06 | PDF 466.9 KB |
| FCC ID Label | ID Label/Location Info | 2016-12-06 | PDF 78.9 KB |

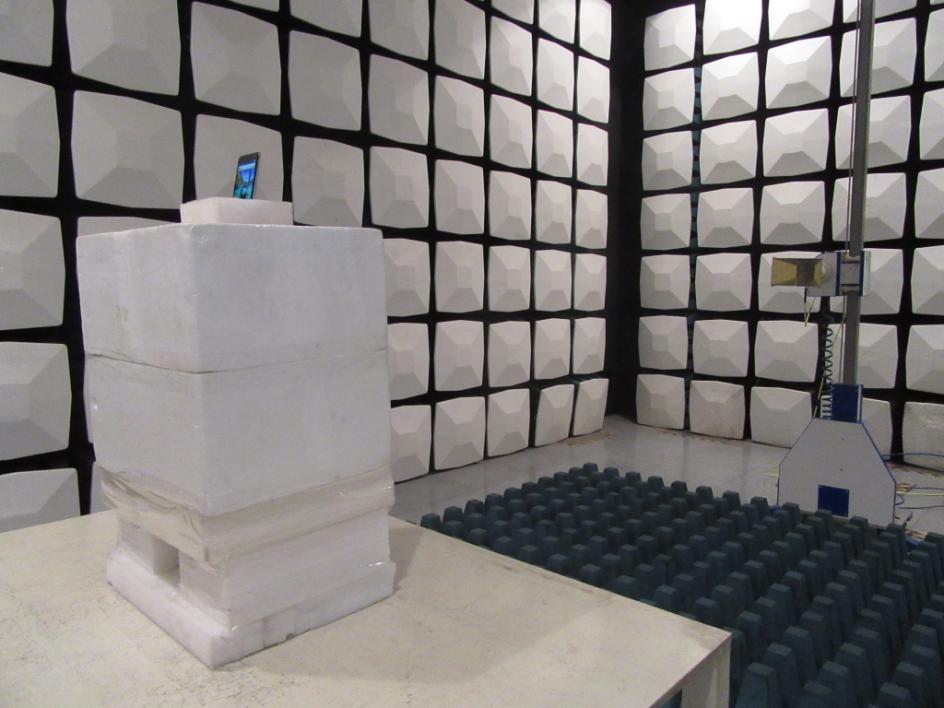

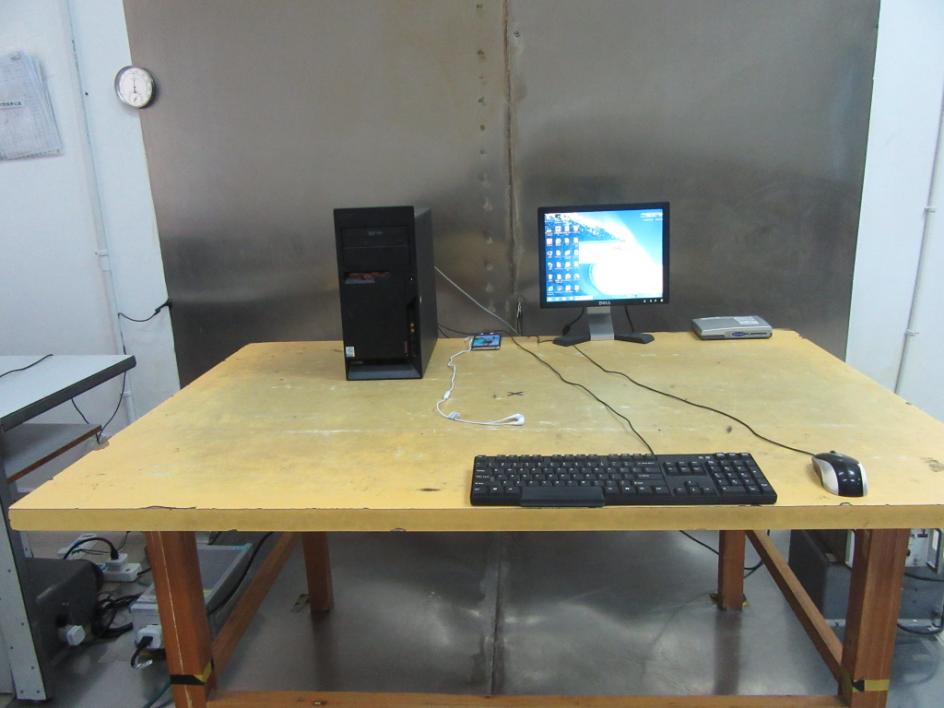

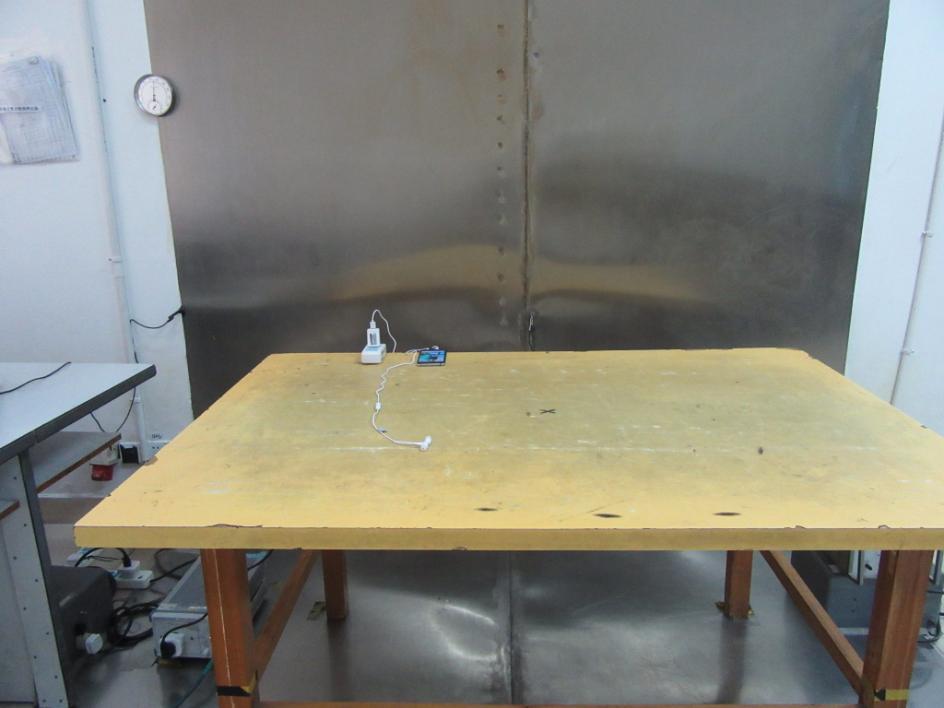

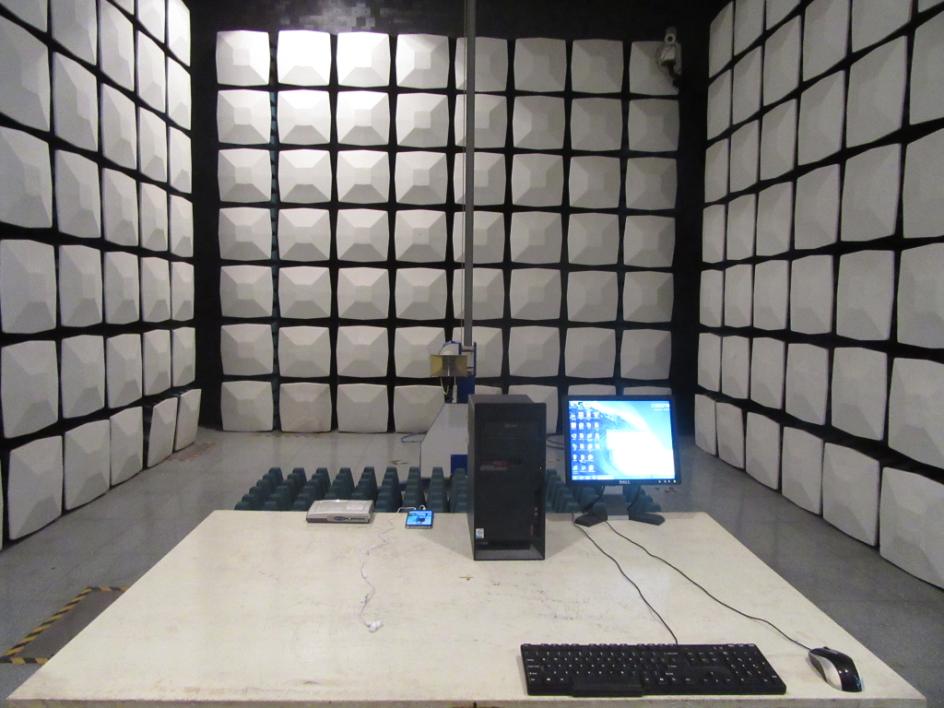

| Setup Photos | Test Setup Photos | 2016-12-06 | PDF 451.7 KB |
| Setup Photos | Test Setup Photos | 2016-12-06 | PDF 283.6 KB |
| Setup Photos | Test Setup Photos | 2016-12-06 | PDF 283.6 KB |
| Test Report | Test Report | 2016-12-06 | PDF 1 MB |
| Test Report | Test Report | 2016-12-06 | PDF 984 KB |
| Test Report | Test Report | 2016-12-06 | PDF 1 MB |
| Test Report | Test Report | 2016-12-06 | PDF 310.6 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-12-06 | PDF 74.5 KB |
| POA | Cover Letter(s) | 2016-12-06 | PDF 70.2 KB |
| SAR Dipole and Probe Cal Cert | RF Exposure Info | 2016-12-06 | PDF 2.2 MB |
| SAR Report | RF Exposure Info | 2016-12-06 | PDF 4.2 MB |
| SAR Setup Photos | RF Exposure Info | 2016-12-06 | PDF 351.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 163 KB | |
| Schematics Metadata only | Schematics | PDF 1.2 MB | |
| Schemtics Metadata only | Schematics | PDF 1.2 MB | |
| Operation Description Metadata only | Operational Description | PDF 154.8 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 83.9 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 174.3 KB |
Application Information
| Application ID | Qz4LXsOGM1rafN0B2nLzuQ== |
|---|---|
| Final Action Date | 2016-12-06 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024557357 |
| Model | NITRO55M |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | Mobile Phone |
| Responsible Party | Rita Yu, Rita8488@foxmail.com  , 9498007607 |
| Test Firm | John Chan, Bay Area Compliance Laboratories Corp., john.chan@baclcorp.com  , 86-28-65525123 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.33 W/kg, 0.97 W/kg, 1.17 W/kg, and 1.35 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Qz4LXsOGM1rafN0B2nLzuQ== | 2016-12-06 | Original Equipment |
| QtyRrMpX+LiQj07/srbopg== | 2016-12-06 | Original Equipment |
| H7ggrEGD1jWBC40fJhAdPw== | 2016-12-06 | Original Equipment |
| 46K7qINApAAHpKfXsJaiMg== | 2016-12-06 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Qz4LXsOGM1rafN0B2nLzuQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| MAXWEST INTERNATIONAL LIMITED. |
| No.1,Longgang Road,Buji, Longgang |
| Shenzhen, China |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.912 | 2.5 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.102 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.776 | 2.5 PM | 246KGXW | |
| 24E | 1852.4 - 1907.6 | 0.11 | 2.5 PM | 4M18F9W |
| Output power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.33 W/kg, 0.97 W/kg, 1.17 W/kg, and 1.35 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
EAS Grant - Application Qz4LXsOGM1rafN0B2nLzuQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MAXWEST INTERNATIONAL LIMITED. No.1,Longgang Road,Buji, Longgang Shenzhen, China |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.912 | 2.5 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.102 | 2.5 PM | 4M17F9W | |
| 24E | 1850.2 - 1909.8 | 0.776 | 2.5 PM | 246KGXW | |
| 24E | 1852.4 - 1907.6 | 0.11 | 2.5 PM | 4M18F9W |
| Output power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located with any other transmitters, except in accordance with FCC multi-transmitter product procedures. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 5 mm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.33 W/kg, 0.97 W/kg, 1.17 W/kg, and 1.35 W/kg, respectively. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| MAXWEST INTERNATIONAL LIMITED. |
| No.1,Longgang Road,Buji, Longgang |
| Shenzhen, China |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application QtyRrMpX+LiQj07/srbopg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MAXWEST INTERNATIONAL LIMITED. No.1,Longgang Road,Buji, Longgang Shenzhen, China |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| MAXWEST INTERNATIONAL LIMITED. |
| No.1,Longgang Road,Buji, Longgang |
| Shenzhen, China |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0006 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.0095 |
| Output power listed is conducted. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. The device supports 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application H7ggrEGD1jWBC40fJhAdPw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MAXWEST INTERNATIONAL LIMITED. No.1,Longgang Road,Buji, Longgang Shenzhen, China |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | Digital Transmission System |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0006 | ||
| CC | 15C | 2412.0 - 2462.0 | 0.0095 |
| Output power listed is conducted. The antenna(s) used for this transmitter must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. The device supports 20 MHz and 40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| MAXWEST INTERNATIONAL LIMITED. |
| No.1,Longgang Road,Buji, Longgang |
| Shenzhen, China |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.003 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 46K7qINApAAHpKfXsJaiMg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
MAXWEST INTERNATIONAL LIMITED. No.1,Longgang Road,Buji, Longgang Shenzhen, China |
Date of Grant: 12/06/2016 Application Dated: 12/06/2016 |
| Attention: Rita Yu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AEN3NITRO55M |
| Name of Grantee: | MAXWEST INTERNATIONAL LIMITED. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.003 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
