FCC ID 2AF4S-STS-PRS-250
Arrival Sensor
by SAM JIN CO., LTD
Grantee Code: 2AF4S Product Code: STSPRS250
Latest application date: 2016-02-12
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2470 MHz | Original Equipment | 2016-02-12 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-02-12 | PDF 276.5 KB |
| Internal Photos | Internal Photos | 2016-02-12 | PDF 378.3 KB |
| External Photos | External Photos | 2016-02-12 | PDF 525.3 KB |
| Label Location | ID Label/Location Info | 2016-02-12 | PDF 105.7 KB |

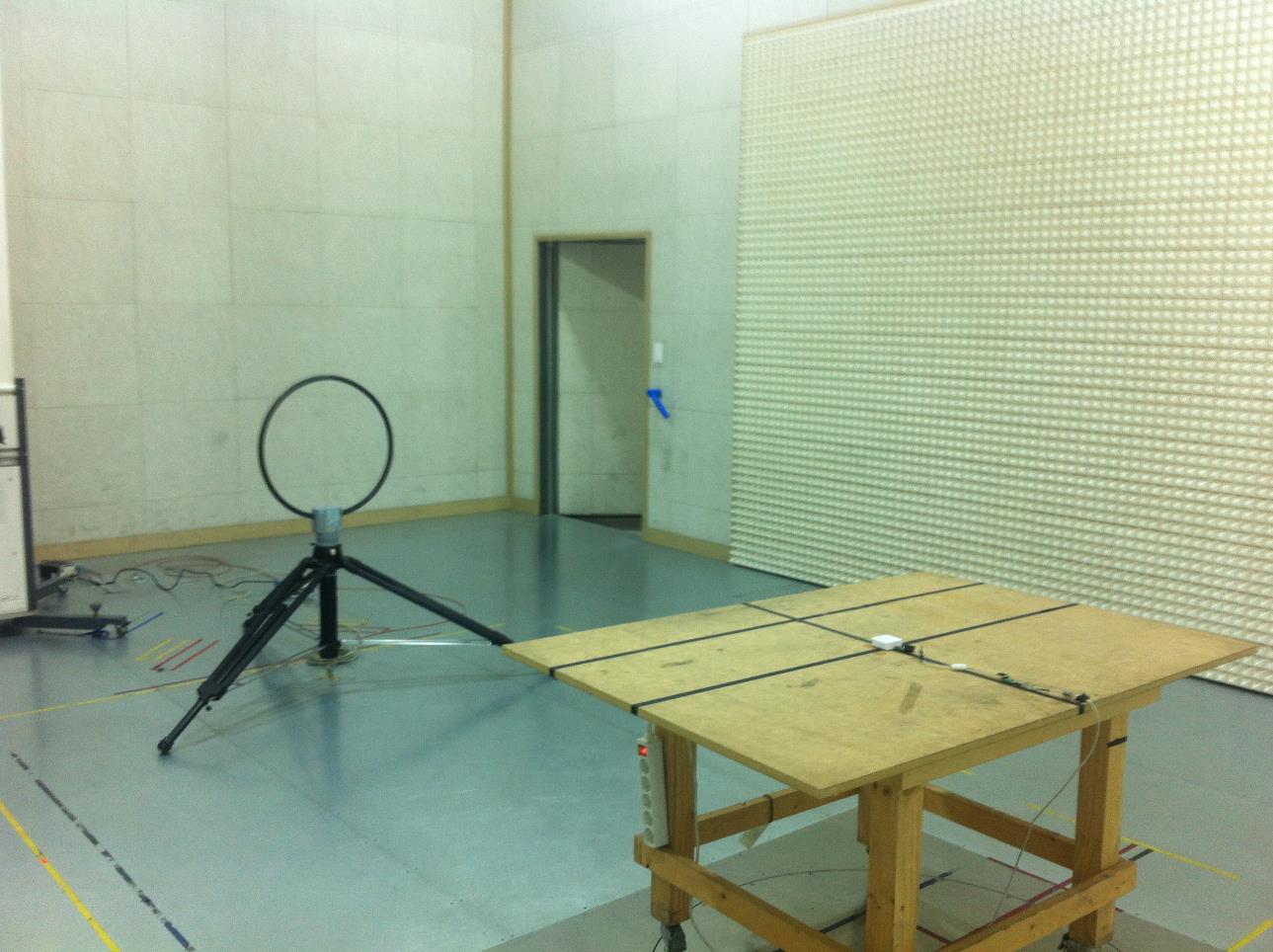

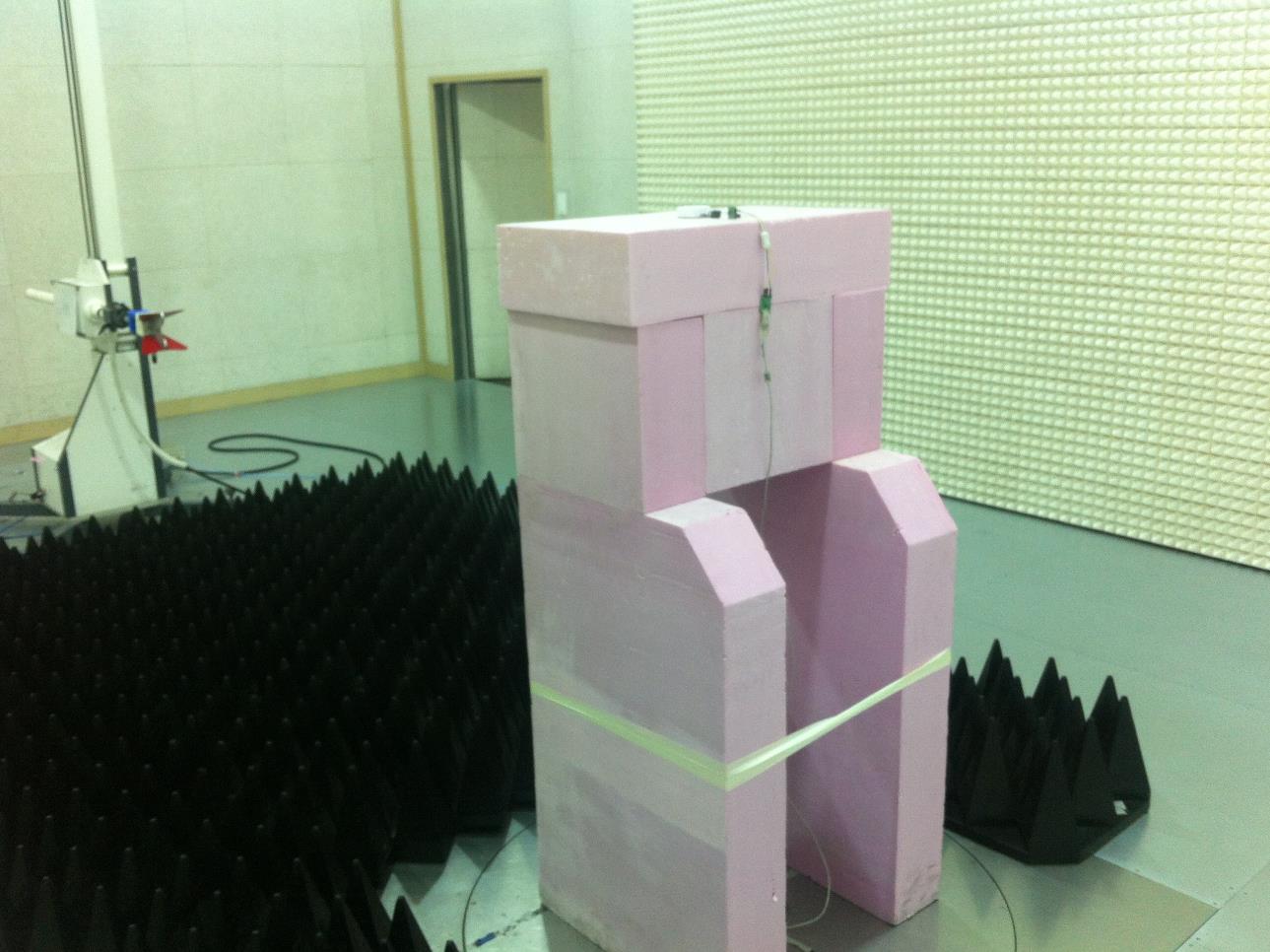

| Test Setup Photos | Test Setup Photos | 2016-02-12 | PDF 608.4 KB |
| Test Report | Test Report | 2016-02-12 | PDF 1.3 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-02-12 | PDF 83.1 KB |
| Product Certification Representative Auth Letter | Cover Letter(s) | 2016-02-12 | PDF 83.4 KB |
| RF Exposure | RF Exposure Info | 2016-02-12 | PDF 327.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 175.5 KB | |
| Schematics Metadata only | Schematics | PDF 249.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 99 KB |
Application Information
| Application ID | MORCKfZVNDIHLM6P+F4CsA== |
|---|---|
| Final Action Date | 2016-02-12 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024941692 |
| Model | STS-PRS-250 |
| Frequency Range | 2405-2470 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Arrival Sensor |
| Responsible Party | SangSoo Kim, Senior Research Engineer, gnasmic@samjin.com  , 82 31 467 5893 |
| Test Firm | Sung-Su Lim, KCTL INC, sungsu.lim@kctl.co.kr  , +82-31-326-6713 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| MORCKfZVNDIHLM6P+F4CsA== | 2016-02-12 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2405-2470 MHz | 0.0050000 | 15C |
Grants
TCB Grant - Application MORCKfZVNDIHLM6P+F4CsA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 02/12/2016 Application Dated: 02/12/2016 |
| SAM JIN CO., LTD |
| 81, Anyangcheonseo-ro, Manan-gu, |
| Anyang-si, Gyeonggi-do, South Korea |
| Attention: SangSoo Kim , Senior Research Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AF4S-STS-PRS-250 |
| Name of Grantee: | SAM JIN CO., LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | Arrival Sensor |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2470.0 | 0.005 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application MORCKfZVNDIHLM6P+F4CsA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SAM JIN CO., LTD 81, Anyangcheonseo-ro, Manan-gu, Anyang-si, Gyeonggi-do, South Korea |
Date of Grant: 02/12/2016 Application Dated: 02/12/2016 |
| Attention: SangSoo Kim , Senior Research Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AF4S-STS-PRS-250 |
| Name of Grantee: | SAM JIN CO., LTD |
| Equipment Class: | Digital Transmission System |
| Notes: | Arrival Sensor |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2470.0 | 0.005 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
| Mail To: |
