MV2853BTB Bluetooth Module Label Diagram - FCC ID 2AF4S-MV2853BTB
FCC ID 2AF4S-MV2853BTB

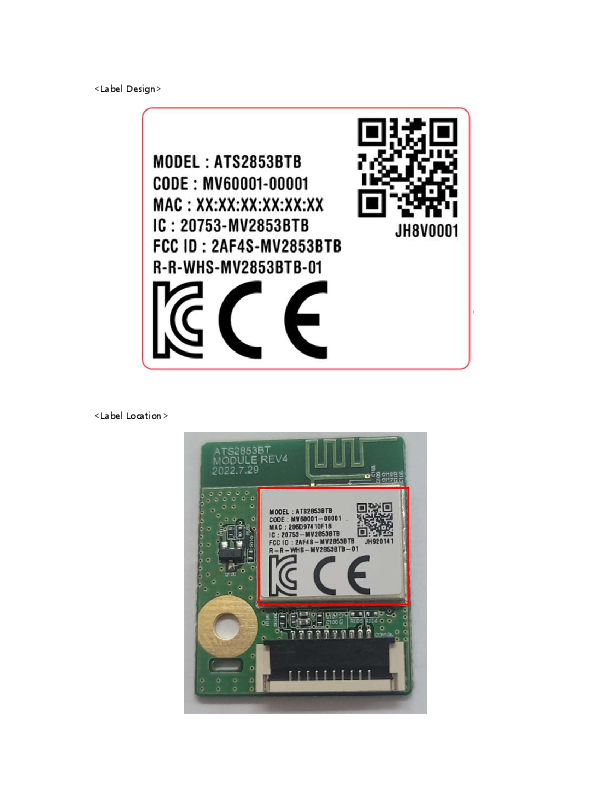

Label Location
Bluetooth Module
Barcode information
Validated product identifiers extracted from the generated document image; label documents may also include identifiers from available document text.
Document preview loads when visible.
Document Details
| FCC ID | 2AF4S-MV2853BTB |
|---|---|
| Document ID | 6246092 |
| Document Type | ID Label/Location Info |
| Description | Label Location |
| Document Title | Label Location |
| Applicant | SAM JIN CO., LTD |
| Equipment Class | Bluetooth Module |
| Product Code | MV2853BTB |
| Application ID | C/VSXjyEhF7bAEViR7Ez1Q== |
| Application Purpose | Original Equipment |
| Application Date | 2022-11-28 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0024941692 |
| Test Firm | BV CPS ADT Korea Ltd. |
| Certified By | SangSoo Kim Senior Research Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 05/27/2023 |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2022-11-28 |
| Available | 2022-11-28 |
| Created | 2022-09-27 |
| Modified | 2022-09-27 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 109645 |
| File SHA-256 | 21667f8bb2d5fd9b18029c459bb1f3aaf1817bfde806cd93728dedc71ad064c0 |
| PDF Metadata Author | ryan |
| PDF Metadata Producer | Microsoft: Print To PDF |
| FCC.gov Sources | FCC.gov 6246092, FCC.gov 6246079 |
