S450IM Fixed outdoor street light wireless... - FCC ID 2AF9J-S450IM
FCC ID 2AF9J-S450IM

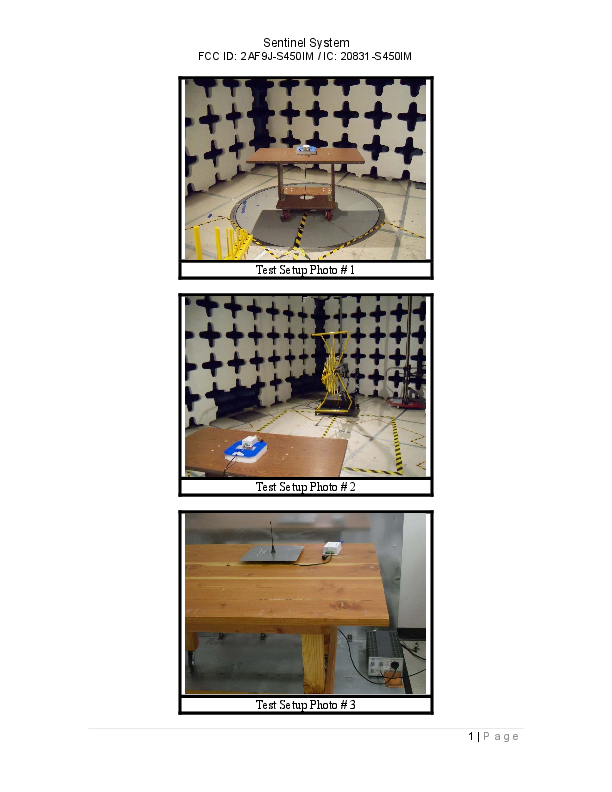

Test Setup Photos
Fixed outdoor street light wireless control
Document preview loads when visible.
Document Details
| FCC ID | 2AF9J-S450IM |
|---|---|
| Document ID | 2846864 |
| Document Type | Test Setup Photos |
| Description | Test Setup Photos |
| Document Title | Test Setup Photosx |
| Applicant | Sentinel Systems, LLC |
| Equipment Class | Fixed outdoor street light wireless control |
| Product Code | S450IM |
| Application ID | yejb/yf98NmiGWAkyULJfA== |
| Application Purpose | Original Equipment |
| Application Date | 2015-12-18 |
| Frequency Range | 451-459 MHz |
| FRN | 0024985848 |
| Test Firm | SMART EC Product Testing Services |
| Certified By | Steven Fister |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2015-12-18 |
| Available | 2015-12-18 |
| Created | 2015-12-07 |
| Modified | 2015-12-07 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 335322 |
| File SHA-256 | 554e830ff8c8992715dfbdc787c488d2bdb32046c5011996a68c7e2bb1b0df7a |
| PDF Metadata Author | KarenS |
| PDF Metadata Producer | KarenS Acrobat Distiller 11.0 (Windows) |
| FCC.gov Sources | FCC.gov 2846864 |
