FCC ID 2AFDI-ITCOQ410S
Wireless Transmitter with Qualcomm WCN3620 chip
by Lantronix Canada, ULC.
Grantee Code: 2AFDI Product Code: ITCOQ410S
Latest application date: 2016-07-22
Device Images
FCC ID Device Details
| FCC ID | 2AFDI-ITCOQ410S |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AFDI |
| Product Code | ITCOQ410S |
| Applicant Business | Lantronix Canada, ULC. 🇺🇸 |
| Related Domains |  lantronix.com |
| Equipment Class | Wireless Transmitter with Qualcomm WCN3620 chip |
| Test Firm | QAI LABORATORIES LTD. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-07-22 |
| 2402-2480 MHz | Original Equipment | 2016-07-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| OEM Integrator Guide User Manual | Users Manual | 2016-07-22 | PDF 114.9 KB |
| User Manual | Users Manual | 2016-07-22 | PDF 114.9 KB |
| Internal Photos | Internal Photos | 2016-07-22 | PDF 258 KB |
| External Photo | External Photos | 2016-07-22 | PDF 578.6 KB |
| External Photos | External Photos | 2016-07-22 | PDF 578.6 KB |
| Label Location | ID Label/Location Info | 2016-07-22 | PDF 160.9 KB |
| Label Sample | ID Label/Location Info | 2016-07-22 | PDF 160.9 KB |
| Block Diagram | Block Diagram | 2016-07-22 | PDF 272.6 KB |
| Operational Description | Operational Description | 2016-07-22 | PDF 378.9 KB |
| Operational Description Antenna Data Sheet | Operational Description | 2016-07-22 | PDF 1.5 MB |
| Operational Description Antenna Data Sheet 330-019 | Operational Description | 2016-07-22 | PDF 1.5 MB |
| Operational Description Antenna Data Sheet AP | Operational Description | 2016-07-22 | PDF 1.1 MB |
| Operational Description Antenna Data Sheet AP.17F. 0064A | Operational Description | 2016-07-22 | PDF 1.1 MB |
| Operational Description SOM Datasheet | Operational Description | 2016-07-22 | PDF 664 KB |

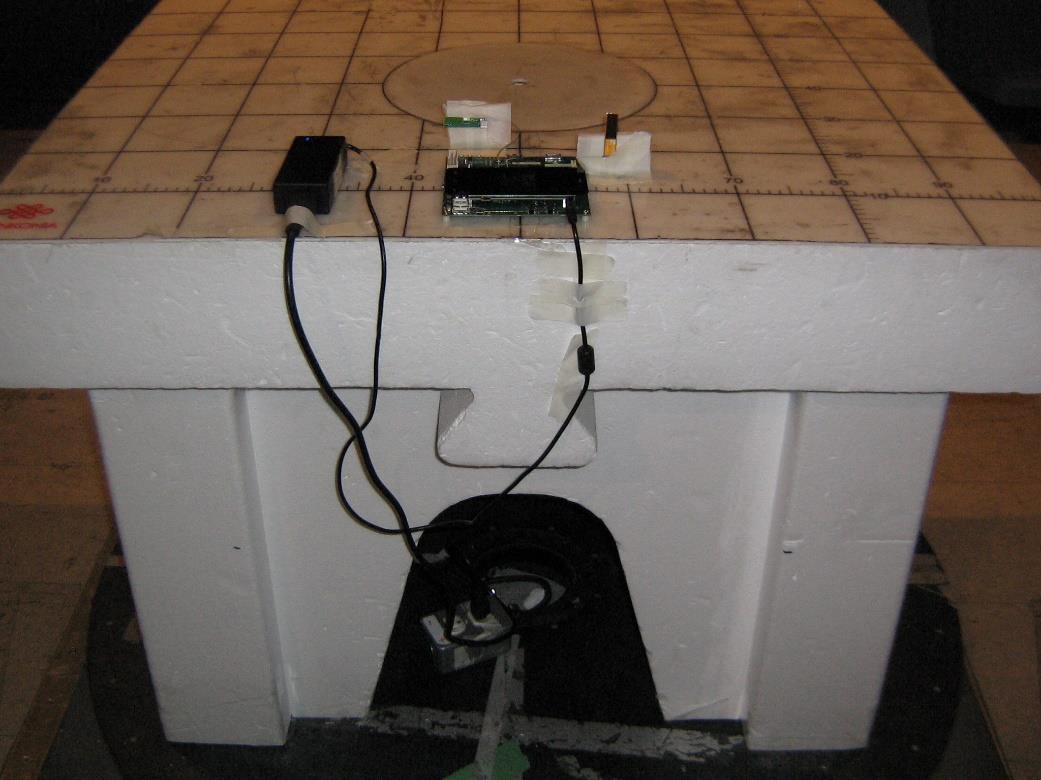

| Test Setup Photos | Test Setup Photos | 2016-07-22 | PDF 478.8 KB |
| Test Report | Test Report | 2016-07-22 | PDF 4.7 MB |
| Test Report DSS | Test Report | 2016-07-22 | PDF 4.9 MB |
| Confidentiality Letter | Cover Letter(s) | 2016-07-22 | PDF 98.3 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-07-22 | PDF 98.3 KB |
| Modular Application | Cover Letter(s) | 2016-07-22 | PDF 199.7 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-07-22 | PDF 199.7 KB |
| Schematics Metadata only | Schematics | PDF 4 MB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 328.9 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 328.9 KB |
Application Information
| Application ID | ixCHTI7v5gDBpNDTZWn77g== |
|---|---|
| Final Action Date | 2016-07-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025103136 |
| Model | ITCOQ410S |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wireless Transmitter with Qualcomm WCN3620 chip |
| Responsible Party | Fathi Hakam, VP of Engineering, fhakam@lantronix.com , +1 (949) 453-3990 |
| Test Firm | Parminder Singh, QAI LABORATORIES LTD., psingh@qai.org  , 604-527-8378 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. This module is restricted to installation in products for use only in mobile and fixed applications. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Users and installers must be provided with device operating conditions for satisfying RF exposure compliance. This device has a 20 and 40 MHz bandwidth modes. |
