FCC ID 2AFG6-RK3288
Android Main Board
by Guangzhou Shirui Electronics Co., Ltd
Grantee Code: 2AFG6 Product Code: RK3288
Latest application date: 2015-12-31
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-12-31 |
| 2402-2480 MHz | Original Equipment | 2015-12-31 |
| 5180-5240 MHz | Original Equipment | 2015-12-31 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

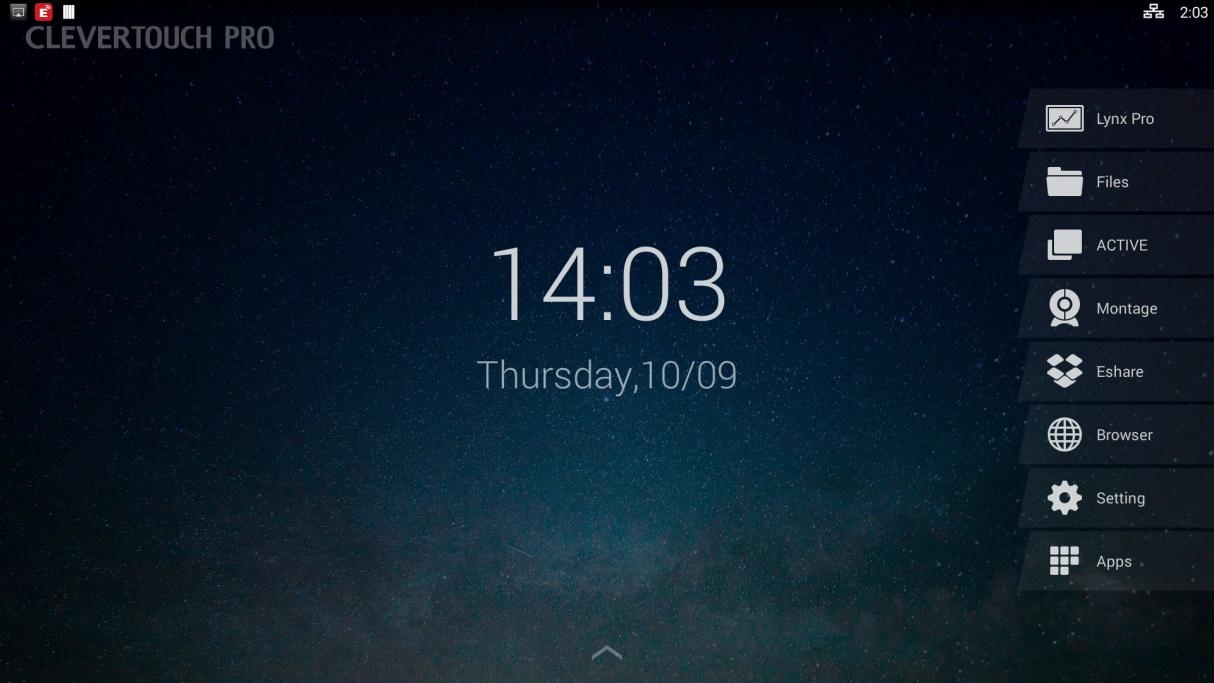

| User manual | Users Manual | 2015-12-31 | PDF 515.9 KB |
| Users Manual | Users Manual | 2015-12-31 | PDF 515.9 KB |
| Internal Photos | Internal Photos | 2015-12-31 | PDF 686.7 KB |
| Internal photo | Internal Photos | 2015-12-31 | PDF 686.7 KB |
| External Photos | External Photos | 2015-12-31 | PDF 686.7 KB |
| External photo | External Photos | 2015-12-31 | PDF 686.7 KB |
| ID Label/Location Info | ID Label/Location Info | 2015-12-31 | PDF 455.6 KB |
| ID label/Location info | ID Label/Location Info | 2015-12-31 | PDF 455.6 KB |

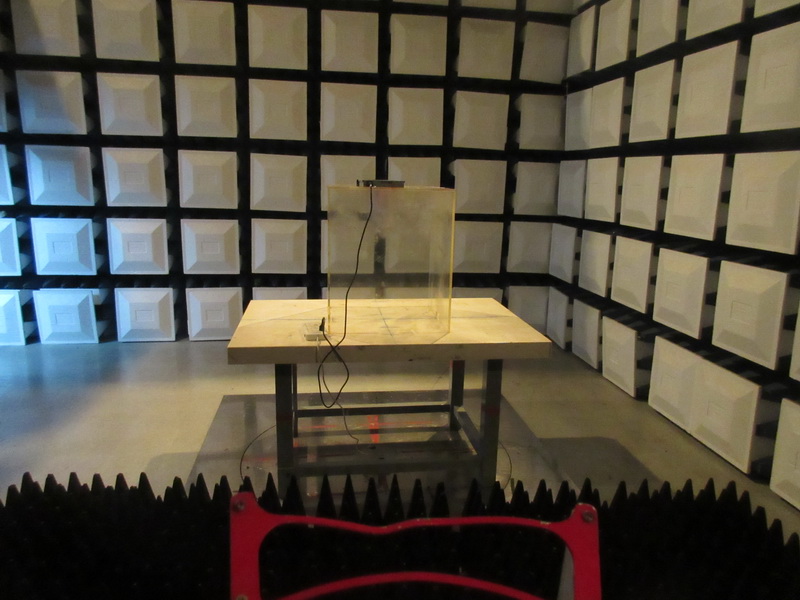

| Test Setup Photos | Test Setup Photos | 2015-12-31 | PDF 1.2 MB |
| Test setup photo | Test Setup Photos | 2015-12-31 | PDF 1.2 MB |
| Test Report_BAND 1, 4 part 1 | Test Report | 2015-12-31 | PDF 3.6 MB |
| Test Report_BAND 1. 4 part 2 | Test Report | 2015-12-31 | PDF 5.3 MB |
| Test Report_BT | Test Report | 2015-12-31 | PDF 4.9 MB |
| Test Report_LE | Test Report | 2015-12-31 | PDF 3.2 MB |
| Test Report_WIFI | Test Report | 2015-12-31 | PDF 4.9 MB |
| Declaration of authorization | Cover Letter(s) | 2015-12-31 | PDF 368.8 KB |
| FCC Limited Modular Approval Request | Cover Letter(s) | 2015-12-31 | PDF 41.8 KB |
| Request for non-disclosure | Cover Letter(s) | 2015-12-31 | PDF 650.4 KB |
| FCC RF Exposure Info-BT | RF Exposure Info | 2015-12-31 | PDF 60.6 KB |
| FCC RF Exposure Info-Band 1+Band 4 | RF Exposure Info | 2015-12-31 | PDF 75 KB |
| FCC RF Exposure Info-LE | RF Exposure Info | 2015-12-31 | PDF 60.3 KB |
| FCC RF Exposure Info-WIFI | RF Exposure Info | 2015-12-31 | PDF 64.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 78.9 KB | |
| Schematics Metadata only | Schematics | PDF 598.1 KB | |
| 14. Operation Description for software security Metadata only | Operational Description | PDF 48.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 80.4 KB |
Application Information
| Application ID | lzPi/E2zjVyGMhyE+xzEhA== |
|---|---|
| Final Action Date | 2015-12-31 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024773087 |
| Model | RK3288 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Android Main Board |
| Responsible Party | Sarah Sun, Regulatory Engineer, sunxueping@cvte.com  , +86-13640798230 |
| Agent | Cathy Cathy Cathy, BTL Inc., cathy@newbtl.com  , 86-769-83183000 |
| Technical Contact | Steven Lu, BTL Inc., steven@newbtl.com , 86-769-83183000 |
| Non-Technical Contact | Cathy Wang, BTL Inc., cathy@newbtl.com , 86-769-83183000 |
| Test Firm | Daisy Dai, BTL Inc., daisy.dai@btl.org.cn  , 008676983183000 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions.OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. |
