RAVINE Dongle Test Report - FCC ID 2AFGF-RAVINE
FCC ID 2AFGF-RAVINE
Antenna spec
Dongle
Document preview loads when visible.
Document Details
| FCC ID | 2AFGF-RAVINE |
|---|---|
| Document ID | 6730338 |
| Document Type | Test Report |

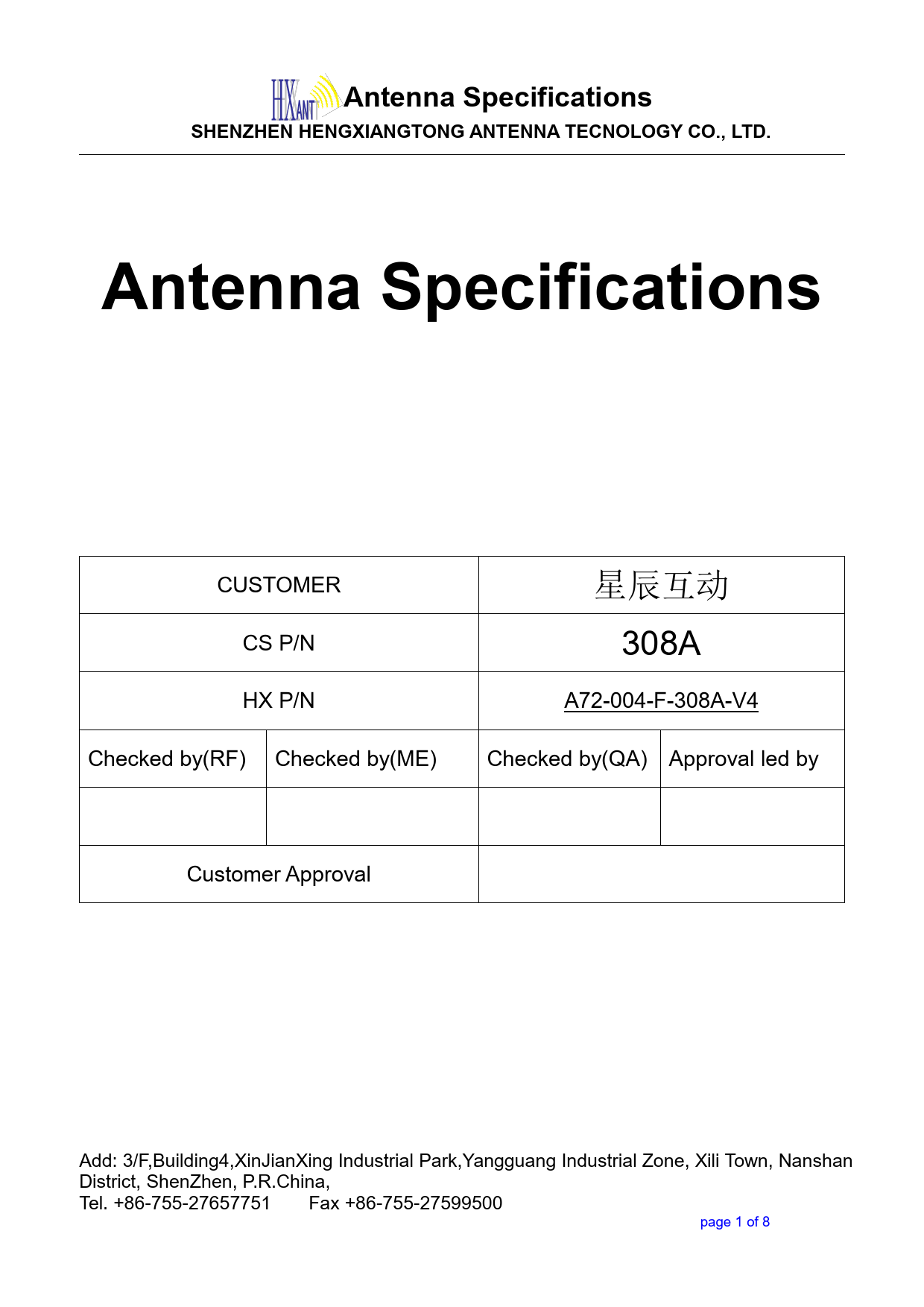

| Description | Antenna spec |
| Document Title | Antenna Specifications |
| Applicant | Shen Zhen PXN Electronics Technology Co., Ltd. |
| Equipment Class | Dongle |
| Product Code | RAVINE |
| Application ID | 3N49S87rMaNCj2BmvMtYWg== |
| Application Purpose | Original Equipment |
| Application Date | 2023-08-14 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0024767402 |
| Test Firm | BlueAsia of Technical Services (Shenzhen) |
| Certified By | Pinghui Chen |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2023-08-14 |
| Available | 2023-08-14 |
| Created | 2023-03-09 |
| Modified | 2023-03-09 |
| Pages | 8 |
| File Type | Adobe Acrobat PDF |
| File Size | 439425 |
| File SHA-256 | 95562c717c8e64a68d84c50f9cbfa8c8cb5029d9ee45ca1c3754f78b4148db5c |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | WPS 文字 |
| FCC.gov Sources | FCC.gov 6730338 |
