FCC ID 2AFJC-HBAND-01
H-Band
by PH Technical Labs LLC
Grantee Code: 2AFJC Product Code: HBAND01
Latest application date: 2016-12-27
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-12-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2017-02-10 | PDF 670.2 KB |
| Internal Photos | Internal Photos | 2017-02-10 | PDF 525.6 KB |
| Ext. Photos | External Photos | 2016-12-27 | PDF 693.7 KB |
| Label n Location | ID Label/Location Info | 2016-12-27 | PDF 131.4 KB |

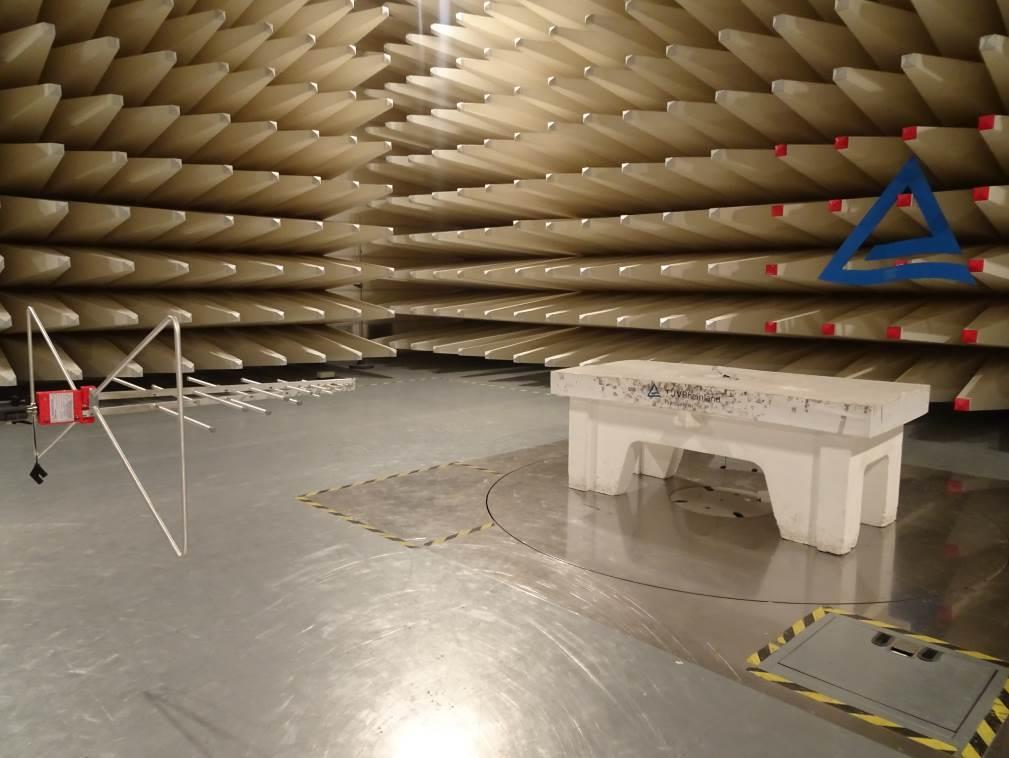

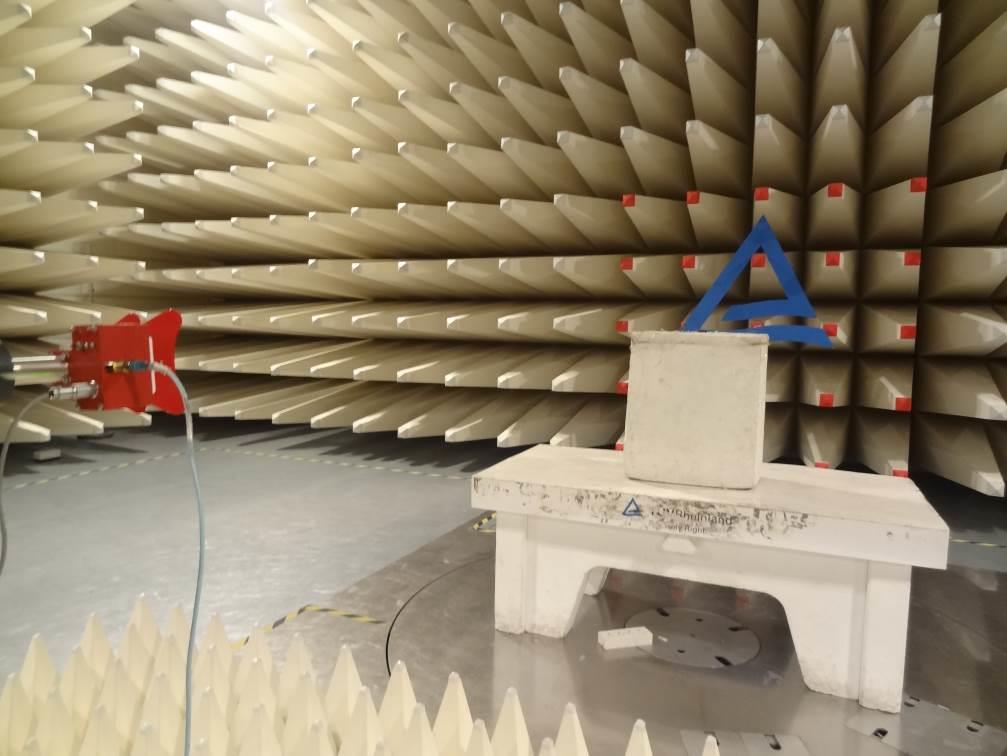

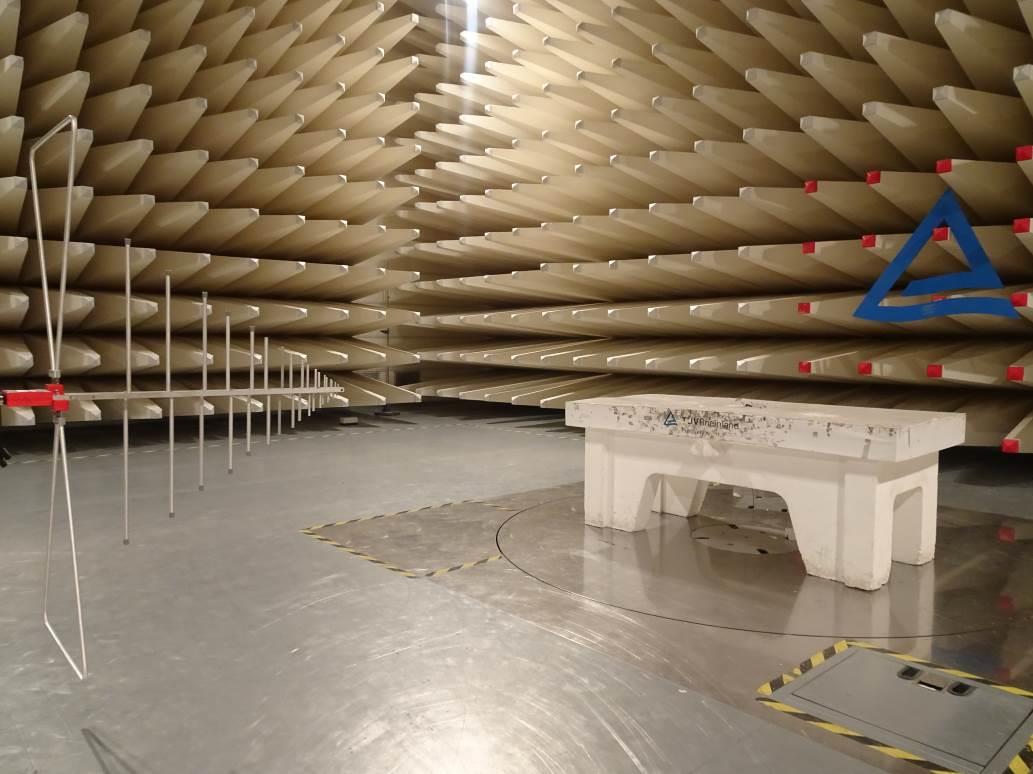

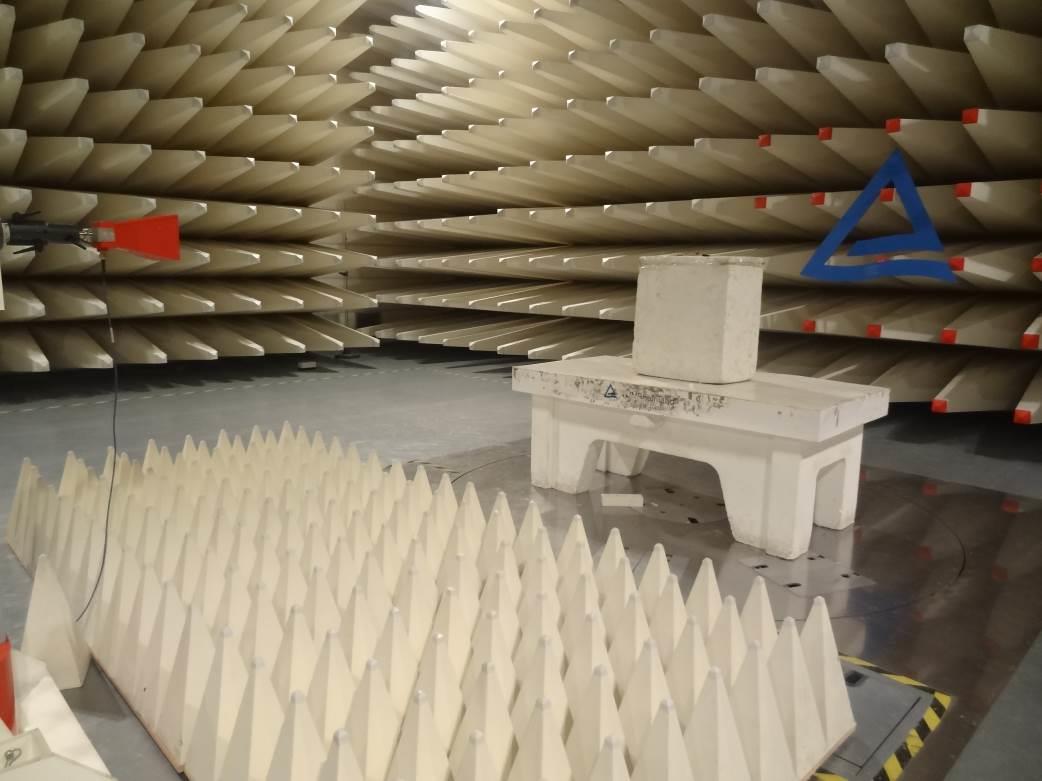

| Setup Photo | Test Setup Photos | 2016-12-27 | PDF 629.6 KB |
| Test Report | Test Report | 2016-12-27 | PDF 1 MB |
| Conf. Req. Letter | Cover Letter(s) | 2016-12-27 | PDF 255.9 KB |
| Exposure Info | RF Exposure Info | 2016-12-27 | PDF 120.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 316 KB | |
| BOM of Schematic Metadata only | Parts List/Tune Up Info | PDF 209.6 KB | |
| Schematic Metadata only | Schematics | PDF 47.1 KB | |
| Ant Desc Metadata only | Operational Description | PDF 583.9 KB | |
| EUT Specs Metadata only | Operational Description | PDF 76.9 KB | |
| OpDesc Metadata only | Operational Description | PDF 345.3 KB |
Application Information
| Application ID | 1z5wNARANBPQS74JtMWJHQ== |
|---|---|
| Final Action Date | 2016-12-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024792186 |
| Model | HBAND-01 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | H-Band |
| Responsible Party | Ram Pattikonda, CTO, rpattikonda@phtl.com  , 2145042263 |
| Test Firm | B GURUPRASAD, TUV Rheinland (India) Pvt. Ltd.,, guruprasad.br@ind.tuv.com  , 91-80-3989-9888 |
| TCB Email | rc@twn.tuv.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 02/10/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted |
