FCC ID 2AFNGAPWSERIES

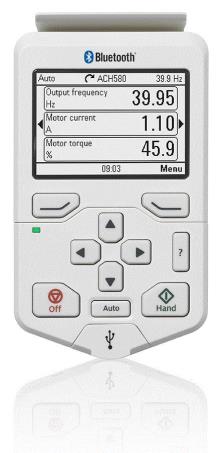

Assistant Control Panel with Bluetooth interface
by ABB Oy, Drives
Grantee Code: 2AFNG Product Code: APWSERIES
Latest application date: 2015-10-29
Device Images
FCC ID Device Details
| FCC ID | 2AFNGAPWSERIES |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AFNG |
| Product Code | APWSERIES |
| Applicant Business | ABB Oy, Drives 🇫🇮 |
| Related Domains |  fi.abb.com |
| Equipment Class | Assistant Control Panel with Bluetooth interface |
| Test Firm | Eurofins Product Service GmbH |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-10-29 |
| 2402-2480 MHz | Original Equipment | 2015-10-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

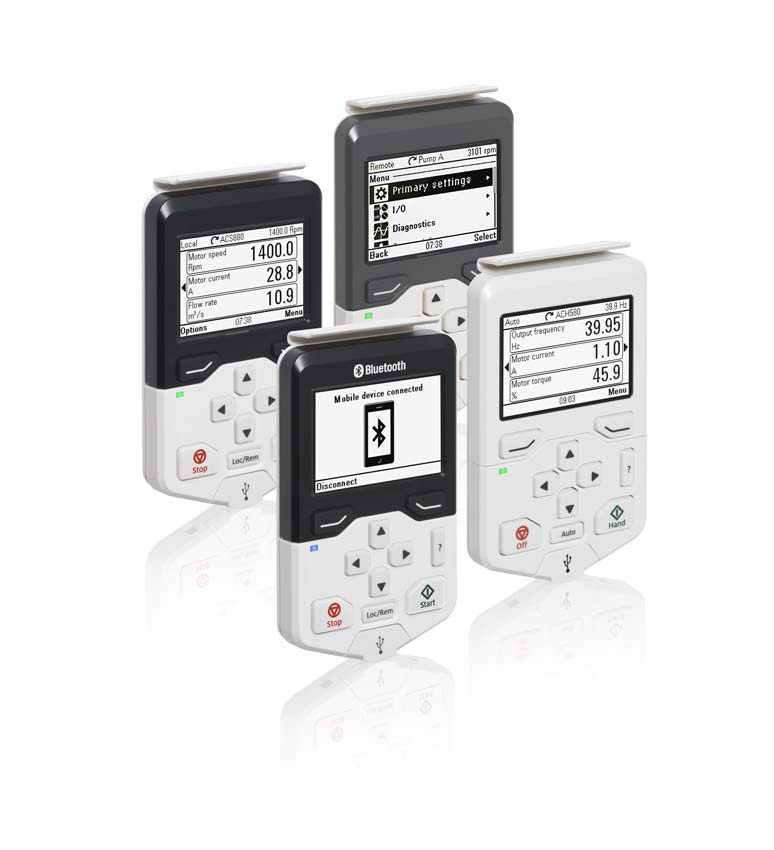

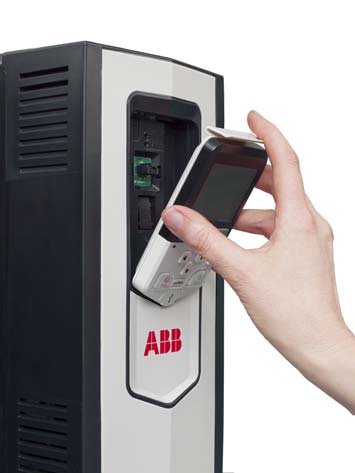

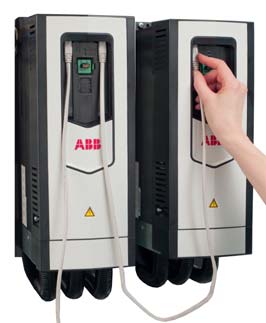

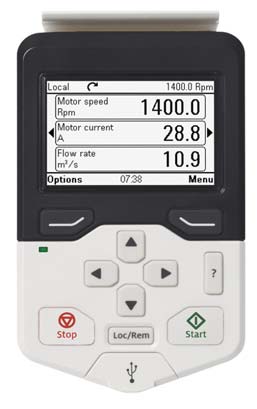

| APWSERIES_UserMan | Users Manual | 2015-10-29 | PDF 606 KB |

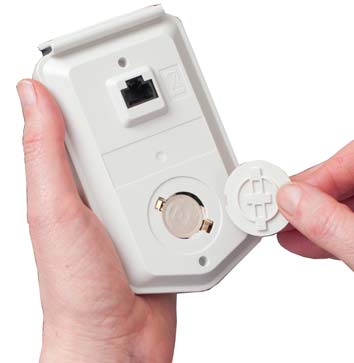

| APWSERIES_IntPho | Internal Photos | 2015-10-29 | PDF 420.3 KB |
| APWSERIES_ExtPho | External Photos | 2015-10-29 | PDF 203.2 KB |
| APWSERIES_LabelSmpl-Loc | ID Label/Location Info | 2015-10-29 | PDF 105.3 KB |

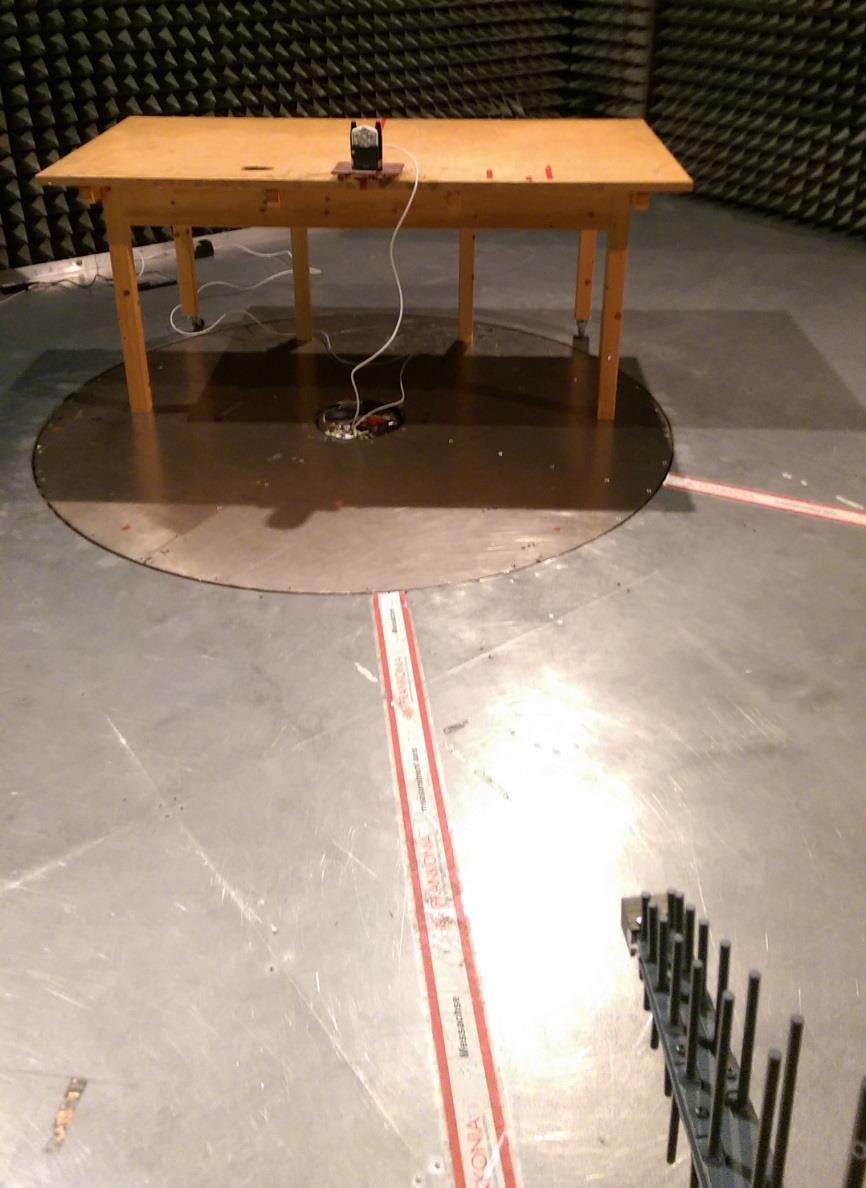

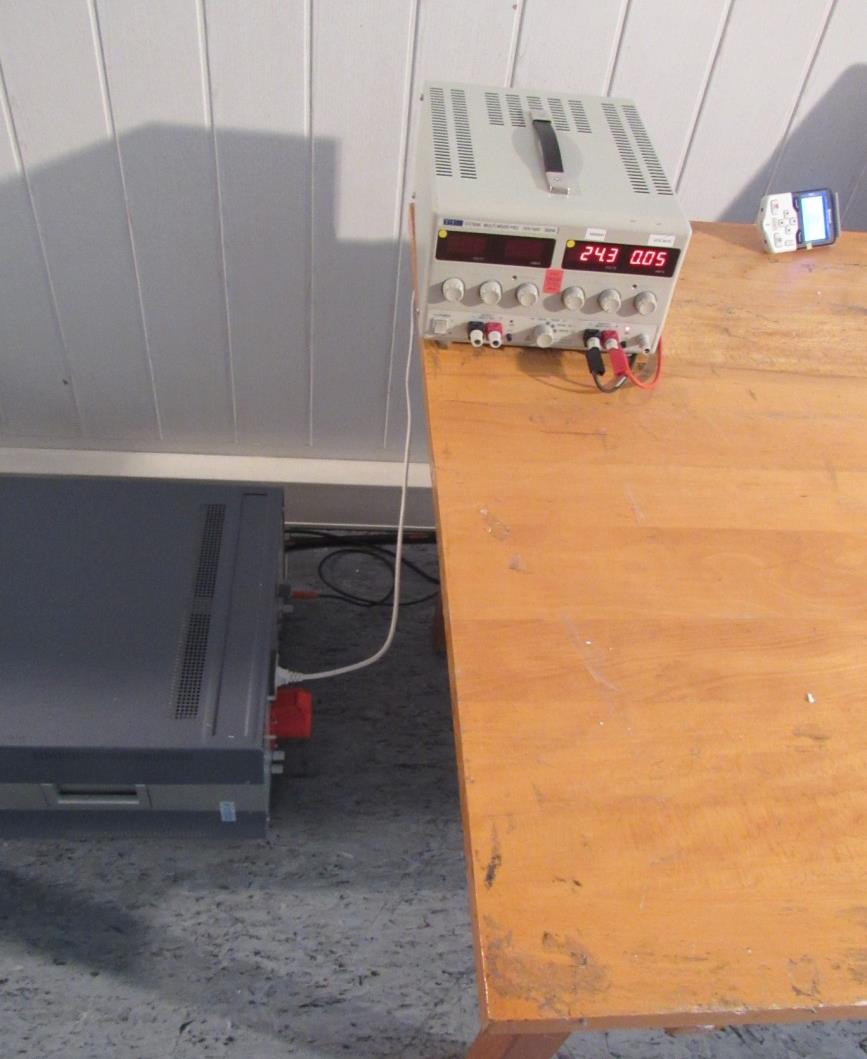

| APWSERIES_TSup | Test Setup Photos | 2015-10-29 | PDF 248.8 KB |
| APWSERIES_TRpt 15B | Test Report | 2015-10-29 | PDF 1.3 MB |
| APWSERIES_TRpt BT LE | Test Report | 2015-10-29 | PDF 1.1 MB |
| APWSERIES_TRpt-BT | Test Report | 2015-10-29 | PDF 2 MB |
| APWSERIES_AutLet | Cover Letter(s) | 2015-10-29 | PDF 127.1 KB |
| APWSERIES_ConReq | Cover Letter(s) | 2015-10-29 | PDF 191.5 KB |
| APWSERIES_RFExp-SAR-1 | RF Exposure Info | 2015-10-29 | PDF 2.3 MB |
| APWSERIES_RFExp-SAR-2 | RF Exposure Info | 2015-10-29 | PDF 3 MB |
| APWSERIES_RFExp-SAR-3 | RF Exposure Info | 2015-10-29 | PDF 3 MB |
| APWSERIES_RFExp-SAR-4 | RF Exposure Info | 2015-10-29 | PDF 1.9 MB |
| APWSERIES_SAR-1 | RF Exposure Info | 2015-10-29 | PDF 2.3 MB |
| APWSERIES_SAR-2 | RF Exposure Info | 2015-10-29 | PDF 3 MB |
| APWSERIES_SAR-3 | RF Exposure Info | 2015-10-29 | PDF 3 MB |
| APWSERIES_SAR-4 | RF Exposure Info | 2015-10-29 | PDF 1.9 MB |
| APWSERIES_BlkDia Metadata only | Block Diagram | PDF 96.9 KB | |
| APWSERIES_Schem Metadata only | Schematics | PDF 626.1 KB | |
| APWSERIES_AntSpec Metadata only | Operational Description | PDF 136.4 KB | |
| APWSERIES_OpDes Metadata only | Operational Description | PDF 236.6 KB | |
| APWSERIES_PartLst-1 Metadata only | Parts List/Tune Up Info | PDF 93.5 KB | |
| APWSERIES_PartLst-2 Metadata only | Parts List/Tune Up Info | PDF 58.6 KB | |
| APWSERIES_PartLst-a Metadata only | Parts List/Tune Up Info | PDF 93.5 KB | |
| APWSERIES_PartLst-b Metadata only | Parts List/Tune Up Info | PDF 58.6 KB |
Application Information
| Application ID | aE5G0IBXiI0/+zE6Vh56aQ== |
|---|---|
| Final Action Date | 2015-10-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024823148 |
| Model | APWSERIES |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | Assistant Control Panel with Bluetooth interface |
| Responsible Party | Pasi Koivumaki, Product Manager, pasi.koivumaki@fi.abb.com , +358102211 |
| Test Firm | Jorg Kusig, Eurofins Product Service GmbH, joergkusig@eurofins.de  , 49-33631-888-700 |
| TCB Email | joergkusig@eurofins.de |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
