FCC ID 2AFPY-X5
GSM/WCDMA Smartphone
by Shenzhen KVD Communications Equipment Limited
Grantee Code: 2AFPY Product Code: X5
Latest application date: 2015-09-25
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-09-25 |
| 824.2-848.8 MHz | Original Equipment | 2015-09-25 |
| 2402-2480 MHz | Original Equipment | 2015-09-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| UserMan | Users Manual | 2015-09-25 | PDF 461.3 KB |

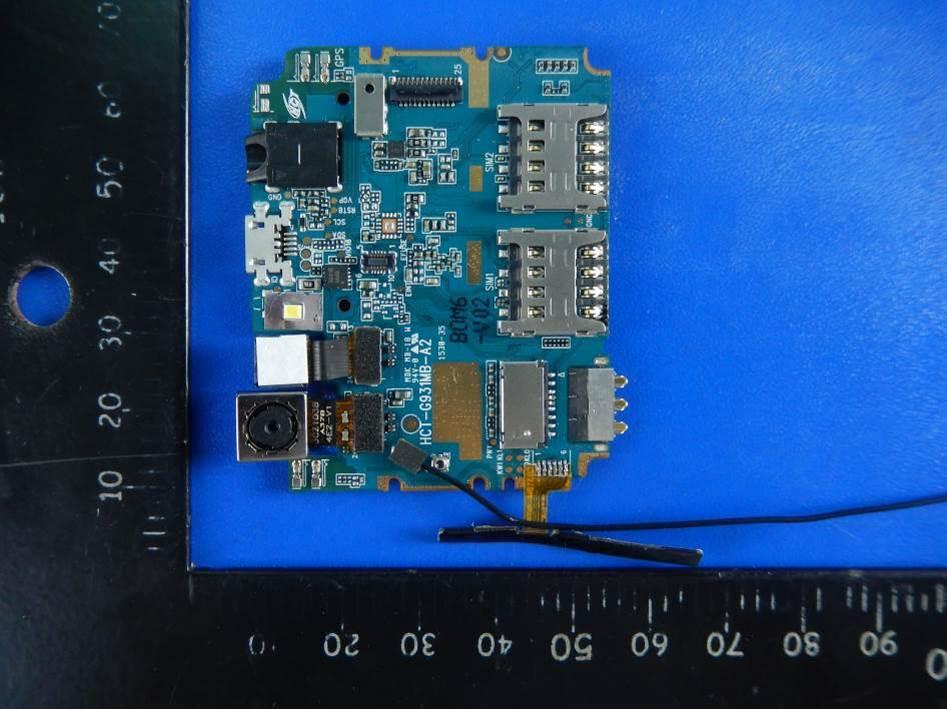

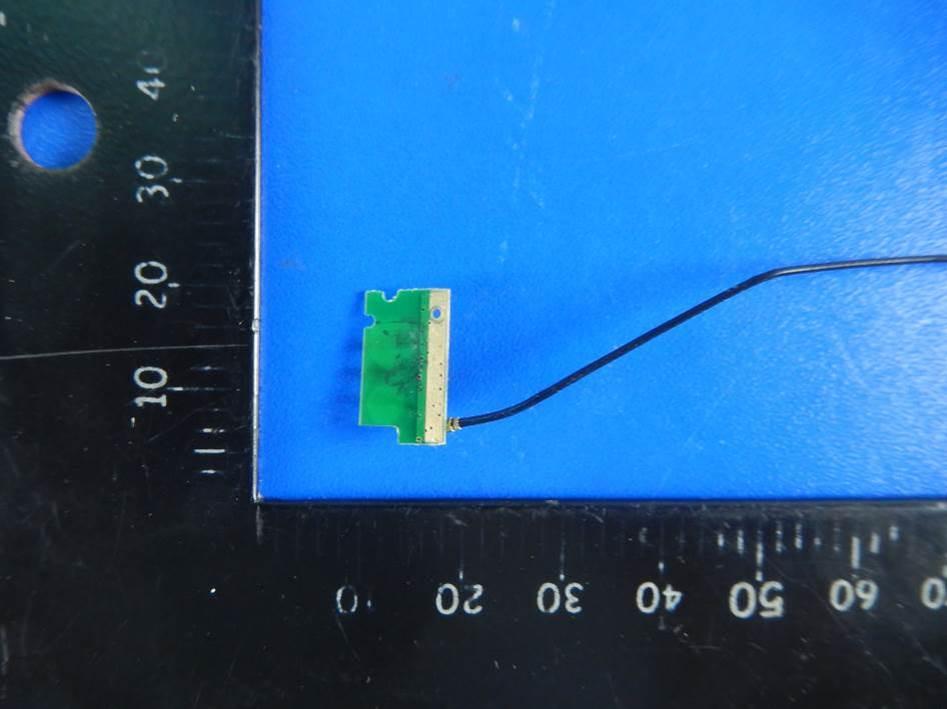

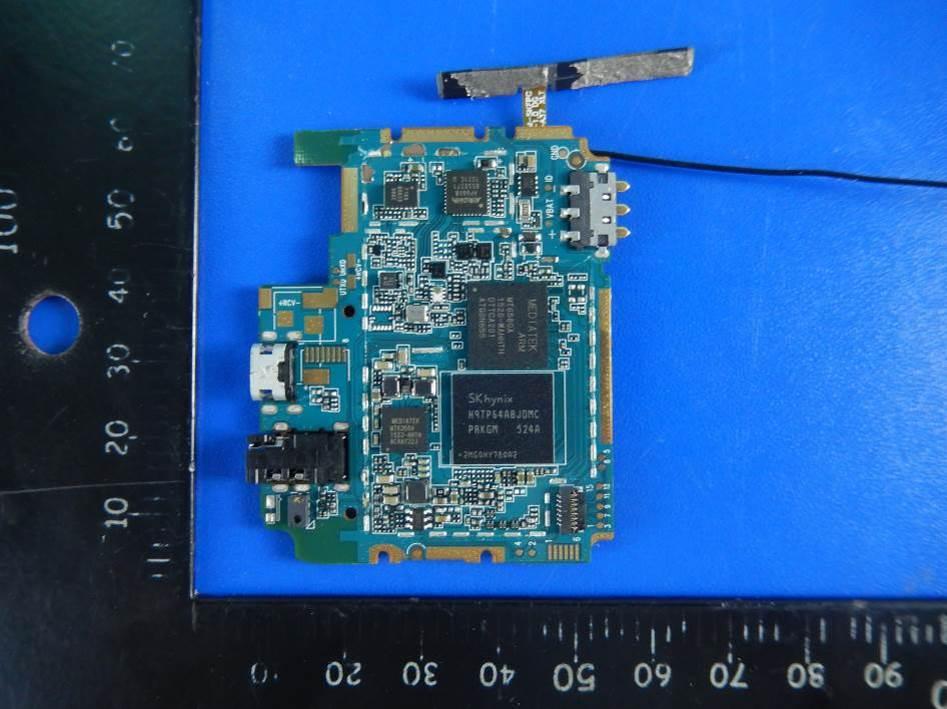

| IntPho | Internal Photos | 2015-09-25 | PDF 762.5 KB |

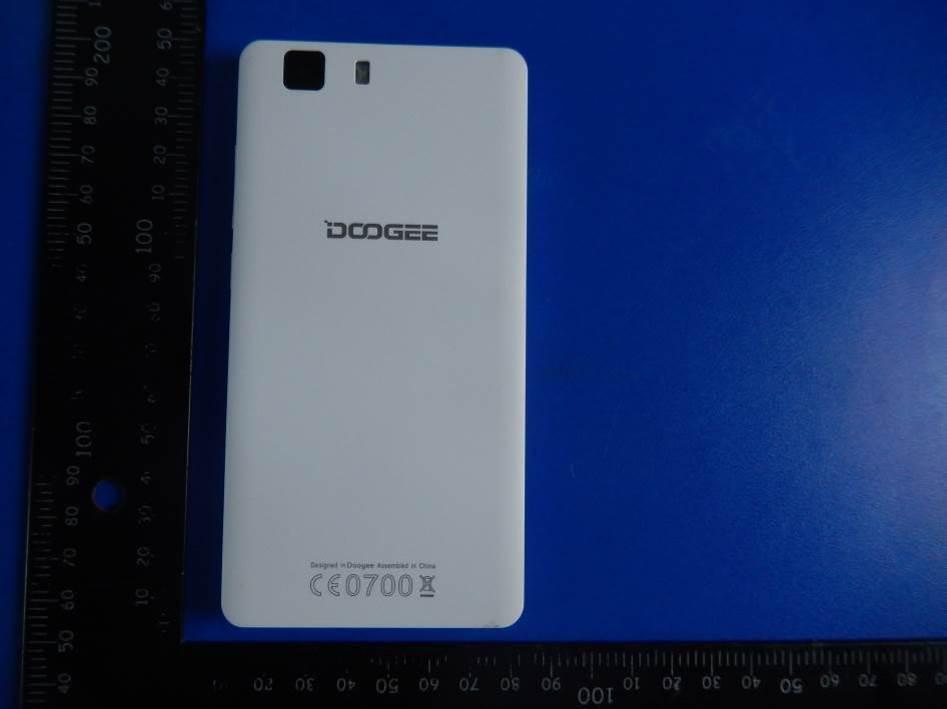

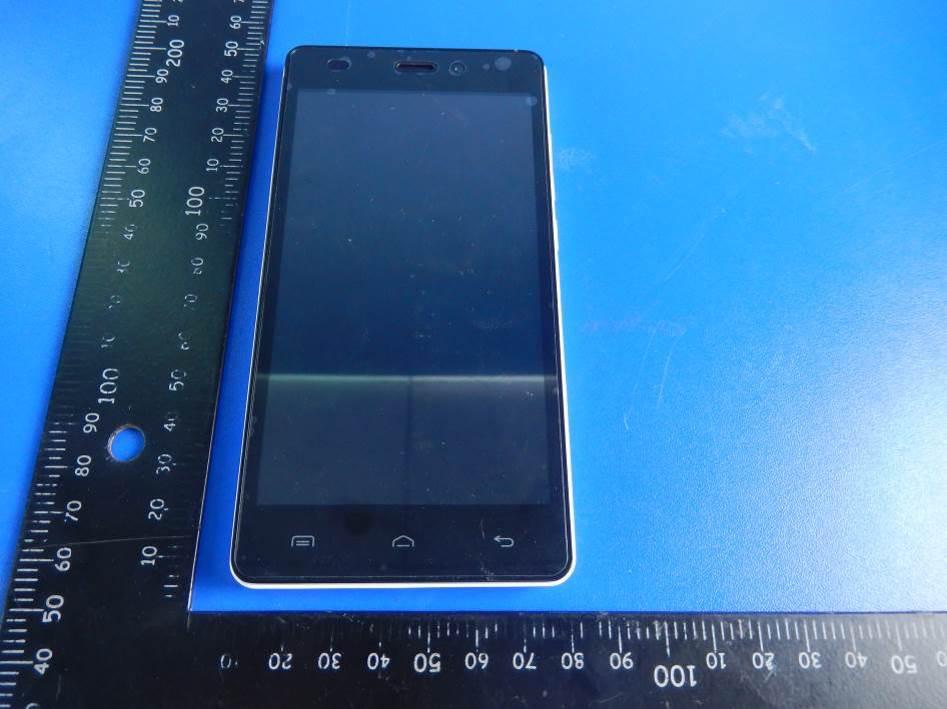

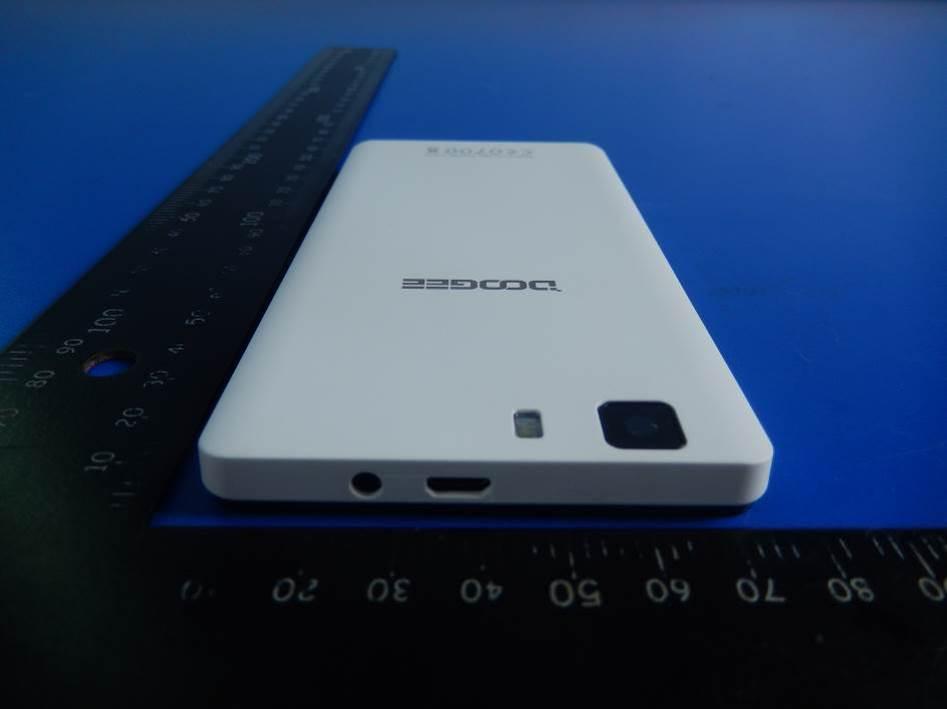

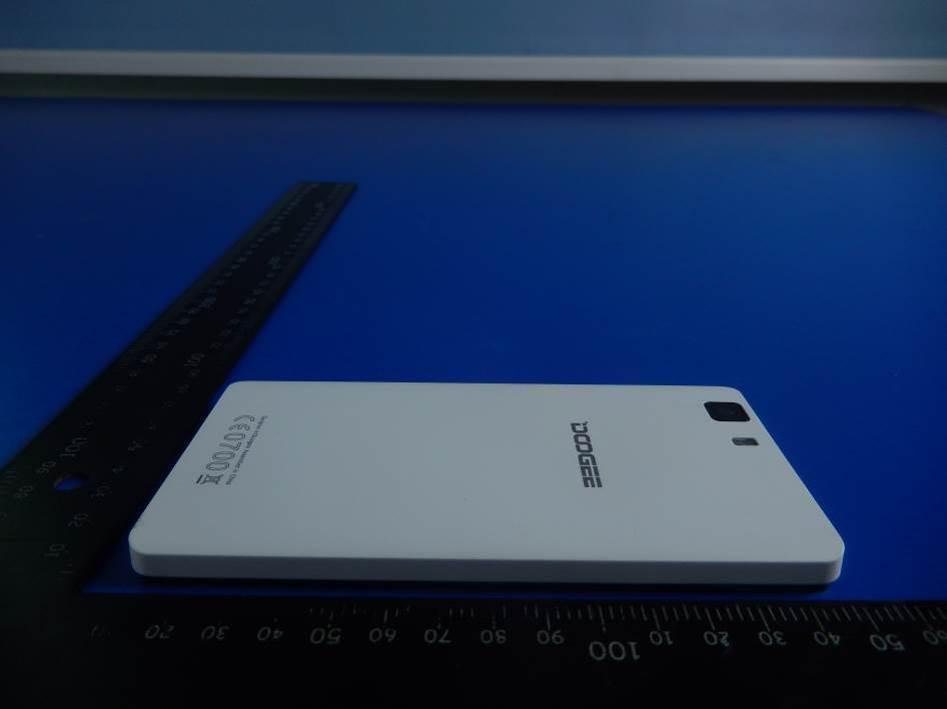

| ExtPho | External Photos | 2015-09-25 | PDF 312.6 KB |
| LabelSamp-Loc | ID Label/Location Info | 2015-09-25 | PDF 115.4 KB |
| BlDia | Block Diagram | 2015-09-25 | PDF 220.3 KB |

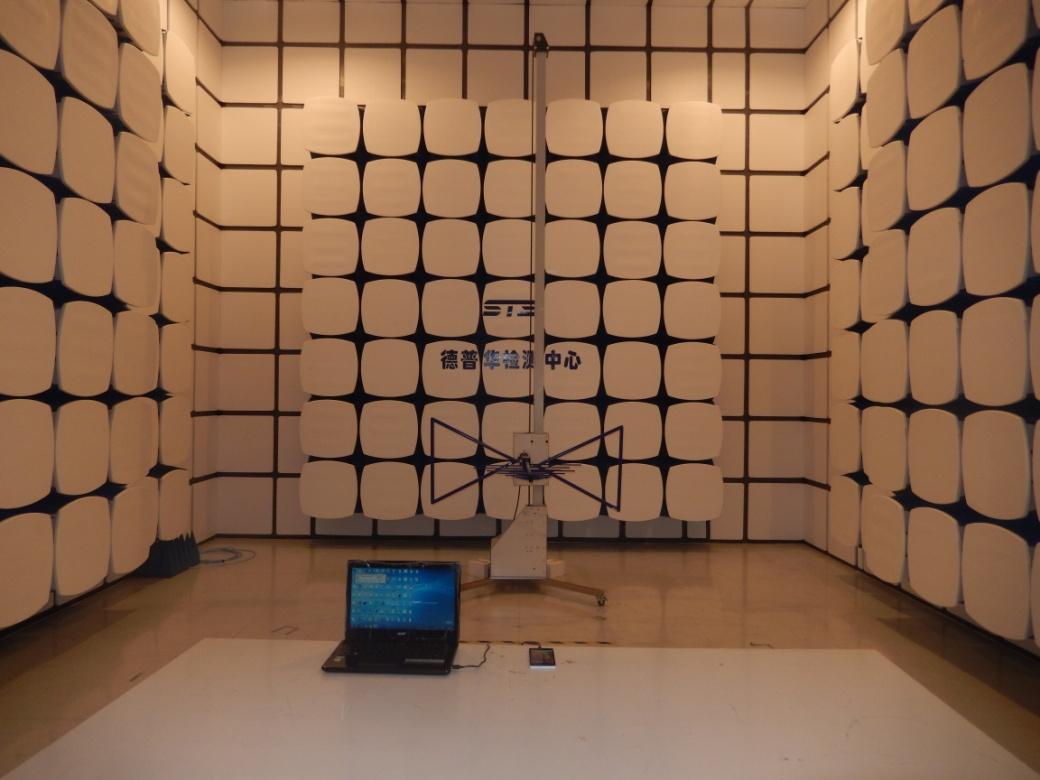

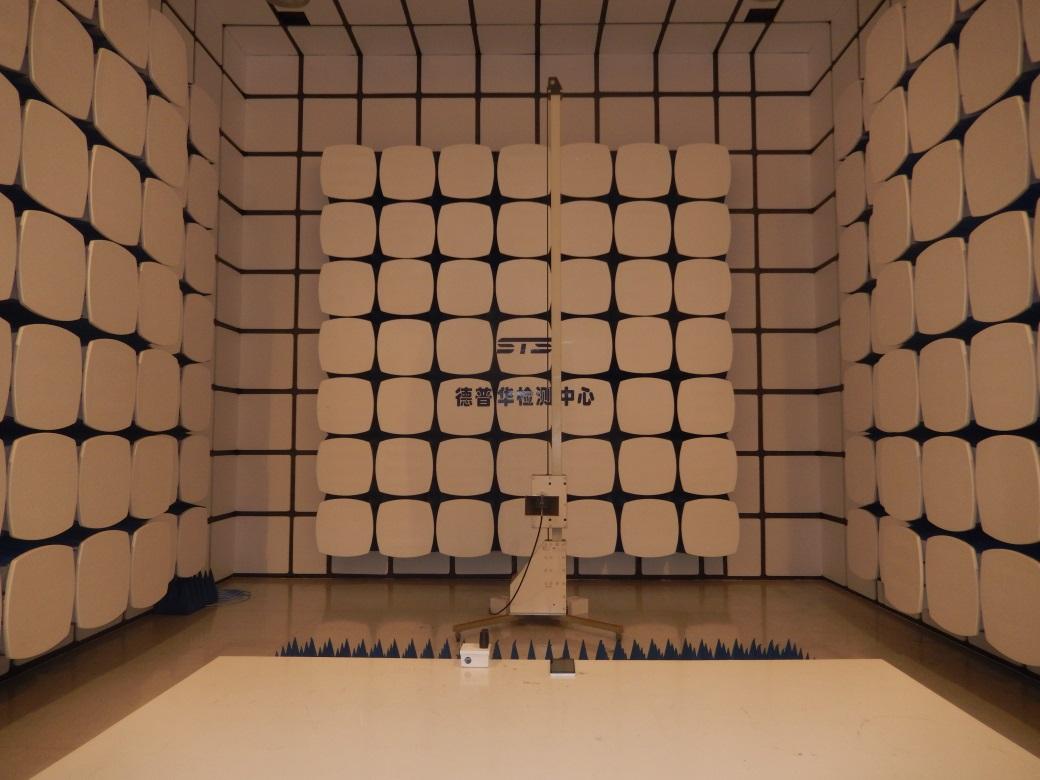

| TSup | Test Setup Photos | 2015-09-25 | PDF 288.1 KB |

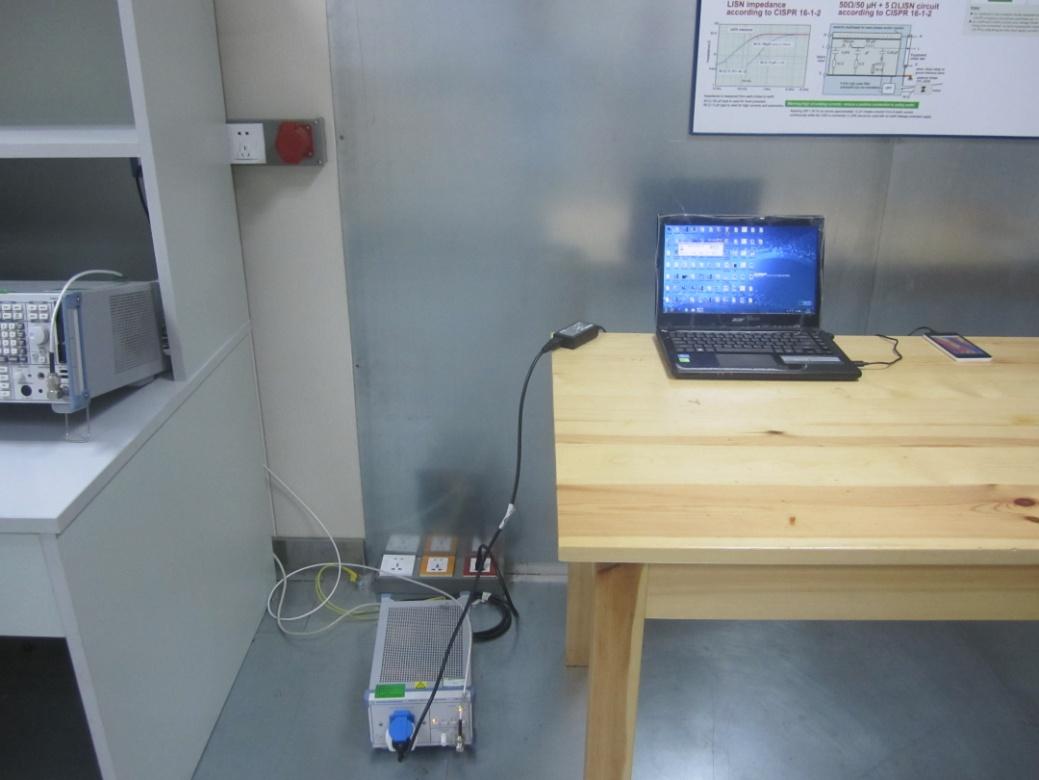

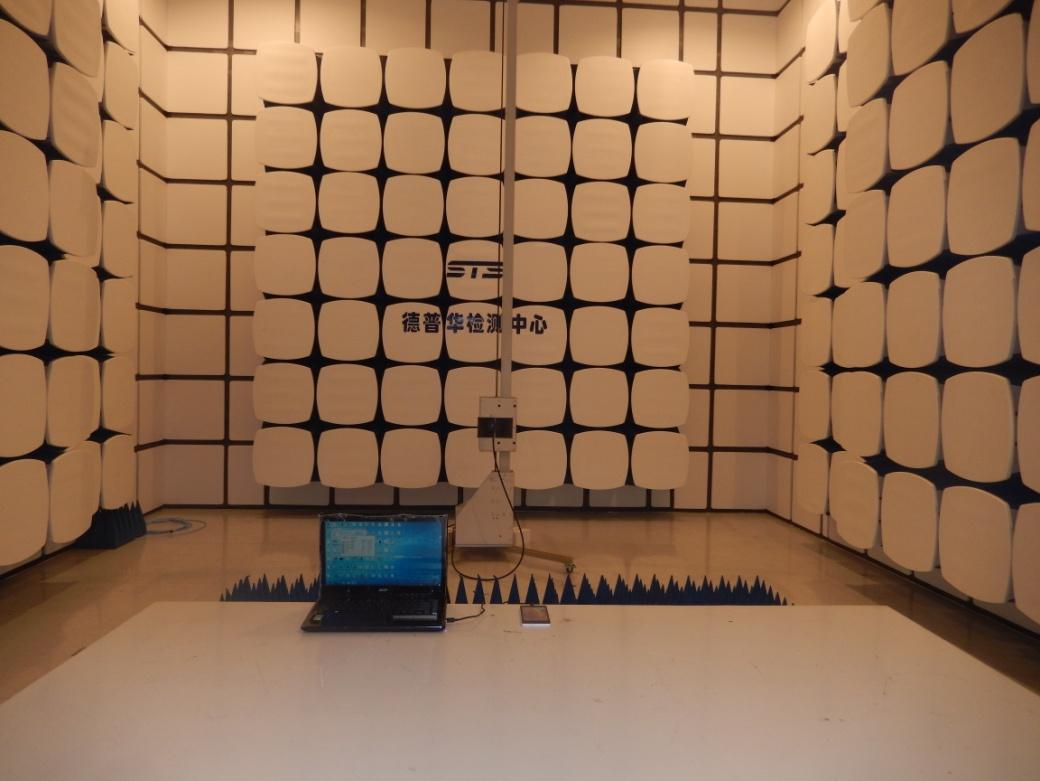

| TSup | Test Setup Photos | 2015-09-25 | PDF 235 KB |

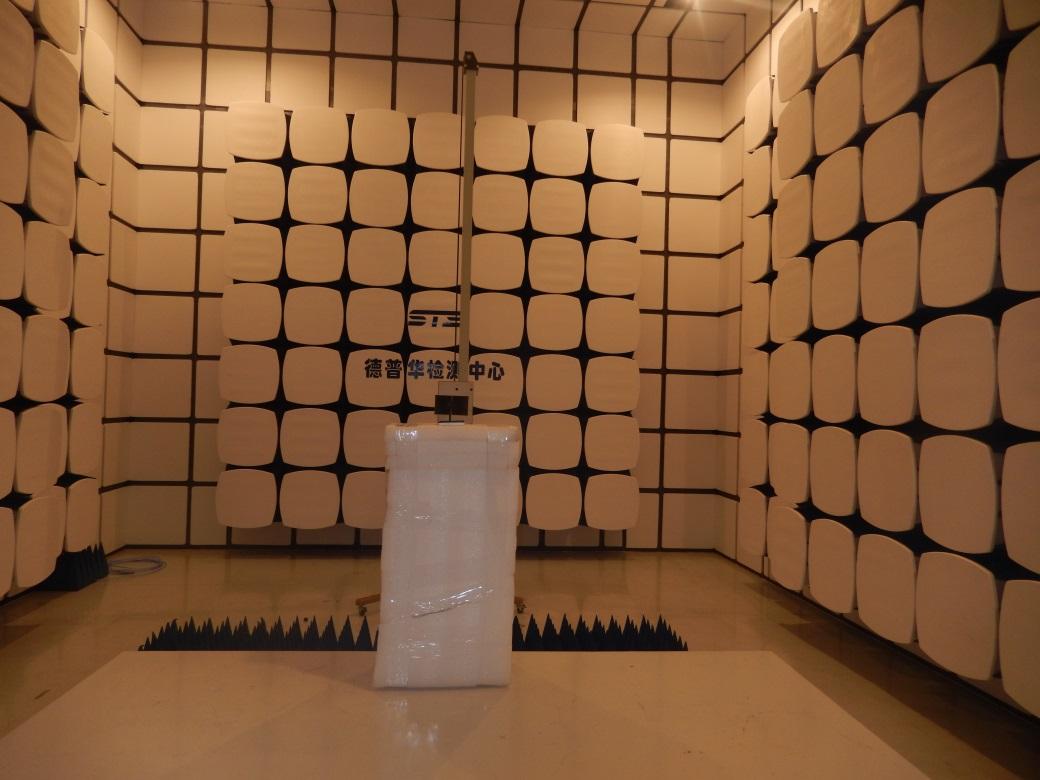

| TSup | Test Setup Photos | 2015-09-25 | PDF 293.6 KB |
| TestRep 15B | Test Report | 2015-09-25 | PDF 948.2 KB |
| TestRep 2G 3G | Test Report | 2015-09-25 | PDF 2.5 MB |
| TestRep BT | Test Report | 2015-09-25 | PDF 1.8 MB |
| TestRep BT4.0 | Test Report | 2015-09-25 | PDF 1.2 MB |
| TestRep WIFI | Test Report | 2015-09-25 | PDF 1.6 MB |
| AutLet | Attestation Statements | 2015-09-25 | PDF 14.6 KB |
| ConReq | Attestation Statements | 2015-09-25 | PDF 26.1 KB |
| RFExp | RF Exposure Info | 2015-09-25 | PDF 3.7 MB |
| RFExp Calibration Certificate | RF Exposure Info | 2015-09-25 | PDF 3.9 MB |
| Schem Metadata only | Schematics | PDF 792.4 KB | |
| AntSpec Metadata only | Operational Description | PDF 20.3 KB | |
| OpDes Metadata only | Operational Description | PDF 313.6 KB | |
| PartsList Metadata only | Parts List/Tune Up Info | PDF 476.9 KB | |
| Tune-up Procedure Metadata only | Parts List/Tune Up Info | PDF 130.9 KB |
Application Information
| Application ID | zu1/xYtDePLINN8QN0h9DQ== |
|---|---|
| Final Action Date | 2015-09-25 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024845406 |
| Model | X5 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | GSM/WCDMA Smartphone |
| Responsible Party | Wang Xiaobo, manager, xb-wang@doogee.cc  , 0755-23607569 |
| Test Firm | Bovey Yang, Shenzhen STS Test Services Co., Ltd., bovey@stsapp.com  , (86)-0755-61996328 |
| TCB Email | JoergKusig@eurofins.de  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except for the co-location described in this filing. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zu1/xYtDePLINN8QN0h9DQ== | 2015-09-25 | Original Equipment |
| wn9Aj4Fg9lRhfaaVHGu4yA== | 2015-09-25 | Original Equipment |
| 9zKws6ynPJcHP4aXbW4Uow== | 2015-09-25 | Original Equipment |
| 1e1KHA1mOyzD0iiaCWXaaQ== | 2015-09-25 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules |
|---|---|---|---|---|
| 824.2-848.8 MHz | 0.822 | 0.042ppm | 259KGXW | 22H |
| 824.2-848.8 MHz | 0.796 | 0.042ppm | 250KG7W | 22H |
| 826.4-846.6 MHz | 0.2 | 0.028ppm | 4M18F9W | 22H |
| 1850.2-1909.8 MHz | 0.385 | 0.016ppm | 251KGXW | 24E |
| 1850.2-1909.8 MHz | 0.349 | 0.017ppm | 245KG7W | 24E |
| 1852.4-1907.6 MHz | 0.167 | 0.032ppm | 4M19F9W | 24E |
| 2402-2480 MHz | 0.0012000 | 15C | ||
| 2402-2480 MHz | 0.001 | 15C | ||
| 2412-2462 MHz | 0.025 | 15C |
Grants
TCB Grant - Application zu1/xYtDePLINN8QN0h9DQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Product Service GmbH Storkower Strasse 38c D-15526 Reichenwalde, Germany |
Date of Grant: 09/25/2015 Application Dated: 09/25/2015 |
| Shenzhen KVD Communications Equipment Limited |
| Room 13C,Block C,Electronics Science and |
| Technology Building,Shennan Road Middle |
| Shenzhen, China |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X5 |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA Smartphone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.0012 |
| Output power listed is conducted. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except for the co-location described in this filing. |
