FCC ID 2AFPY-X9MINI

GSM/WCDMA Smartphone

by Shenzhen KVD Communications Equipment Limited

Grantee Code: 2AFPY Product Code: X9MINI

Latest application date: 2016-12-07

Device Images

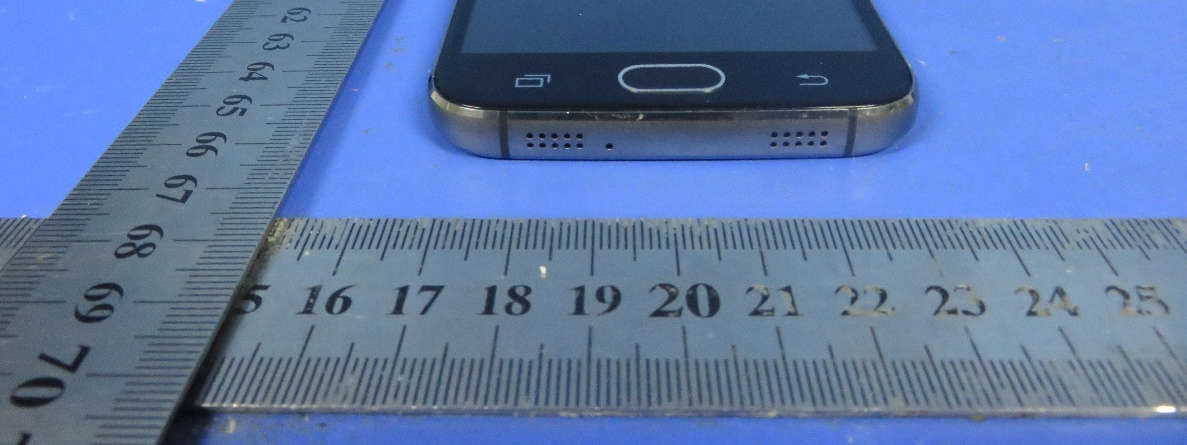

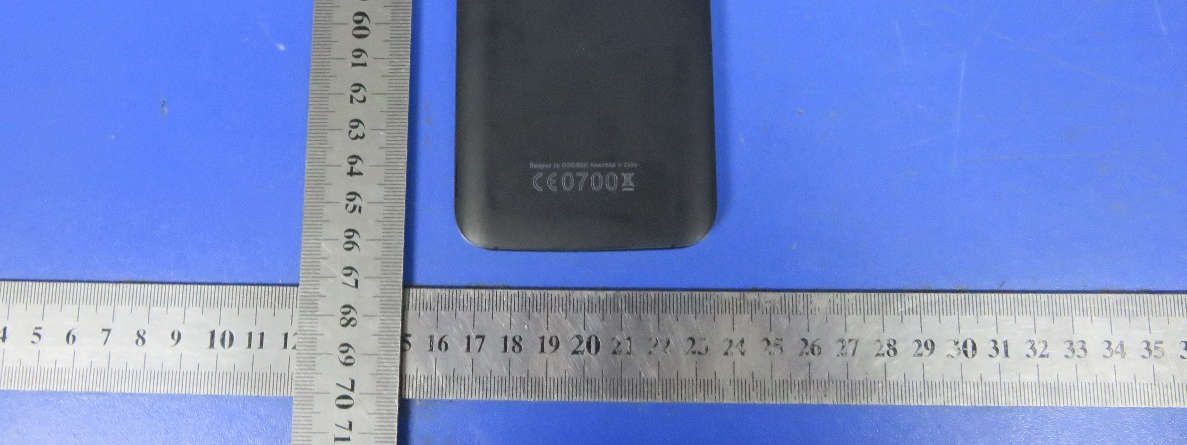

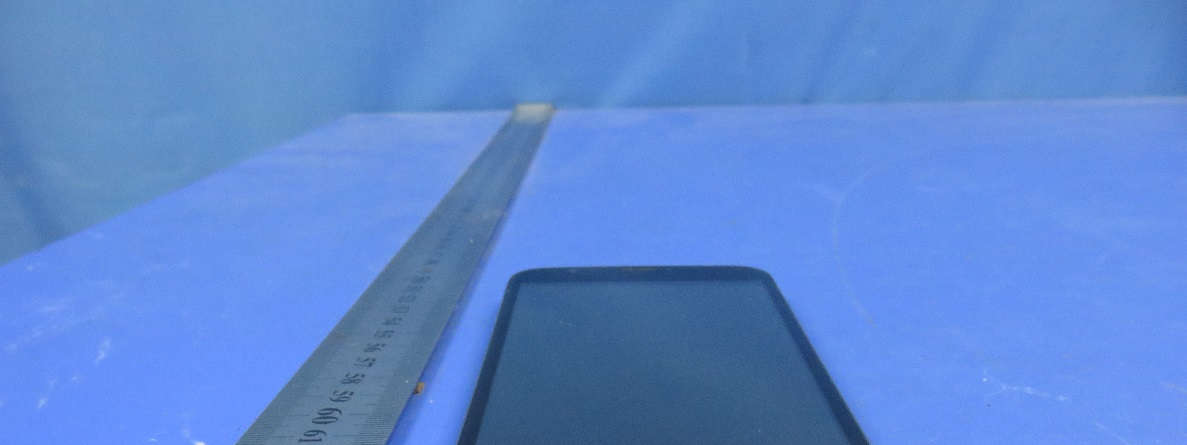

FCC ID 2AFPY-X9MINI External Photos — External Photos

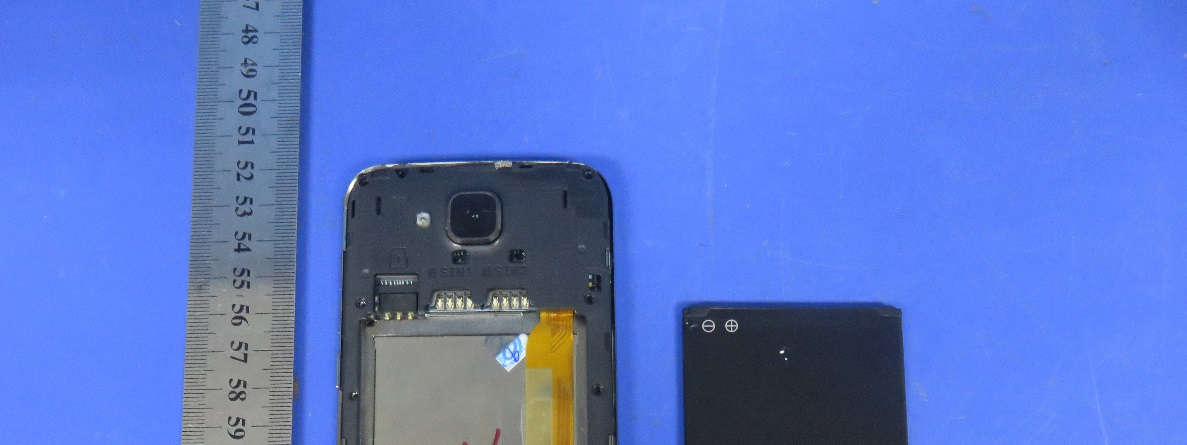

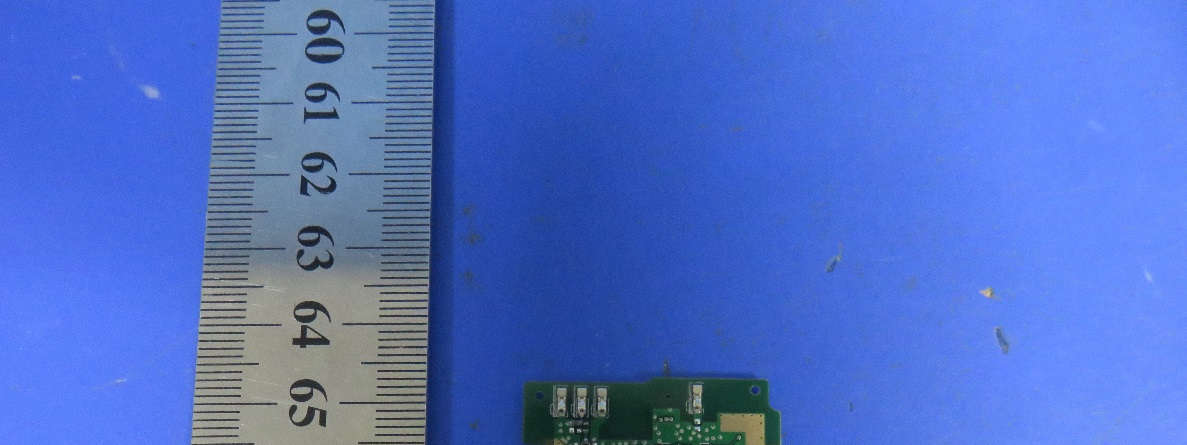

FCC ID 2AFPY-X9MINI Internal Photos — Internal Photos

FCC ID Device Details

FCC ID	2AFPY-X9MINI
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	2AFPY
Product Code	X9MINI
Applicant Business	Shenzhen KVD Communications Equipment Limited 🇨🇳
Related Domains	doogee.cc lcs-cert.com
Equipment Class	GSM/WCDMA Smartphone
Test Firm	Shenzhen LCS Compliance Testing Laboratory Ltd.

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
2402-2480 MHz	Original Equipment	2016-12-07
2402-2480 MHz	Original Equipment	2016-12-07
824.2-848.8 MHz	Original Equipment	2016-12-07

Exhibits

Document	Type	Available	File
User Manual	Users Manual	2016-12-07	PDF 1.6 MB
Internal photos	Internal Photos	2016-12-07	PDF 796.9 KB
External photos	External Photos	2016-12-07	PDF 574.8 KB
Label & Label Location	ID Label/Location Info	2016-12-07	PDF 143.6 KB
Photographs of test setup	Test Setup Photos	2016-12-07	PDF 271.2 KB
Photographs of test setup Metadata only	Parts List/Tune Up Info	2016-12-07	PDF 271.2 KB
Photographs of test setup	Test Report	2016-12-07	PDF 271.2 KB
SAR Test Report	RF Exposure Info	2016-12-07	PDF 4.3 MB
Test Report	Test Report	2016-12-07	PDF 2 MB
Test Report	Test Report	2016-12-07	PDF 4.2 MB
Test Report GSM	Test Report	2016-12-07	PDF 2.5 MB
Test Report WCDMA	Test Report	2016-12-07	PDF 1.6 MB
Agent Authorization Letter	Cover Letter(s)	2016-12-07	PDF 106.8 KB
Declaration Letter for compliance	Cover Letter(s)	2016-12-07	PDF 118.2 KB
Long term confidential letter	Cover Letter(s)	2016-12-07	PDF 107 KB
Block Diagram Metadata only	Block Diagram		PDF 1.2 MB
Schematics Metadata only	Schematics		PDF 997.8 KB
Operating Description Metadata only	Operational Description		PDF 70.4 KB
Tune up Procedure Metadata only	Parts List/Tune Up Info		PDF 155.6 KB

Application Information

Application ID	x95T20xihw385zk0E6CdQA==
Final Action Date	2016-12-07
Application Purpose	Original Equipment
Applicant FRN	0024845406
Model	X9MINI
Frequency Range	2402-2480 MHz
Equipment Class	DTS - Digital Transmission System
Device Description	GSM/WCDMA Smartphone
Responsible Party	Wang Xiaobo, manager, xb-wang@doogee.cc , 0755-23607569
Technical Contact	Wang Xiaobo, Shenzhen KVD Communications Equipment Limited, xb-wang@doogee.cc , 0755-23607569
Non-Technical Contact	Gavin Liang, Shenzhen LCS Compliance Testing Laboratory Ltd., Gavin.liang@lcs-cert.com , 86-755-82591330-8087
Test Firm	Gavin Liang, Shenzhen LCS Compliance Testing Laboratory Ltd., Gavin.liang@lcs-cert.com , 86-0755-82591330
TCB Email	tcbinfo@metlabs.com
TCB Scope	A4: UNII devices & low power transmitters using spread spectrum techniques
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	Yes
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	No
Grant Comments	Output power listed is conducted. This device supports 20 and 40 MHz bandwidth modes. For satisfying FCC RF exposure compliance requirements, body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device, including its antenna, and the user's body. The highest reported SAR for head, body-worn accessory, product specific, and simultaneous transmission exposure conditions are 0.12 W/kg, 0.38 W/kg, 0.38 W/kg and 1.14 W/kg respectively.
