FCC ID 2AFPY-X9PRO
GSM/WCDMA Smartphone
by Shenzhen KVD Communications Equipment Limited
Grantee Code: 2AFPY Product Code: X9PRO
Latest application date: 2016-12-13
Device Images
FCC ID Device Details
| FCC ID | 2AFPY-X9PRO |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AFPY |
| Product Code | X9PRO |
| Applicant Business | Shenzhen KVD Communications Equipment Limited 🇨🇳 |
| Related Domains |  doogee.cc  lcs-cert.com |
| Equipment Class | GSM/WCDMA Smartphone |
| Test Firm | Shenzhen LCS Compliance Testing Laboratory Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-12-13 |
| 2412-2462 MHz | Original Equipment | 2016-12-13 |
| 824.2-848.8 MHz | Original Equipment | 2016-12-13 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-12-13 | PDF 1.6 MB |

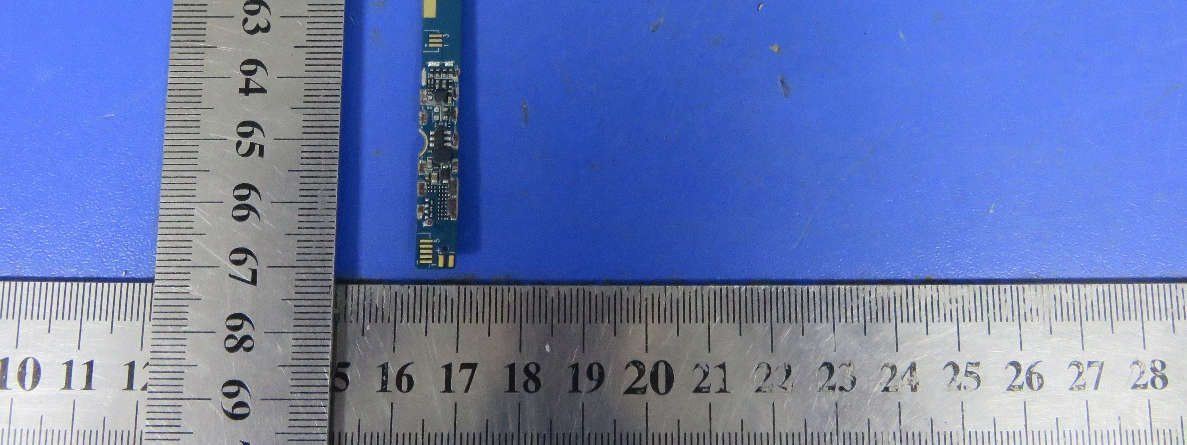

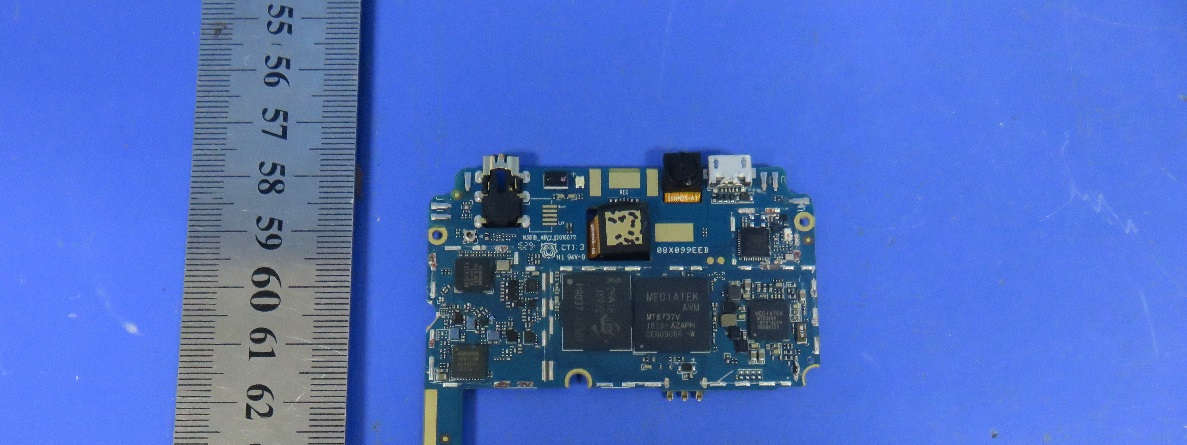

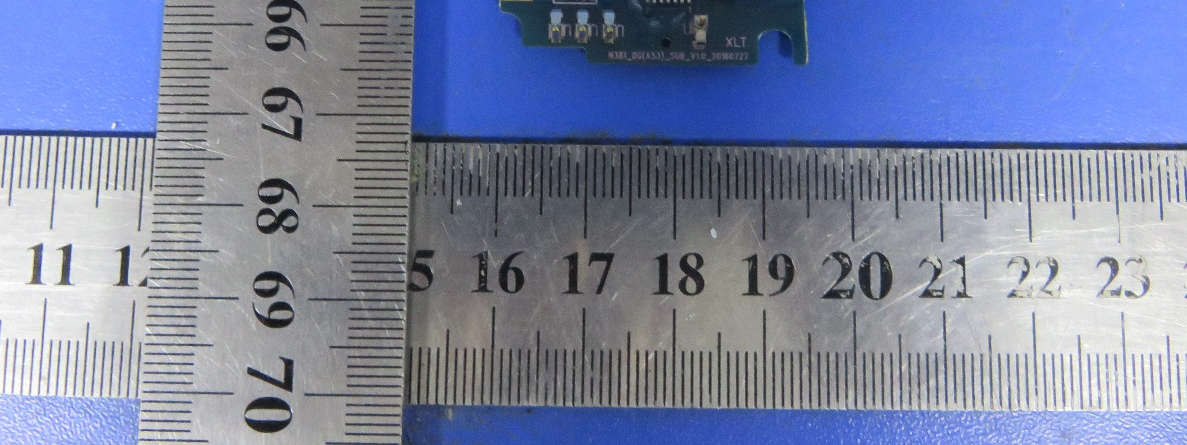

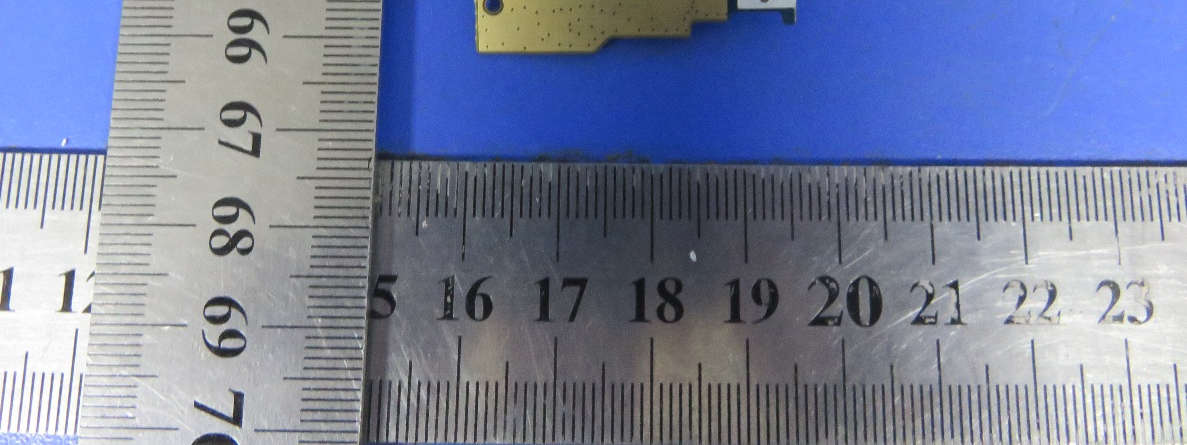

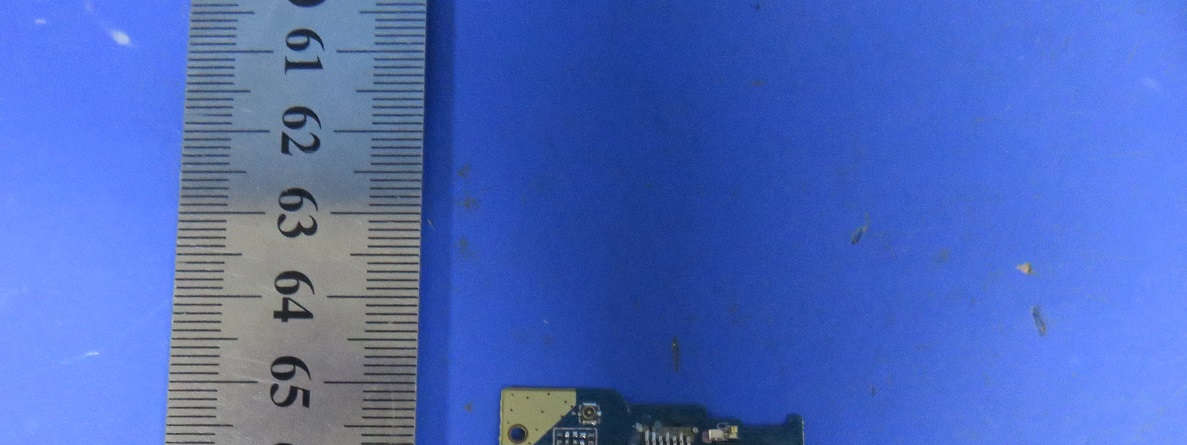

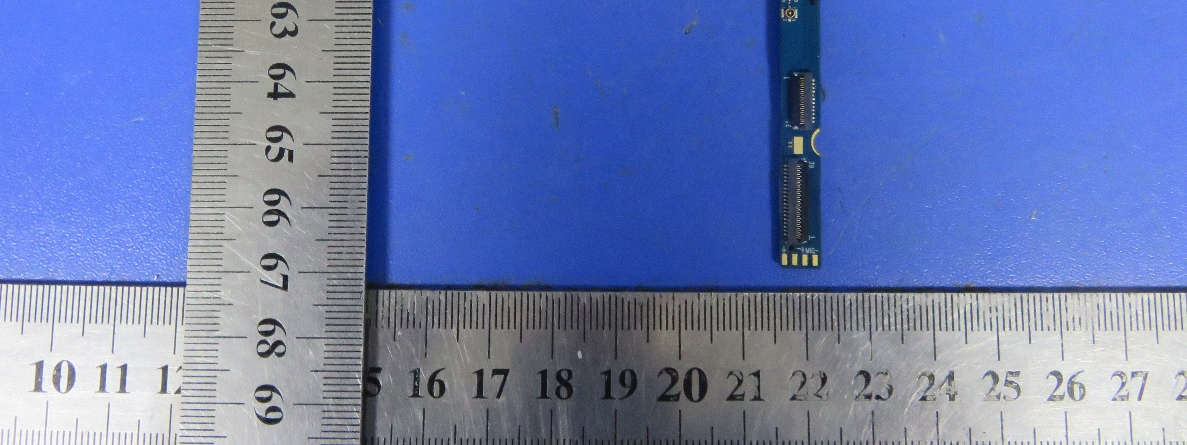

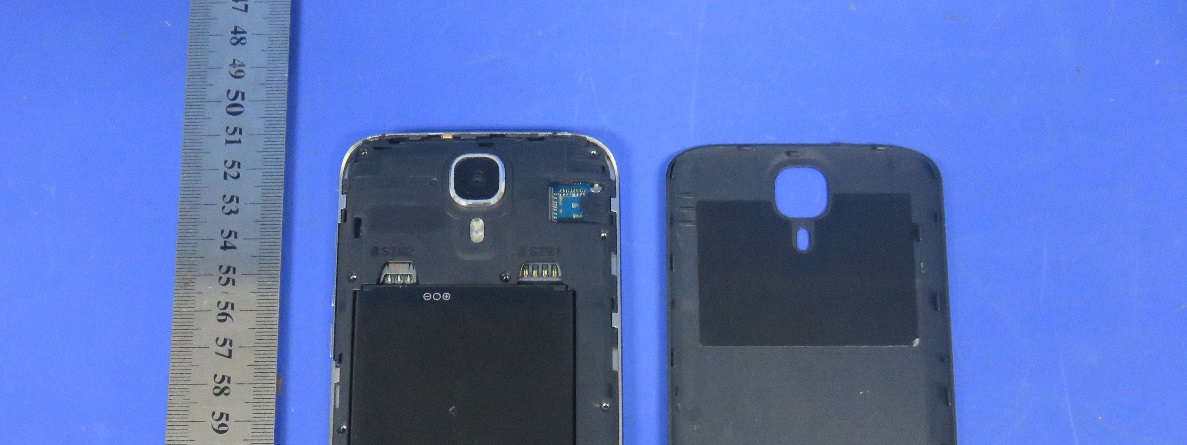

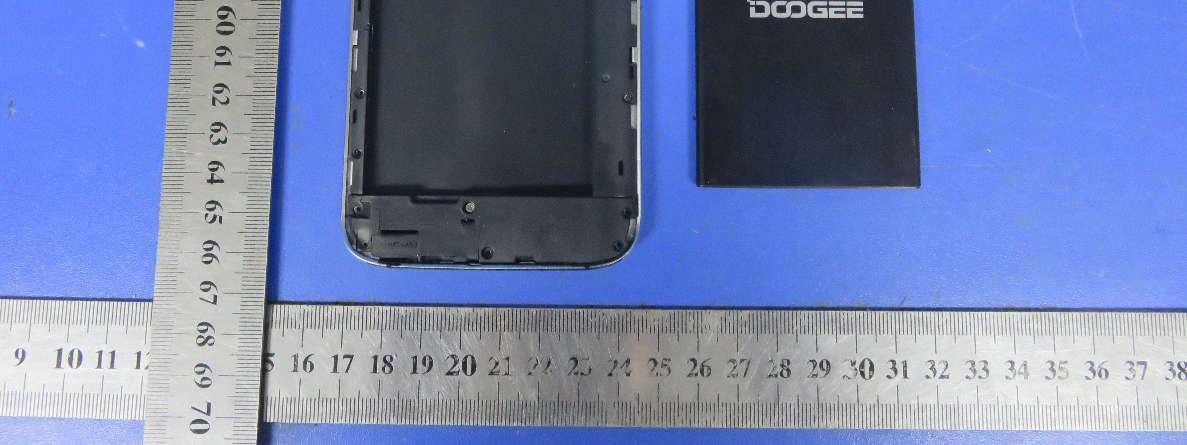

| Internal photos | Internal Photos | 2016-12-13 | PDF 782.5 KB |

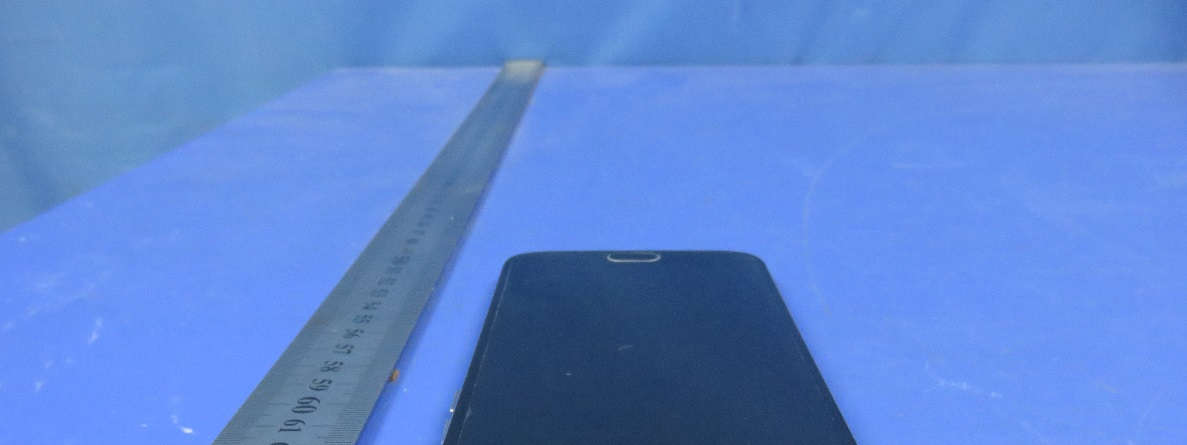

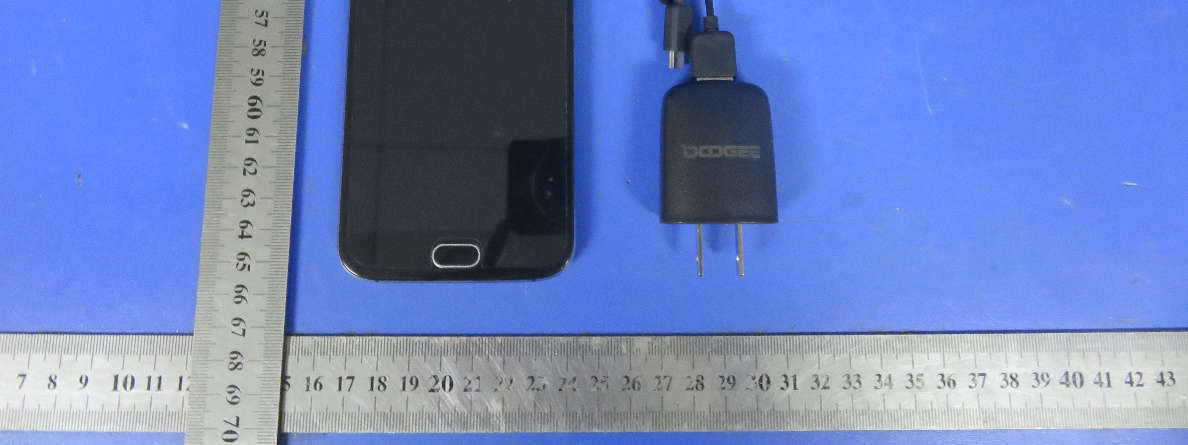

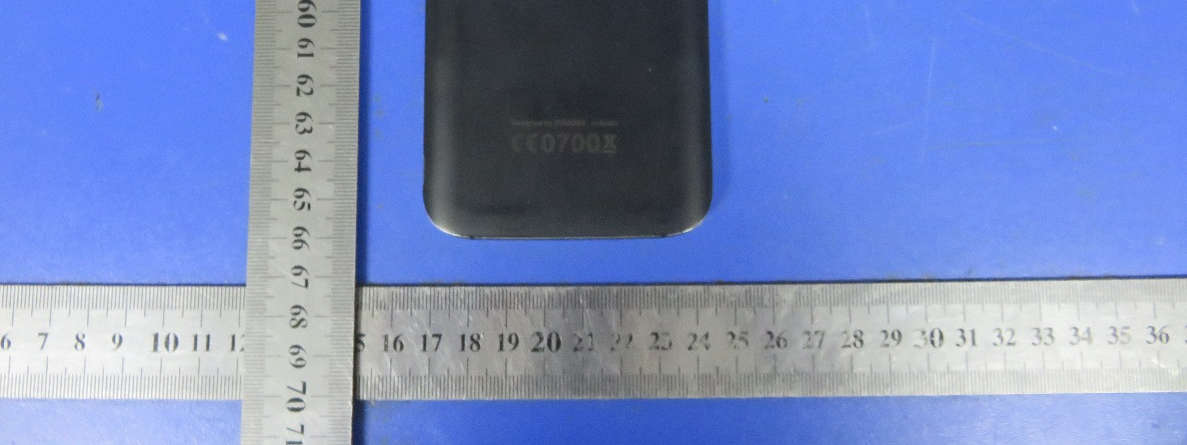

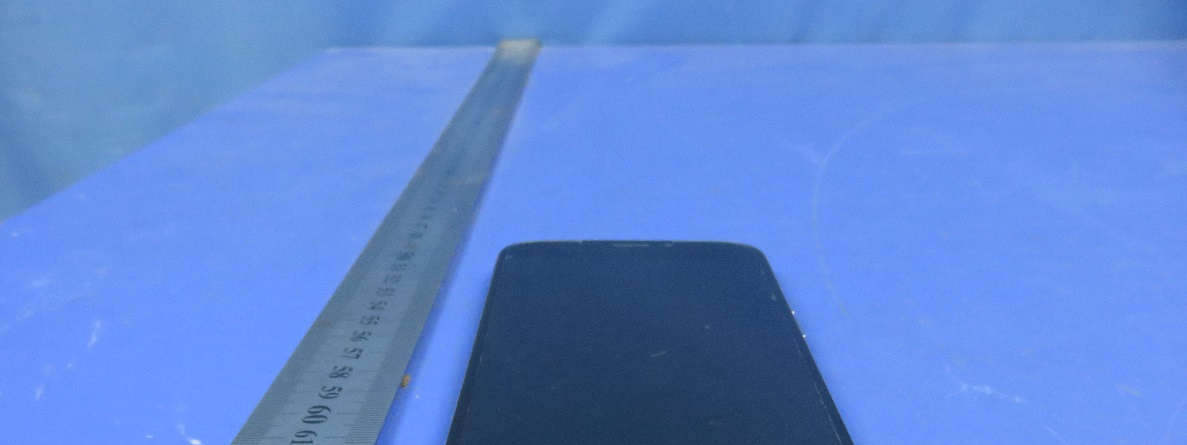

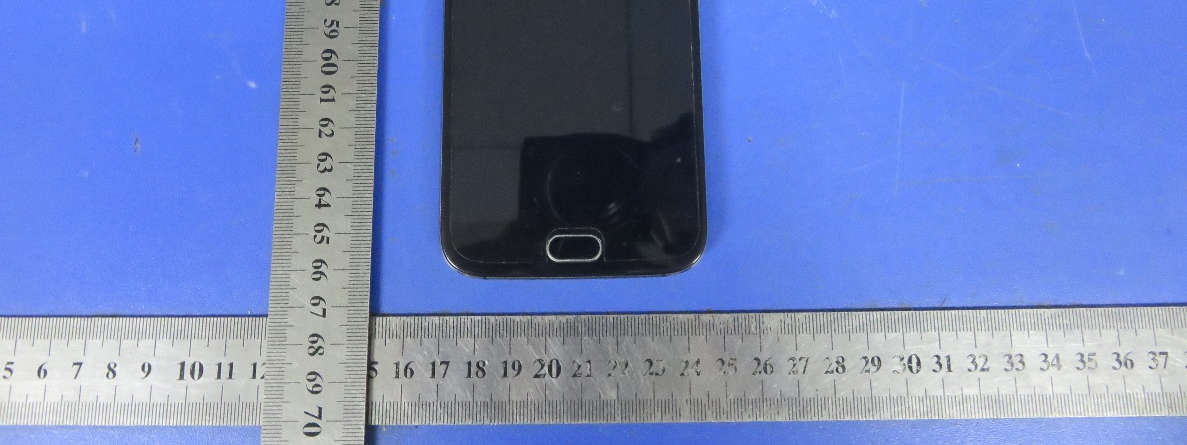

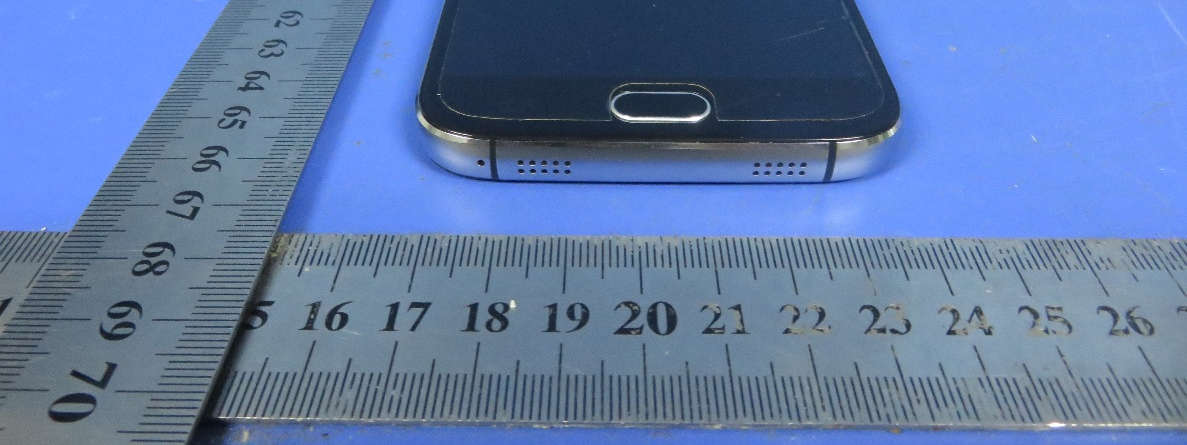

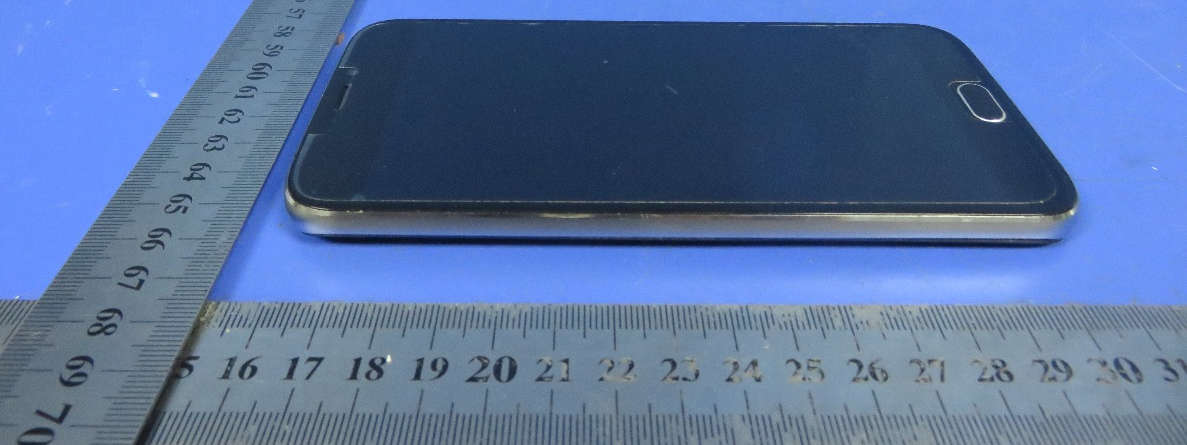

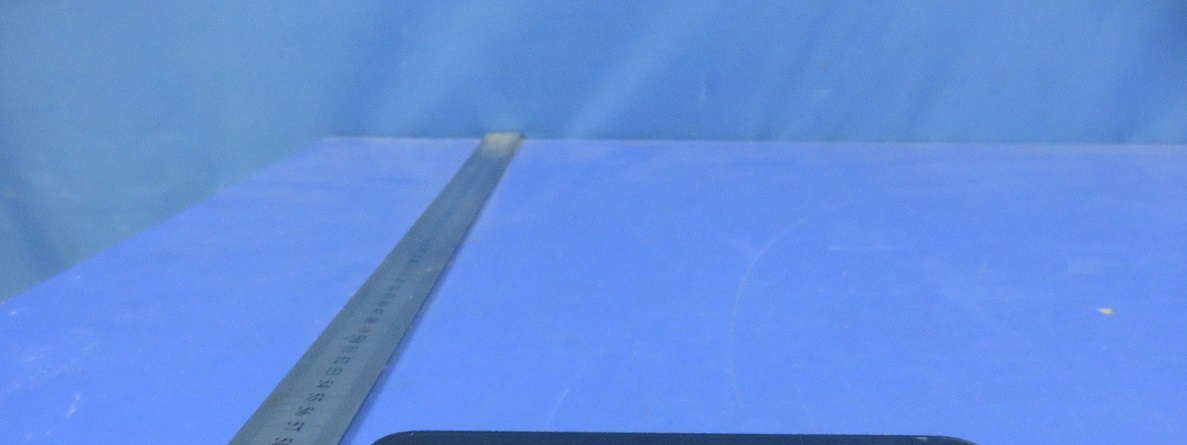

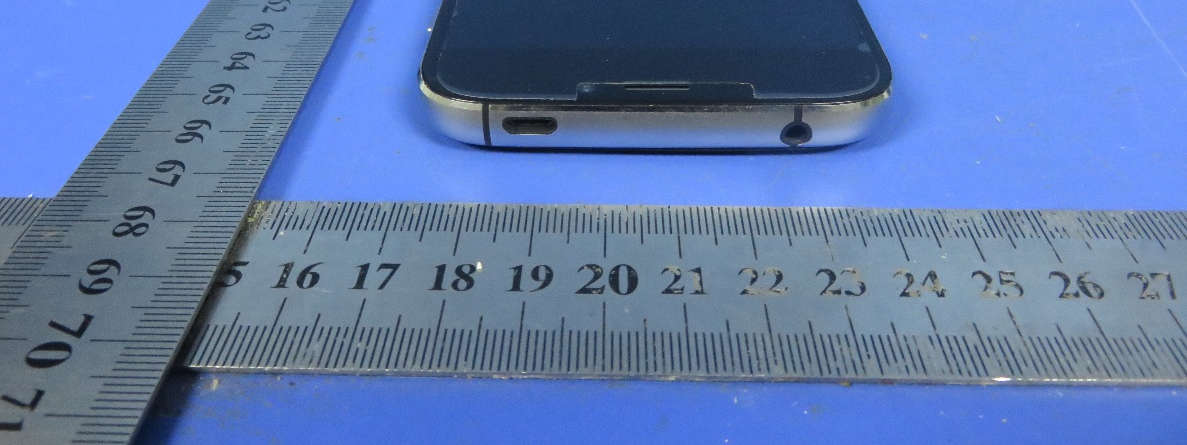

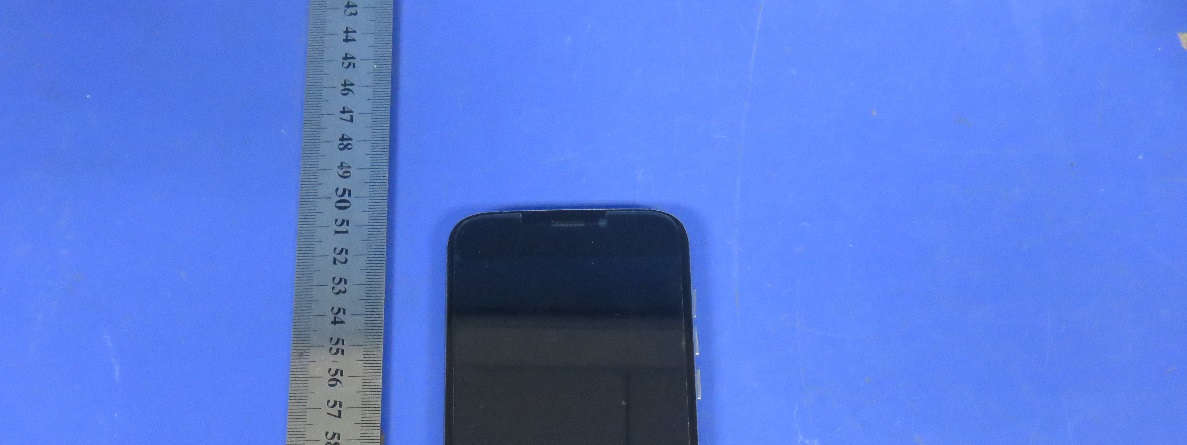

| External photos | External Photos | 2016-12-13 | PDF 567.9 KB |
| Label & Label Location | ID Label/Location Info | 2016-12-13 | PDF 144.8 KB |
| Photographs of test setup | Test Setup Photos | 2016-12-13 | PDF 299.8 KB |
| test setup | Test Setup Photos | 2016-12-13 | PDF 299.8 KB |
| Test Report | Test Report | 2016-12-13 | PDF 2.3 MB |
| Test Report | Test Report | 2016-12-13 | PDF 4.7 MB |
| Test Report - GSM | Test Report | 2016-12-13 | PDF 2.3 MB |
| Test Report - WCDMA | Test Report | 2016-12-13 | PDF 1.6 MB |
| Agent Authorization Letter | Cover Letter(s) | 2016-12-13 | PDF 105.3 KB |
| Declaration Letter for compliance | Cover Letter(s) | 2016-12-13 | PDF 117.6 KB |
| Declaration Letter of Disable LTE function | Cover Letter(s) | 2016-12-13 | PDF 120 KB |
| Long Term Confidentiality Request Letter | Cover Letter(s) | 2016-12-13 | PDF 74.5 KB |
| family of DoC Letter | Cover Letter(s) | 2016-12-13 | PDF 92.1 KB |
| SAR Report | RF Exposure Info | 2016-12-13 | PDF 4.8 MB |
| SAR report | RF Exposure Info | 2016-12-13 | PDF 4.8 MB |
| Block Diagram Metadata only | Block Diagram | PDF 78.2 KB | |
| Schematics Metadata only | Schematics | PDF 1.5 MB | |
| Operating Description Metadata only | Operational Description | PDF 70.4 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 155.4 KB |
Application Information
| Application ID | niWuvH7+BVEijiq3lF+Spg== |
|---|---|
| Final Action Date | 2016-12-13 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024845406 |
| Model | X9PRO |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | GSM/WCDMA Smartphone |
| Responsible Party | Wang Xiaobo, manager, xb-wang@doogee.cc , 0755-23607569 |
| Technical Contact | Wang Xiabob, Shenzhen KVD Communications Equipment Limited, xb-wang@doogee.cc , 0755-23607569 |
| Non-Technical Contact | Gavin Liang, Shenzhen LCS Compliance Testing Laboratory Ltd., Gavin.liang@lcs-cert.com , 86-755-82591330 |
| Test Firm | Gavin Liang, Shenzhen LCS Compliance Testing Laboratory Ltd., Gavin.liang@lcs-cert.com , 86-0755-82591330 |
| TCB Email | tcbinfo@metlabs.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is conducted. The device can only be used with the same antenna types it was tested with equal or less gain. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| niWuvH7+BVEijiq3lF+Spg== | 2016-12-13 | Original Equipment |
| chQkqQH3Pq1QnWleenTf9Q== | 2016-12-13 | Original Equipment |
| T9Chfyk/A4c0qBfiYLIMWg== | 2016-12-13 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 824.2-848.8 MHz | 1.91426 | 0.03ppm | 248KGXW | 22H | |
| 824.2-848.8 MHz | 0.4217 | 0.03ppm | 248KG7W | 22H | |
| 826.4-846.6 MHz | 0.22542 | 0.03ppm | 4M16F9W | 22H | |
| 1850.2-1909.8 MHz | 0.94189 | 0.01ppm | 247KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.32434 | 0.01ppm | 247KG7W | 24E | |
| 1852.4-1907.6 MHz | 0.23227 | 0.01ppm | 4M15F9W | 24E | |
| 2402-2480 MHz | 0.0026000 | 15C | CC | ||
| 2412-2462 MHz | 0.0628000 | 15C | CC |
Grants
TCB Grant - Application T9Chfyk/A4c0qBfiYLIMWg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Shenzhen KVD Communications Equipment Limited |
| Room 13C,Block C,Electronics Science and |
| Technology Building,Shennan Road Middle |
| Shenzhen, China |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X9PRO |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA Smartphone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.91426 | 0.03 PM | 248KGXW | |
| 24E | 1850.2 - 1909.8 | 0.94189 | 0.01 PM | 247KGXW | |
| 22H | 824.2 - 848.8 | 0.4217 | 0.03 PM | 248KG7W | |
| 24E | 1850.2 - 1909.8 | 0.32434 | 0.01 PM | 247KG7W | |
| 22H | 826.4 - 846.6 | 0.22542 | 0.03 PM | 4M16F9W | |
| 24E | 1852.4 - 1907.6 | 0.23227 | 0.01 PM | 4M15F9W |
| Output power listed is ERP for frequencies below 1 GHz and EIRP for frequencies above 1 GHz. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to the specific belt-clips / holsters / accessories tested for this filing, and to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory and simultaneous transmission use conditions is 0.18 W/kg, 0.54 W/kg and 0.936 W/kg, respectively. |
EAS Grant - Application T9Chfyk/A4c0qBfiYLIMWg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen KVD Communications Equipment Limited Room 13C,Block C,Electronics Science and Technology Building,Shennan Road Middle Shenzhen, China |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X9PRO |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA Smartphone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.91426 | 0.03 PM | 248KGXW | |
| 24E | 1850.2 - 1909.8 | 0.94189 | 0.01 PM | 247KGXW | |
| 22H | 824.2 - 848.8 | 0.4217 | 0.03 PM | 248KG7W | |
| 24E | 1850.2 - 1909.8 | 0.32434 | 0.01 PM | 247KG7W | |
| 22H | 826.4 - 846.6 | 0.22542 | 0.03 PM | 4M16F9W | |
| 24E | 1852.4 - 1907.6 | 0.23227 | 0.01 PM | 4M15F9W |
| Output power listed is ERP for frequencies below 1 GHz and EIRP for frequencies above 1 GHz. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to the specific belt-clips / holsters / accessories tested for this filing, and to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory and simultaneous transmission use conditions is 0.18 W/kg, 0.54 W/kg and 0.936 W/kg, respectively. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Shenzhen KVD Communications Equipment Limited |
| Room 13C,Block C,Electronics Science and |
| Technology Building,Shennan Road Middle |
| Shenzhen, China |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X9PRO |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA Smartphone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0026 |
| Output Power listed is conducted. The device can only be used with the same antenna types it was tested with equal or less gain. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application niWuvH7+BVEijiq3lF+Spg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen KVD Communications Equipment Limited Room 13C,Block C,Electronics Science and Technology Building,Shennan Road Middle Shenzhen, China |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X9PRO |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA Smartphone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0026 |
| Output Power listed is conducted. The device can only be used with the same antenna types it was tested with equal or less gain. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Shenzhen KVD Communications Equipment Limited |
| Room 13C,Block C,Electronics Science and |
| Technology Building,Shennan Road Middle |
| Shenzhen, China |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X9PRO |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM/WCDMA Smartphone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0628 |
| Output Power listed is conducted. The device can only be used with the same antenna types it was tested with equal or less gain. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application chQkqQH3Pq1QnWleenTf9Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen KVD Communications Equipment Limited Room 13C,Block C,Electronics Science and Technology Building,Shennan Road Middle Shenzhen, China |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Attention: Wang Xiaobo , manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFPY-X9PRO |
| Name of Grantee: | Shenzhen KVD Communications Equipment Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM/WCDMA Smartphone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.0628 |
| Output Power listed is conducted. The device can only be used with the same antenna types it was tested with equal or less gain. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
