FCC ID 2AFR8ED0991
ED0991 UWB Module
by InVue
Grantee Code: 2AFR8 Product Code: ED0991
Latest application date: 2015-11-24
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 3659.15-4353.06 MHz | Original Equipment | 2015-11-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2015-11-24 | PDF 2.1 MB |
| Internal Photos | Internal Photos | 2015-11-24 | PDF 175.9 KB |
| External Photos | External Photos | 2015-11-24 | PDF 109.3 KB |
| Label Information | ID Label/Location Info | 2015-11-24 | PDF 410.7 KB |

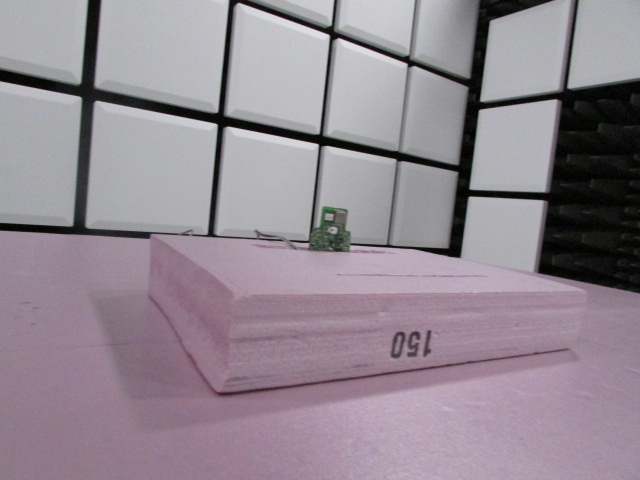

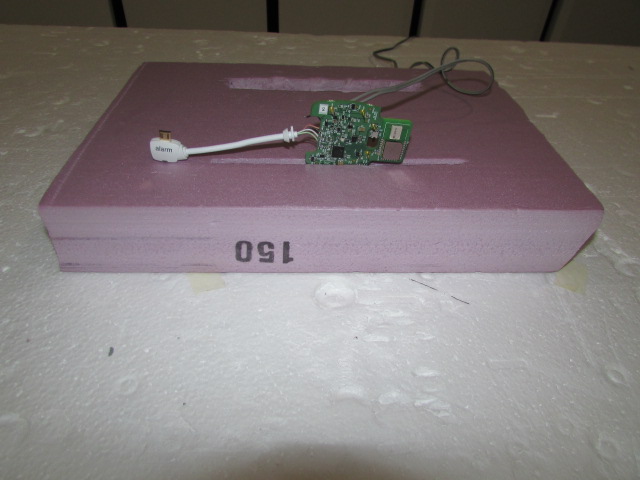

| Test Setup Photos | Test Setup Photos | 2015-11-24 | PDF 648.8 KB |
| Test Report | Test Report | 2015-11-24 | PDF 566.6 KB |
| Agency Agreement | Cover Letter(s) | 2015-11-24 | PDF 43 KB |
| Confidentiality Request | Cover Letter(s) | 2015-11-24 | PDF 42.3 KB |
| FCC Cover Letter | Cover Letter(s) | 2015-11-24 | PDF 17 KB |
| Modular Approval Letter | Cover Letter(s) | 2015-11-24 | PDF 54.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 132.8 KB | |
| Schematics Metadata only | Schematics | PDF 205.3 KB | |
| Theory of Operation Metadata only | Operational Description | PDF 893.9 KB |
Application Information
| Application ID | e5fQHJmHYlPoGCYB9NWtMQ== |
|---|---|
| Final Action Date | 2015-11-24 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024509010 |
| Model | ED0991 |
| Frequency Range | 3659.15-4353.06 MHz |
| Equipment Class | UWB - Ultra Wideband Transmitter |
| Device Description | ED0991 UWB Module |
| Responsible Party | Andy Moock, andymoock@invue.com  , 7047526513 |
| Agent | Sam Sam Sam, Advanced Compliance Solutions, Inc. |
| Test Firm | Sam Wismer, TUV SUD America, Inc., swismer@tuvam.com  , 770-831-8048 |
| TCB Email | jwoods@acstestlab.com  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | This device is approved per Part 15.517. Use for the operation of toys or onboard an aircraft, a ship, or a satellite is prohibited. This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| e5fQHJmHYlPoGCYB9NWtMQ== | 2015-11-24 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 3659.15-4353.06 MHz | 0.0010000 | 15F |
Grants
TCB Grant - Application e5fQHJmHYlPoGCYB9NWtMQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
TUV SUD America Inc. 401 Edgewater Place Suite #500 Wakefield, MA 01880 |
Date of Grant: 11/24/2015 Application Dated: 10/16/2015 |
| InVue |
| 9201 Baybrook Lane |
| Charlotte, NC 28277 |
| Attention: Andy Moock |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFR8ED0991 |
| Name of Grantee: | InVue |
| Equipment Class: | Ultra Wideband Transmitter |
| Notes: | ED0991 UWB Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15F | 3659.15 - 4353.06 | 0.001 |
| This device is approved per Part 15.517. Use for the operation of toys or onboard an aircraft, a ship, or a satellite is prohibited. This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. |
EAS Grant - Application e5fQHJmHYlPoGCYB9NWtMQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
InVue 9201 Baybrook Lane Charlotte, NC 28277 United States |
Date of Grant: 11/24/2015 Application Dated: 10/16/2015 |
| Attention: Andy Moock |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFR8ED0991 |
| Name of Grantee: | InVue |
| Equipment Class: | Ultra Wideband Transmitter |
| Notes: | ED0991 UWB Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15F | 3659.15 - 4353.06 | 0.001 |
| This device is approved per Part 15.517. Use for the operation of toys or onboard an aircraft, a ship, or a satellite is prohibited. This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. |
| Mail To: |
