FCC ID 2AFXZ-GC938263
MACHTALK Wi-Fi module
by Jining Zhongke SmartCity Electronic Technology Co., Ltd
Grantee Code: 2AFXZ Product Code: GC938263
Latest application date: 2015-10-28
Device Images
FCC ID Device Details
| FCC ID | 2AFXZ-GC938263 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AFXZ |
| Product Code | GC938263 |
| Applicant Business | Jining Zhongke SmartCity Electronic Technology Co., Ltd 🇨🇳 |
| Related Domains |  iiot.ac.cn |
| Equipment Class | MACHTALK Wi-Fi module |
| Test Firm | Intertek Testing Services Limited Shanghai |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-10-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2015-10-28 | PDF 709.1 KB |
| Internal photo | Internal Photos | 2015-10-28 | PDF 123.2 KB |

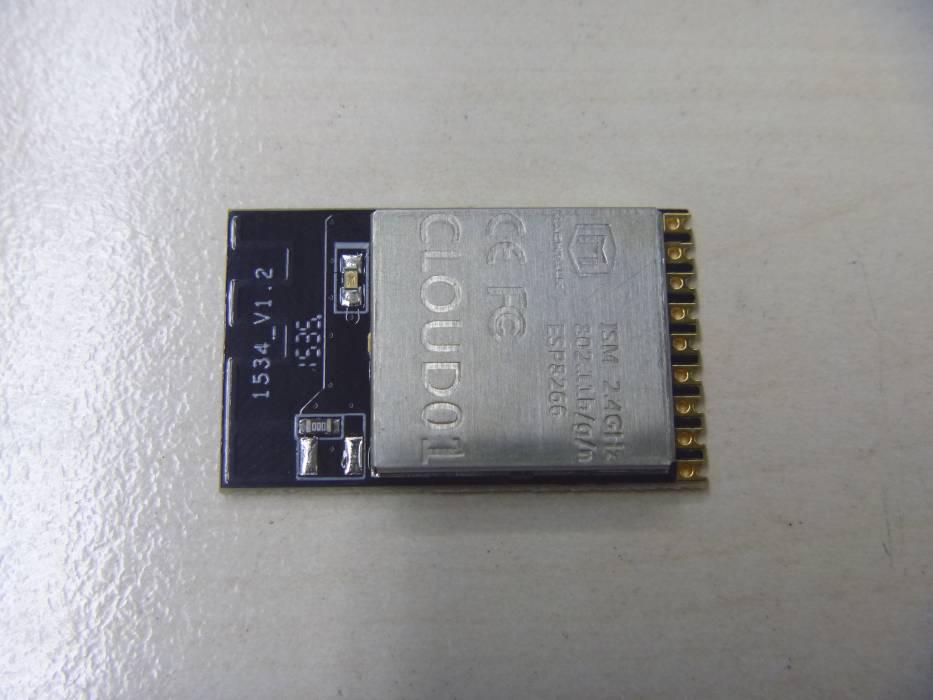

| External photo | External Photos | 2015-10-28 | PDF 111.8 KB |
| Label & Location | ID Label/Location Info | 2015-10-28 | PDF 137.7 KB |

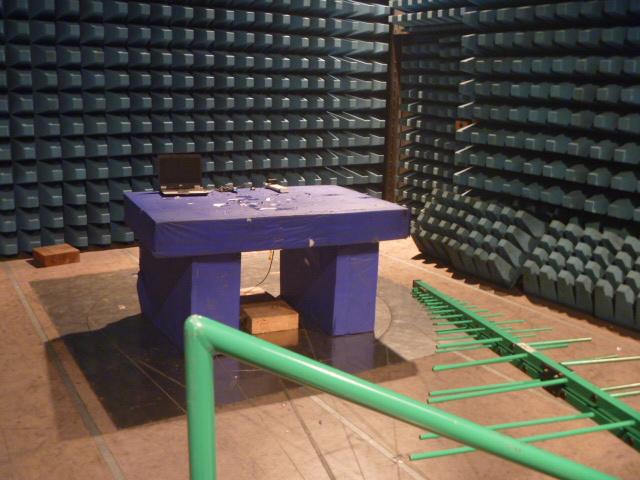

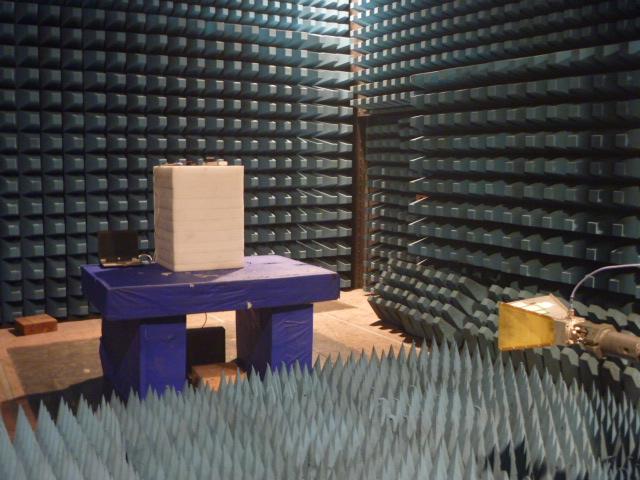

| Test setup | Test Setup Photos | 2015-10-28 | PDF 145.2 KB |
| FCC Part 15.247 | Test Report | 2015-10-28 | PDF 3.2 MB |
| Confidentiality | Cover Letter(s) | 2015-10-28 | PDF 100.6 KB |
| Declaration letter for channel 12 and 13 | Cover Letter(s) | 2015-10-28 | PDF 24.4 KB |
| FCC agency | Cover Letter(s) | 2015-10-28 | PDF 35.8 KB |
| Modular Approval_FCC | Cover Letter(s) | 2015-10-28 | PDF 82.1 KB |
| Report_MPE | RF Exposure Info | 2015-10-28 | PDF 122.2 KB |
| Confidential_Block Diagram Metadata only | Block Diagram | PDF 178.4 KB | |
| Confidential_Schematics Metadata only | Schematics | PDF 100.9 KB | |
| Confidential_Operation Description Metadata only | Operational Description | PDF 359.6 KB |
Application Information
| Application ID | 6EbbaqxCRxwLMrm1ktPBWg== |
|---|---|
| Final Action Date | 2015-10-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0024890170 |
| Model | GC938263 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | MACHTALK Wi-Fi module |
| Responsible Party | Mingen Sun, sunme@iiot.ac.cn , 86 537 5661518 |
| Technical Contact | Nemo Li, Intertek Testing Services Limited Shanghai, nemo.li@intertek.com  , 86 2161278449 |
| Test Firm | Jonny Jing, Intertek Testing Services Limited Shanghai, jonny.jing@intertek.com , 86-21-61278271 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is Conducted. Limited Modular Approval. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 6EbbaqxCRxwLMrm1ktPBWg== | 2015-10-28 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.2130000 | 15C |
Grants
TCB Grant - Application 6EbbaqxCRxwLMrm1ktPBWg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/28/2015 Application Dated: 10/27/2015 |
| Jining Zhongke SmartCity Electronic Technology Co., Ltd |
| Technology Center, Rencheng District |
| Jining City, Shandong Province, China |
| Attention: Mingen Sun |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFXZ-GC938263 |
| Name of Grantee: | Jining Zhongke SmartCity Electronic Technology Co., Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | MACHTALK Wi-Fi module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.213 |
| Power Output listed is Conducted. Limited Modular Approval. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application 6EbbaqxCRxwLMrm1ktPBWg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Jining Zhongke SmartCity Electronic Technology Co., Ltd Technology Center, Rencheng District Jining City, Shandong Province, China |
Date of Grant: 10/28/2015 Application Dated: 10/27/2015 |
| Attention: Mingen Sun |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AFXZ-GC938263 |
| Name of Grantee: | Jining Zhongke SmartCity Electronic Technology Co., Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | MACHTALK Wi-Fi module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.213 |
| Power Output listed is Conducted. Limited Modular Approval. This device is granted for use in Mobile only configurations in which the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| Mail To: |
