FCC ID 2AG5BWHOOPSMART5L
Smart phone
by Shenzhen Unitone Electronics co.,Ltd
Grantee Code: 2AG5B Product Code: WHOOPSMART5L
Latest application date: 2017-03-09
Device Images
FCC ID Device Details
| FCC ID | 2AG5BWHOOPSMART5L |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AG5B |
| Product Code | WHOOPSMART5L |
| Applicant Business | Shenzhen Unitone Electronics co.,Ltd 🇨🇳 |
| Related Domains |  unitone.com.cn |
| Equipment Class | Smart phone |
| Test Firm | Shenzhen LCS Compliance Testing Laboratory Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2017-03-09 |
| 2402-2480 MHz | Original Equipment | 2017-03-09 |
| 699-714 MHz | Original Equipment | 2017-03-09 |
| 5180-5240 MHz | Original Equipment | 2017-03-09 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2017-03-09 | PDF 167.2 KB |

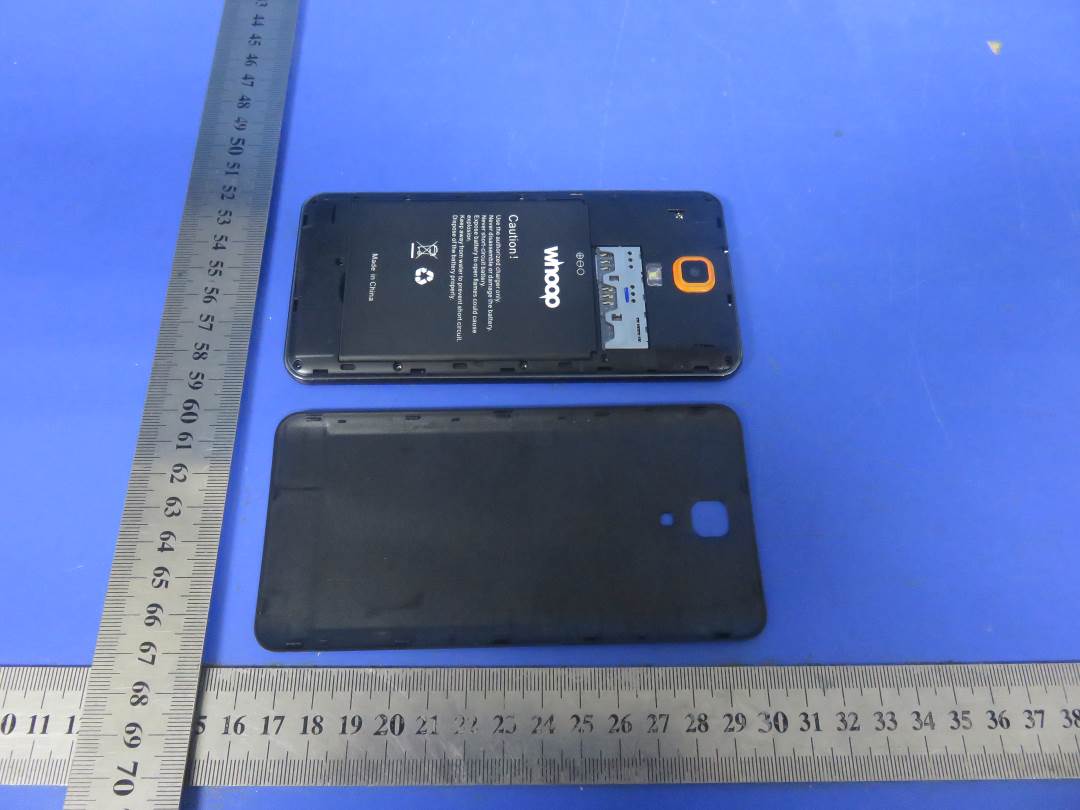

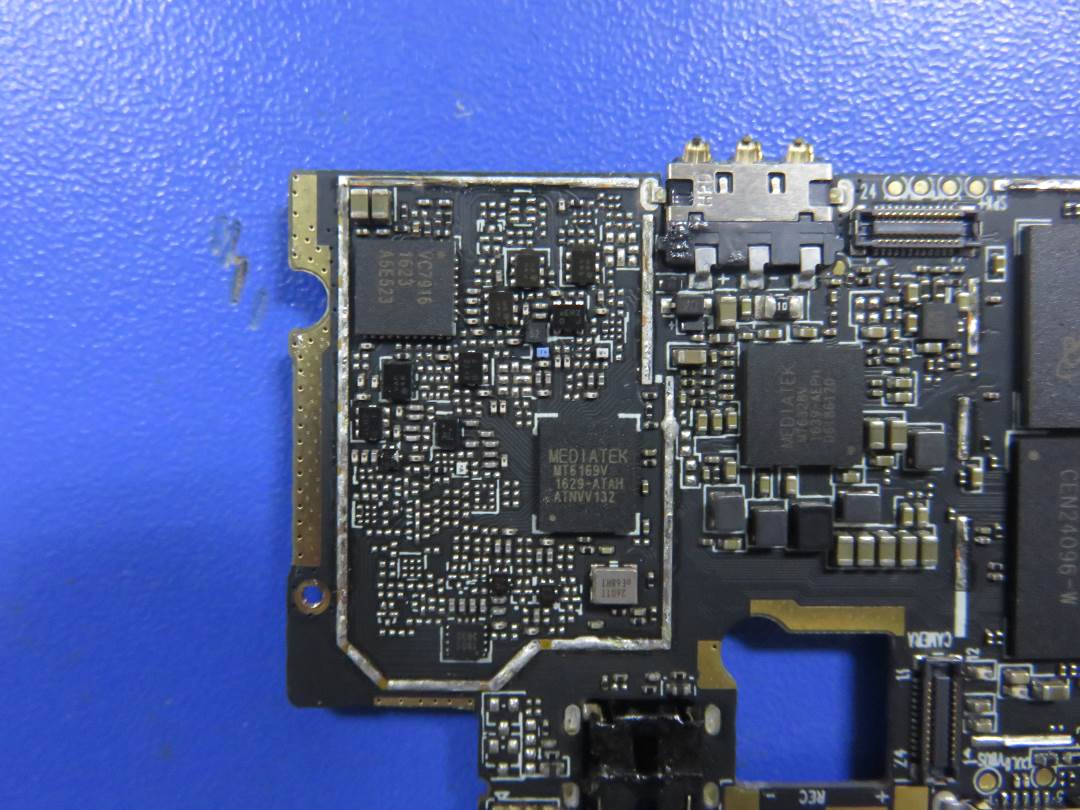

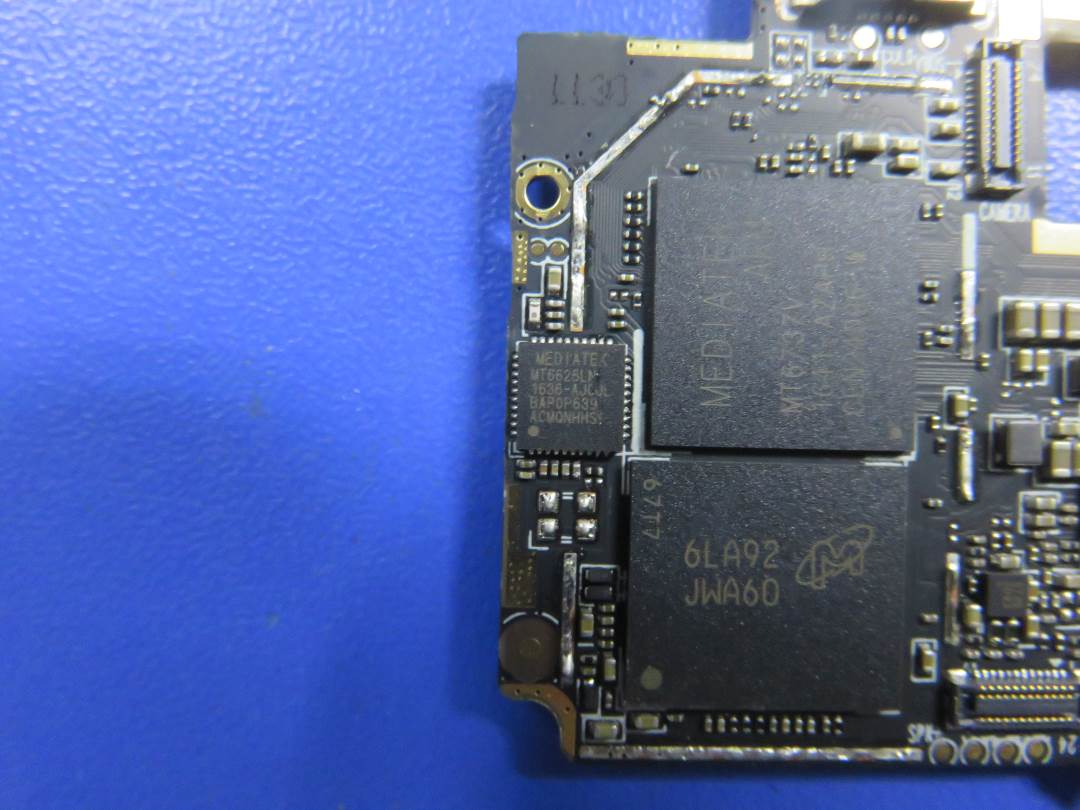

| Interior photographs | Internal Photos | 2017-03-09 | PDF 1.1 MB |
| Exterior photographs | External Photos | 2017-03-09 | PDF 386.8 KB |
| Declaration letter of label location | Cover Letter(s) | 2017-03-09 | PDF 86.1 KB |
| Label and label location | ID Label/Location Info | 2017-03-09 | PDF 102.6 KB |

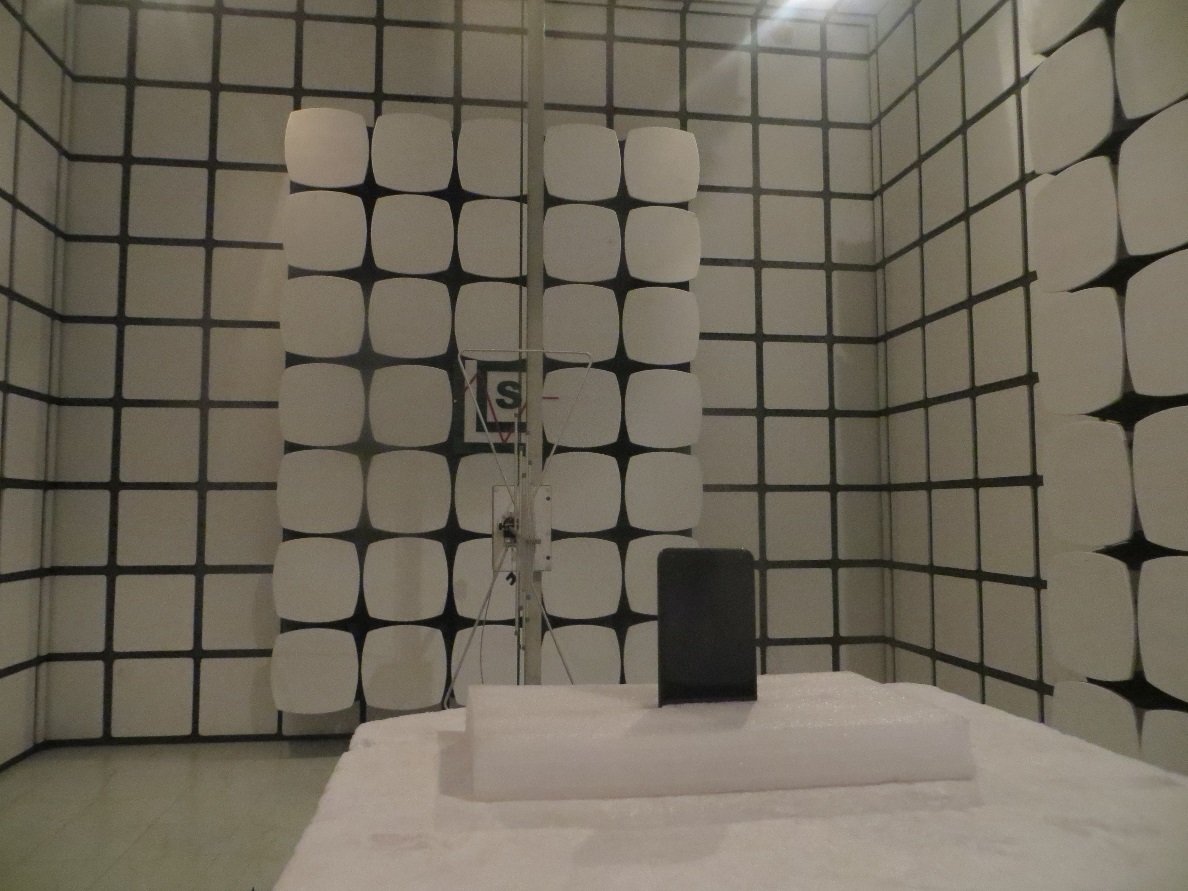

| Test setup photographs dss | Test Setup Photos | 2017-03-09 | PDF 1.2 MB |
| Test setup photographs dts | Test Setup Photos | 2017-03-09 | PDF 1.2 MB |
| Test setup photographs nii | Test Setup Photos | 2017-03-09 | PDF 1.2 MB |
| Test setup photographs pce | Test Setup Photos | 2017-03-09 | PDF 612.1 KB |

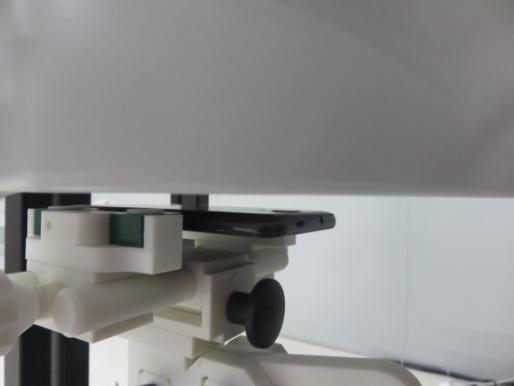

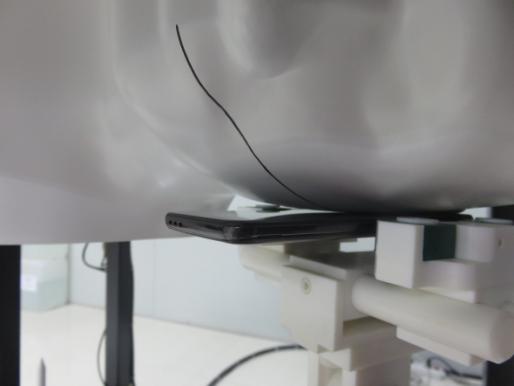

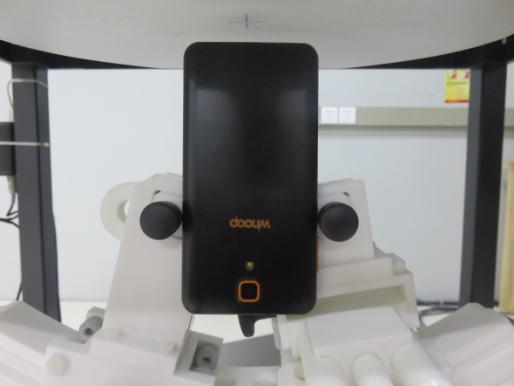

| Test setup photographs sar | Test Setup Photos | 2017-03-09 | PDF 203.3 KB |
| BT classics Test Report | Test Report | 2017-03-09 | PDF 2 MB |
| RF GSM Test Report | Test Report | 2017-03-09 | PDF 2 MB |
| RF LTE Test Report | Test Report | 2017-03-09 | PDF 613.3 KB |
| RF WCDMA Test Report | Test Report | 2017-03-09 | PDF 1.3 MB |
| RF section a1 lte band 2 | Test Report | 2017-03-09 | PDF 57.5 KB |
| RF section a2 lte band 2 part 1 | Test Report | 2017-03-09 | PDF 5.3 MB |
| RF section a2 lte band 2 part 2 | Test Report | 2017-03-09 | PDF 5.2 MB |
| RF section a3 lte band 2 | Test Report | 2017-03-09 | PDF 1.6 MB |
| RF section a4 lte band 2 | Test Report | 2017-03-09 | PDF 2.1 MB |
| RF section a5 lte band 2 | Test Report | 2017-03-09 | PDF 4.7 MB |
| RF section b1 lte band 4 | Test Report | 2017-03-09 | PDF 55.6 KB |
| RF section b2 lte band 4 part 1 | Test Report | 2017-03-09 | PDF 5.3 MB |
| RF section b2 lte band 4 part 2 | Test Report | 2017-03-09 | PDF 5.3 MB |
| RF section b3 lte band 4 | Test Report | 2017-03-09 | PDF 1.6 MB |
| RF section b4 lte band 4 | Test Report | 2017-03-09 | PDF 2.1 MB |
| RF section b5 lte band 4 | Test Report | 2017-03-09 | PDF 4.8 MB |
| RF section c1 lte band 12 | Test Report | 2017-03-09 | PDF 45.8 KB |
| RF section c2 lte band 12 part 1 | Test Report | 2017-03-09 | PDF 5.3 MB |
| RF section c2 lte band 12 part 2 | Test Report | 2017-03-09 | PDF 1.8 MB |
| RF section c3 lte band 12 | Test Report | 2017-03-09 | PDF 1.1 MB |
| RF section c4 lte band 12 | Test Report | 2017-03-09 | PDF 1.4 MB |
| RF section c5 lte band 12 | Test Report | 2017-03-09 | PDF 3.1 MB |
| RF section d1 lte band 17 | Test Report | 2017-03-09 | PDF 48.8 KB |
| RF section d2 lte band 17 | Test Report | 2017-03-09 | PDF 3.5 MB |
| RF section d3 lte band 17 | Test Report | 2017-03-09 | PDF 570.9 KB |
| RF section d4 lte band 17 | Test Report | 2017-03-09 | PDF 728.5 KB |
| RF section d5 lte band 17 | Test Report | 2017-03-09 | PDF 1.6 MB |
| WLAN 2G4 and BT LE Test Report | Test Report | 2017-03-09 | PDF 4.3 MB |
| WLAN5G Test Report | Test Report | 2017-03-09 | PDF 2.5 MB |
| DOC attestation letter | Cover Letter(s) | 2017-03-09 | PDF 81.1 KB |
| DOC attestation letter | Attestation Statements | 2017-03-09 | PDF 81.1 KB |
| Confidentiality request letter | Cover Letter(s) | 2017-03-09 | PDF 21.9 KB |
| Declaration letter not use ch12 and ch13 | Cover Letter(s) | 2017-03-09 | PDF 81.4 KB |
| Declaration letter of disable frequency bands | Cover Letter(s) | 2017-03-09 | PDF 73.2 KB |
| Declaration letter of model difference | Cover Letter(s) | 2017-03-09 | PDF 67.9 KB |
| Declaration letter of software security requirements | Cover Letter(s) | 2017-03-09 | PDF 61.6 KB |
| UNII device declaration letter | Cover Letter(s) | 2017-03-09 | PDF 16.2 KB |
| SAR report part 1 | RF Exposure Info | 2017-03-09 | PDF 5.2 MB |
| SAR report part 2 | RF Exposure Info | 2017-03-09 | PDF 5.6 MB |
| Block diagram Metadata only | Block Diagram | PDF 418.8 KB | |
| Schematics Metadata only | Schematics | PDF 4.3 MB | |
| Operation description Metadata only | Operational Description | PDF 639.2 KB | |
| Part list Metadata only | Parts List/Tune Up Info | PDF 61 KB | |
| Tune up procedure Metadata only | Parts List/Tune Up Info | PDF 81.9 KB |
Application Information
| Application ID | zLet1s9r3Lxs7Mo1IMf/5A== |
|---|---|
| Final Action Date | 2017-03-09 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025163171 |
| Model | WHOOPSMART5L |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Smart phone |
| Responsible Party | Ejun Qiu, Sales, qiuyuzhu@unitone.com.cn , 0755-22236666 |
| Test Firm | Gavin Liang, Shenzhen LCS Compliance Testing Laboratory Ltd., Gavin.liang@lcs-cert.com  , 86-0755-82591330 |
| TCB Email | tcb-essen@cetecom.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.06 W/kg, 0.18 W/kg, 0.18 W/kg, and 1.1 W/kg, respectively. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| zLet1s9r3Lxs7Mo1IMf/5A== | 2017-03-09 | Original Equipment |
| wCPcQWvUOfne6Re7dsbFkA== | 2017-03-09 | Original Equipment |
| c/UAWuRCyBSvZHf9kfiYEQ== | 2017-03-09 | Original Equipment |
| WdEBIERq7miaVPaO2r3jFg== | 2017-03-09 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 699-716 MHz | 0.12 | 0.045ppm | 8M96W7D | 27 | |
| 699-716 MHz | 0.16 | 0.041ppm | 1M08G7D | 27 | |
| 699-714 MHz | 0.12 | 0.041ppm | 8M96G7D | 27 | |
| 699-716 MHz | 0.15 | 0.045ppm | 1M08W7D | 27 | |
| 704-716 MHz | 0.17 | 0.041ppm | 4M49G7D | 27 | |
| 704-716 MHz | 0.16 | 0.041ppm | 8M94G7D | 27 | |
| 704-716 MHz | 0.15 | 0.039ppm | 4M49W7D | 27 | |
| 704-716 MHz | 0.14 | 0.039ppm | 8M93W7D | 27 | |
| 826.4-846.6 MHz | 0.12 | 0.027ppm | 4M19F9W | 22H | |
| 1710-1755 MHz | 0.12 | 0.01ppm | 1M08G7D | 27 | |
| 1710-1755 MHz | 0.08 | 0.01ppm | 17M9G7D | 27 | |
| 1710-1755 MHz | 0.12 | 0.013ppm | 1M08W7D | 27 | |
| 1710-1755 MHz | 0.07 | 0.013ppm | 17M9W7D | 27 | |
| 1850-1910 MHz | 0.12 | 0.009ppm | 1M08G7D | 24E | |
| 1850-1910 MHz | 0.06 | 0.009ppm | 17M9G7D | 24E | |
| 1850-1910 MHz | 0.1 | 0.012ppm | 1M08W7D | 24E | |
| 1850-1910 MHz | 0.06 | 0.012ppm | 17M9W7D | 24E | |
| 1850.2-1909.8 MHz | 0.49 | 0.011ppm | 245KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.19 | 0.01ppm | 247KG7W | 24E | |
| 1852.4-1907.6 MHz | 0.12 | 0.009ppm | 4M22F9W | 24E | |
| 2402-2480 MHz | 0.0033000 | 15C | CC | ||
| 2402-2480 MHz | 0.0006 | 15C | CC | ||
| 2412-2462 MHz | 0.085 | 15C | CC | ||
| 5180-5240 MHz | 0.031 | 15E | 38, CC | ||
| 5745-5825 MHz | 0.032 | 15E | 38, CC |
Grants
TCB Grant - Application zLet1s9r3Lxs7Mo1IMf/5A==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CETECOM GmbH Im Teelbruch 116 45219 Essen, Germany |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Shenzhen Unitone Electronics co.,Ltd |
| 13-14 Floor, Pengji Bussiness Mansion, |
| No.50, Bagua 1 Road, Futian District |
| Shenzhen, China |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.085 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0006 |
| Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.06 W/kg, 0.18 W/kg, 0.18 W/kg, and 1.1 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application zLet1s9r3Lxs7Mo1IMf/5A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Unitone Electronics co.,Ltd 13-14 Floor, Pengji Bussiness Mansion, No.50, Bagua 1 Road, Futian District Shenzhen, China |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2412.0 - 2462.0 | 0.085 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.0006 |
| Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.06 W/kg, 0.18 W/kg, 0.18 W/kg, and 1.1 W/kg, respectively. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CETECOM GmbH Im Teelbruch 116 45219 Essen, Germany |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Shenzhen Unitone Electronics co.,Ltd |
| 13-14 Floor, Pengji Bussiness Mansion, |
| No.50, Bagua 1 Road, Futian District |
| Shenzhen, China |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Smart phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.031 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.032 |
| Output power listed is average conducted. This device supports 802.11a and 802.11n with a 20 MHz and 40 MHz bandwidth mode. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.11 W/kg, 0.48 W/kg, 0.48 W/kg, and 1.1 W/kg, respectively. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application WdEBIERq7miaVPaO2r3jFg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Unitone Electronics co.,Ltd 13-14 Floor, Pengji Bussiness Mansion, No.50, Bagua 1 Road, Futian District Shenzhen, China |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Smart phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC | 15E | 5180.0 - 5240.0 | 0.031 | ||
| 38 CC | 15E | 5745.0 - 5825.0 | 0.032 |
| Output power listed is average conducted. This device supports 802.11a and 802.11n with a 20 MHz and 40 MHz bandwidth mode. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.11 W/kg, 0.48 W/kg, 0.48 W/kg, and 1.1 W/kg, respectively. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CETECOM GmbH Im Teelbruch 116 45219 Essen, Germany |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Shenzhen Unitone Electronics co.,Ltd |
| 13-14 Floor, Pengji Bussiness Mansion, |
| No.50, Bagua 1 Road, Futian District |
| Shenzhen, China |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0033 |
| Output power listed is peak conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application wCPcQWvUOfne6Re7dsbFkA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Unitone Electronics co.,Ltd 13-14 Floor, Pengji Bussiness Mansion, No.50, Bagua 1 Road, Futian District Shenzhen, China |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0033 |
| Output power listed is peak conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CETECOM GmbH Im Teelbruch 116 45219 Essen, Germany |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Shenzhen Unitone Electronics co.,Ltd |
| 13-14 Floor, Pengji Bussiness Mansion, |
| No.50, Bagua 1 Road, Futian District |
| Shenzhen, China |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.94 | 0.025 PM | 249KGXW | |
| 22H | 824.2 - 848.8 | 0.3 | 0.029 PM | 246KG7W | |
| 24E | 1850.2 - 1909.8 | 0.49 | 0.011 PM | 245KGXW | |
| 24E | 1850.2 - 1909.8 | 0.19 | 0.01 PM | 247KG7W | |
| 22H | 826.4 - 846.6 | 0.12 | 0.027 PM | 4M19F9W | |
| 24E | 1852.4 - 1907.6 | 0.12 | 0.009 PM | 4M22F9W | |
| 27 | 699.0 - 716.0 | 0.16 | 0.041 PM | 1M08G7D | |
| 27 | 699.0 - 714.0 | 0.12 | 0.041 PM | 8M96G7D | |
| 27 | 699.0 - 716.0 | 0.15 | 0.045 PM | 1M08W7D | |
| 27 | 699.0 - 716.0 | 0.12 | 0.045 PM | 8M96W7D | |
| 27 | 704.0 - 716.0 | 0.17 | 0.041 PM | 4M49G7D | |
| 27 | 704.0 - 716.0 | 0.16 | 0.041 PM | 8M94G7D | |
| 27 | 704.0 - 716.0 | 0.15 | 0.039 PM | 4M49W7D | |
| 27 | 704.0 - 716.0 | 0.14 | 0.039 PM | 8M93W7D | |
| 27 | 1710.0 - 1755.0 | 0.12 | 0.01 PM | 1M08G7D | |
| 27 | 1710.0 - 1755.0 | 0.08 | 0.01 PM | 17M9G7D | |
| 27 | 1710.0 - 1755.0 | 0.12 | 0.013 PM | 1M08W7D | |
| 27 | 1710.0 - 1755.0 | 0.07 | 0.013 PM | 17M9W7D | |
| 24E | 1850.0 - 1910.0 | 0.12 | 0.009 PM | 1M08G7D | |
| 24E | 1850.0 - 1910.0 | 0.06 | 0.009 PM | 17M9G7D | |
| 24E | 1850.0 - 1910.0 | 0.1 | 0.012 PM | 1M08W7D | |
| 24E | 1850.0 - 1910.0 | 0.06 | 0.012 PM | 17M9W7D |
| Output power listed is ERP below 1GHz for Part 22/27 and EIRP above 1GHz for Part 24/27. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.48 W/kg, 0.92 W/kg, 0.92 W/kg, and 1.1 W/kg, respectively. This device supports LTE bandwidths of 1.4/3/5/10/15/20 MHz at LTE Band 2; 1.4/3/5/10/15/20 MHz at LTE Band 4; 1.4/3/5/10 MHz at LTE Band 12 and 5/10 MHz at LTE Band 17. |
EAS Grant - Application c/UAWuRCyBSvZHf9kfiYEQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Unitone Electronics co.,Ltd 13-14 Floor, Pengji Bussiness Mansion, No.50, Bagua 1 Road, Futian District Shenzhen, China |
Date of Grant: 03/09/2017 Application Dated: 03/09/2017 |
| Attention: Ejun Qiu , Sales |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AG5BWHOOPSMART5L |
| Name of Grantee: | Shenzhen Unitone Electronics co.,Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.94 | 0.025 PM | 249KGXW | |
| 22H | 824.2 - 848.8 | 0.3 | 0.029 PM | 246KG7W | |
| 24E | 1850.2 - 1909.8 | 0.49 | 0.011 PM | 245KGXW | |
| 24E | 1850.2 - 1909.8 | 0.19 | 0.01 PM | 247KG7W | |
| 22H | 826.4 - 846.6 | 0.12 | 0.027 PM | 4M19F9W | |
| 24E | 1852.4 - 1907.6 | 0.12 | 0.009 PM | 4M22F9W | |
| 27 | 699.0 - 716.0 | 0.16 | 0.041 PM | 1M08G7D | |
| 27 | 699.0 - 714.0 | 0.12 | 0.041 PM | 8M96G7D | |
| 27 | 699.0 - 716.0 | 0.15 | 0.045 PM | 1M08W7D | |
| 27 | 699.0 - 716.0 | 0.12 | 0.045 PM | 8M96W7D | |
| 27 | 704.0 - 716.0 | 0.17 | 0.041 PM | 4M49G7D | |
| 27 | 704.0 - 716.0 | 0.16 | 0.041 PM | 8M94G7D | |
| 27 | 704.0 - 716.0 | 0.15 | 0.039 PM | 4M49W7D | |
| 27 | 704.0 - 716.0 | 0.14 | 0.039 PM | 8M93W7D | |
| 27 | 1710.0 - 1755.0 | 0.12 | 0.01 PM | 1M08G7D | |
| 27 | 1710.0 - 1755.0 | 0.08 | 0.01 PM | 17M9G7D | |
| 27 | 1710.0 - 1755.0 | 0.12 | 0.013 PM | 1M08W7D | |
| 27 | 1710.0 - 1755.0 | 0.07 | 0.013 PM | 17M9W7D | |
| 24E | 1850.0 - 1910.0 | 0.12 | 0.009 PM | 1M08G7D | |
| 24E | 1850.0 - 1910.0 | 0.06 | 0.009 PM | 17M9G7D | |
| 24E | 1850.0 - 1910.0 | 0.1 | 0.012 PM | 1M08W7D | |
| 24E | 1850.0 - 1910.0 | 0.06 | 0.012 PM | 17M9W7D |
| Output power listed is ERP below 1GHz for Part 22/27 and EIRP above 1GHz for Part 24/27. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.48 W/kg, 0.92 W/kg, 0.92 W/kg, and 1.1 W/kg, respectively. This device supports LTE bandwidths of 1.4/3/5/10/15/20 MHz at LTE Band 2; 1.4/3/5/10/15/20 MHz at LTE Band 4; 1.4/3/5/10 MHz at LTE Band 12 and 5/10 MHz at LTE Band 17. |
| Mail To: |
