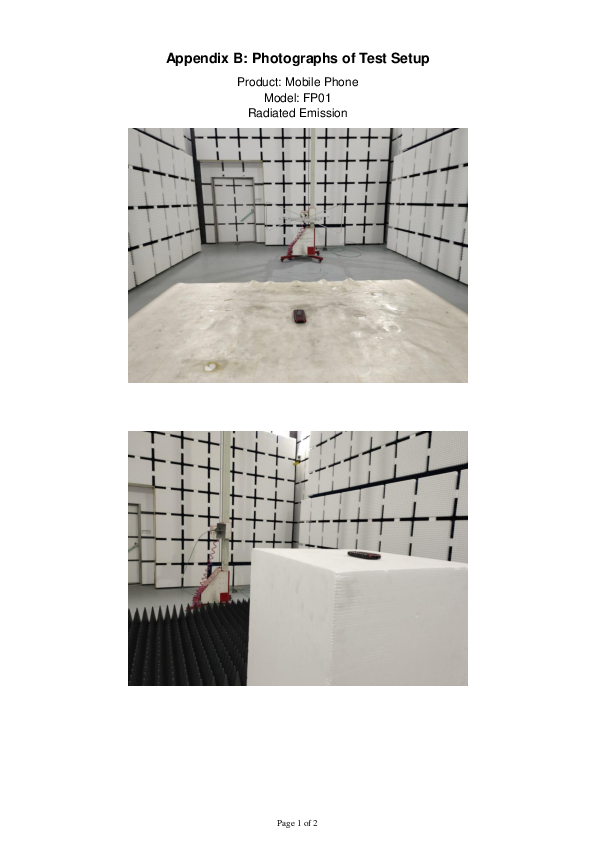

2021MAMMOTH Mobile Phone Test Setup... - FCC ID 2AG78-2021MAMMOTH

FCC ID 2AG78-2021MAMMOTH

Test_Setup_Photos

Mobile Phone

by Golden Unions Limited

Document preview loads when visible.

Document Details

FCC ID2AG78-2021MAMMOTH
Document ID5162758
Document TypeTest Setup Photos
DescriptionTest_Setup_Photos
ApplicantGolden Unions Limited
Equipment ClassMobile Phone
Product Code2021MAMMOTH
Application IDO6N+2L5UhnIuDB9WaveAfQ==
Application PurposeOriginal Equipment
Application Date2021-03-16
Frequency Range2402-2480 MHz
FRN0025190919
Test FirmSHENZHEN TONGCE TESTING LAB
Certified ByBERYL ZHAO
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2021-03-16
Available2021-03-16
Created2021-03-11
Modified2021-03-11
Pages2
File TypeAdobe Acrobat PDF
File Size235166
File SHA-2565155a5230c9812bc6a5a32cea2cbd382eaf2c6f93c0b8b5d786a6a47fc04cbfb
PDF Metadata AuthorSky123.Org
PDF Metadata ProducerMicrosoft® Office Word 2007 Microsoft® Office Word 2007
FCC.gov SourcesFCC.gov 5162758
