FCC ID 2AGF5T4H
Diagnostic Tool
by Somit Solutions Limited
Grantee Code: 2AGF5 Product Code: T4H
Latest application date: 2015-12-03
Device Images
FCC ID Device Details
| FCC ID | 2AGF5T4H |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AGF5 |
| Product Code | T4H |
| Applicant Business | Somit Solutions Limited 🇬🇧 |
| Related Domains |  somitsolutions.com |
| Equipment Class | Diagnostic Tool |
| Test Firm | Waltek Services(Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2015-12-03 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2015-12-03 | PDF 2.7 MB |

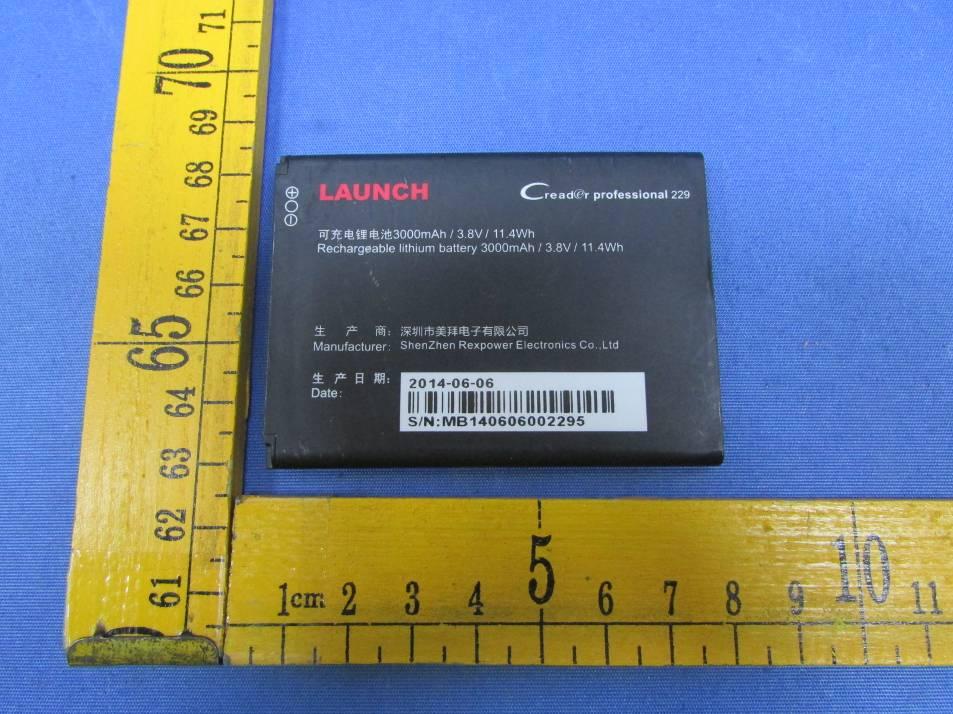

| Internal Photos | Internal Photos | 2015-12-03 | PDF 1.4 MB |

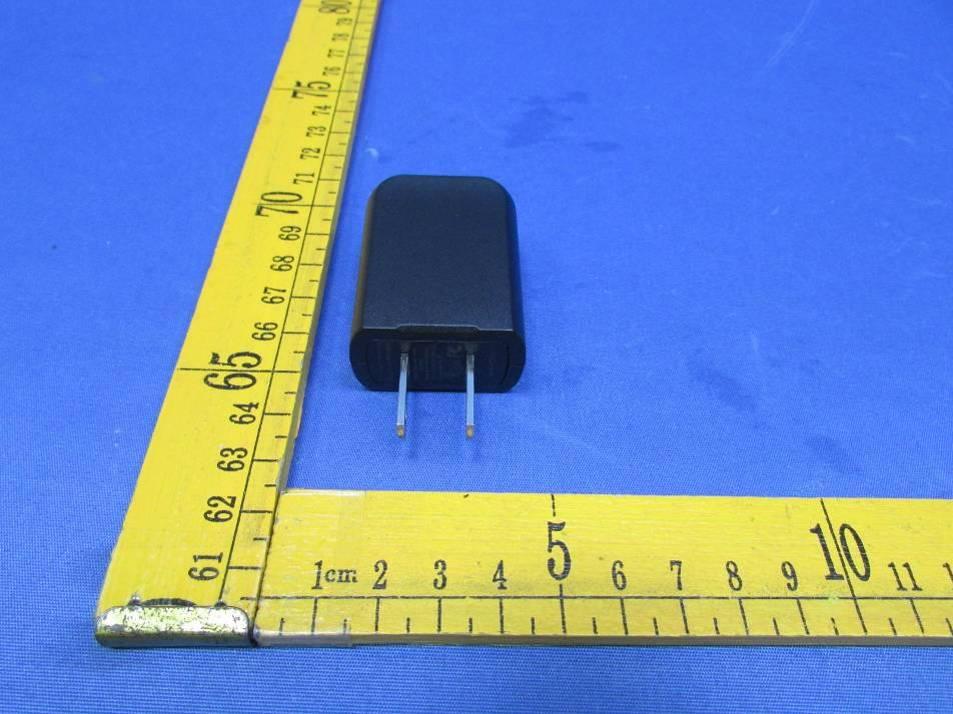

| External Photos | External Photos | 2015-12-03 | PDF 631.8 KB |
| Label and Label Location | ID Label/Location Info | 2015-12-03 | PDF 303 KB |
| Test Setup Photos | Test Setup Photos | 2015-12-03 | PDF 317.5 KB |
| Test Report | Test Report | 2015-12-03 | PDF 3.5 MB |
| Test Report Part 1 | Test Report | 2015-12-03 | PDF 1.2 MB |
| Test Report Part 2 | Test Report | 2015-12-03 | PDF 4.8 MB |
| Attestation Letter | Cover Letter(s) | 2015-12-03 | PDF 259.6 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2015-12-03 | PDF 162.5 KB |
| POA | Cover Letter(s) | 2015-12-03 | PDF 125.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 90.3 KB | |
| Schematics Metadata only | Schematics | PDF 627.6 KB | |
| Operational Description Metadata only | Operational Description | PDF 320.7 KB |
Application Information
| Application ID | K1/xNw/FynB2//5nb6kiMQ== |
|---|---|
| Final Action Date | 2015-12-03 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025034877 |
| Model | T4H |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Diagnostic Tool |
| Responsible Party | Ben Bradley, Managing Director, ben.bradley@somitsolutions.com , +44 (0) 843 289 0255 |
| Test Firm | philo zhong, Waltek Services(Shenzhen) Co., Ltd., philo@waltek.com.cn  , 8675527553488 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. SAR compliance for portable use conditions has been evaluated as described in this filing. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The highest reported SAR value is 0.27 W/kg. This device has 20 and 40 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| K1/xNw/FynB2//5nb6kiMQ== | 2015-12-03 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.0190000 | 15C |
Grants
TCB Grant - Application K1/xNw/FynB2//5nb6kiMQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 12/03/2015 Application Dated: 12/03/2015 |
| Somit Solutions Limited |
| 21, The Quadrant, |
| Barton Lane |
| Abingdon,Oxfordshire, OX14 3YS United Kingdom |
| Attention: Ben Bradley , Managing Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGF5T4H |
| Name of Grantee: | Somit Solutions Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | Diagnostic Tool |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.019 |
| Power listed is conducted. SAR compliance for portable use conditions has been evaluated as described in this filing. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The highest reported SAR value is 0.27 W/kg. This device has 20 and 40 MHz bandwidth modes. |
EAS Grant - Application K1/xNw/FynB2//5nb6kiMQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Somit Solutions Limited 21, The Quadrant, Barton Lane Abingdon,Oxfordshire, OX14 3YS United Kingdom |
Date of Grant: 12/03/2015 Application Dated: 12/03/2015 |
| Attention: Ben Bradley , Managing Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGF5T4H |
| Name of Grantee: | Somit Solutions Limited |
| Equipment Class: | Digital Transmission System |
| Notes: | Diagnostic Tool |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.019 |
| Power listed is conducted. SAR compliance for portable use conditions has been evaluated as described in this filing. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The highest reported SAR value is 0.27 W/kg. This device has 20 and 40 MHz bandwidth modes. |
