FCC ID 2AGM4-WUS13
WiFi/BT Combo Module
by Dongguan Digital AV Technology Corp., Ltd.
Grantee Code: 2AGM4 Product Code: WUS13
Latest application date: 2016-04-15
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-04-15 |
| 2402-2480 MHz | Original Equipment | 2016-04-15 |
| 2402-2480 MHz | Original Equipment | 2016-04-15 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| 10 user manual | Users Manual | 2016-04-15 | PDF 467.5 KB |
| 03 eut internal photos | Internal Photos | 2016-04-15 | PDF 841.5 KB |
| 02 eut external phtotos | External Photos | 2016-04-15 | PDF 510 KB |

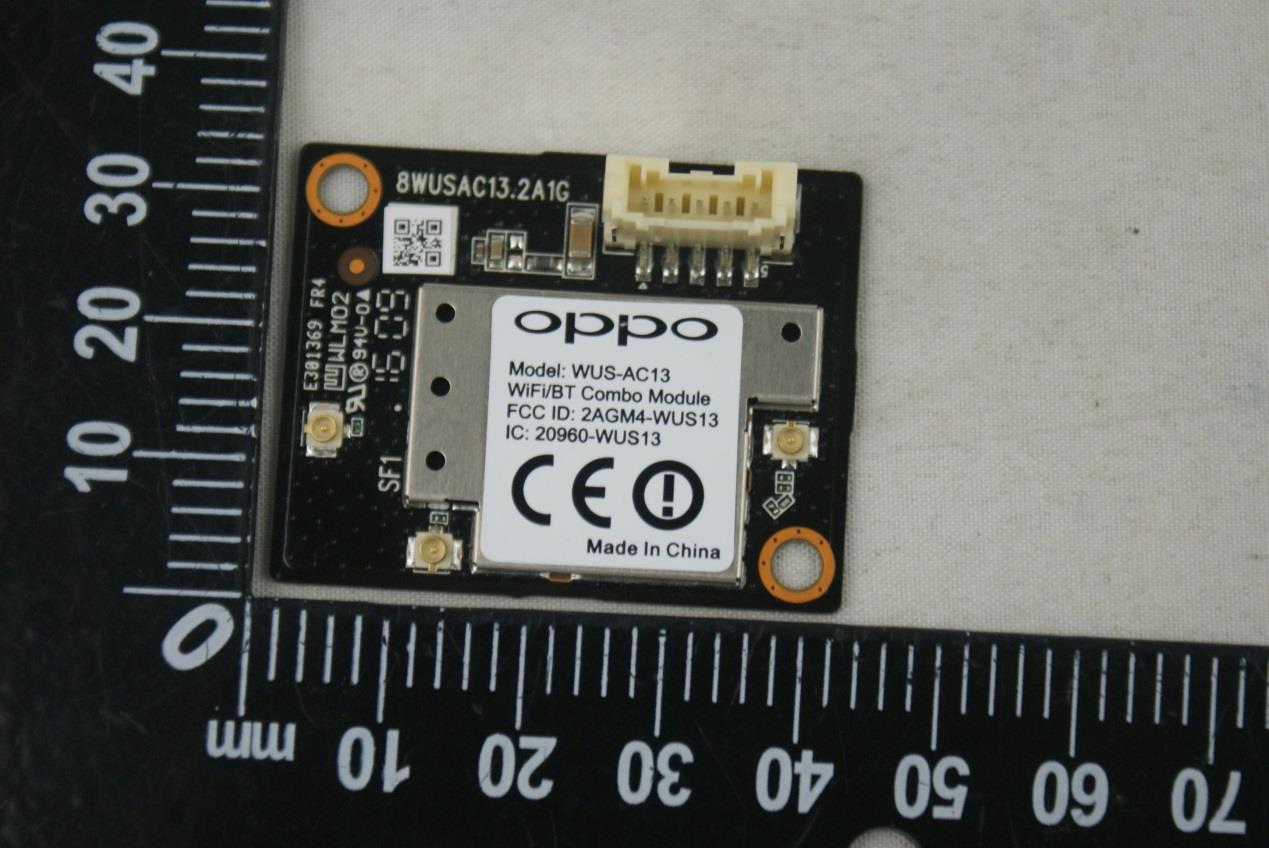

| 04 label and label location | ID Label/Location Info | 2016-04-15 | PDF 202.3 KB |
| 09 test setup photos | Test Setup Photos | 2016-04-15 | PDF 762.2 KB |
| 08 test report 2.4gwlan | Test Report | 2016-04-15 | PDF 4.4 MB |
| 08 test report 5.8gwlan part 1 | Test Report | 2016-04-15 | PDF 4.6 MB |
| 08 test report 5.8gwlan part 2 | Test Report | 2016-04-15 | PDF 5 MB |
| 08 test report 5.8gwlan part 3 | Test Report | 2016-04-15 | PDF 4.9 MB |
| 08 test report 5.8gwlan part 4 | Test Report | 2016-04-15 | PDF 3.1 MB |
| 08 test report 5.8gwlan part 5 | Test Report | 2016-04-15 | PDF 4.6 MB |
| 08 test report bt br part 1 | Test Report | 2016-04-15 | PDF 3.6 MB |
| 08 test report bt br part 2 | Test Report | 2016-04-15 | PDF 4.1 MB |
| 08 test report bt le | Test Report | 2016-04-15 | PDF 3.6 MB |
| 08 test report dfs | Test Report | 2016-04-15 | PDF 1.3 MB |
| 11 confidentiality request letter(permanent) v2 | Cover Letter(s) | 2016-04-15 | PDF 30.4 KB |
| 12 declaration letter not use ch12 and ch13 | Cover Letter(s) | 2016-04-15 | PDF 126.9 KB |
| 13 modular approval request FCC | Cover Letter(s) | 2016-04-15 | PDF 26.7 KB |
| 14 unii device declaration letter | Cover Letter(s) | 2016-04-15 | PDF 18.3 KB |
| 15 declaration letter of software security requirements for u-nii devices | Cover Letter(s) | 2016-04-15 | PDF 27.6 KB |
| 07 fcc mpe report | RF Exposure Info | 2016-04-15 | PDF 275.6 KB |
| 01 block diagram Metadata only | Block Diagram | PDF 110.1 KB | |
| 06 schematic Metadata only | Schematics | PDF 60.4 KB | |
| 05 operation description Metadata only | Operational Description | PDF 345.6 KB |
Application Information
| Application ID | cCmZ0k8EmwIXaV57J5YaMg== |
|---|---|
| Final Action Date | 2016-04-15 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025070723 |
| Model | WUS13 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiFi/BT Combo Module |
| Responsible Party | Qing Feng Zhang, zqf@oppo.com  , (86) 769-86076999 |
| Test Firm | Xuewen Wu, Shenzhen BALUN Technology Co.,Ltd., xuewen.wu@baluntek.com  , 86-755-66833404 |
| TCB Email | TCB@cetecom.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is the maximum combined conducted output power as indicated in the filing. This device supports 802.11a, 802.11n with 20 MHz and 40 MHz and 802.11ac with 20 MHz, 40 MHz and 80 MHz bandwidth mode. Approval is for operation as a client only device without radar detection or ad-hoc capability. Device operates with specific antennas in 2x2 MIMO configurations as described in this filing. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. Integrators and End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| cCmZ0k8EmwIXaV57J5YaMg== | 2016-04-15 | Original Equipment |
| On26STWICNayDuK7Ixe33w== | 2016-04-15 | Original Equipment |
| AA7jugX+1oVVC/uLo4M3+A== | 2016-04-15 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application On26STWICNayDuK7Ixe33w==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CTC advanced GmbH Untertuerkheimer Strasse 6-10 66117 Saarbruecken, Germany |
Date of Grant: 04/15/2016 Application Dated: 04/15/2016 |
| Dongguan Digital AV Technology Corp., Ltd. |
| 4th,5th&6th floor, building A, No. 39 Haibin Road, |
| Wusha, Chang'an |
| Dongguan, 523860 China |
| Attention: Qing Feng Zhang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGM4-WUS13 |
| Name of Grantee: | Dongguan Digital AV Technology Corp., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | WiFi/BT Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.08433 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.00583 |
| BT-LE: Output power listed is peak conducted. WLAN 2.4GHz: Output Power listed is the maximum combined conducted output power as indicated in the filing. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. Device operates with specific antennas in 2x2 MIMO configurations as described in this filing. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. Integrators and End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application On26STWICNayDuK7Ixe33w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Dongguan Digital AV Technology Corp., Ltd. 4th,5th&6th floor, building A, No. 39 Haibin Road, Wusha, Chang'an Dongguan, 523860 China |
Date of Grant: 04/15/2016 Application Dated: 04/15/2016 |
| Attention: Qing Feng Zhang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGM4-WUS13 |
| Name of Grantee: | Dongguan Digital AV Technology Corp., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | WiFi/BT Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.08433 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.00583 |
| BT-LE: Output power listed is peak conducted. WLAN 2.4GHz: Output Power listed is the maximum combined conducted output power as indicated in the filing. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz and 40 MHz bandwidth mode. Device operates with specific antennas in 2x2 MIMO configurations as described in this filing. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. Integrators and End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CTC advanced GmbH Untertuerkheimer Strasse 6-10 66117 Saarbruecken, Germany |
Date of Grant: 04/15/2016 Application Dated: 04/15/2016 |
| Dongguan Digital AV Technology Corp., Ltd. |
| 4th,5th&6th floor, building A, No. 39 Haibin Road, |
| Wusha, Chang'an |
| Dongguan, 523860 China |
| Attention: Qing Feng Zhang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGM4-WUS13 |
| Name of Grantee: | Dongguan Digital AV Technology Corp., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WiFi/BT Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.076877 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.075 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.07289 | ||
| CC MO | 15E | 5745.0 - 5825.0 | 0.06209 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device supports 802.11a, 802.11n with 20 MHz and 40 MHz and 802.11ac with 20 MHz, 40 MHz and 80 MHz bandwidth mode. Approval is for operation as a client only device without radar detection or ad-hoc capability. Device operates with specific antennas in 2x2 MIMO configurations as described in this filing. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. Integrators and End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application cCmZ0k8EmwIXaV57J5YaMg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Dongguan Digital AV Technology Corp., Ltd. 4th,5th&6th floor, building A, No. 39 Haibin Road, Wusha, Chang'an Dongguan, 523860 China |
Date of Grant: 04/15/2016 Application Dated: 04/15/2016 |
| Attention: Qing Feng Zhang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGM4-WUS13 |
| Name of Grantee: | Dongguan Digital AV Technology Corp., Ltd. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | WiFi/BT Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.076877 | ||
| CC MO | 15E | 5260.0 - 5320.0 | 0.075 | ||
| CC MO | 15E | 5500.0 - 5700.0 | 0.07289 | ||
| CC MO | 15E | 5745.0 - 5825.0 | 0.06209 |
| Output Power listed is the maximum combined conducted output power as indicated in the filing. This device supports 802.11a, 802.11n with 20 MHz and 40 MHz and 802.11ac with 20 MHz, 40 MHz and 80 MHz bandwidth mode. Approval is for operation as a client only device without radar detection or ad-hoc capability. Device operates with specific antennas in 2x2 MIMO configurations as described in this filing. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. Integrators and End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
CTC advanced GmbH Untertuerkheimer Strasse 6-10 66117 Saarbruecken, Germany |
Date of Grant: 04/15/2016 Application Dated: 04/15/2016 |
| Dongguan Digital AV Technology Corp., Ltd. |
| 4th,5th&6th floor, building A, No. 39 Haibin Road, |
| Wusha, Chang'an |
| Dongguan, 523860 China |
| Attention: Qing Feng Zhang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGM4-WUS13 |
| Name of Grantee: | Dongguan Digital AV Technology Corp., Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | WiFi/BT Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00953 |
| Output power listed is peak conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application AA7jugX+1oVVC/uLo4M3+A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Dongguan Digital AV Technology Corp., Ltd. 4th,5th&6th floor, building A, No. 39 Haibin Road, Wusha, Chang'an Dongguan, 523860 China |
Date of Grant: 04/15/2016 Application Dated: 04/15/2016 |
| Attention: Qing Feng Zhang |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AGM4-WUS13 |
| Name of Grantee: | Dongguan Digital AV Technology Corp., Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | WiFi/BT Combo Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00953 |
| Output power listed is peak conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
