WD55FW2490 LCD TV Teardown Internal Photos - FCC ID 2AHAK-WD55FW2490

FCC ID 2AHAK-WD55FW2490

Int Photos

LCD TV

by KUNSHAN KONKA ELECTRONICS CO., LTD

Document preview loads when visible.

Document Details

FCC ID2AHAK-WD55FW2490
Document ID2955981
Document TypeInternal Photos
DescriptionInt Photos

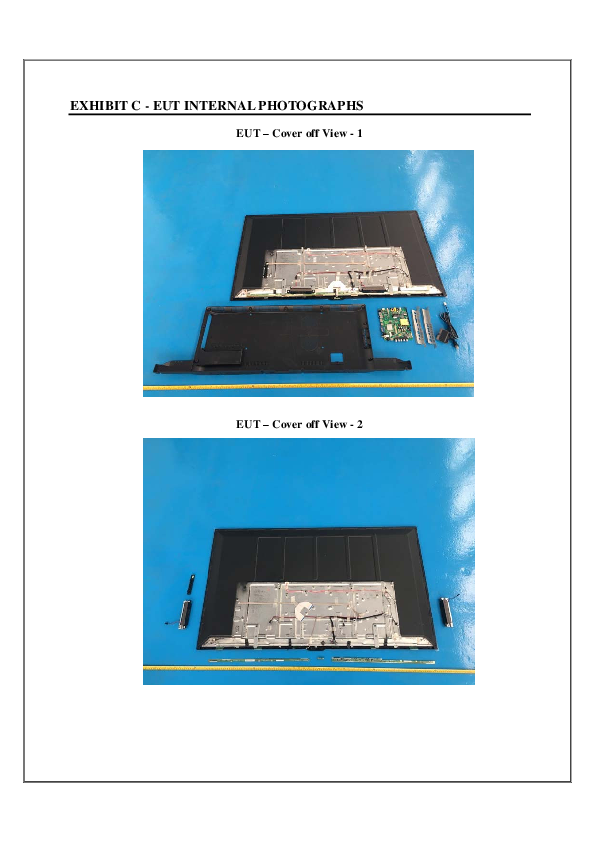

Document TitleEXHIBIT C - EUT INTERNAL PHOTOGRAPHSx
ApplicantKUNSHAN KONKA ELECTRONICS CO., LTD
Equipment ClassLCD TV
Product CodeWD55FW2490
Application ID83NdSrAXToQ41CUJm3Z+Sg==
Application PurposeOriginal Equipment
Application Date2016-04-11
Frequency Range2412-2462 MHz
FRN0025203290
Test FirmBay Area Compliance Laboratories Corp.(kunshan)
Certified ByRuifang Wang
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2016-04-11
Available2016-04-11
Created2017-11-23
Modified2017-11-23
Pages7
File TypeAdobe Acrobat PDF
File Size441781
File SHA-256356991e614d488beb5743cbc2a0a802a182501f19ac260b7598b1df8ea81a4e6
PDF Metadata Authorbaclks52
PDF Metadata ProducerGPL Ghostscript 9.18 baclks52
FCC.gov SourcesFCC.gov 2955981
