FCC ID 2AHDDPCD3501
Smart Phone
by Shenzhen Topwell Wireless Communication Co Ltd
Grantee Code: 2AHDD Product Code: PCD3501
Latest application date: 2016-02-22
Device Images
FCC ID Device Details
| FCC ID | 2AHDDPCD3501 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHDD |
| Product Code | PCD3501 |
| Applicant Business | Shenzhen Topwell Wireless Communication Co Ltd 🇨🇳 |
| Related Domains |  topwelltec.com |
| Equipment Class | Smart Phone |
| Test Firm | Bay Area Compliance Laboratory Corp. (Shenzhen) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 | 2016-02-22 |
| 824.2-848.8 MHz | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 | 2016-02-22 |
| 2402-2480 MHz | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 | 2016-02-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

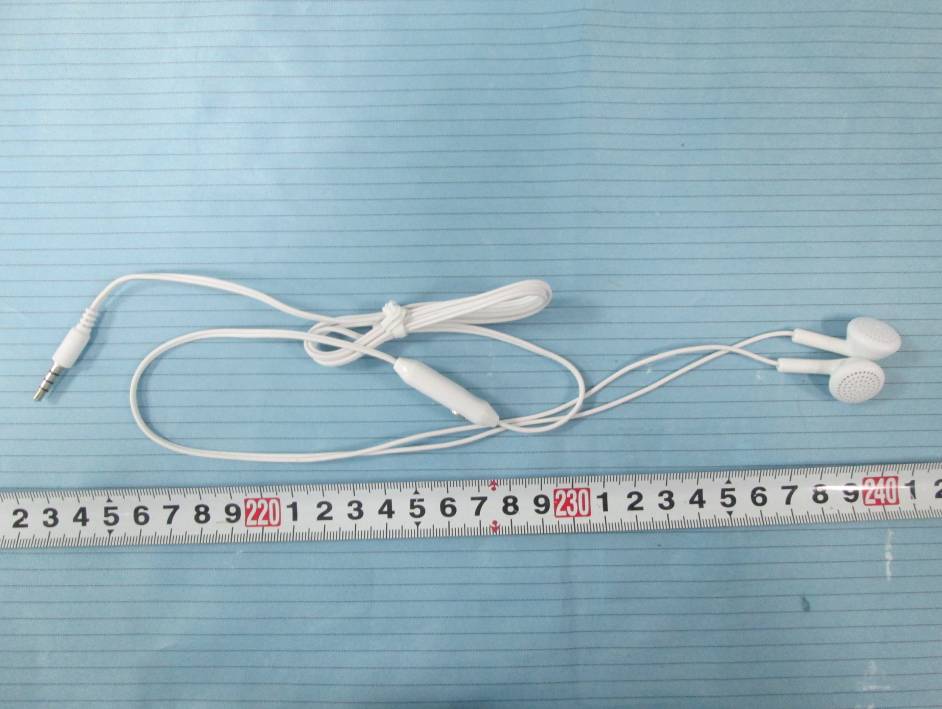

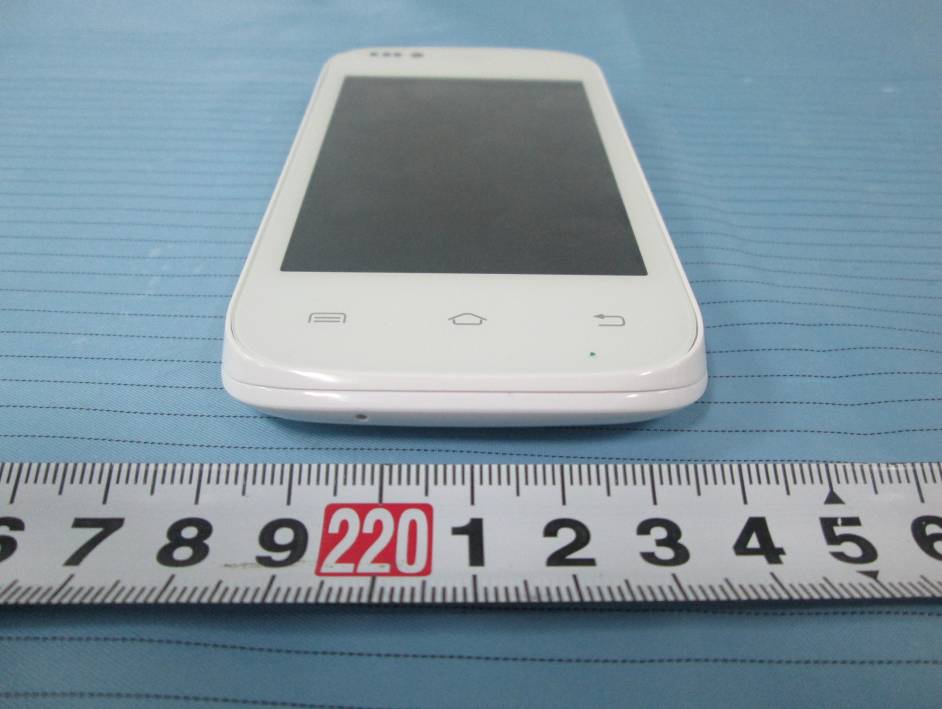

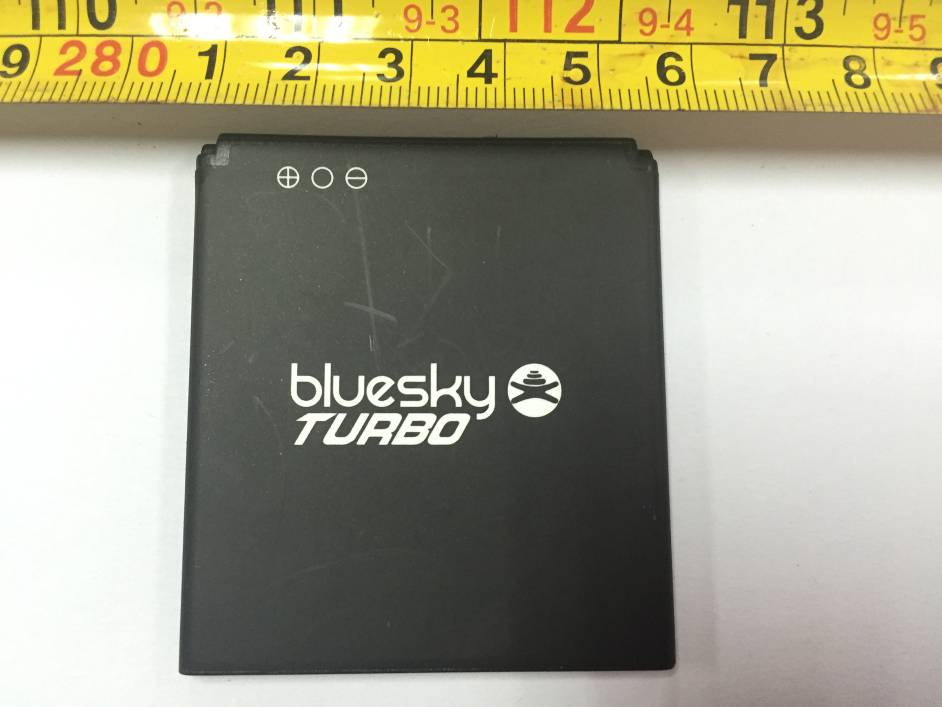

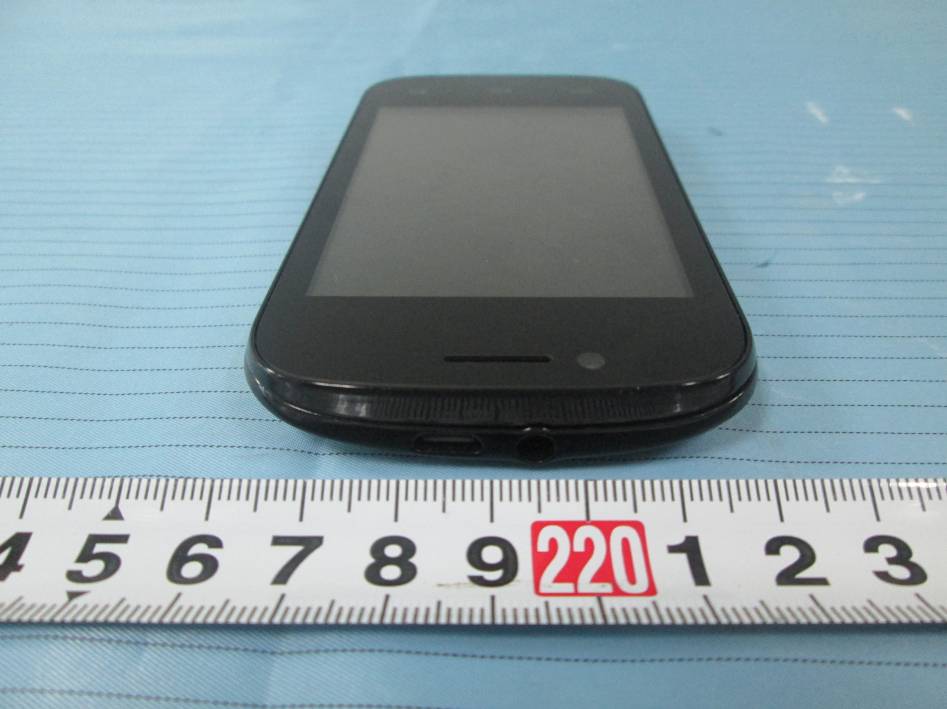

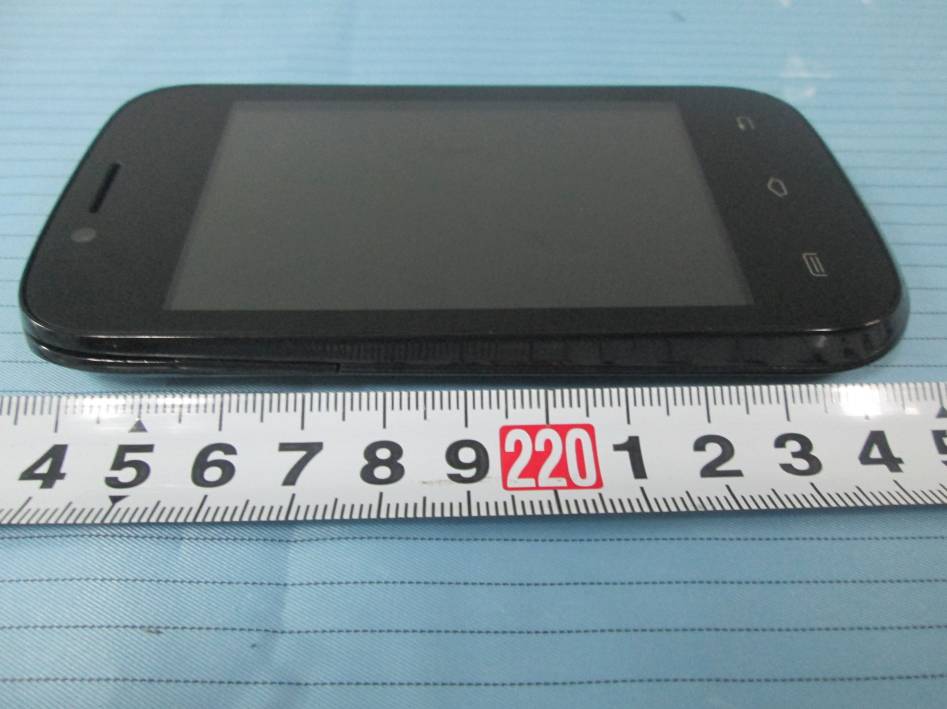

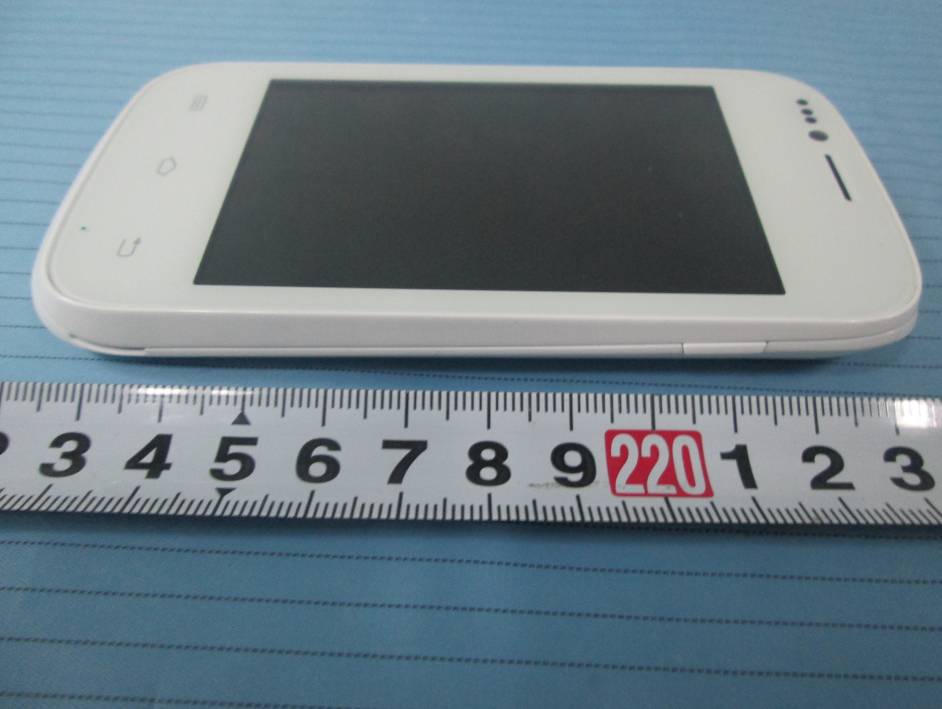

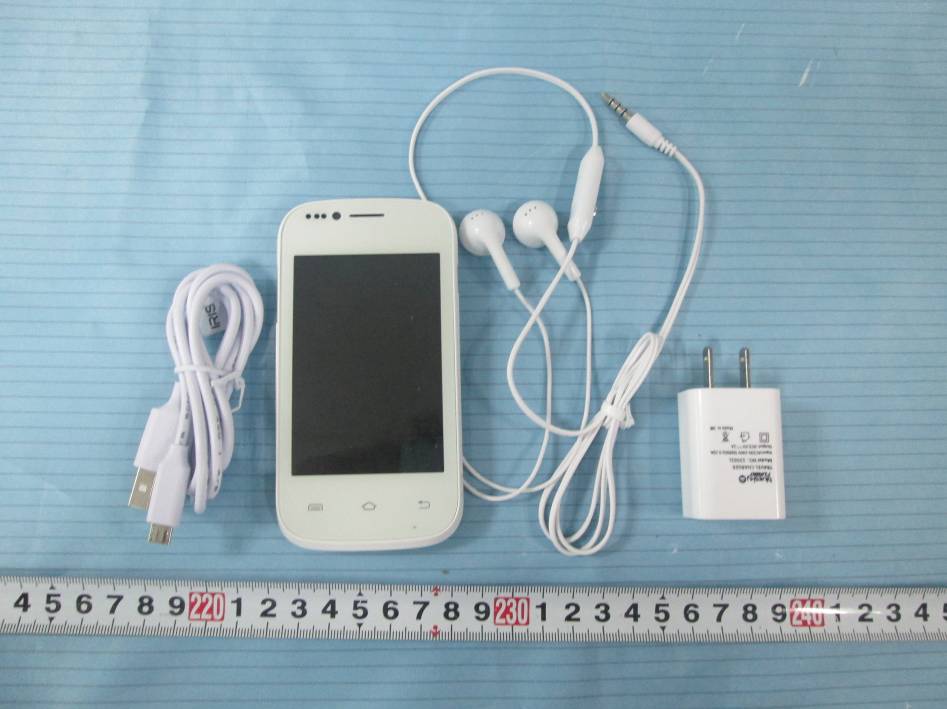

| Ext Photos | External Photos | 2016-02-22 | PDF 1,003.5 KB |
| FCC ID Label | ID Label/Location Info | 2016-02-22 | PDF 82.9 KB |
| Authorization Letter from Original Grantee | Cover Letter(s) | 2016-02-22 | PDF 84.5 KB |
| Change in ID Request Letter | Cover Letter(s) | 2016-02-22 | PDF 80 KB |
| POA | Cover Letter(s) | 2016-02-22 | PDF 676.4 KB |
Application Information
| Application ID | jTuCVksBgNzxlimwme4Xgw== |
|---|---|
| Final Action Date | 2016-02-22 |
| Application Purpose | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 |
| Applicant FRN | 0025233610 |
| Model | PCD3501 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Smart Phone |
| Responsible Party | Jason Huang, Manager, Jason.huang@topwelltec.com , +86 755 8271 1069 |
| Test Firm | John Chan, Bay Area Compliance Laboratory Corp. (Shenzhen), john.chan@baclcorp.com  , 08675533320018 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| jTuCVksBgNzxlimwme4Xgw== | 2016-02-22 | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 |
| jCc2ZorNUrFnwc4SZAOyqQ== | 2016-02-22 | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 |
| LorlSR6dfaZHqgAzgiHHBA== | 2016-02-22 | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 |
| 8i2qY0ekGKxcV8RhQsm4Rg== | 2016-02-22 | Change in identification of presently authorized equipment. Original FCC ID: 2AEWOS3502L-AS Grant Date: 06/06/2015 |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | CC | ||||
| 824.2-848.8 MHz | 0.71 | 2.5ppm | 245KGXW | 22H | |
| 824.2-848.8 MHz | 0.175 | 2.5ppm | 255KG7W | 22H | |
| 826.4-846.6 MHz | 0.156 | 2.5ppm | 4M19F9W | 22H | |
| 1850.2-1909.8 MHz | 0.372 | 2.5ppm | 243KGXW | 24E | |
| 1850.2-1909.8 MHz | 0.069 | 2.5ppm | 247KG7W | 24E | |
| 2402-2480 MHz | 0.0005 | 15C | CC | ||
| 2402-2480 MHz | 0.0030600 | 15C | CC | ||
| 2412-2472 MHz | 0.0452 | 15C | CC | ||
| 2422-2462 MHz | 0.0331 | 15C | CC |
Grants
TCB Grant - Application LorlSR6dfaZHqgAzgiHHBA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.71 | 2.5 PM | 245KGXW | |
| 22H | 824.2 - 848.8 | 0.175 | 2.5 PM | 255KG7W | |
| 22H | 826.4 - 846.6 | 0.156 | 2.5 PM | 4M19F9W | |
| 24E | 1850.2 - 1909.8 | 0.372 | 2.5 PM | 243KGXW | |
| 24E | 1850.2 - 1909.8 | 0.069 | 2.5 PM | 247KG7W |
| Power output listed is ERP for part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except for the co-location described in the filing For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10mm from the body. Use of metal and that positions the handset a minimum of 10mm from the body. Use of other accessories may not ensure worn accessory, and simultaneous transmission are: 0.58 W/kg, 0.96 W/kg, and 1.14 W/kg, respectively. This device also contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
EAS Grant - Application LorlSR6dfaZHqgAzgiHHBA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 0.71 | 2.5 PM | 245KGXW | |
| 22H | 824.2 - 848.8 | 0.175 | 2.5 PM | 255KG7W | |
| 22H | 826.4 - 846.6 | 0.156 | 2.5 PM | 4M19F9W | |
| 24E | 1850.2 - 1909.8 | 0.372 | 2.5 PM | 243KGXW | |
| 24E | 1850.2 - 1909.8 | 0.069 | 2.5 PM | 247KG7W |
| Power output listed is ERP for part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except for the co-location described in the filing For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10mm from the body. Use of metal and that positions the handset a minimum of 10mm from the body. Use of other accessories may not ensure worn accessory, and simultaneous transmission are: 0.58 W/kg, 0.96 W/kg, and 1.14 W/kg, respectively. This device also contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00306 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application jTuCVksBgNzxlimwme4Xgw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.00306 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application jCc2ZorNUrFnwc4SZAOyqQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0005 | ||
| CC | 15C | 2412.0 - 2472.0 | 0.0452 | ||
| CC | 15C | 2422.0 - 2462.0 | 0.0331 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application 8i2qY0ekGKxcV8RhQsm4Rg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 02/22/2016 Application Dated: 02/22/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCD3501 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0005 | ||
| CC | 15C | 2412.0 - 2472.0 | 0.0452 | ||
| CC | 15C | 2422.0 - 2462.0 | 0.0331 |
| Output power listed is conducted. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: |
