FCC ID 2AHDDPCDPH4002
Smart Phone
by Shenzhen Topwell Wireless Communication Co Ltd
Grantee Code: 2AHDD Product Code: PCDPH4002
Latest application date: 2016-08-04
Device Images
FCC ID Device Details
| FCC ID | 2AHDDPCDPH4002 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHDD |
| Product Code | PCDPH4002 |
| Applicant Business | Shenzhen Topwell Wireless Communication Co Ltd 🇨🇳 |
| Related Domains |  topwelltec.com |
| Equipment Class | Smart Phone |
| Test Firm | Shenzhen Zhongjian Nanfang Testing Co.,Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824.2-848.8 MHz | Class II permissive change or modification of presently authorized equipment | 2016-08-04 |
| 824.2-848.8 MHz | Original Equipment | 2016-07-08 |
| 2402-2480 MHz | Original Equipment | 2016-07-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-08-04 | PDF 155.7 KB |
| Users Manual | Users Manual | 2016-07-08 | PDF 107.4 KB |

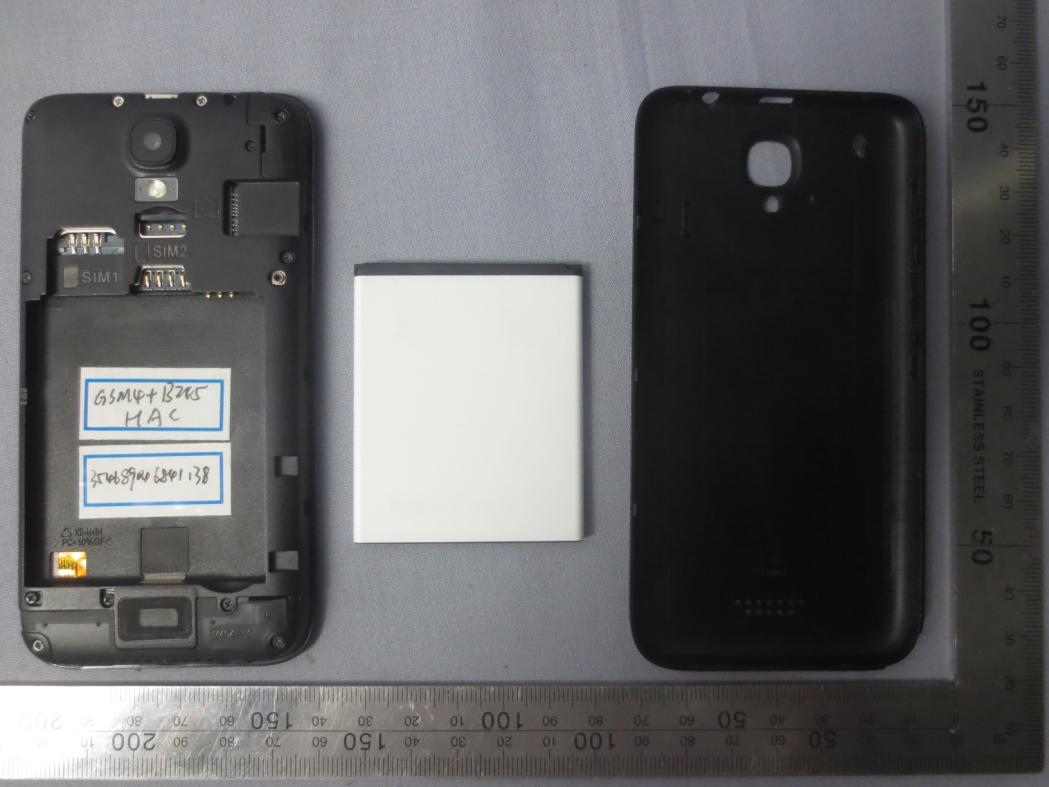

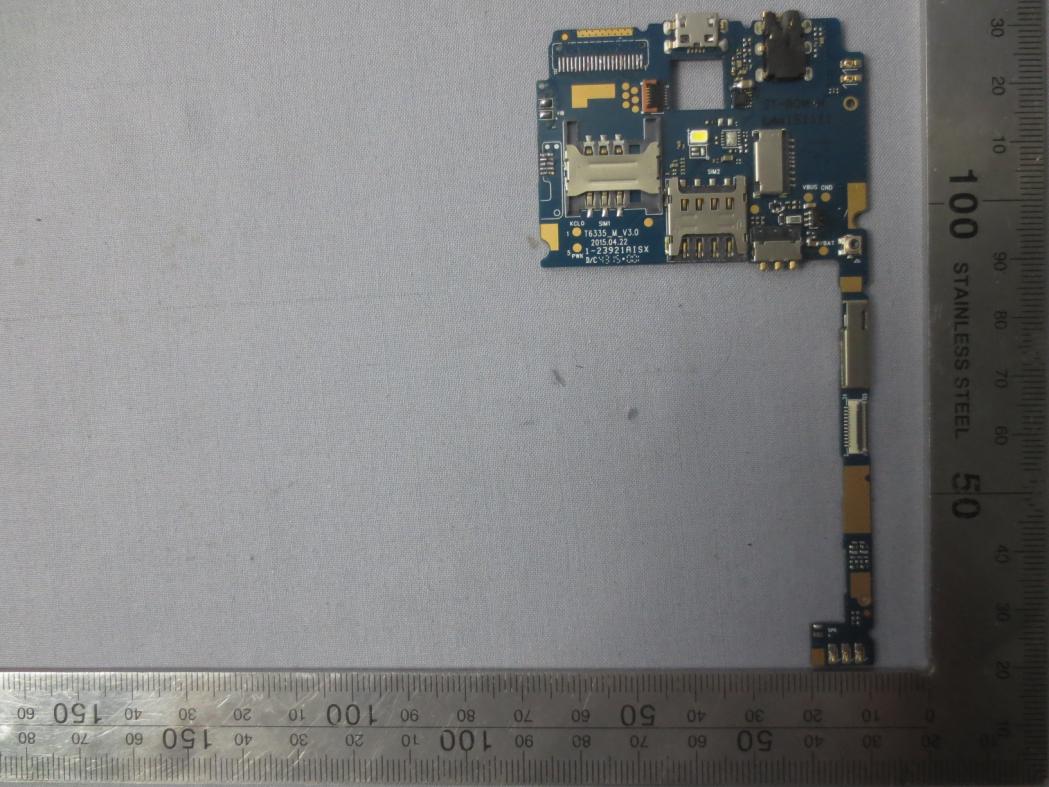

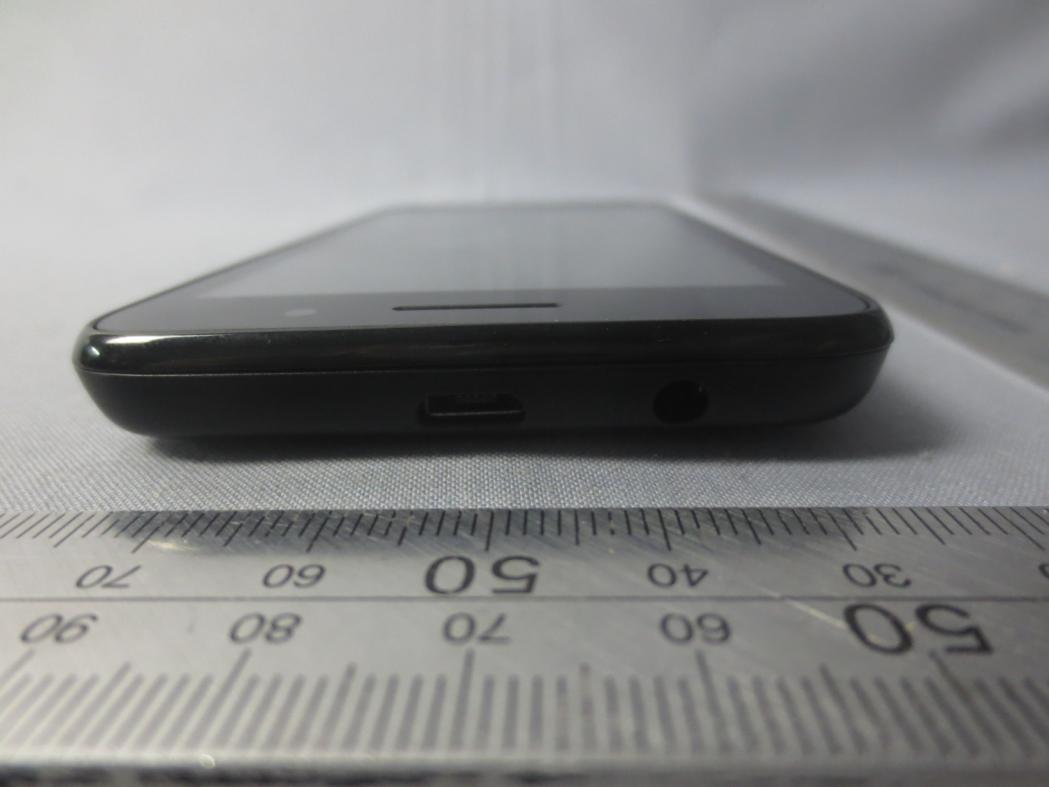

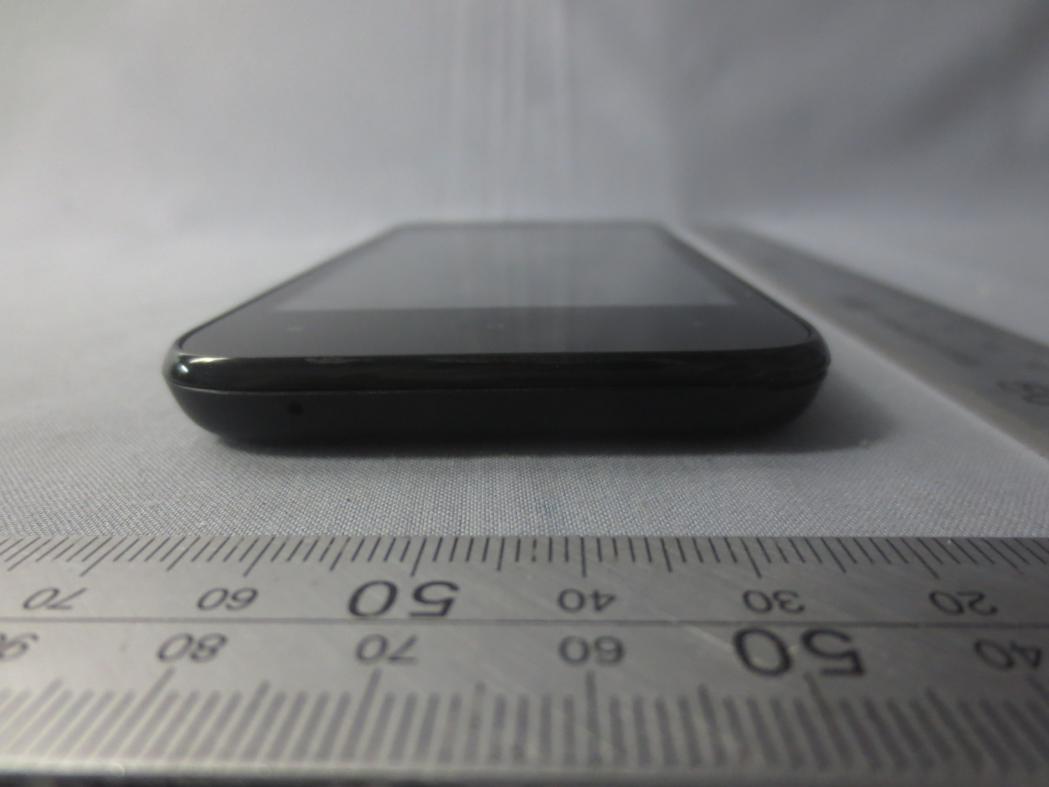

| Internal Photos | Internal Photos | 2016-07-08 | PDF 621.1 KB |
| External Photos | External Photos | 2016-08-04 | PDF 496.9 KB |
| Label Location | ID Label/Location Info | 2016-08-04 | PDF 238.7 KB |
| Label and Label Location | ID Label/Location Info | 2016-07-08 | PDF 238.7 KB |

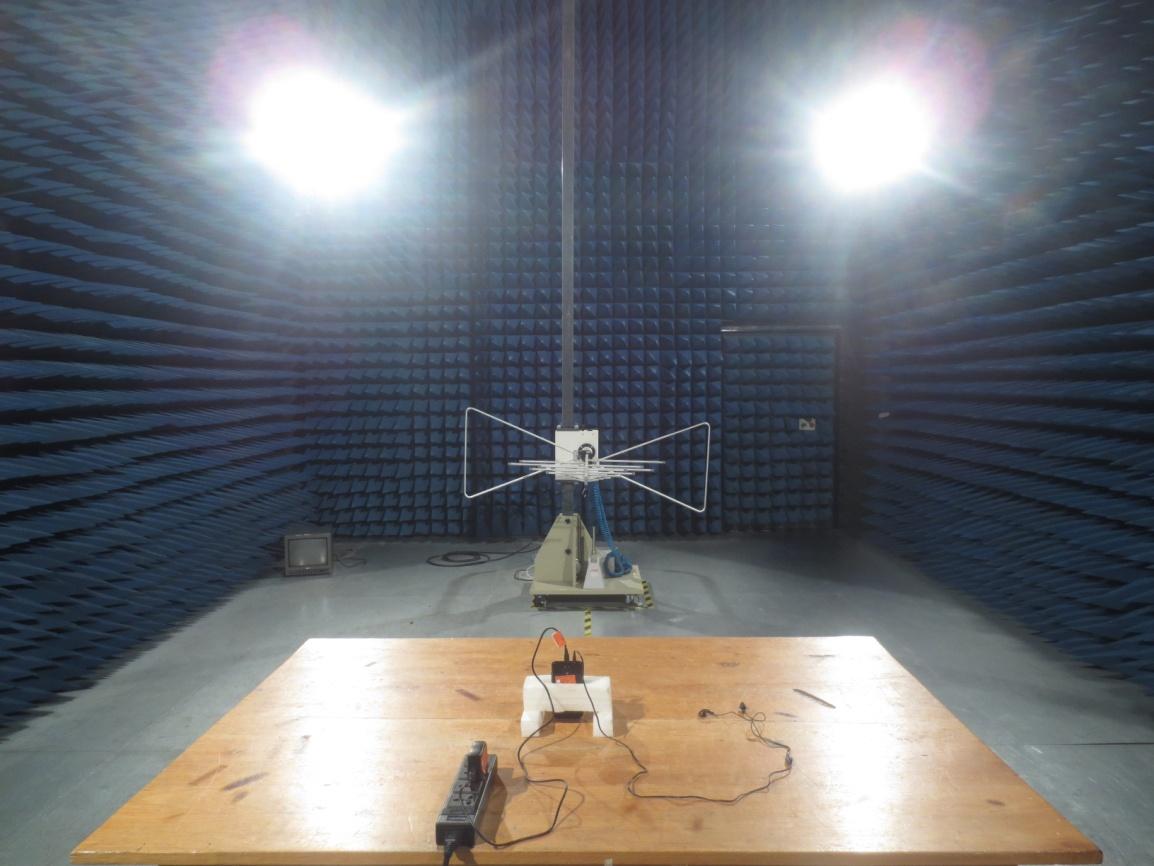

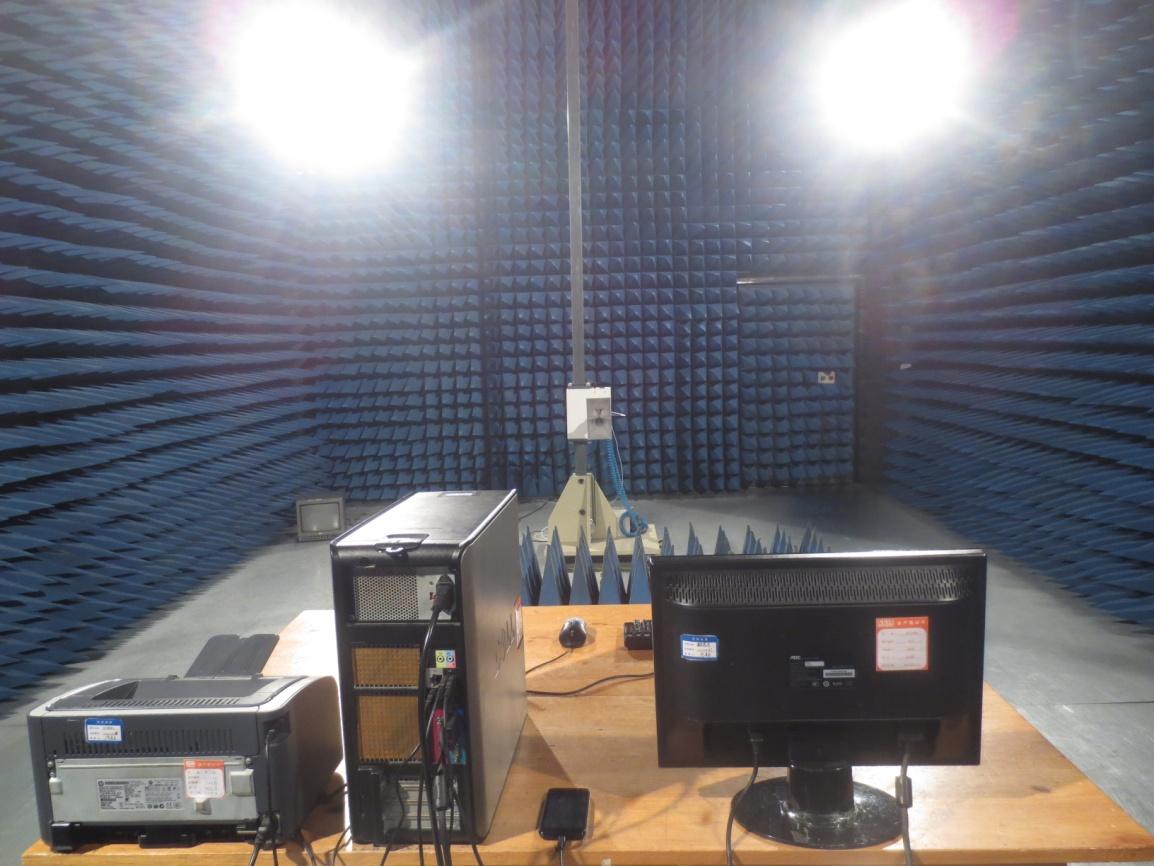

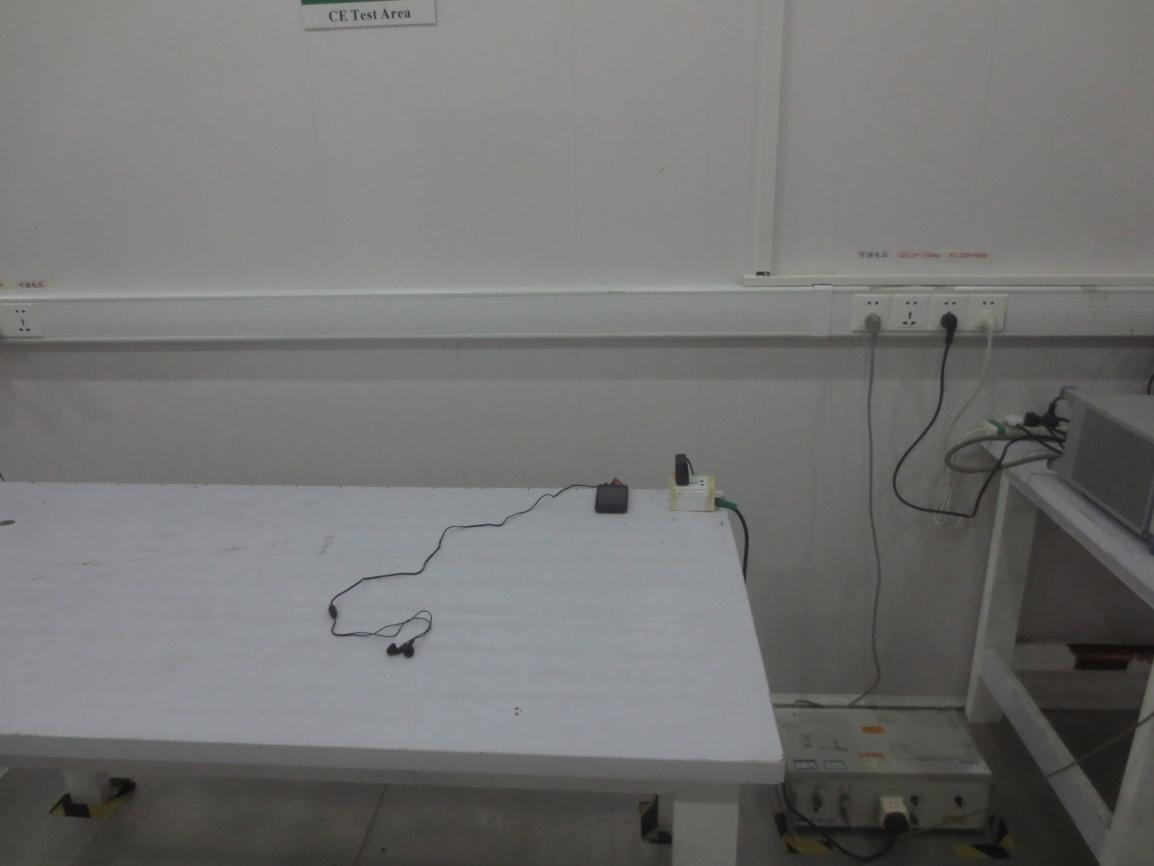

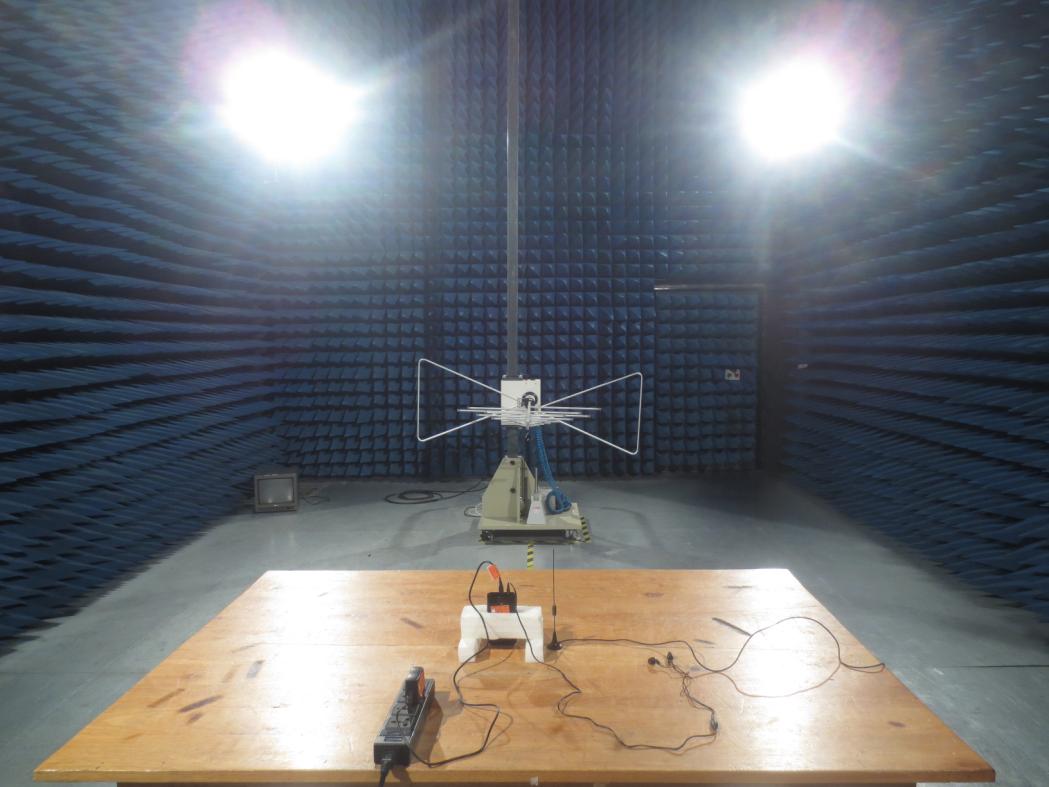

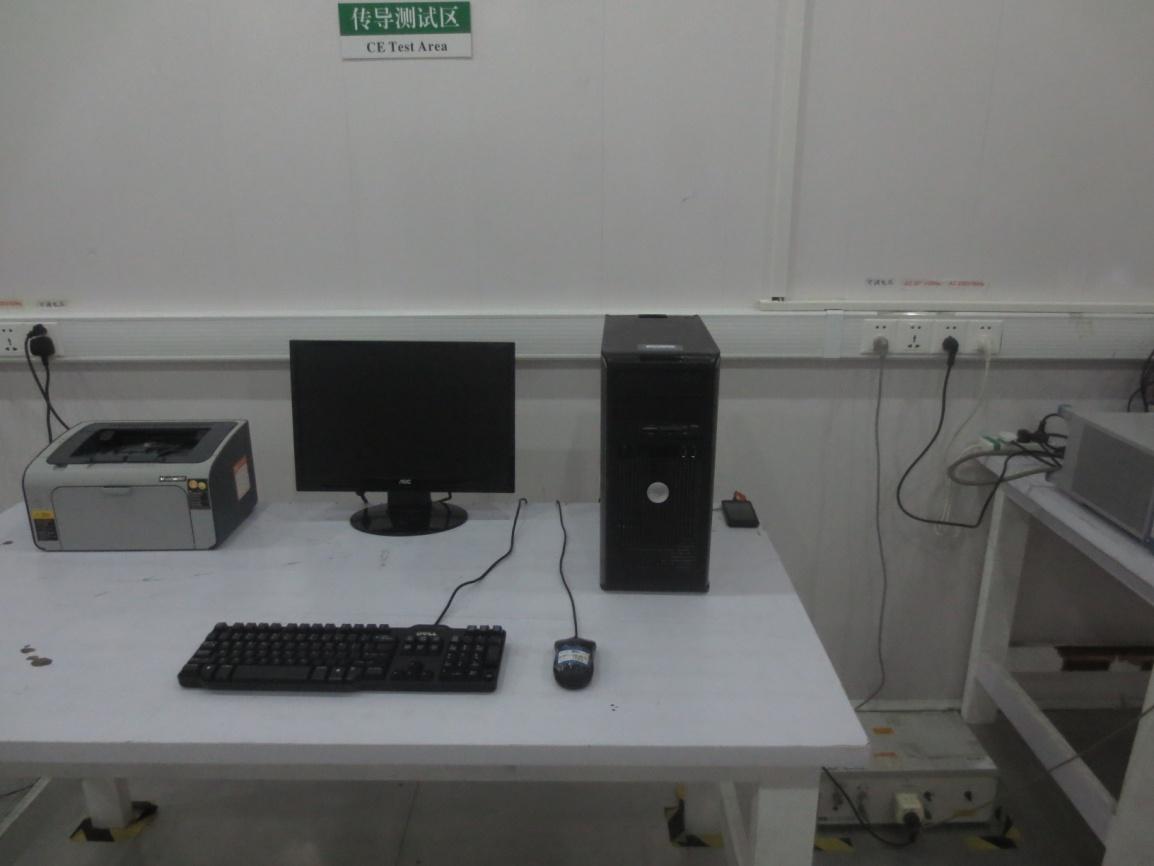

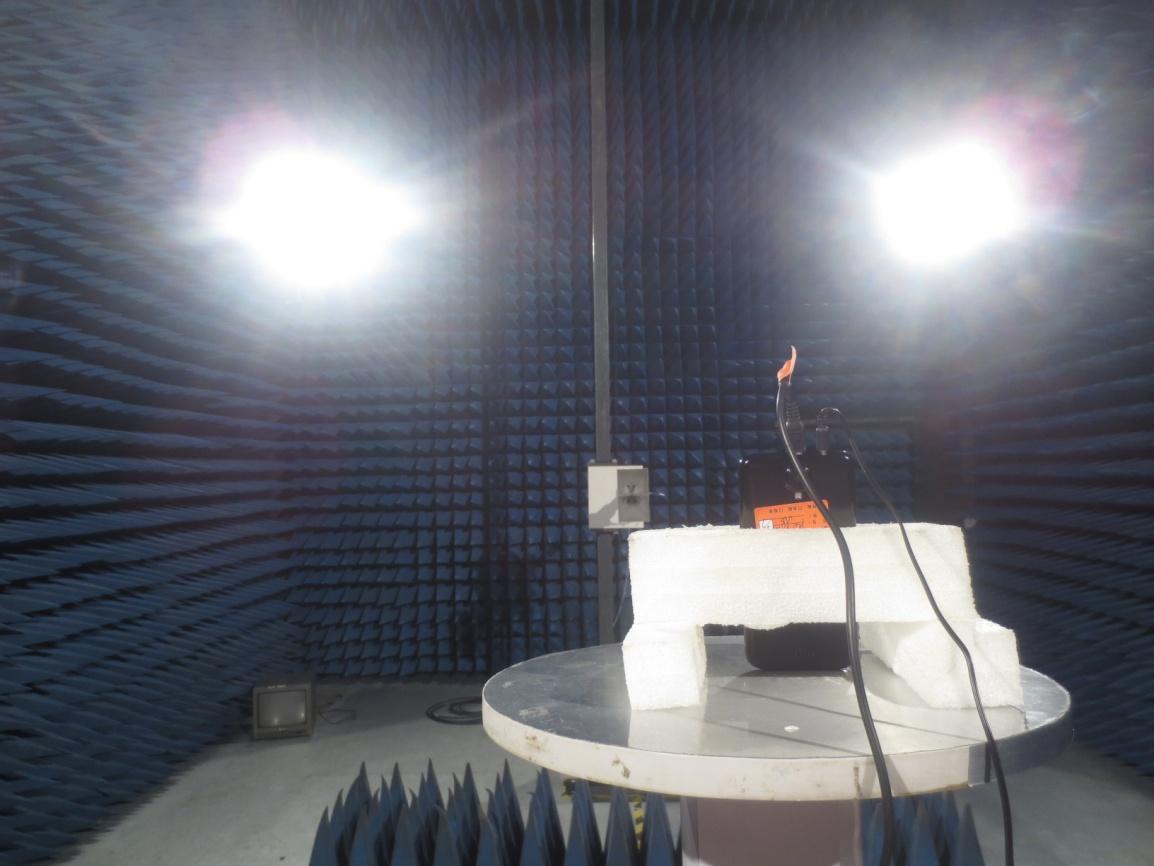

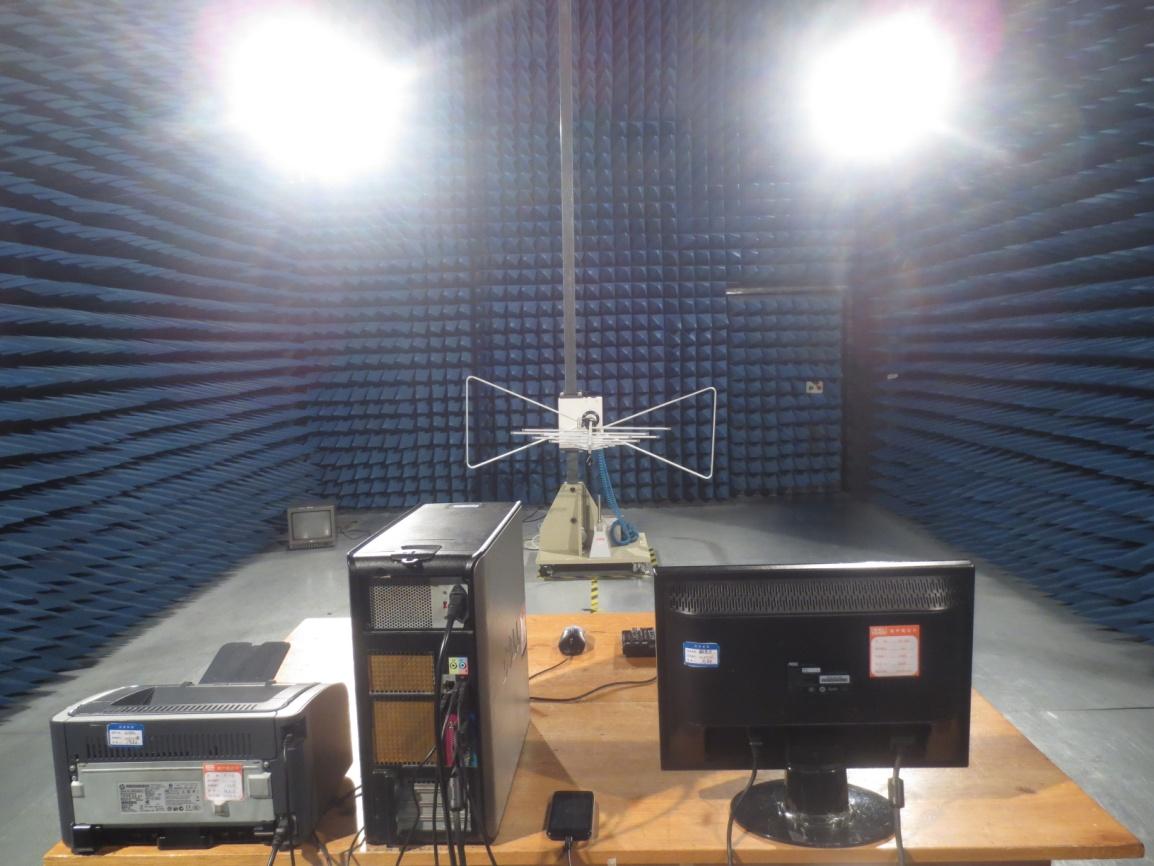

| Test Setup Photos | Test Setup Photos | 2016-07-08 | PDF 267 KB |
| Test Setup Photos | Test Setup Photos | 2016-07-08 | PDF 320.6 KB |
| Test Setup Photos | Test Setup Photos | 2016-07-08 | PDF 211.7 KB |
| Test Report | Test Report | 2016-08-04 | PDF 2.9 MB |
| Test Report | Test Report | 2016-07-08 | PDF 1.6 MB |
| Test Report | Test Report | 2016-07-08 | PDF 4.8 MB |
| Test Report | Test Report | 2016-07-08 | PDF 1.7 MB |
| Cover Letters | Cover Letter(s) | 2016-08-04 | PDF 146 KB |
| Cover Letters | Cover Letter(s) | 2016-07-08 | PDF 123.2 KB |
| RF Exposure info | RF Exposure Info | 2016-07-08 | PDF 3.7 MB |
| Block Diagram Metadata only | Block Diagram | PDF 47.1 KB | |
| Schematics Metadata only | Schematics | PDF 277.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 140.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 279.7 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 18.4 KB |
Application Information
| Application ID | hWc4C65dLDyKgGkBrAbz5Q== |
|---|---|
| Final Action Date | 2016-08-04 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0025233610 |
| Model | PCDPH4002 |
| Frequency Range | 824.2-848.8 MHz |
| Equipment Class | PCE - PCS Licensed Transmitter held to ear |
| Device Description | Smart Phone |
| Responsible Party | Jason Huang, Manager, Jason.huang@topwelltec.com , +86 755 8271 1069 |
| Test Firm | Bruce Zhang, Shenzhen Zhongjian Nanfang Testing Co.,Ltd, bruce.zhang@ccis-cb.com  , 86-755-23118282 |
| TCB Email | Stuart.Beck@nemko.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is ERP for below 1GHz, EIRP for above 1GHz. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. HAC Rating: M3 T4 - 2011 |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| hWc4C65dLDyKgGkBrAbz5Q== | 2016-08-04 | Class II permissive change or modification of presently authorized equipment |
| s5XH1fcQYLBnGTa/s88QXg== | 2016-07-08 | Original Equipment |
| RGEVl5UNCo/5yTVMhdVlbg== | 2016-07-08 | Original Equipment |
| EsJq502jfuUr0cex1Mpu3g== | 2016-07-08 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 824.2-848.8 MHz | 2.2284 | 0.237868ppm | 248KGXW | 22H | HC |
| 824.2-848.8 MHz | 2.2284 | 0.237868ppm | 248KGXW | 22H | |
| 826.4-846.6 MHz | 0.4355 | 0.221133ppm | 4M18F9W | 22H | HC |
| 826.4-846.6 MHz | 0.4355 | 0.221133ppm | 4M18F9W | 22H | |
| 1712.4-1752.6 MHz | 0.1648 | 0.113125ppm | 4M18F9W | 27 | HC |
| 1712.4-1752.6 MHz | 0.01648 | 0.113125ppm | 4M18F9W | 27 | |
| 1850.2-1909.8 MHz | 0.413 | 0.099468ppm | 248KGXW | 24E | HC |
| 1850.2-1909.8 MHz | 0.413 | 0.099468ppm | 248KGXW | 24E | |
| 1852.4-1907.6 MHz | 0.0979 | 0.105319ppm | 4M18F9W | 24E | HC |
| 1852.4-1907.6 MHz | 0.0979 | 0.105319ppm | 4M18F9W | 24E | |
| 2402-2480 MHz | 0.000264 | 15C | |||
| 2412-2462 MHz | 0.03062 | 15C | |||
| 2422-2452 MHz | 0.014 | 15C |
Grants
TCB Grant - Application s5XH1fcQYLBnGTa/s88QXg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 07/08/2016 Application Dated: 07/08/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 2.2284 | 0.237868 PM | 248KGXW | |
| 24E | 1850.2 - 1909.8 | 0.413 | 0.099468 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.4355 | 0.221133 PM | 4M18F9W | |
| 24E | 1852.4 - 1907.6 | 0.0979 | 0.105319 PM | 4M18F9W | |
| 27 | 1712.4 - 1752.6 | 0.01648 | 0.113125 PM | 4M18F9W |
| Output power listed is ERP for below 1GHz, EIRP for above 1GHz. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
EAS Grant - Application s5XH1fcQYLBnGTa/s88QXg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 07/08/2016 Application Dated: 07/08/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 2.2284 | 0.237868 PM | 248KGXW | |
| 24E | 1850.2 - 1909.8 | 0.413 | 0.099468 PM | 248KGXW | |
| 22H | 826.4 - 846.6 | 0.4355 | 0.221133 PM | 4M18F9W | |
| 24E | 1852.4 - 1907.6 | 0.0979 | 0.105319 PM | 4M18F9W | |
| 27 | 1712.4 - 1752.6 | 0.01648 | 0.113125 PM | 4M18F9W |
| Output power listed is ERP for below 1GHz, EIRP for above 1GHz. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 07/08/2016 Application Dated: 07/08/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.03062 | |||
| 15C | 2422.0 - 2452.0 | 0.014 | |||
| 15C | 2402.0 - 2480.0 | 0.000264 |
| Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operations is restricted to belt-clips, holsters, or similar accessories that have no metallic component in the assembly and which provide at least 1 cm separation between the device including its antenna and the body of user. End-users must be informed of the body-worn accessory operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. |
EAS Grant - Application RGEVl5UNCo/5yTVMhdVlbg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 07/08/2016 Application Dated: 07/08/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.03062 | |||
| 15C | 2422.0 - 2452.0 | 0.014 | |||
| 15C | 2402.0 - 2480.0 | 0.000264 |
| Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. SAR compliance for body-worn operations is restricted to belt-clips, holsters, or similar accessories that have no metallic component in the assembly and which provide at least 1 cm separation between the device including its antenna and the body of user. End-users must be informed of the body-worn accessory operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 08/04/2016 Application Dated: 08/04/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| HC | 22H | 824.2 - 848.8 | 2.2284 | 0.237868 PM | 248KGXW |
| HC | 24E | 1850.2 - 1909.8 | 0.413 | 0.099468 PM | 248KGXW |
| HC | 22H | 826.4 - 846.6 | 0.4355 | 0.221133 PM | 4M18F9W |
| HC | 24E | 1852.4 - 1907.6 | 0.0979 | 0.105319 PM | 4M18F9W |
| HC | 27 | 1712.4 - 1752.6 | 0.1648 | 0.113125 PM | 4M18F9W |
| Output power listed is ERP for below 1GHz, EIRP for above 1GHz. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. HAC Rating: M3 T4 - 2011 |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
EAS Grant - Application hWc4C65dLDyKgGkBrAbz5Q==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 08/04/2016 Application Dated: 08/04/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| HC | 22H | 824.2 - 848.8 | 2.2284 | 0.237868 PM | 248KGXW |
| HC | 24E | 1850.2 - 1909.8 | 0.413 | 0.099468 PM | 248KGXW |
| HC | 22H | 826.4 - 846.6 | 0.4355 | 0.221133 PM | 4M18F9W |
| HC | 24E | 1852.4 - 1907.6 | 0.0979 | 0.105319 PM | 4M18F9W |
| HC | 27 | 1712.4 - 1752.6 | 0.1648 | 0.113125 PM | 4M18F9W |
| Output power listed is ERP for below 1GHz, EIRP for above 1GHz. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 0.683W/kg, 0.693W/kg, 1.007 W/kg, and 1.224 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations. HAC Rating: M3 T4 - 2011 |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 07/08/2016 Application Dated: 07/08/2016 |
| Shenzhen Topwell Wireless Communication Co Ltd |
| 5F,10 Building,Changyuan New Material Port,No.2, |
| Middle Road1, High Tech Park, Nanshan District |
| Shenzhen, China |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart Phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
EAS Grant - Application EsJq502jfuUr0cex1Mpu3g==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen Topwell Wireless Communication Co Ltd 5F,10 Building,Changyuan New Material Port,No.2, Middle Road1, High Tech Park, Nanshan District Shenzhen, China |
Date of Grant: 07/08/2016 Application Dated: 07/08/2016 |
| Attention: Jason Huang , Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHDDPCDPH4002 |
| Name of Grantee: | Shenzhen Topwell Wireless Communication Co Ltd |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Smart Phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15B | - |
| Mail To: |
