FCC ID 2AHDI-DC29
Wireless 802.11AC Dual band USB Adapter
by Shenzhen TOMTOP Technology Co., Ltd
Grantee Code: 2AHDI Product Code: DC29
Latest application date: 2016-12-08
Device Images
FCC ID Device Details
| FCC ID | 2AHDI-DC29 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHDI |
| Product Code | DC29 |
| Applicant Business | Shenzhen TOMTOP Technology Co., Ltd 🇨🇳 |
| Equipment Class | Wireless 802.11AC Dual band USB Adapter |
| Test Firm | Centre Testing International Group Co., Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-12-08 |
| 5180-5240 MHz | Original Equipment | 2016-12-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-12-08 | PDF 1 MB |
| Users Manual | Users Manual | 2016-12-08 | PDF 1 MB |
| Internal Photo | Internal Photos | 2016-12-08 | PDF 670.2 KB |
| Internal Photos | Internal Photos | 2016-12-08 | PDF 670.2 KB |
| External Photo | External Photos | 2016-12-08 | PDF 779.6 KB |
| External Photos | External Photos | 2016-12-08 | PDF 779.6 KB |
| Label | ID Label/Location Info | 2016-12-08 | PDF 56.5 KB |

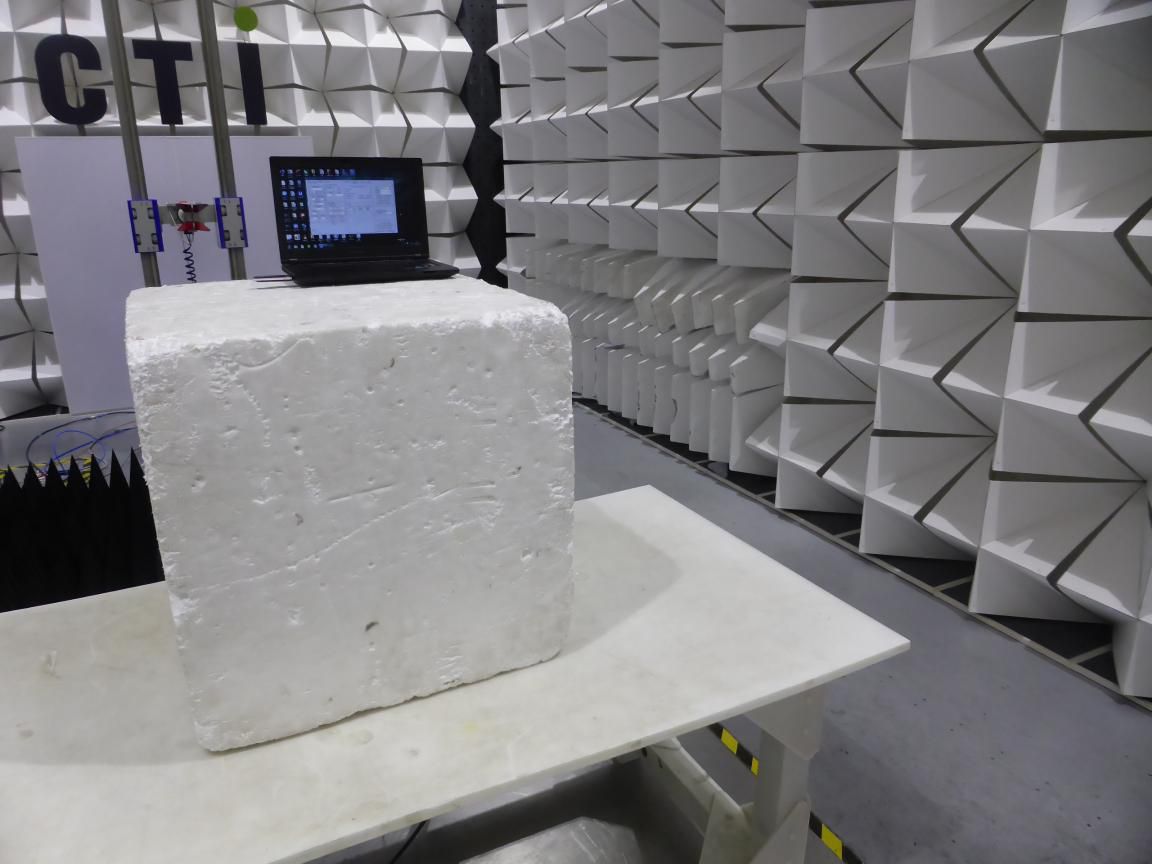

| Test Setup Photos | Test Setup Photos | 2016-12-08 | PDF 399.8 KB |
| SAR Test Report | RF Exposure Info | 2016-12-08 | PDF 5.8 MB |
| Test Report WIFI 5G 1 | Test Report | 2016-12-08 | PDF 5.5 MB |
| Test Report WIFI 5G 2 | Test Report | 2016-12-08 | PDF 4.1 MB |
| Test Report WIFI 5G 3 | Test Report | 2016-12-08 | PDF 3.6 MB |
| WIFI Report 1 | Test Report | 2016-12-08 | PDF 5.6 MB |
| WIFI Report 2 | Test Report | 2016-12-08 | PDF 3 MB |
| Confidentiality Letter | Cover Letter(s) | 2016-12-08 | PDF 101.4 KB |
| DOC Letter | Cover Letter(s) | 2016-12-08 | PDF 278.5 KB |
| POA | Cover Letter(s) | 2016-12-08 | PDF 118.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 42.7 KB | |
| Schematics Metadata only | Schematics | PDF 75.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 113.5 KB | |
| Tune-up Metadata only | Parts List/Tune Up Info | PDF 137.8 KB | |
| Tuning Procedure Metadata only | Parts List/Tune Up Info | PDF 137.8 KB |
Application Information
| Application ID | V82ETWfWUOvQXeFKNAJ3nA== |
|---|---|
| Final Action Date | 2016-12-08 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025864927 |
| Model | DC29 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Wireless 802.11AC Dual band USB Adapter |
| Responsible Party | Nicholas Wei, Product Manager, 2853789710@qq.com  , +86-755-83998006 |
| Test Firm | Sheek Luo, Centre Testing International Group Co., Ltd, sheek.luo@cti-cert.com  , 8675533683919 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output Power listed is the maximum combined conducted output power. SAR compliance has been established in the host product(s) with slot configurations as tested in this filing, and can be used in host product(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR is 0.52 W/kg. This device supports 20 and 40 MHz modes. |
