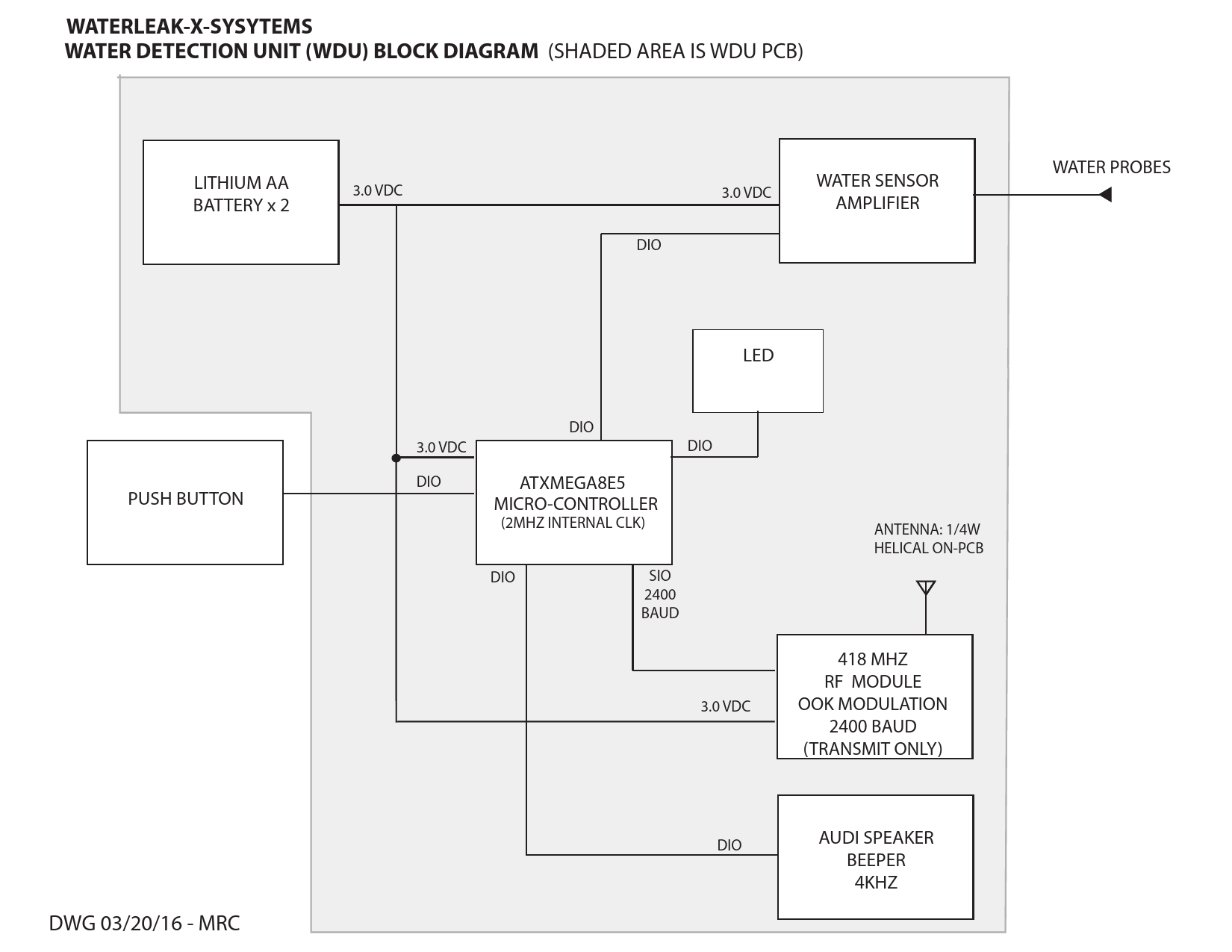

WDU003 Water Detection Unit Block Diagram - FCC ID 2AHFR-WDU003

FCC ID 2AHFR-WDU003

Block Diagram

Water Detection Unit

by waterleakXsystems,llc

Document preview loads when visible.

Document Details

FCC ID2AHFR-WDU003
Document ID3273116
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleWDU Block Diagram
ApplicantwaterleakXsystems,llc
Equipment ClassWater Detection Unit
Product CodeWDU003
Application IDvawcDQgYvf34C3EzQfL4qA==
Application PurposeOriginal Equipment
Application Date2017-01-30
Frequency Range418 MHz
FRN0025278631
Test FirmInternational Certification Services, Inc.
Certified ByDuane R Bagdons President
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2017-01-30
Available2017-01-30
Created2016-03-21
Modified2016-03-21
Pages1
File TypeAdobe Acrobat PDF
File Size277670
File SHA-256e5077ee8eb6fc19671759da2e6f6b4d842cc44fc280d8abf92ba67952c24cb13
PDF Metadata ProducerAdobe PDF library 9.90 Adobe Illustrator(R) 15.0
FCC.gov SourcesFCC.gov 3273116
