JMSDB2114491 RC Speedboat (49 MHz... - FCC ID 2AHGJJMSDB2114-49-1

FCC ID 2AHGJJMSDB2114-49-1

Schematics

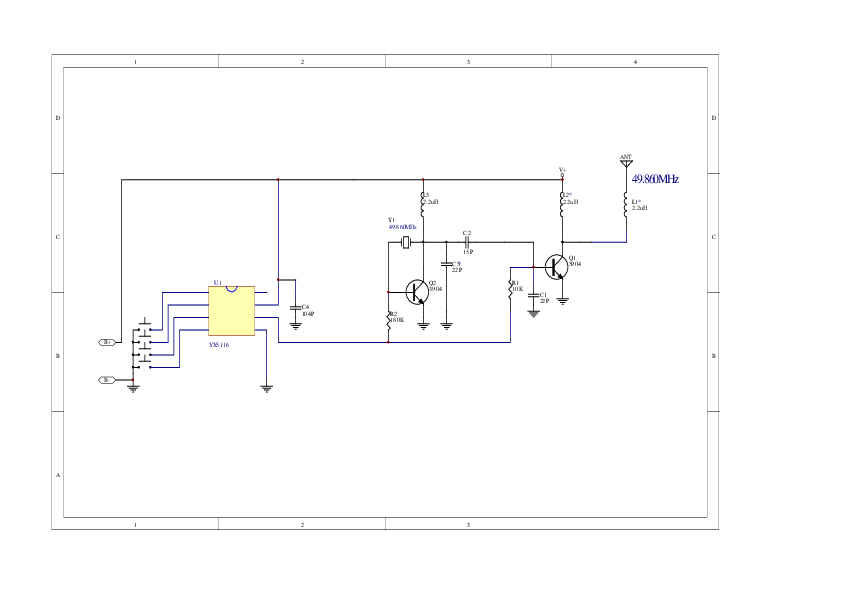

RC Speedboat (49 MHz Remote Controller)

by JM Manufacturing (HK) Ltd.

Document preview loads when visible.

Document Details

FCC ID2AHGJJMSDB2114-49-1
Document ID4607728
Document TypeSchematics
DescriptionSchematics
ApplicantJM Manufacturing (HK) Ltd.
Equipment ClassRC Speedboat (49 MHz Remote Controller)
Product CodeJMSDB2114491
Application IDTD84PY8eCEDLAb9LAgWEaw==
Application PurposeOriginal Equipment
Application Date2020-01-23
Frequency Range49.86 MHz
FRN0025292277
Test FirmBay Area Compliance Laboratories Corp. (Shenzhen)
Certified BySam Leung
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-01-23
Available2020-01-23
Created2019-12-09
Modified2020-01-23
Pages1
File TypeAdobe Acrobat PDF
File Size41991
File SHA-256c060769bcbd0e8a5b397fef2fc47ccb2f57cabfdfa878a7045c9c27e756d315f
PDF Metadata Authordreamsummit CHINA
PDF Metadata Producerdreamsummit Adobe PDF Library 9.0
FCC.gov SourcesFCC.gov 4607728
