JMSYJ21327 4 CH RC MINI HYPE Schematics - FCC ID 2AHGJJMSYJ-21327
FCC ID 2AHGJJMSYJ-21327
Schematics
4 CH RC MINI HYPE
Document preview loads when visible.
Document Details
| FCC ID | 2AHGJJMSYJ-21327 |
|---|---|
| Document ID | 3733080 |
| Document Type | Schematics |
| Description | Schematics |

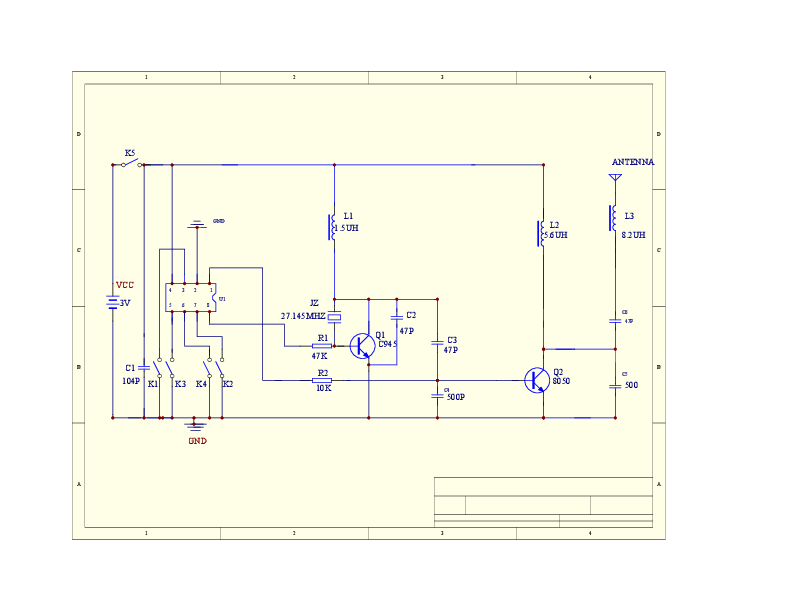

| Document Title | Protel Schematic |
| Applicant | JM Manufacturing (HK) Ltd. |
| Equipment Class | 4 CH RC MINI HYPE |
| Product Code | JMSYJ21327 |
| Application ID | FBlEYwIOmgRMN+btthX8YQ== |
| Application Purpose | Original Equipment |
| Application Date | 2018-01-30 |
| Frequency Range | 27.145 MHz |
| FRN | 0025292277 |
| Test Firm | Bay Area Compliance Laboratories Corp. (Shenzhen) |
| Certified By | Sam Leung |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2018-01-30 |
| Available | 2018-01-30 |
| Created | 2017-12-27 |
| Modified | 2018-01-29 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 45367 |
| File SHA-256 | 2e776debf8e705892e5cbed3daeb216a774eb55e489a795c962a4395bbfa9bcf |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | Administrator qvPDF v2.80 |
| FCC.gov Sources | FCC.gov 3733080 |
