FCC ID 2AHH3-5005HBS
802.11 b/g/n Wifi module
by TCL Delonghi Home Appliances (zhongshan) Co., Ltd.
Grantee Code: 2AHH3 Product Code: 5005HBS
Latest application date: 2016-03-17
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-03-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-09-13 | PDF 522.8 KB |
| Internal Photos | Internal Photos | 2016-09-13 | PDF 476.4 KB |
| External Photos | External Photos | 2016-09-13 | PDF 476.4 KB |
| Label Info | ID Label/Location Info | 2016-03-17 | PDF 13 KB |
| Label Location | ID Label/Location Info | 2016-03-17 | PDF 93 KB |
| Test Setup Photos | Test Setup Photos | 2016-09-13 | PDF 232.5 KB |

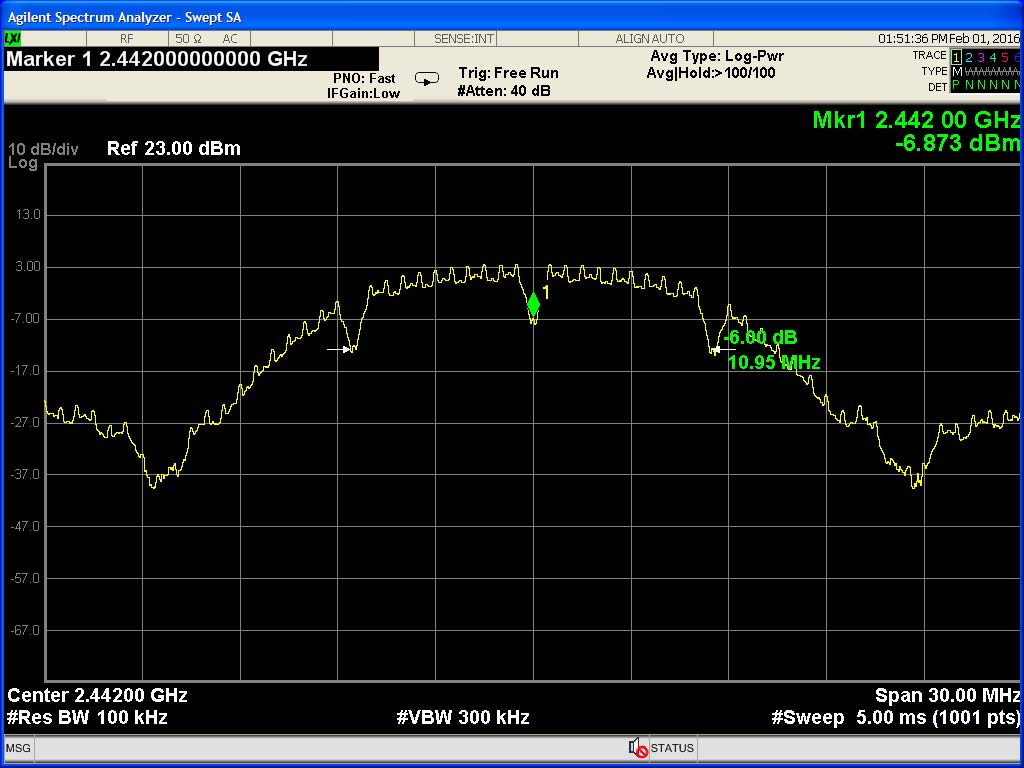

| Test Report | Test Report | 2016-03-17 | PDF 3.3 MB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-17 | PDF 200.3 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-03-17 | PDF 226.7 KB |
| POA | Cover Letter(s) | 2016-03-17 | PDF 176.7 KB |
| RF Exposure Info | RF Exposure Info | 2016-03-17 | PDF 74.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 148.7 KB | |
| Schematics Metadata only | Schematics | PDF 148.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 72 KB |
Application Information
| Application ID | vrrE2mfAAA9hxKXO32fnXw== |
|---|---|
| Final Action Date | 2016-03-17 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025321589 |
| Model | 5005HBS |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 802.11 b/g/n Wifi module |
| Responsible Party | Rober Yao, manager, roberyao@tcldl.com  , 13326901508 |
| Test Firm | Pauler Li, I-Test Laboratory, lbz@i-testlab.com  , 00862032209330 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 09/13/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is conducted. This module is restricted to installation in products for use only in mobile and fixed applications. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users and installers must be provided with device operating conditions for satisfying RF exposure compliance. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
