FCC ID 2AHIALBR100C
VHF-FM TRANSCEIVER
by Comtronix Communications Inc.
Grantee Code: 2AHIA Product Code: LBR100C
Latest application date: 2016-04-26
Device Images
FCC ID Device Details
| FCC ID | 2AHIALBR100C |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHIA |
| Product Code | LBR100C |
| Applicant Business | Comtronix Communications Inc. 🇺🇸 |
| Related Domains |  timcoengr.com |
| Equipment Class | VHF-FM TRANSCEIVER |
| Test Firm | Timco Engineering, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 39-50 MHz | Original Equipment | 2016-04-26 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-04-26 | PDF 610.9 KB |

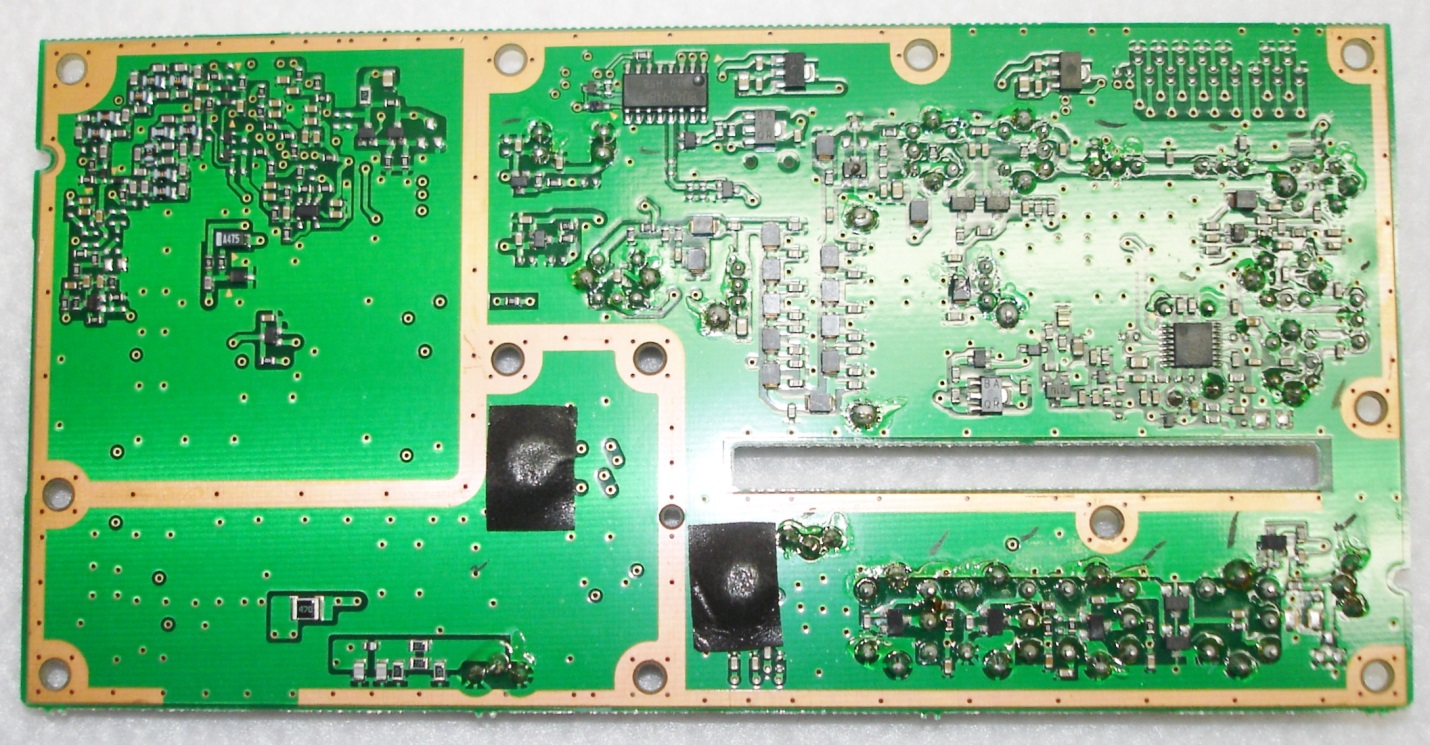

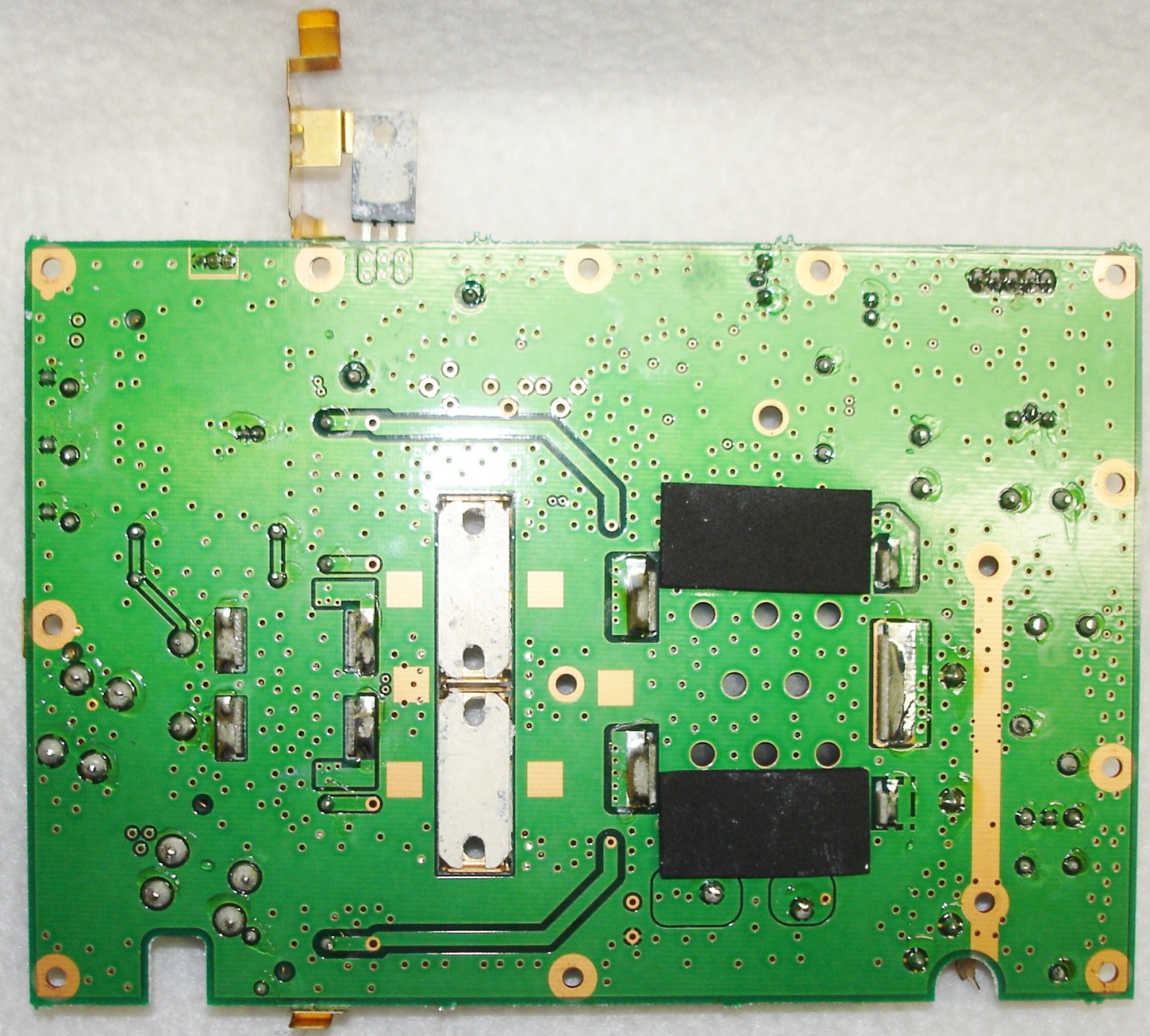

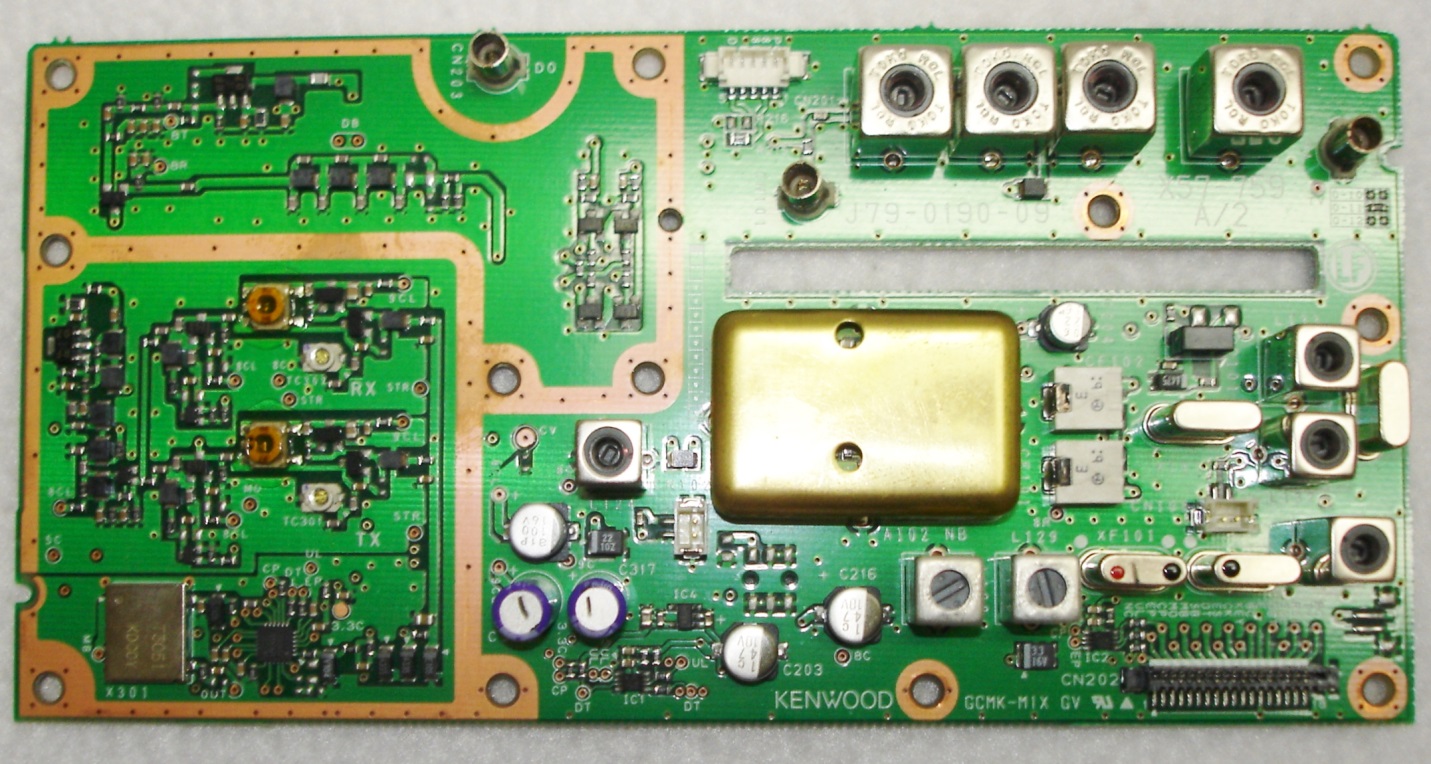

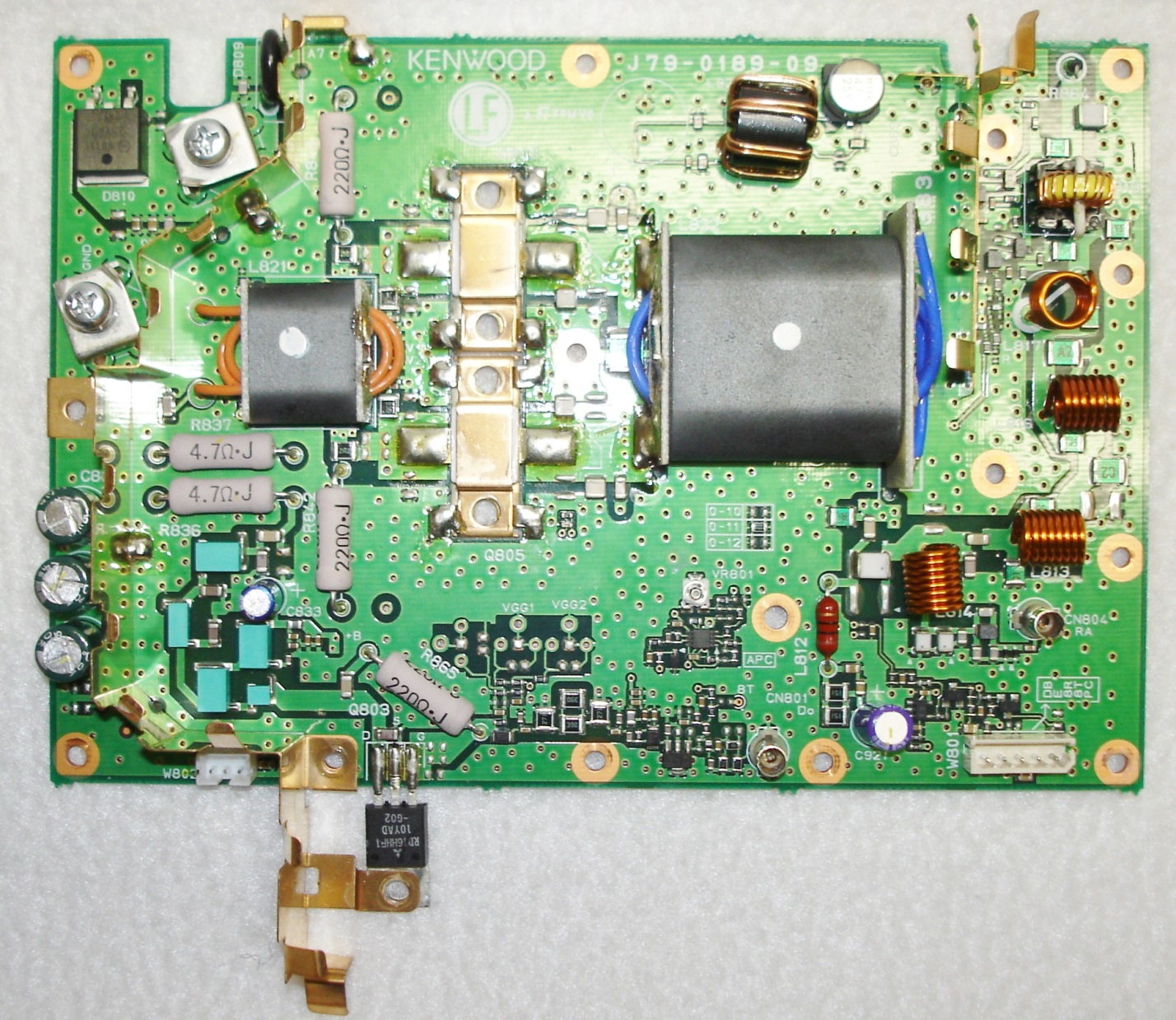

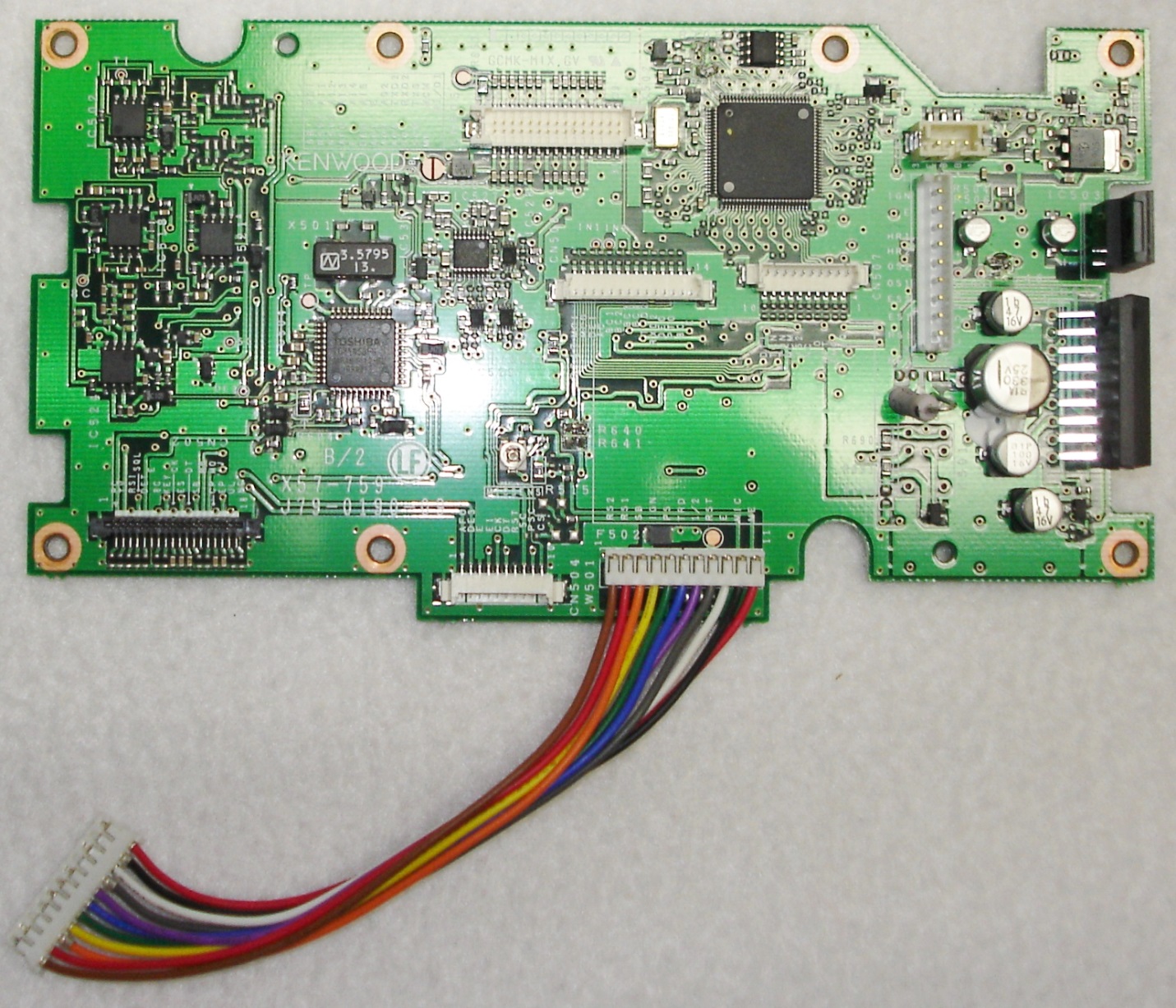

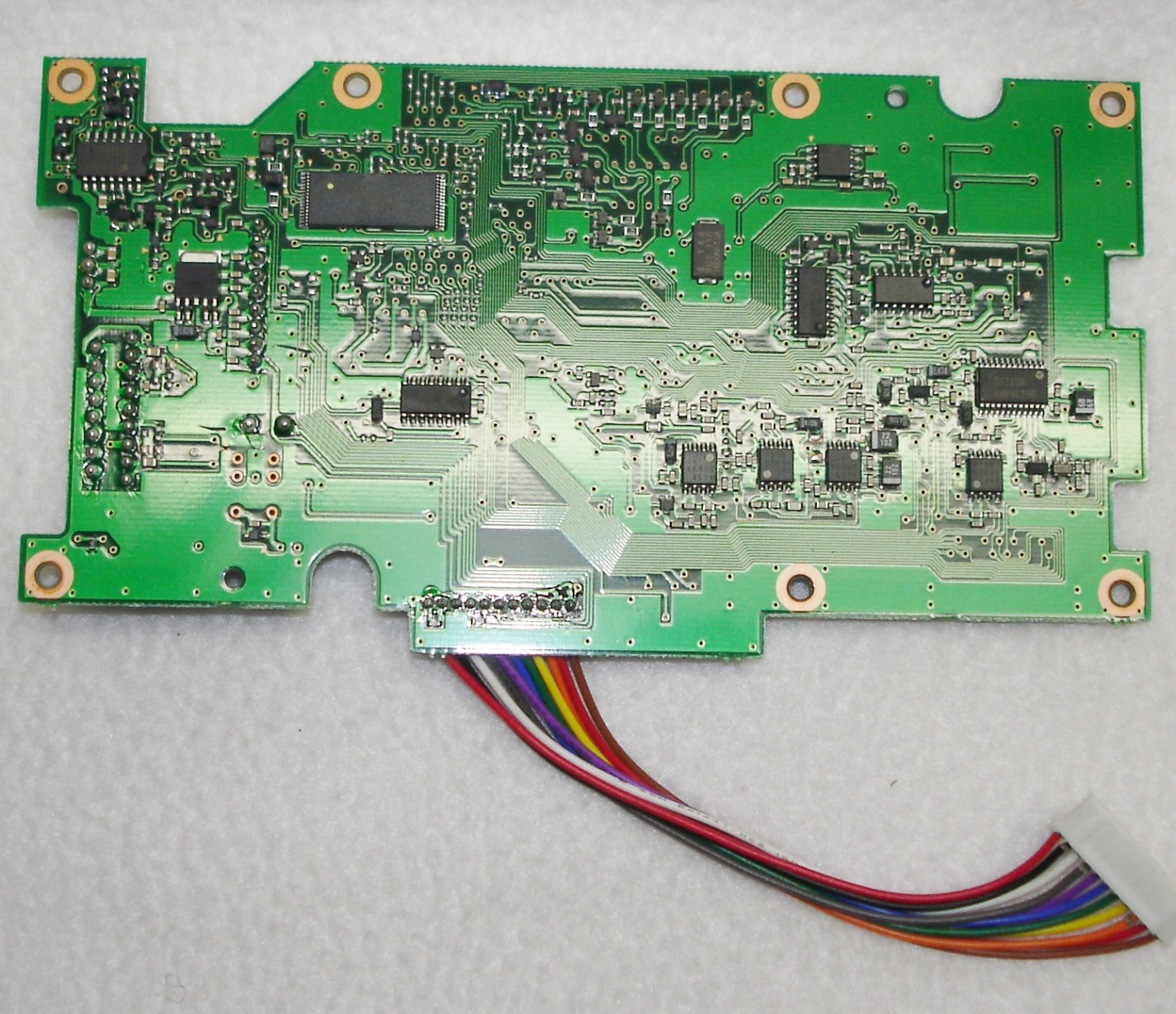

| Internal Photos | Internal Photos | 2016-04-26 | PDF 3.4 MB |

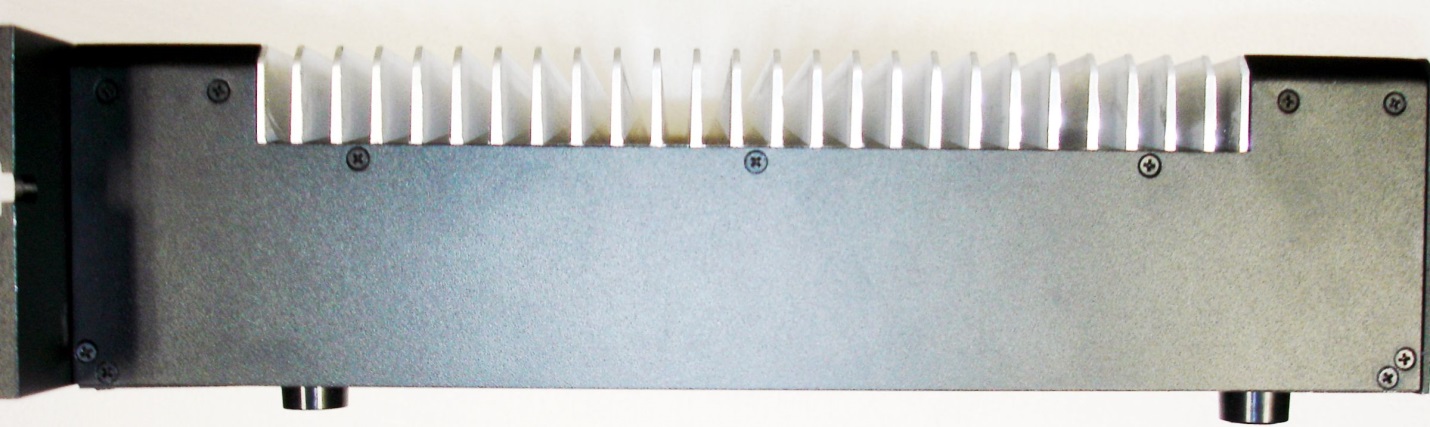

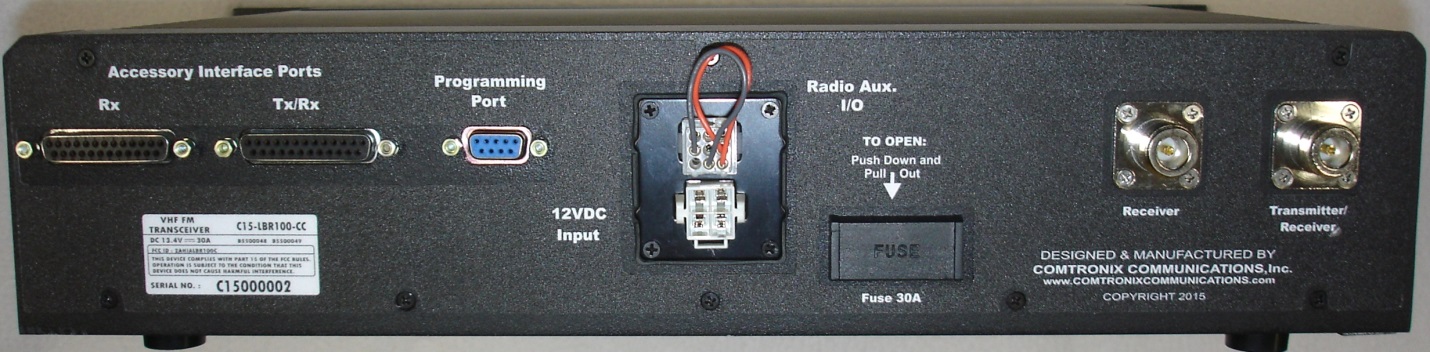

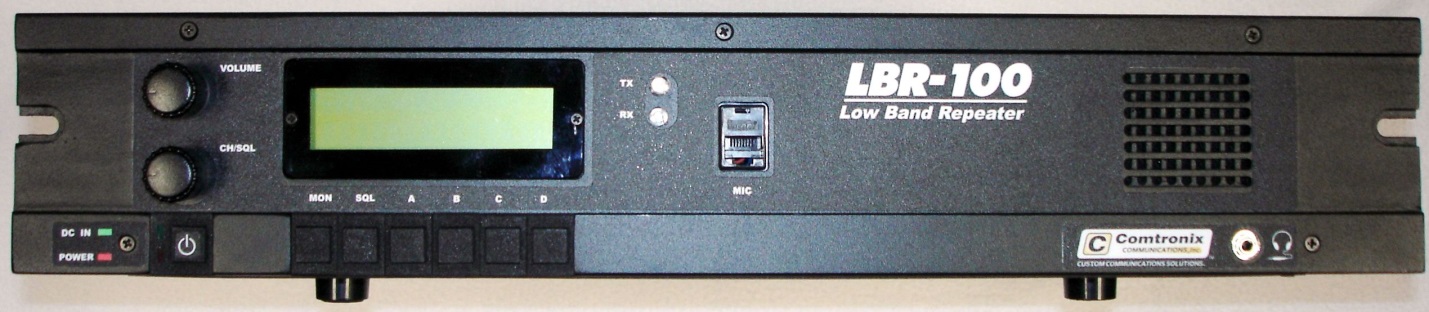

| External Photos | External Photos | 2016-04-26 | PDF 784.8 KB |

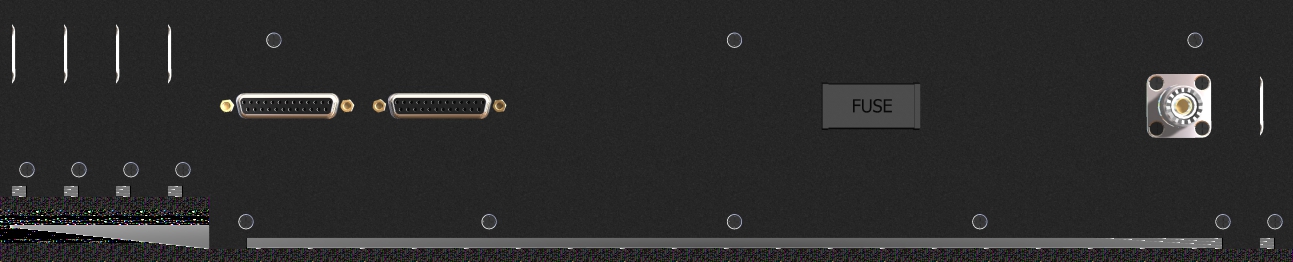

| Label sample and location | ID Label/Location Info | 2016-04-26 | PDF 852 KB |

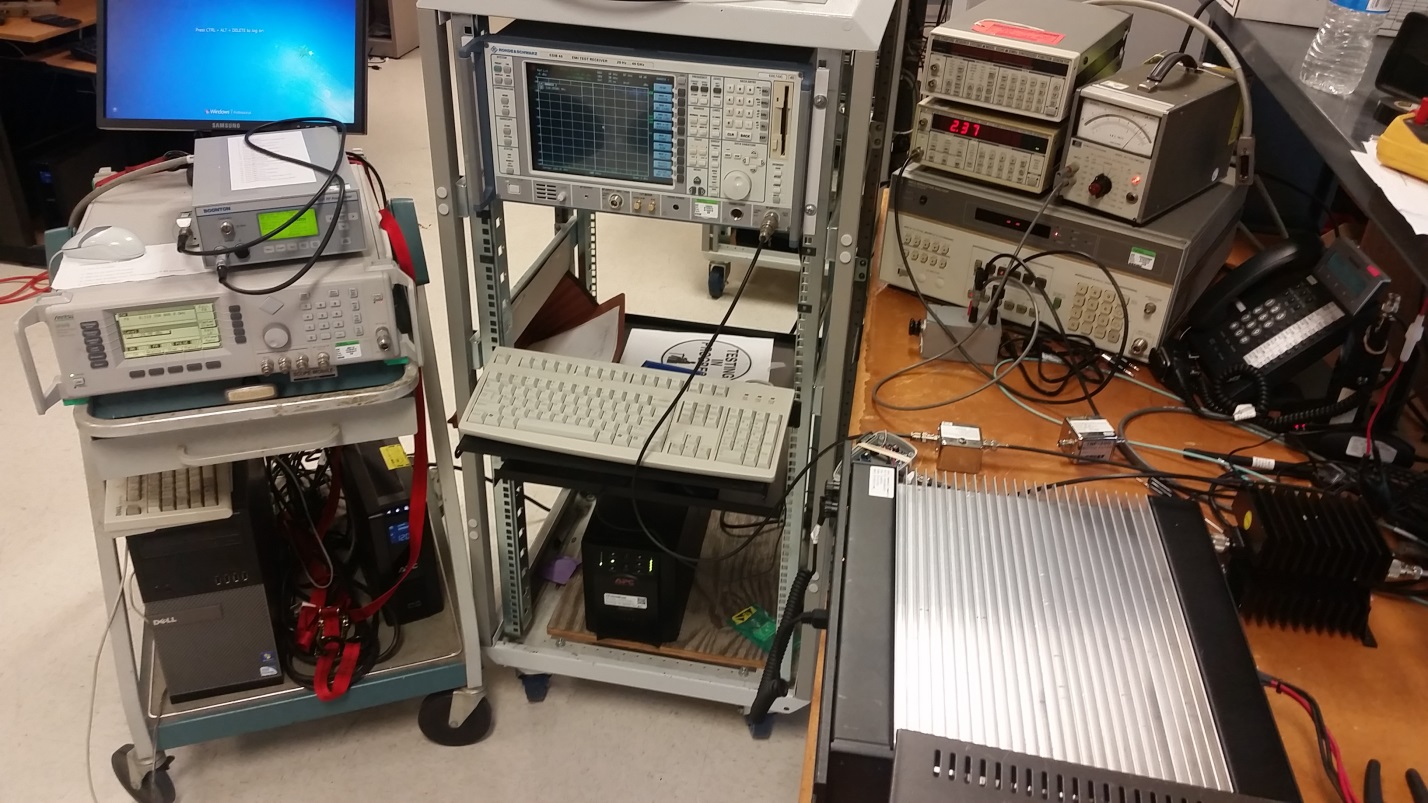

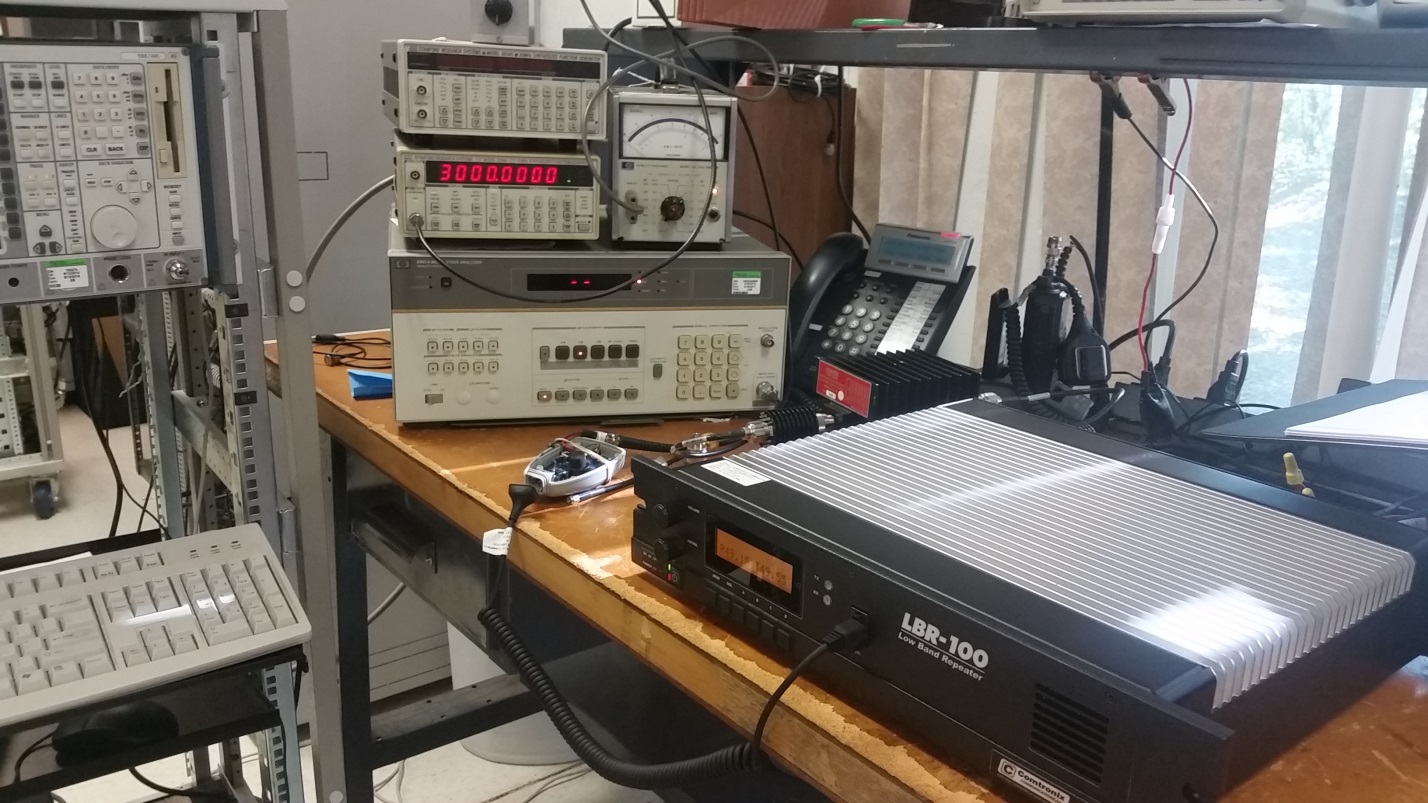

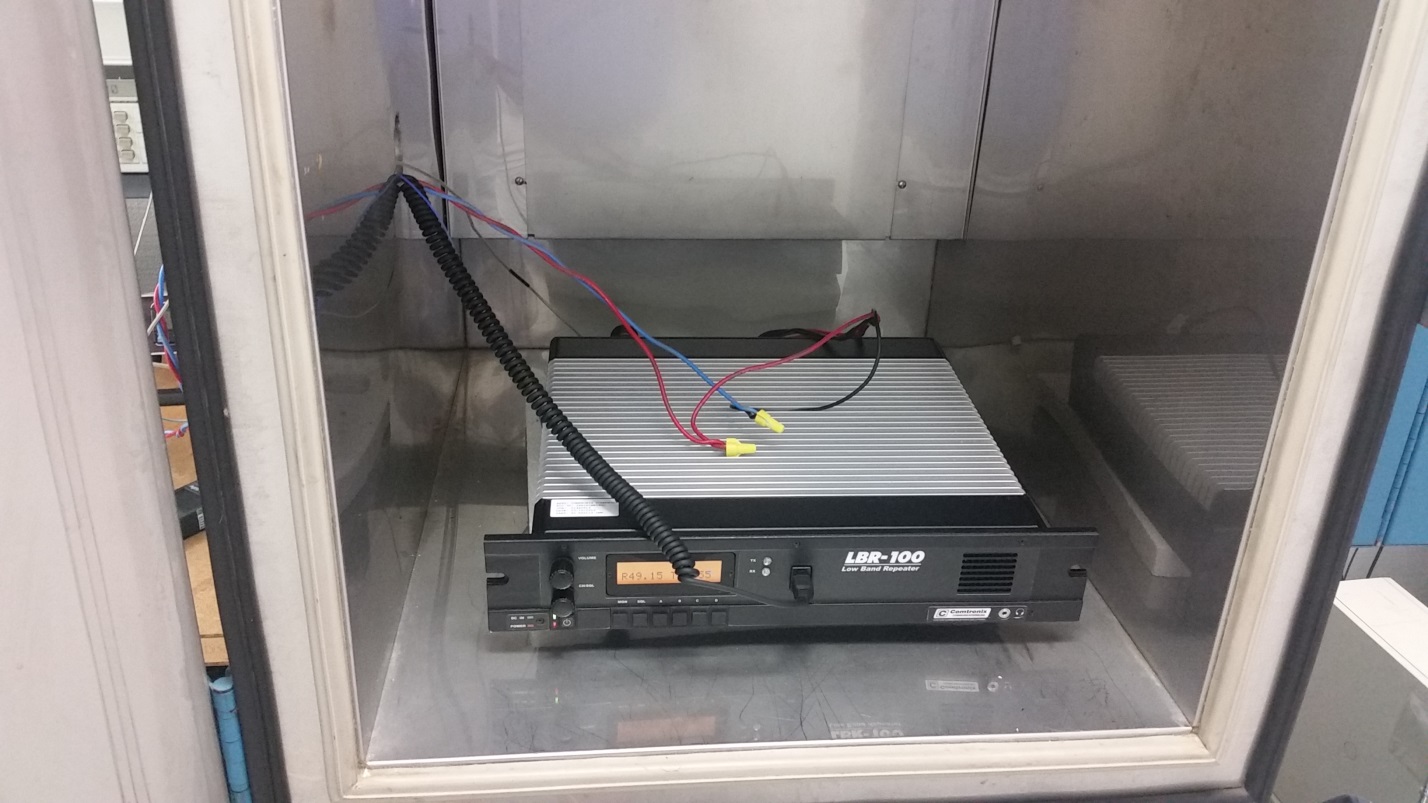

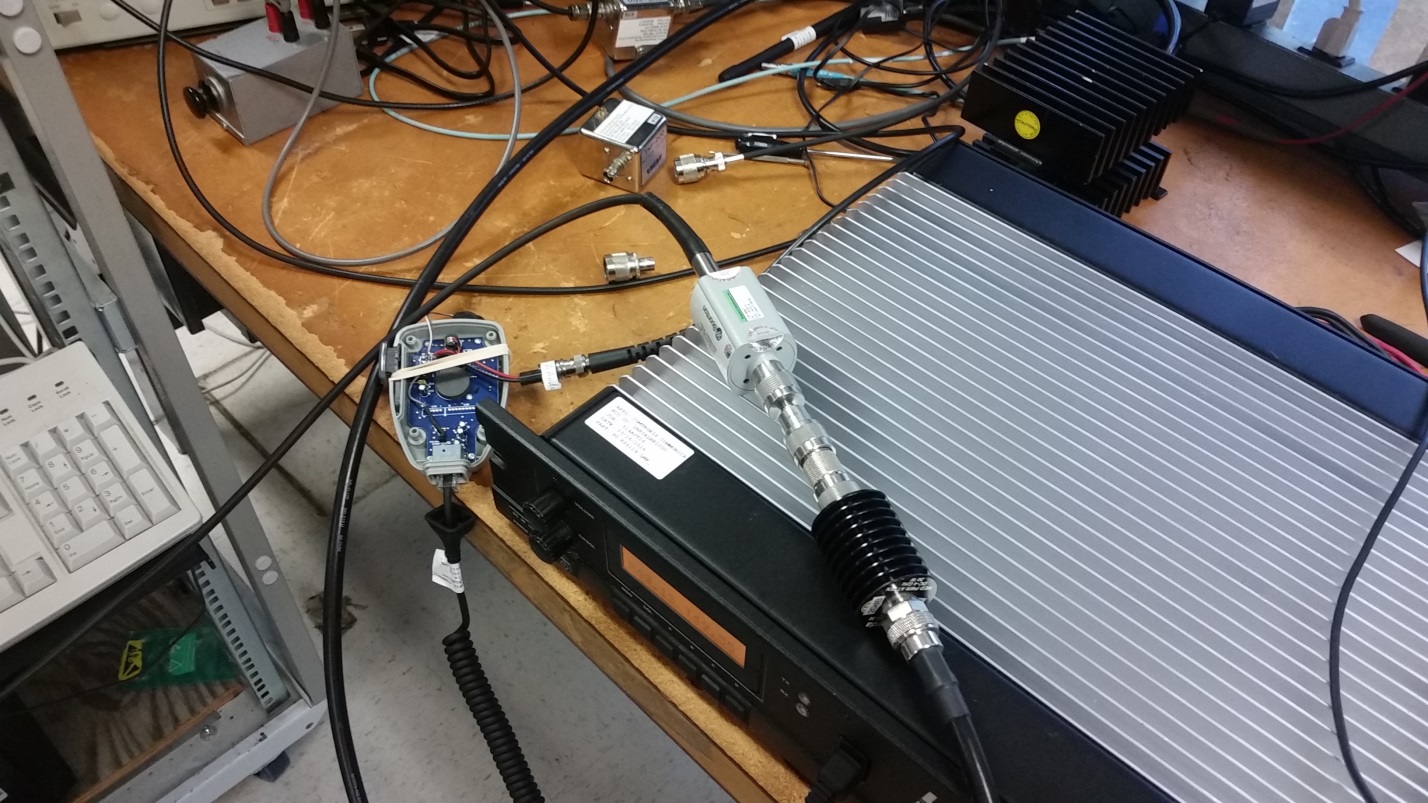

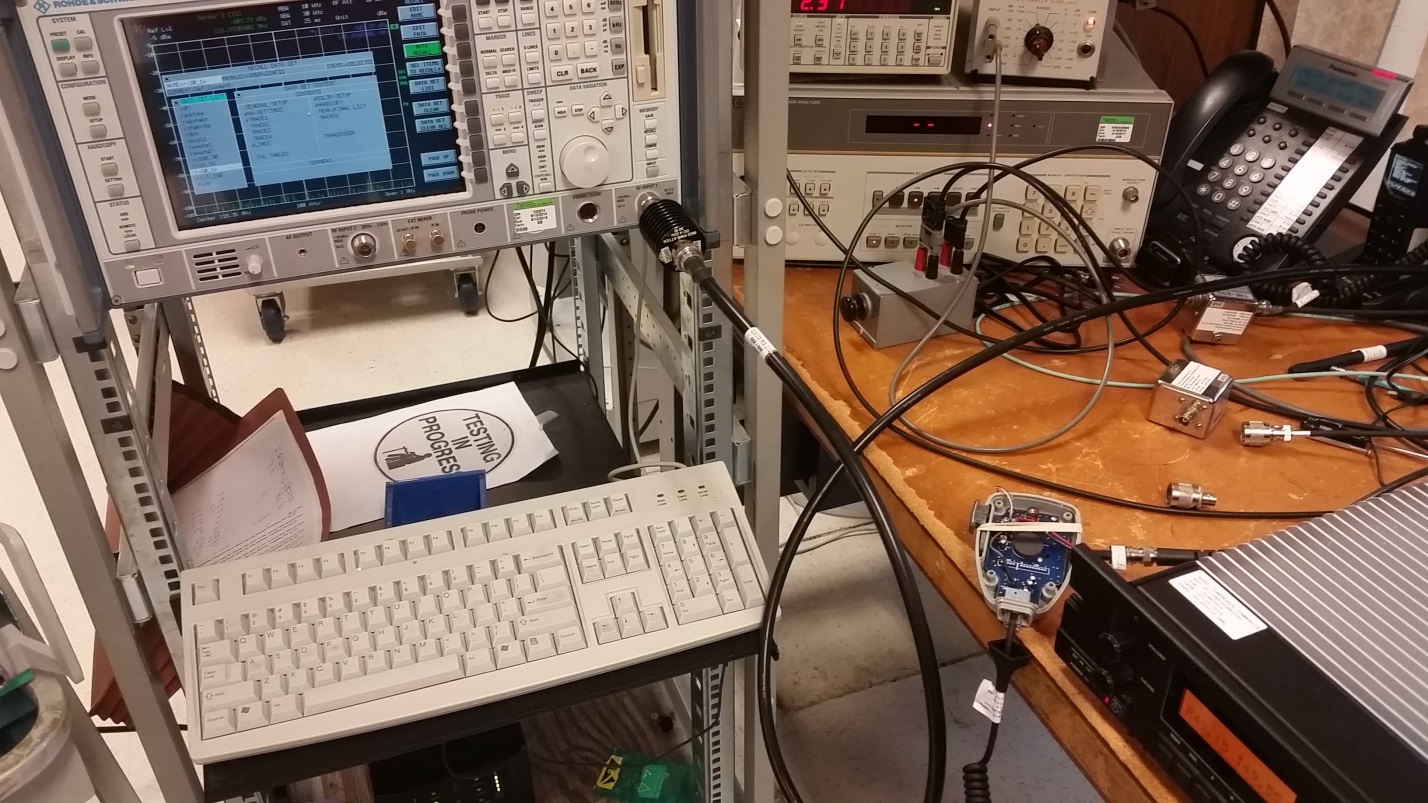

| Test set up photos | Test Setup Photos | 2016-04-26 | PDF 2 MB |
| Test Report | Test Report | 2016-04-26 | PDF 2.8 MB |
| 90.203 Tuning Attestation | Attestation Statements | 2016-04-26 | PDF 438.4 KB |
| Extended Frequency Justification Letter | Attestation Statements | 2016-04-26 | PDF 438.4 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-04-26 | PDF 377.8 KB |
| MPE Calculation | RF Exposure Info | 2016-04-26 | PDF 181.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 544.4 KB | |
| Schematics Metadata only | Schematics | PDF 1.5 MB | |
| Operational Description Metadata only | Operational Description | PDF 685.8 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 2.6 MB | |
| Tuning Procedure Metadata only | Parts List/Tune Up Info | PDF 970.6 KB |
Application Information
| Application ID | PU6ciMtoV1MxbdemcNbzxQ== |
|---|---|
| Final Action Date | 2016-04-26 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025322512 |
| Model | LBR100C |
| Frequency Range | 39-50 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | VHF-FM TRANSCEIVER |
| Responsible Party | Fred L. Parker, President, comtronix@verizon.net  , 9517193266 |
| Technical Contact | Cory Leverett, Timco Engineering, Inc., tei@timcoengr.com , 8884272424 |
| Non-Technical Contact | Sharon Hoffman, Timco Engineering, Inc., tei@timcoengr.com , 888-472-2424 |
| Test Firm | Bruno Clavier, Timco Engineering, Inc., bruno@timcoengr.com , 352-472-5500 |
| TCB Email | tei@timcoengr.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. Maximum conducted output power is 123 W according to 90.205(s). The radiated output power must not exceed 123 W EIRP. The antennas used for this transmitter must be fixed-mounted on outdoor permanent structures and installed to provide a separation distance of at least 1.56 m from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of § 1.1307(b)(3), for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| PU6ciMtoV1MxbdemcNbzxQ== | 2016-04-26 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application PU6ciMtoV1MxbdemcNbzxQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 04/26/2016 Application Dated: 04/26/2016 |
| Comtronix Communications Inc. |
| 42327 Rio Nedo Suite A |
| Temecula, CA 92590 |
| Attention: Fred Parker , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHIALBR100C |
| Name of Grantee: | Comtronix Communications Inc. |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | VHF-FM TRANSCEIVER |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| EF | 22, 90 | 39.0 - 50.0 | 110.0 | 2.3 PM | 16K0F3E |
| Power listed is conducted. Maximum conducted output power is 123 W according to 90.205(s). The radiated output power must not exceed 123 W EIRP. The antennas used for this transmitter must be fixed-mounted on outdoor permanent structures and installed to provide a separation distance of at least 1.56 m from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of § 1.1307(b)(3), for satisfying RF exposure compliance. |
| EF: | This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization. |
EAS Grant - Application PU6ciMtoV1MxbdemcNbzxQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Comtronix Communications Inc. 42327 Rio Nedo Suite A Temecula, CA 92590 United States |
Date of Grant: 04/26/2016 Application Dated: 04/26/2016 |
| Attention: Fred Parker , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHIALBR100C |
| Name of Grantee: | Comtronix Communications Inc. |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | VHF-FM TRANSCEIVER |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| EF | 22, 90 | 39.0 - 50.0 | 110.0 | 2.3 PM | 16K0F3E |
| Power listed is conducted. Maximum conducted output power is 123 W according to 90.205(s). The radiated output power must not exceed 123 W EIRP. The antennas used for this transmitter must be fixed-mounted on outdoor permanent structures and installed to provide a separation distance of at least 1.56 m from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of § 1.1307(b)(3), for satisfying RF exposure compliance. |
| EF: | This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization. |
