FCC ID 2AHIL-R1
Ant_Router
by Bitmain Technologies Inc.
Grantee Code: 2AHIL Product Code: R1
Latest application date: 2016-03-29
Device Images
FCC ID Device Details
| FCC ID | 2AHIL-R1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHIL |
| Product Code | R1 |
| Applicant Business | Bitmain Technologies Inc. 🇨🇳 |
| Related Domains |  cloudic.com |
| Equipment Class | Ant_Router |
| Test Firm | Shenzhen Anbotek Compliance Laboratory Limited |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-03-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

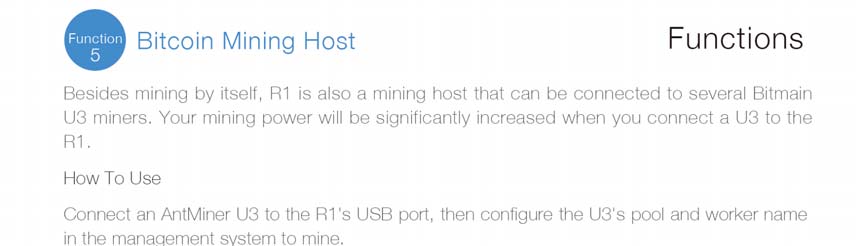

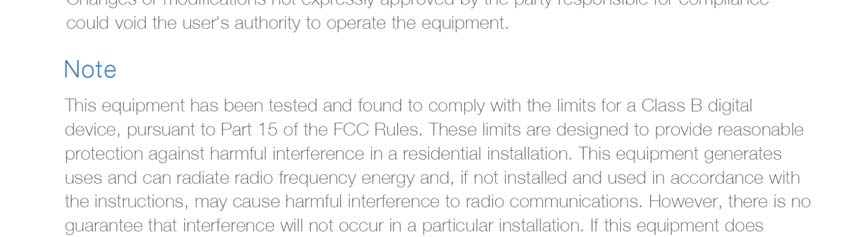

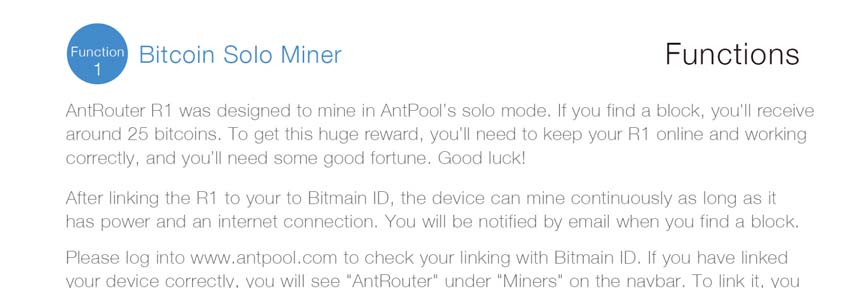

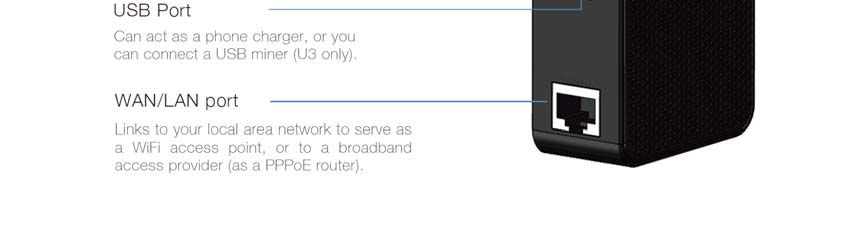

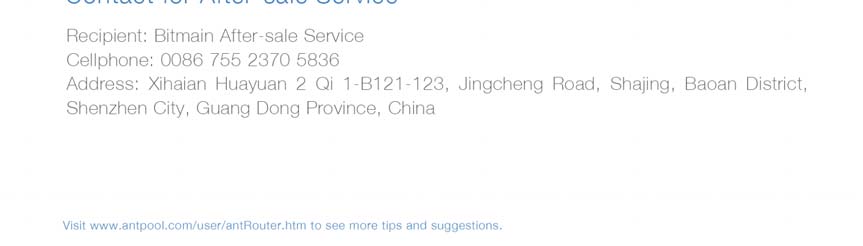

| User Manual | Users Manual | 2016-03-29 | PDF 455.7 KB |

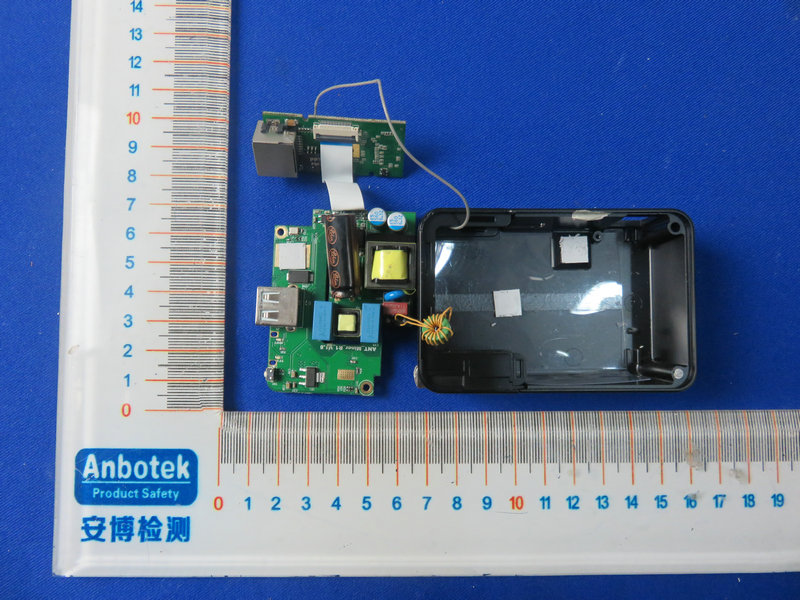

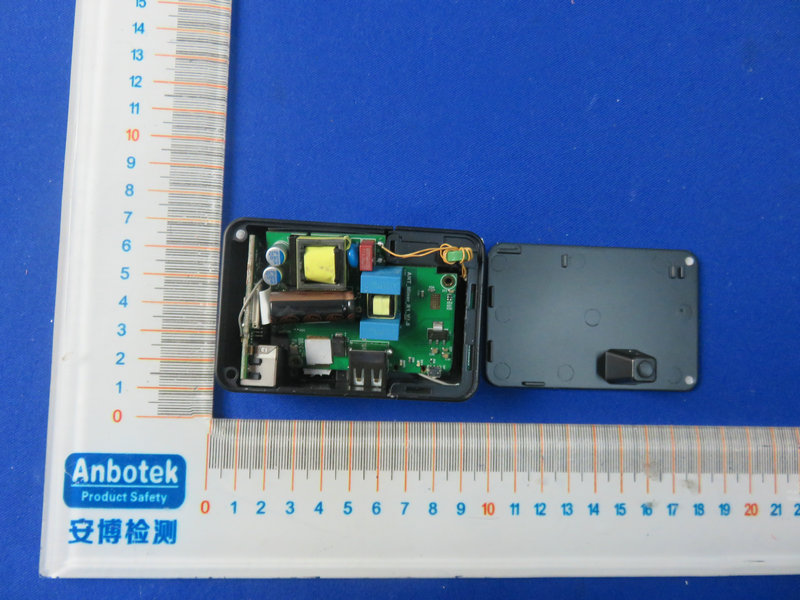

| Internal Photos | Internal Photos | 2016-03-29 | PDF 976.3 KB |

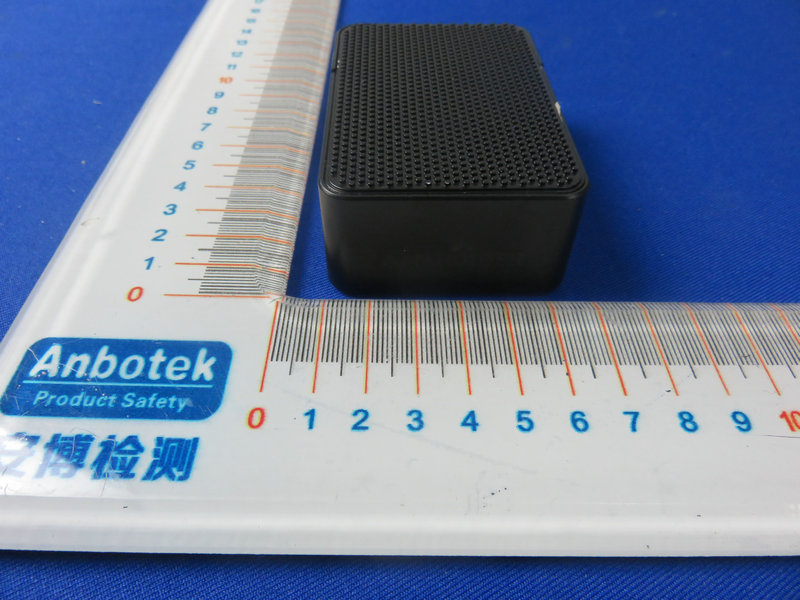

| External Photos | External Photos | 2016-03-29 | PDF 673.4 KB |
| Label | ID Label/Location Info | 2016-03-29 | PDF 9.5 KB |
| Label Location | ID Label/Location Info | 2016-03-29 | PDF 139.8 KB |
| RF Test Set-Up Photos | Test Setup Photos | 2016-03-29 | PDF 209 KB |
| RF Test Report | Test Report | 2016-03-29 | PDF 5 MB |
| Authorization Letter | Cover Letter(s) | 2016-03-29 | PDF 18.7 KB |
| DTS 12-13 Ch Declaration Letter | Cover Letter(s) | 2016-03-29 | PDF 54.7 KB |
| LTC Letter | Cover Letter(s) | 2016-03-29 | PDF 19.4 KB |
| MPE Report | RF Exposure Info | 2016-03-29 | PDF 34.9 KB |
| Block Diagram Metadata only | Block Diagram | PDF 45.6 KB | |
| Schematics Metadata only | Schematics | PDF 840.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 151.7 KB |
Application Information
| Application ID | cwnQ6ZQS31uOi0ZvgVA5zA== |
|---|---|
| Final Action Date | 2016-03-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025327297 |
| Model | R1 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Ant_Router |
| Responsible Party | Pei Min, Hardware manager, min.pei@cloudic.com , 0755-27305836 |
| Test Firm | Daniel zhu, Shenzhen Anbotek Compliance Laboratory Limited, Daniel.zhu@anbotek.com  , 86-755-26014771 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device contains 20 and 40 MHz signal bandwidth. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| cwnQ6ZQS31uOi0ZvgVA5zA== | 2016-03-29 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.0279000 | 15C |
Grants
TCB Grant - Application cwnQ6ZQS31uOi0ZvgVA5zA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 03/29/2016 Application Dated: 03/29/2016 |
| Bitmain Technologies Inc. |
| Building 6, Xing Hua Industry Park, Heiquan Road, |
| Haidian, Beijing, China |
| Attention: Pei Min , Hardware manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHIL-R1 |
| Name of Grantee: | Bitmain Technologies Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Ant_Router |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0279 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device contains 20 and 40 MHz signal bandwidth. |
EAS Grant - Application cwnQ6ZQS31uOi0ZvgVA5zA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Bitmain Technologies Inc. Building 6, Xing Hua Industry Park, Heiquan Road, Haidian, Beijing, China |
Date of Grant: 03/29/2016 Application Dated: 03/29/2016 |
| Attention: Pei Min , Hardware manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHIL-R1 |
| Name of Grantee: | Bitmain Technologies Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Ant_Router |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0279 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. Device contains 20 and 40 MHz signal bandwidth. |
| Mail To: |
