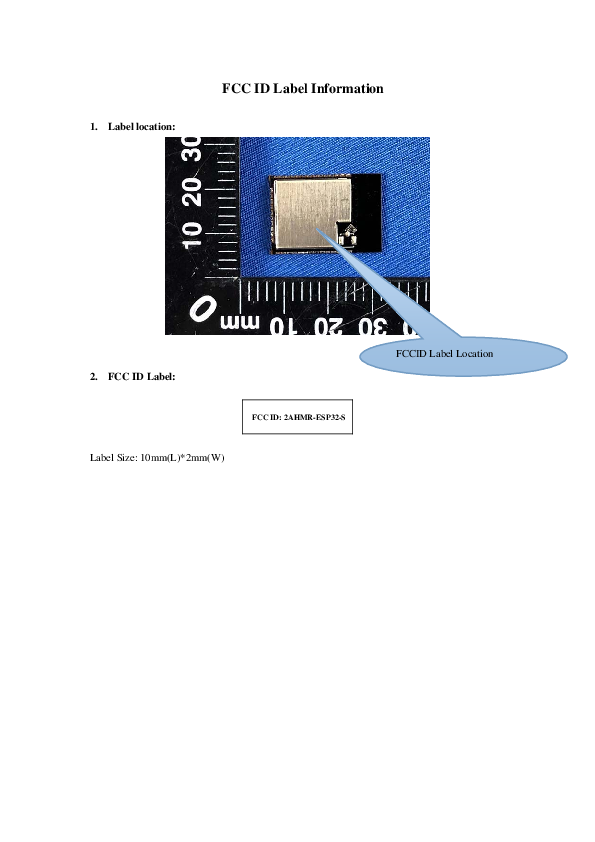

ESP32S WIFI module Label Diagram - FCC ID 2AHMR-ESP32-S

FCC ID 2AHMR-ESP32-S

Label

WIFI module

by Shenzhen Ai-Thinker Technology co., LTD

Document preview loads when visible.

Document Details

FCC ID2AHMR-ESP32-S
Document ID4169849
Document TypeID Label/Location Info
DescriptionLabel
Document TitleFCC ID Label and Location
ApplicantShenzhen Ai-Thinker Technology co., LTD
Equipment ClassWIFI module
Product CodeESP32S
Application IDvUiePYFZpScuEsyxqkW08g==
Application PurposeOriginal Equipment
Application Date2019-02-15
Frequency Range2402-2480 MHz
FRN0025374497
Test FirmShenzhen CTL Testing Technology Co., Ltd.
Certified ByMars Ma Director of Marketing
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentSingle Modular Approval
Composite DeviceYes
Composite PartNo
Submitted2019-02-15
Available2019-02-15
Created2019-02-14
Modified2019-02-14
Pages1
File TypeAdobe Acrobat PDF
File Size70746
File SHA-256e1bbaf882f382de8a931ce7694ff3ce8d44e02ce2f25f1c717eb1fcd0d9a15f0
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 9.0.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 4169849, FCC.gov 4169809
