NOWALLCH1 Dynamic & Balanced Armature &... - FCC ID 2AHSYNOWALL-CH1

FCC ID 2AHSYNOWALL-CH1

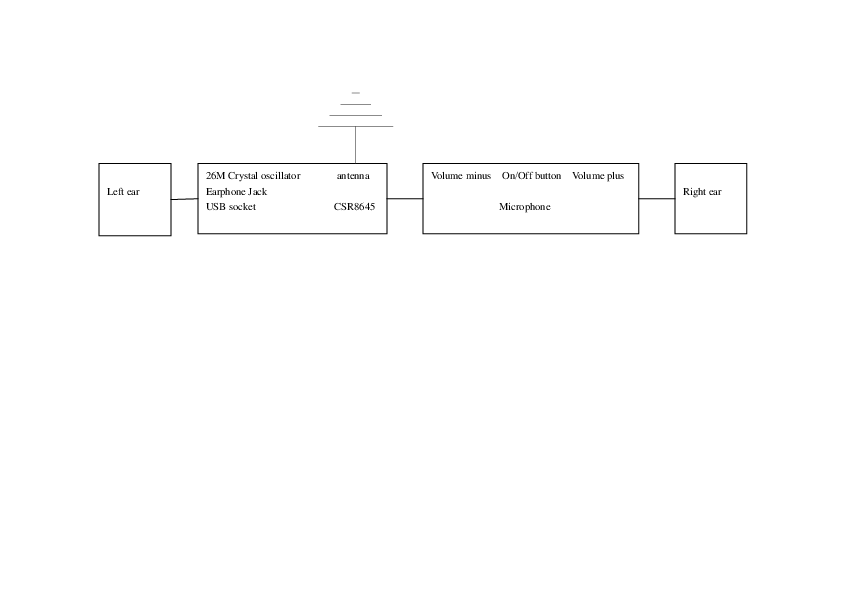

Block Diagram

Dynamic & Balanced Armature & Bluetooth Earphone

by Nowall Technology Co.,Ltd

Document preview loads when visible.

Document Details

FCC ID2AHSYNOWALL-CH1
Document ID3047299
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title方框图英文
ApplicantNowall Technology Co.,Ltd
Equipment ClassDynamic & Balanced Armature & Bluetooth Earphone
Product CodeNOWALLCH1
Application IDRMGHG/rBcLkCphUJZOlqjA==
Application PurposeOriginal Equipment
Application Date2016-06-30
Frequency Range2402-2480 MHz
FRN0025419268
Test FirmBay Area Compliance Laboratories Corp. (Dongguan)
Certified ByBing Xie
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2016-06-30
Available2016-06-30
Created2017-12-09
Modified2017-12-09
Pages1
File TypeAdobe Acrobat PDF
File Size36551
File SHA-256c0e7e5ef42eca857a441e9c0308eb58f685bc32c4fdf148507ea2a4a0db98d64
PDF Metadata Authora
PDF Metadata ProducerGPL Ghostscript 9.18 a
FCC.gov SourcesFCC.gov 3047299, FCC.gov 3047279
