FCC ID 2AHTJ-M6PLUS
DDpai
by Shenzhen vYou Technology Co., Ltd.
Grantee Code: 2AHTJ Product Code: M6PLUS
Latest application date: 2016-04-14
Device Images
FCC ID Device Details
| FCC ID | 2AHTJ-M6PLUS |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHTJ |
| Product Code | M6PLUS |
| Applicant Business | Shenzhen vYou Technology Co., Ltd. 🇨🇳 |
| Related Domains |  vyoutech.com |
| Equipment Class | DDpai |
| Test Firm | Shenzhen Anbotek Compliance Laboratory Limited |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-04-14 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

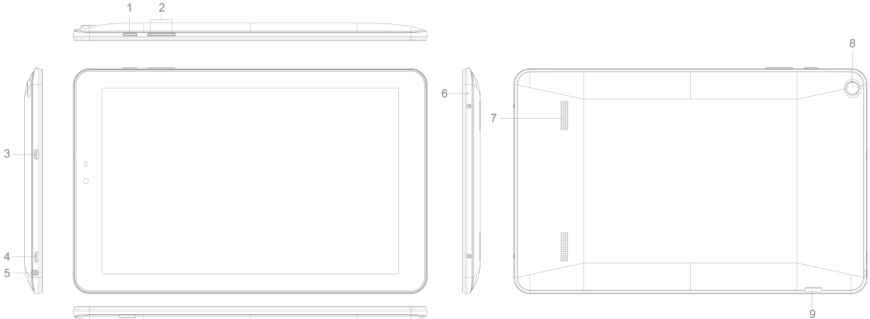

| User manual | Users Manual | 2016-04-14 | PDF 620 KB |
| Int photo | Internal Photos | 2016-04-14 | PDF 462.3 KB |
| Internal Photos | Internal Photos | 2016-04-14 | PDF 4.4 MB |

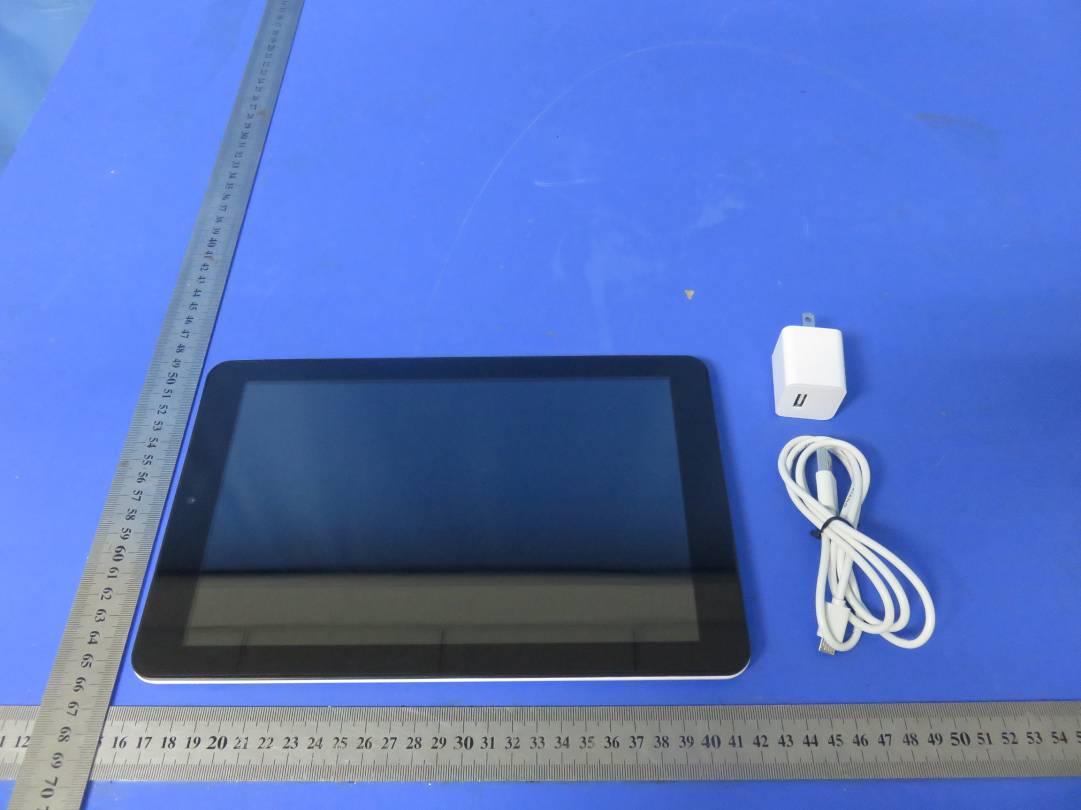

| Ext photo | External Photos | 2016-04-14 | PDF 401.9 KB |
| External Photos | External Photos | 2016-04-14 | PDF 3.6 MB |
| ID label | ID Label/Location Info | 2016-04-14 | PDF 97.7 KB |
| Label | ID Label/Location Info | 2016-04-14 | PDF 9.5 KB |
| Label Location | ID Label/Location Info | 2016-04-14 | PDF 526.6 KB |

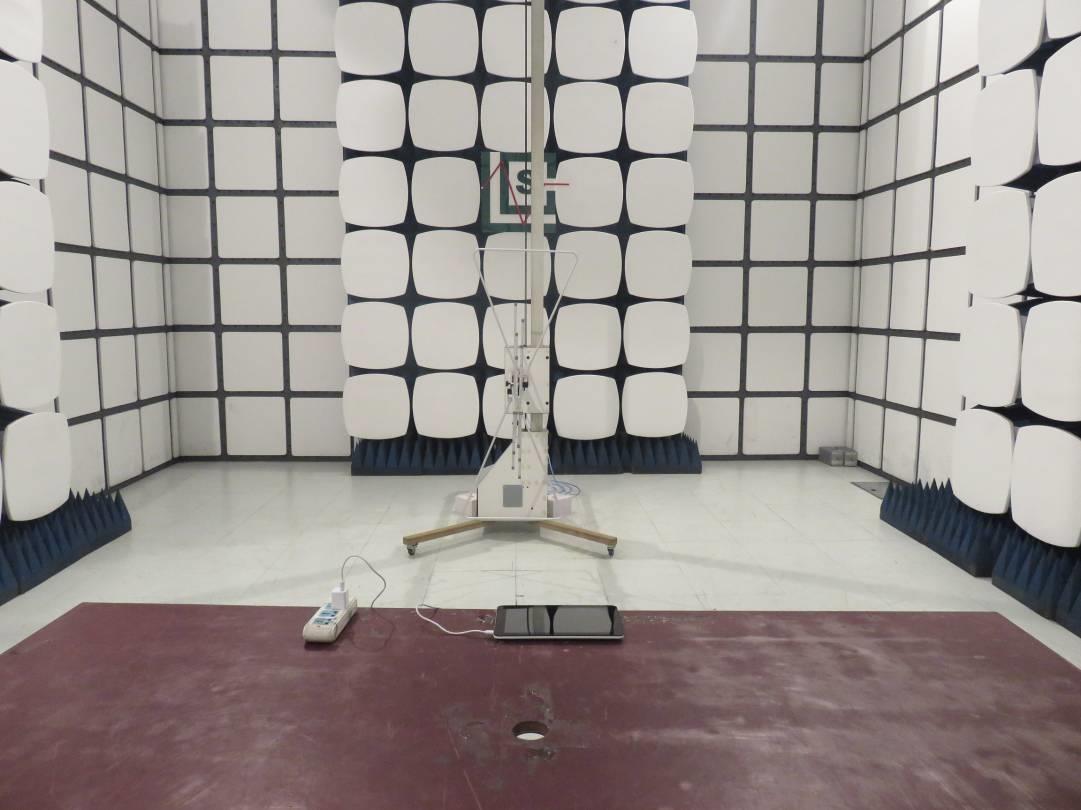

| RF Test Set-Up Photos | Test Setup Photos | 2016-04-14 | PDF 553.8 KB |
| Test setup photo | Test Setup Photos | 2016-04-14 | PDF 229.7 KB |
| RF Test Report | Test Report | 2016-04-14 | PDF 4.4 MB |
| Test report | Test Report | 2016-04-14 | PDF 3.1 MB |
| DoC Attestation Letter | Cover Letter(s) | 2016-04-14 | PDF 172.9 KB |
| Authorization Letter | Cover Letter(s) | 2016-04-14 | PDF 19.7 KB |
| Confidential request letter | Cover Letter(s) | 2016-04-14 | PDF 91 KB |
| DTS 12-13 Ch Declaration Letter | Cover Letter(s) | 2016-04-14 | PDF 55.6 KB |
| Family Models Letter | Cover Letter(s) | 2016-04-14 | PDF 13.9 KB |
| LTC Letter | Cover Letter(s) | 2016-04-14 | PDF 20.3 KB |
| POA | Cover Letter(s) | 2016-04-14 | PDF 221 KB |
| WiFi ch 12-13 letter | Cover Letter(s) | 2016-04-14 | PDF 573.2 KB |
| RF Exposure Report | RF Exposure Info | 2016-04-14 | PDF 34.8 KB |
| RF exposure | RF Exposure Info | 2016-04-14 | PDF 431.2 KB |
| Block diagram Metadata only | Block Diagram | PDF 69.4 KB | |
| SCH Metadata only | Schematics | PDF 282.1 KB | |
| Schematics Metadata only | Schematics | PDF 252.7 KB | |
| OpDes Metadata only | Operational Description | PDF 80.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 72 KB |
Application Information
| Application ID | T+Kn/1LXhGA9yeyFU12Vtg== |
|---|---|
| Final Action Date | 2016-04-14 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025427394 |
| Model | M6PLUS |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | DDpai |
| Responsible Party | Victor song, Certification Engineer, spl@vyoutech.com , 0755-26401213 |
| Test Firm | Daniel zhu, Shenzhen Anbotek Compliance Laboratory Limited, Daniel.zhu@anbotek.com  , 86-755-26014771 |
| TCB Email | TCB@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| T+Kn/1LXhGA9yeyFU12Vtg== | 2016-04-14 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2412-2462 MHz | 0.0647000 | 15C |
Grants
TCB Grant - Application T+Kn/1LXhGA9yeyFU12Vtg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 04/14/2016 Application Dated: 04/14/2016 |
| Shenzhen vYou Technology Co., Ltd. |
| Floor 12,Yihua Finance Building,Nanshan Software |
| Industry Park,Xuefu Rd.,Nanshan District, |
| Shenzhen, China |
| Attention: Victor song , Certification Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHTJ-M6PLUS |
| Name of Grantee: | Shenzhen vYou Technology Co., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | DDpai |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0647 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
EAS Grant - Application T+Kn/1LXhGA9yeyFU12Vtg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Shenzhen vYou Technology Co., Ltd. Floor 12,Yihua Finance Building,Nanshan Software Industry Park,Xuefu Rd.,Nanshan District, Shenzhen, China |
Date of Grant: 04/14/2016 Application Dated: 04/14/2016 |
| Attention: Victor song , Certification Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHTJ-M6PLUS |
| Name of Grantee: | Shenzhen vYou Technology Co., Ltd. |
| Equipment Class: | Digital Transmission System |
| Notes: | DDpai |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.0647 |
| Power listed is the maximum conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
| Mail To: |
