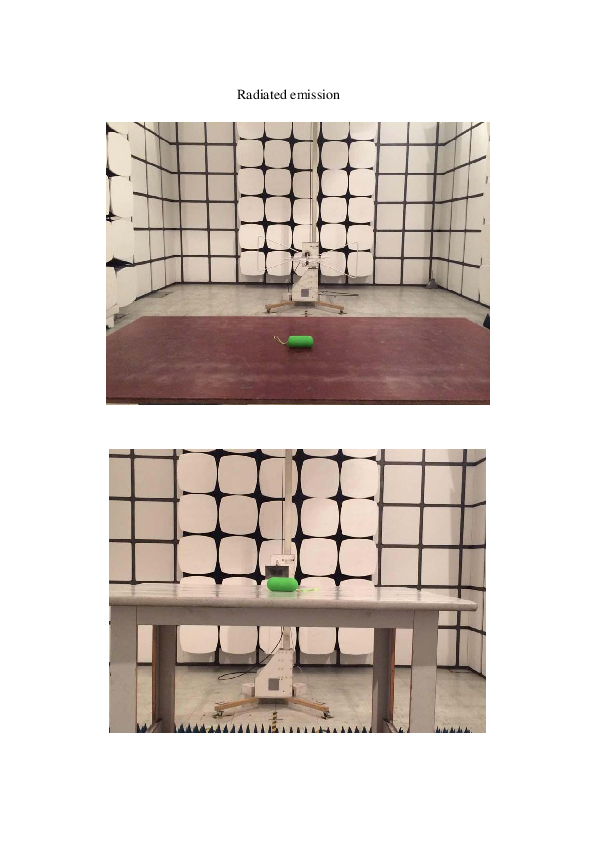

NV05020 Bluetooth speaker Test Setup Photos - FCC ID 2AHU7NV-05020

FCC ID 2AHU7NV-05020

Test setup

Bluetooth speaker

by MAX SALES GROUP

Document preview loads when visible.

Document Details

FCC ID2AHU7NV-05020
Document ID3083044
Document TypeTest Setup Photos
DescriptionTest setup
Document TitleSetup photo V1.0
ApplicantMAX SALES GROUP
Equipment ClassBluetooth speaker
Product CodeNV05020
Application IDgD+CaQec8rS1GmVAs93abA==
Application PurposeOriginal Equipment
Application Date2016-08-01
Frequency Range2402-2480 MHz
FRN0025445792
Test FirmShenzhen CTB Testing Technology Co., Ltd.
Certified BySimon Lee Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2016-08-01
Available2016-08-01
Created2016-07-30
Modified2016-07-30
Pages2
File TypeAdobe Acrobat PDF
File Size163752
File SHA-256800e221bb41ed8e8369e46bf45e2c4f882d8a84afeb1a256b8a745417309d2f0
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 3083044
