FCC ID 2AHZH-IGM9603
PCBA, VMC GPS+Iridium Module
by Liquid Robotics Inc.
Grantee Code: 2AHZH Product Code: IGM9603
Latest application date: 2016-07-09
Device Images
FCC ID Device Details
| FCC ID | 2AHZH-IGM9603 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AHZH |
| Product Code | IGM9603 |
| Applicant Business | Liquid Robotics Inc. 🇺🇸 |
| Related Domains |  liquid-robotics.com  intertek.com |
| Equipment Class | PCBA, VMC GPS+Iridium Module |
| Test Firm | IntertekTesting Services NA Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 1616-1626 MHz | Original Equipment | 2016-07-09 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-07-09 | PDF 254.4 KB |
| Internal photos | Internal Photos | 2016-07-09 | PDF 927.5 KB |
| External photos | External Photos | 2016-07-09 | PDF 581.2 KB |
| Label and location info | ID Label/Location Info | 2016-07-09 | PDF 354.6 KB |
| Antenna specification | Operational Description | 2016-07-09 | PDF 471.1 KB |

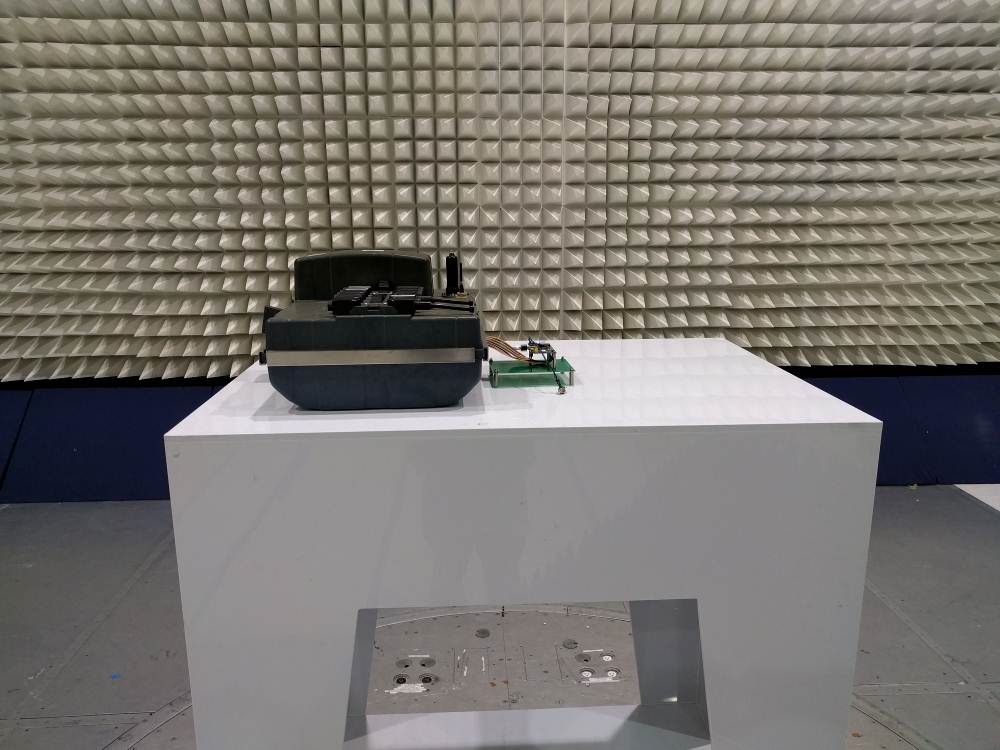

| Test setup photos | Test Setup Photos | 2016-07-09 | PDF 379.4 KB |
| Test report | Test Report | 2016-07-09 | PDF 1.1 MB |
| Authorization letter | Cover Letter(s) | 2016-07-09 | PDF 167.2 KB |
| Modular Approval Justification | Cover Letter(s) | 2016-07-09 | PDF 369.6 KB |
| Module Integration Instruction | Cover Letter(s) | 2016-07-09 | PDF 31.5 KB |
| Request for confidentiality | Cover Letter(s) | 2016-07-09 | PDF 159.5 KB |
| RF Exposure evaluation | RF Exposure Info | 2016-07-09 | PDF 19 KB |
| Block diagram Metadata only | Block Diagram | PDF 83.2 KB | |
| Schematics Metadata only | Schematics | PDF 385.8 KB | |
| Operational description Metadata only | Operational Description | PDF 193.8 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 116.6 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 43.8 KB |
Application Information
| Application ID | Lv15ynQq+To2qBBE1up5qg== |
|---|---|
| Final Action Date | 2016-07-09 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0025345497 |
| Model | IGM9603 |
| Frequency Range | 1616-1626 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | PCBA, VMC GPS+Iridium Module |
| Responsible Party | John Brennan, Vice President, Platform Engineering, john.brennan@liquid-robotics.com , 408-636-4273 |
| Agent | Krishna Krishna Krishna, Intertek Testing Services, krishna.vemuri@intertek.com , 6504632900 |
| Technical Contact | Somphone Sayavong, Liquid Robotics Inc., somphone.sayavong@liquid-robotics.com , (650) 218-6210 |
| Non-Technical Contact | Krishna Vemuri, Intertek, krishna.vemuri@intertek.com , 6504632900 |
| Test Firm | Charles Parker, IntertekTesting Services NA Inc., charles.parker@intertek.com , 650-463-2900 |
| TCB Email | TCB_Admin@intertek.com |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Output power listed is peak EIRP with maximum antenna gain of 5 dBi allowed. This module is approved in mobile/fixed configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Lv15ynQq+To2qBBE1up5qg== | 2016-07-09 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application Lv15ynQq+To2qBBE1up5qg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 07/09/2016 Application Dated: 07/09/2016 |
| Liquid Robotics Inc. |
| 1329 Moffett Park Drive |
| Sunnyvale, CA 94089 |
| Attention: John Brennan , Vice President, Platform Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHZH-IGM9603 |
| Name of Grantee: | Liquid Robotics Inc. |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | PCBA, VMC GPS+Iridium Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 25 | 1616.0 - 1626.0 | 3.42 | 4.7 PM | 40K6Q7D |
| Single Modular Approval. Output power listed is peak EIRP with maximum antenna gain of 5 dBi allowed. This module is approved in mobile/fixed configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application Lv15ynQq+To2qBBE1up5qg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Liquid Robotics Inc. 1329 Moffett Park Drive Sunnyvale, CA 94089 United States |
Date of Grant: 07/09/2016 Application Dated: 07/09/2016 |
| Attention: John Brennan , Vice President, Platform Engineering |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AHZH-IGM9603 |
| Name of Grantee: | Liquid Robotics Inc. |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | PCBA, VMC GPS+Iridium Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 25 | 1616.0 - 1626.0 | 3.42 | 4.7 PM | 40K6Q7D |
| Single Modular Approval. Output power listed is peak EIRP with maximum antenna gain of 5 dBi allowed. This module is approved in mobile/fixed configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
