FCC ID 2AI2U100WMAC
802.11ac Dual Band Module
by Viptela LLC. Cisco Sytems
Grantee Code: 2AI2U Product Code: 100WMAC
Latest application date: 2016-12-13
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-12-13 |
| 2412-2462 MHz | Class II permissive change or modification of presently authorized equipment | 2016-12-13 |
| 2412-2462 MHz | Change in identification of presently authorized equipment. Original FCC ID: TK4WLE900VX Grant Date: 06/10/2015 | 2016-11-30 |
| 5180-5240 MHz | Change in identification of presently authorized equipment. Original FCC ID: TK4WLE900VX Grant Date: 06/10/2015 | 2016-11-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

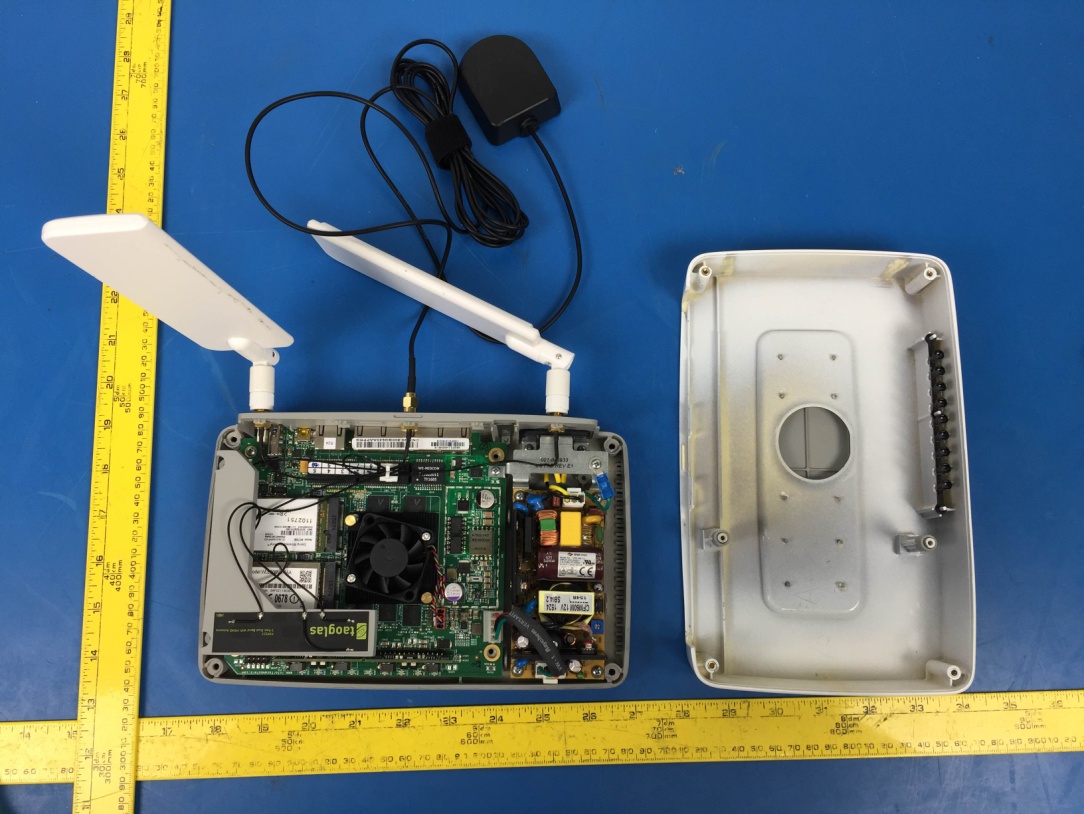

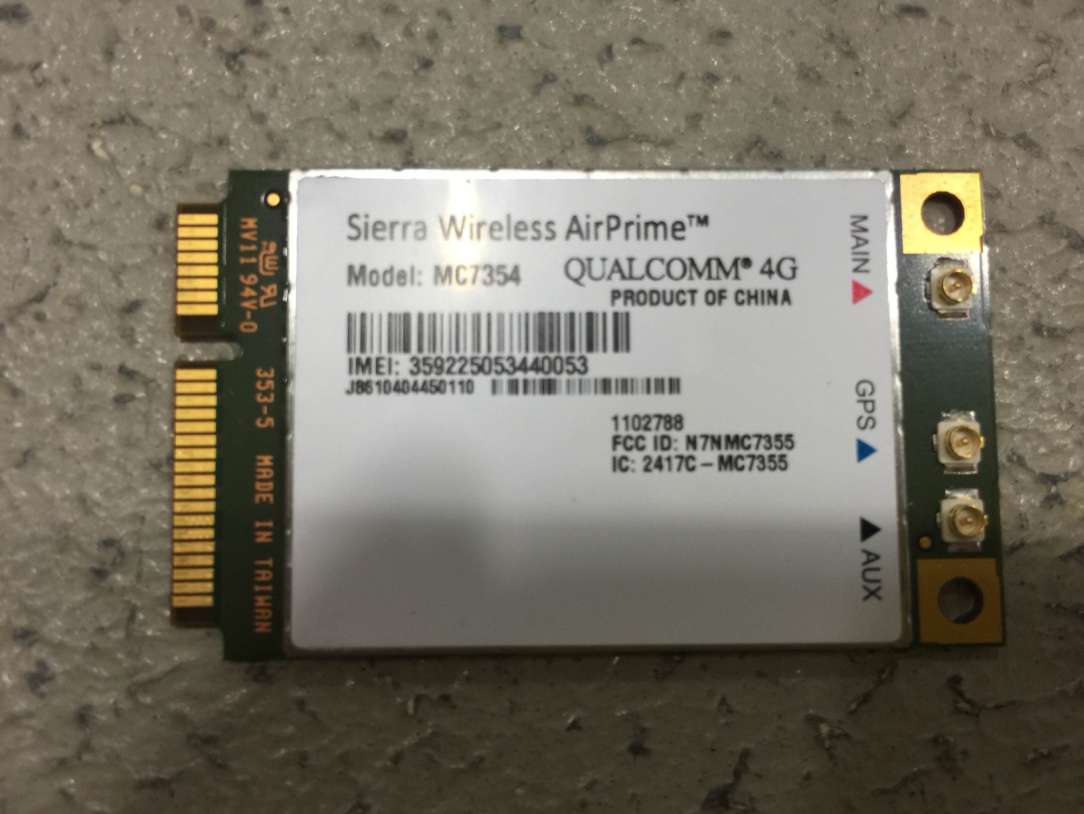

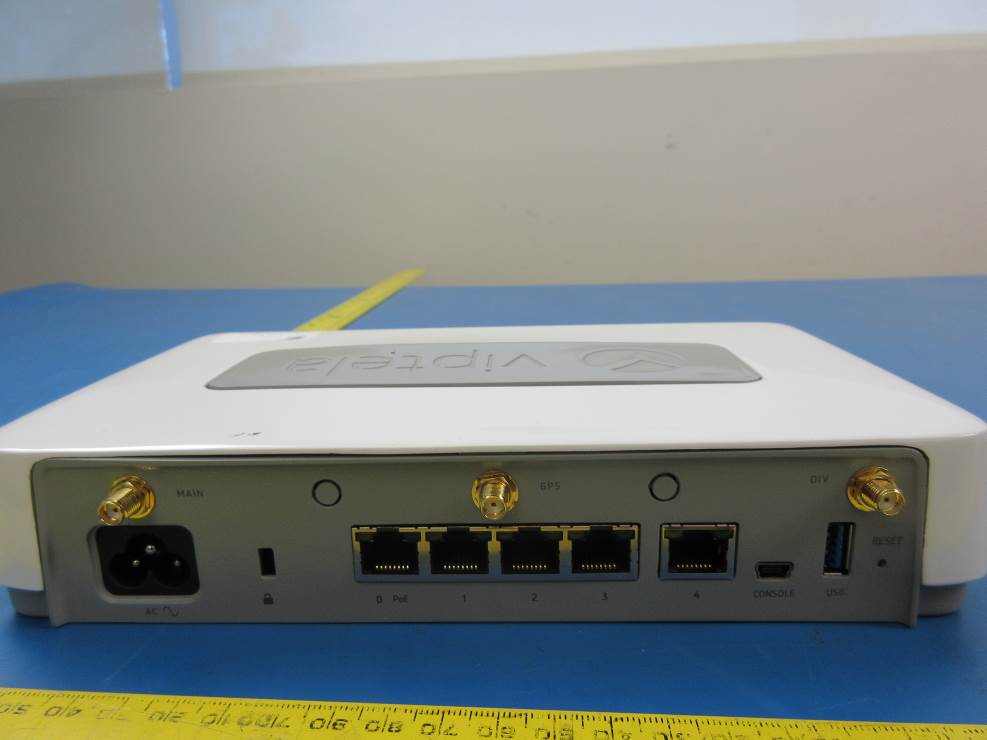

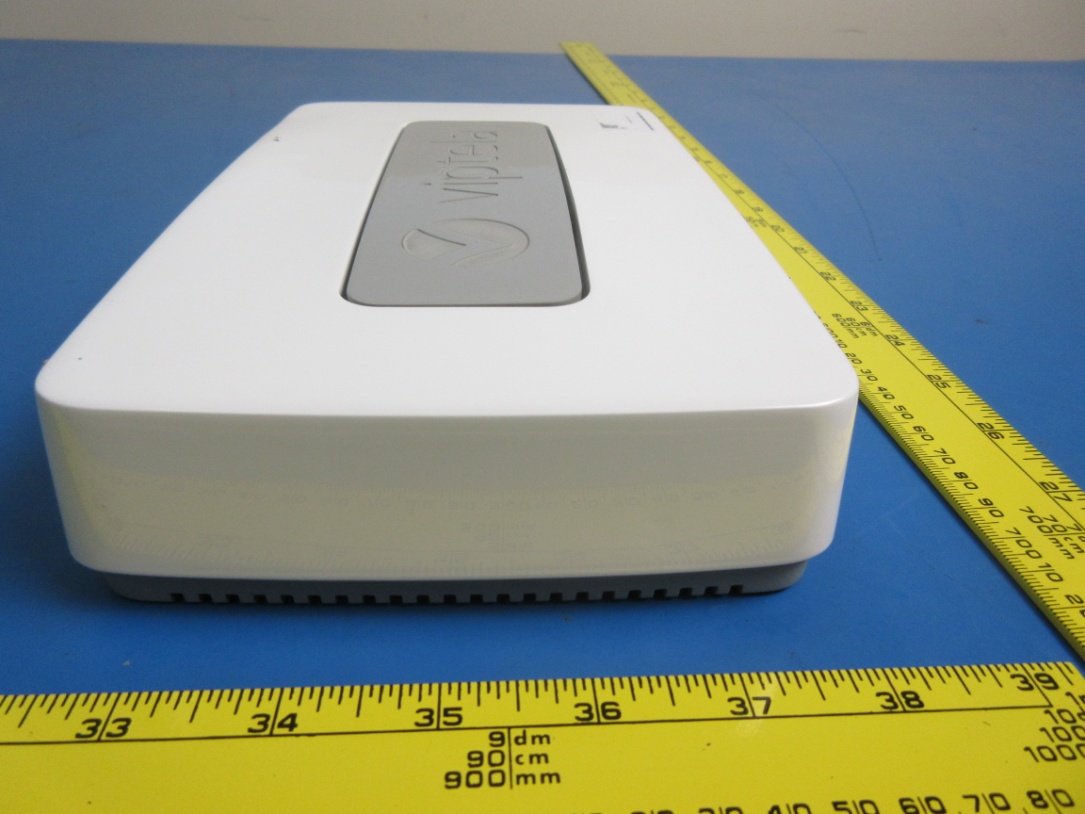

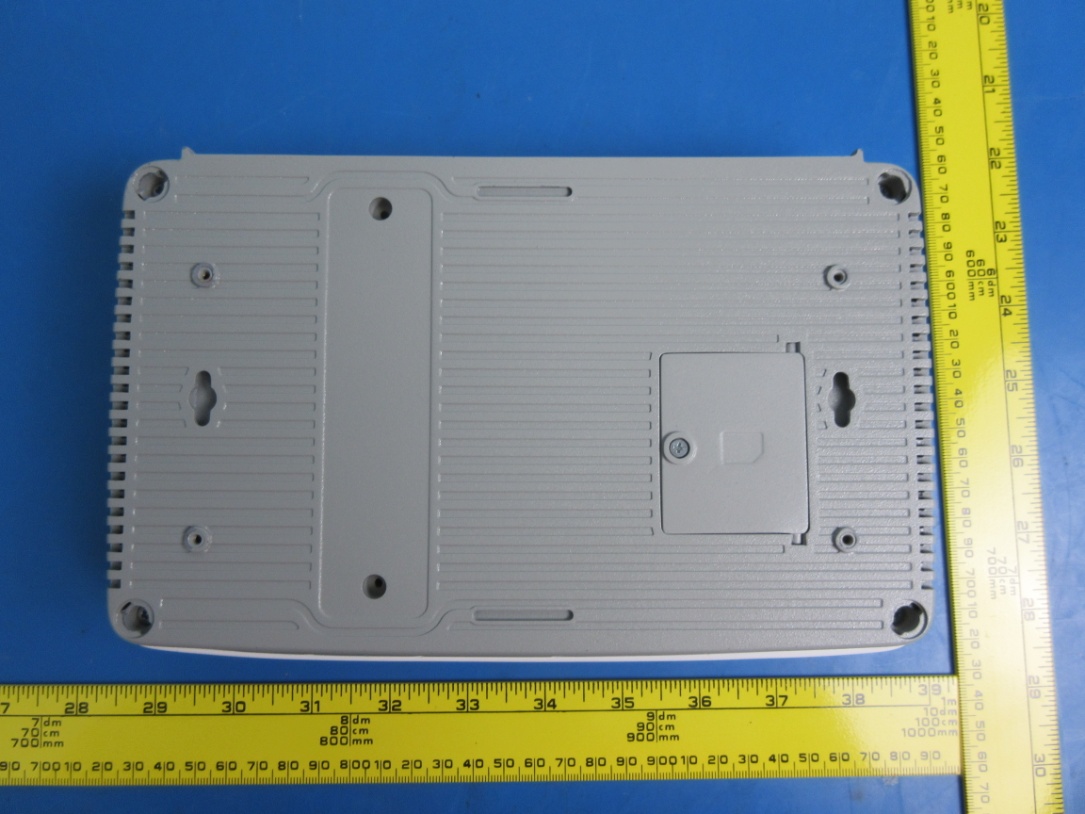

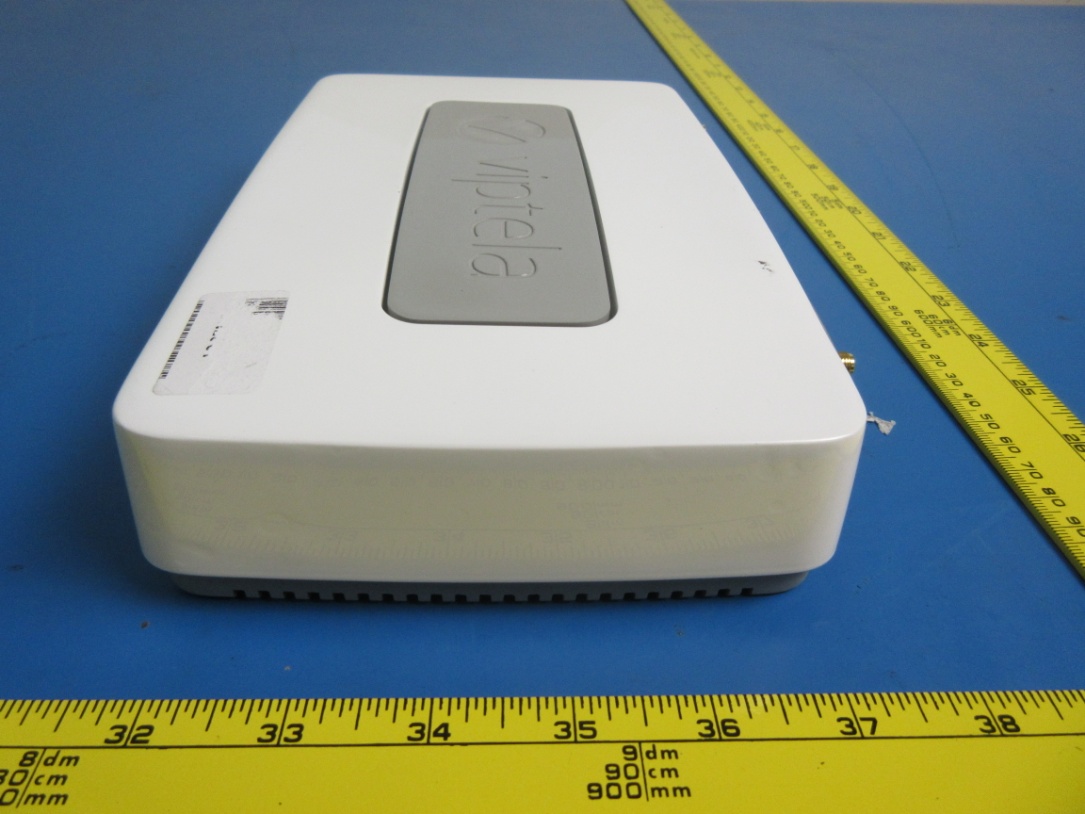

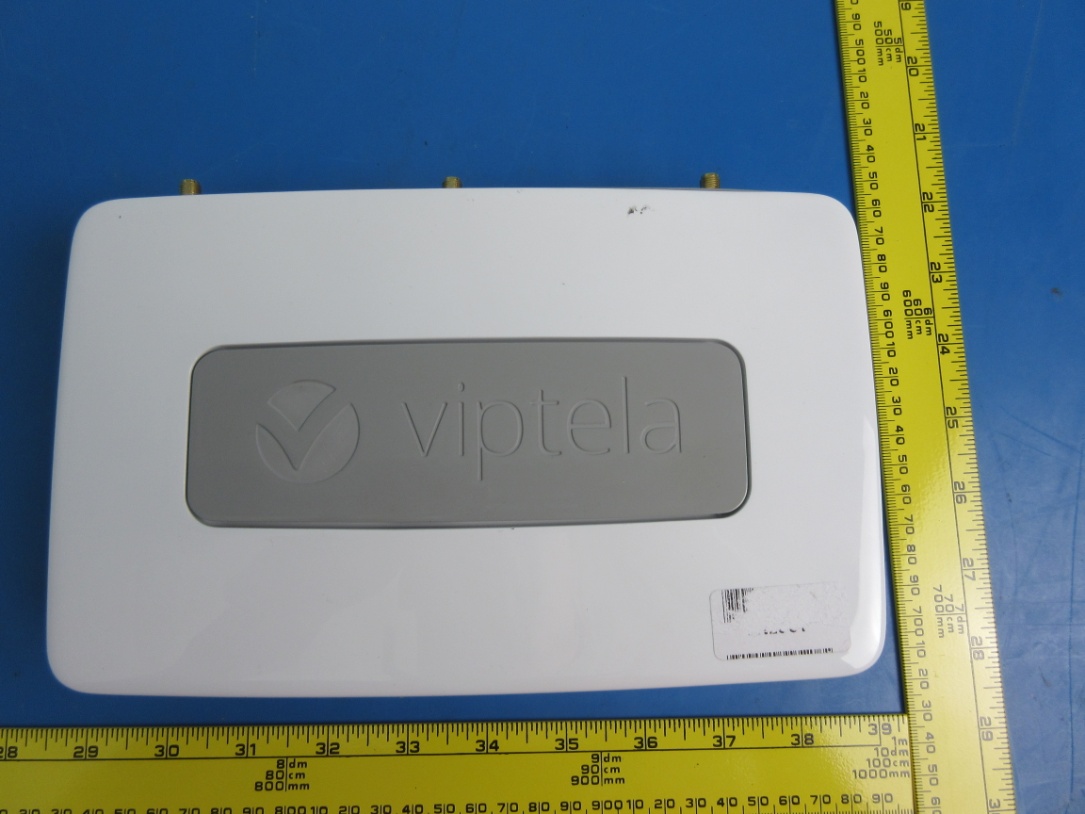

| Host Photos | External Photos | 2016-12-13 | PDF 1.7 MB |
| Host Photos | External Photos | 2016-12-13 | PDF 1.7 MB |
| Ext Photos | External Photos | 2016-11-30 | PDF 115.6 KB |

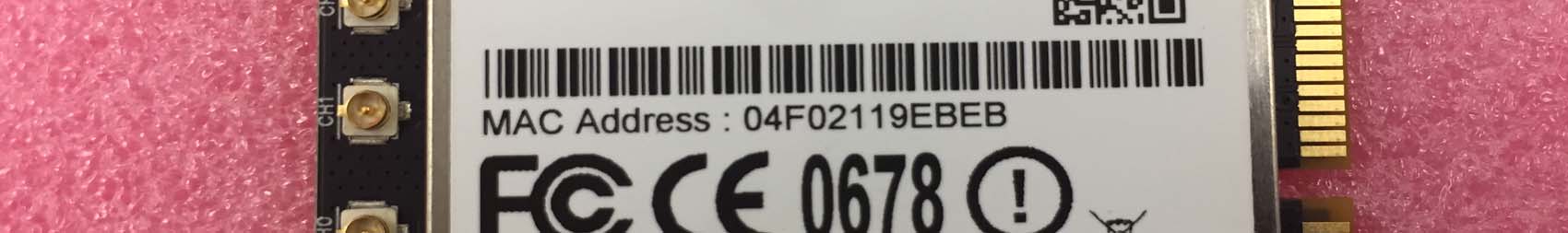

| Host Label | ID Label/Location Info | 2016-12-13 | PDF 105.2 KB |

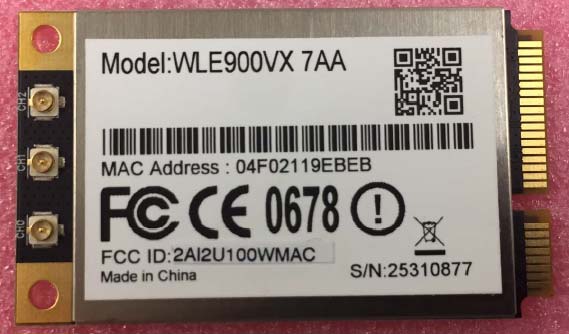

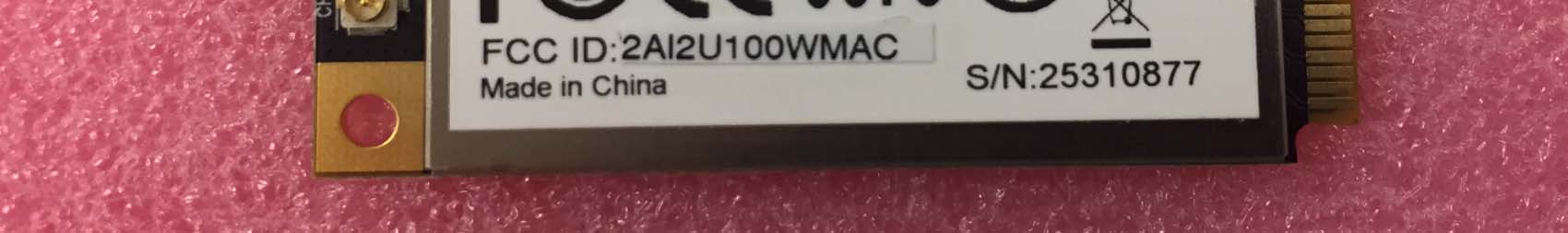

| FCC ID Label | ID Label/Location Info | 2016-11-30 | PDF 213 KB |

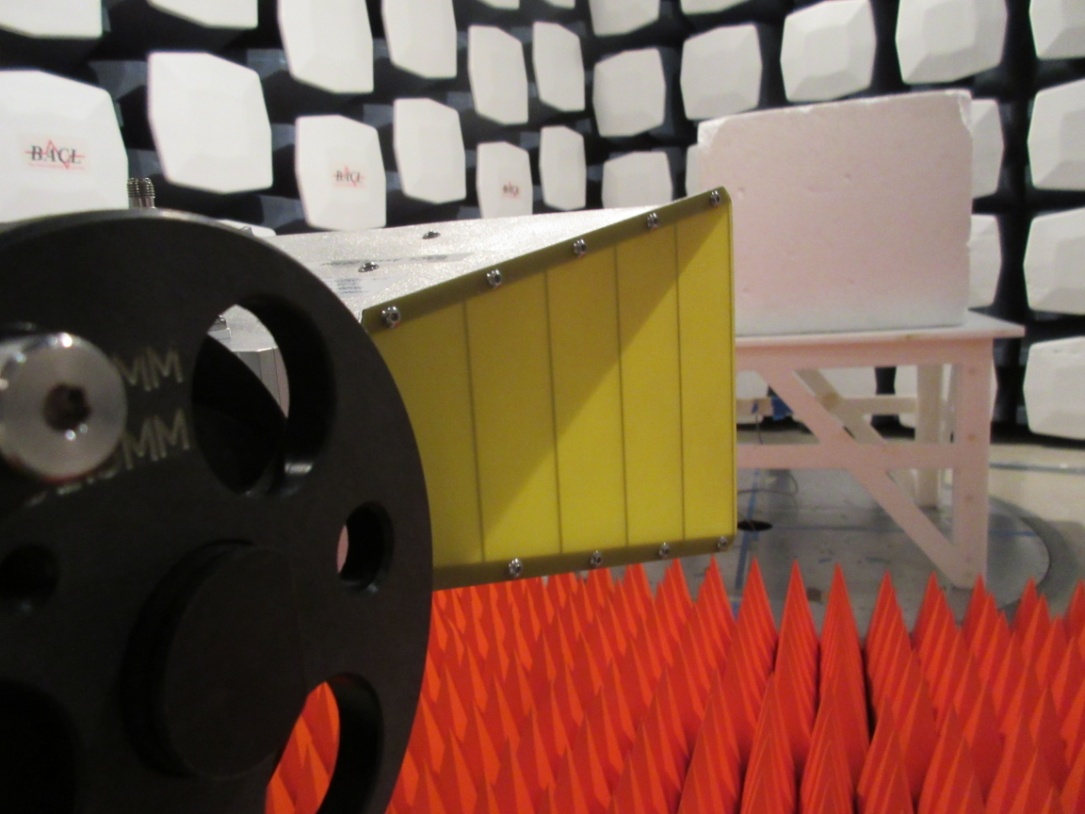

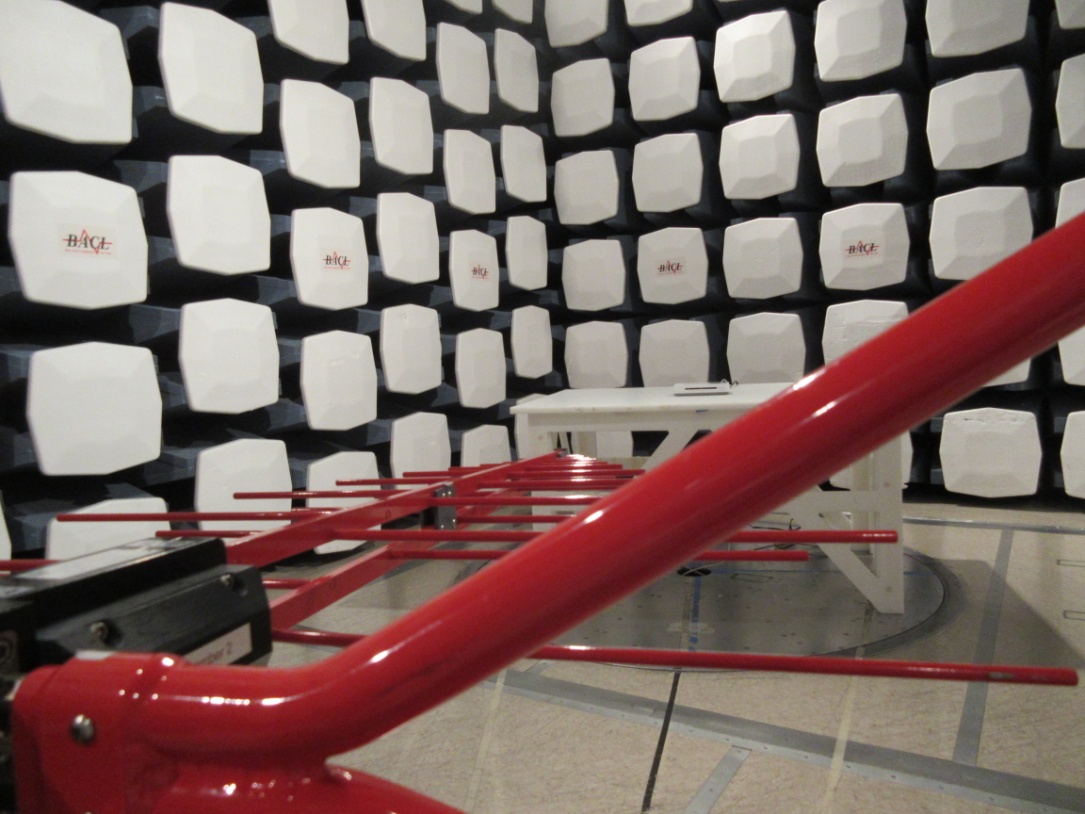

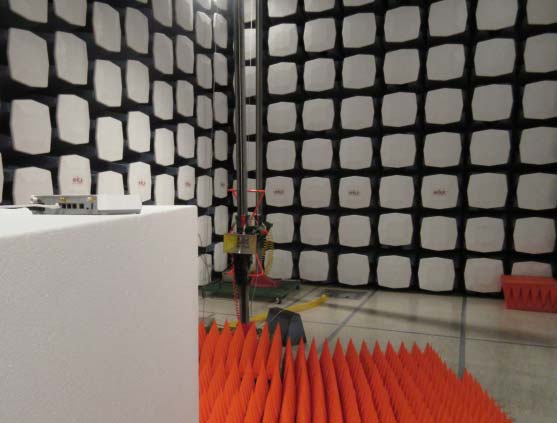

| Setup Photos | Test Setup Photos | 2016-12-13 | PDF 366.9 KB |

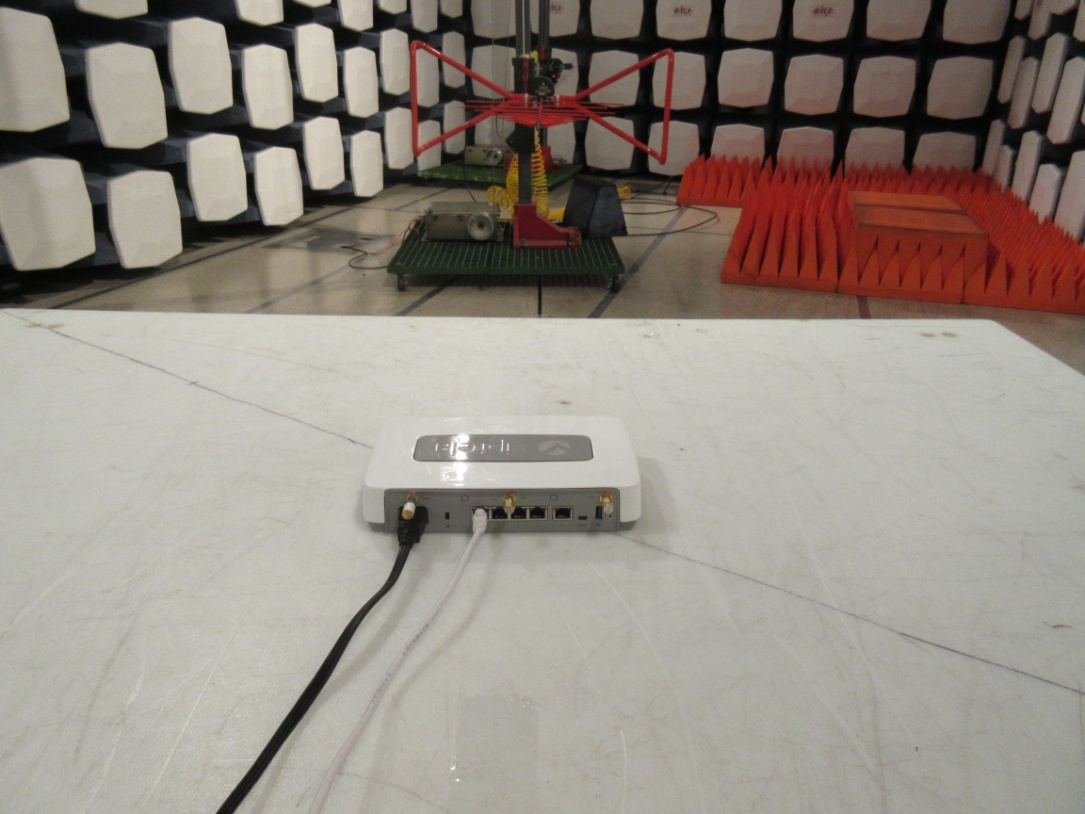

| Setup Photos | Test Setup Photos | 2016-12-13 | PDF 690.1 KB |
| Test Report | Test Report | 2016-12-13 | PDF 230.1 KB |
| Test Report | Test Report | 2016-12-13 | PDF 256.4 KB |
| Attestation Statement | Attestation Statements | 2016-12-13 | PDF 51.3 KB |
| Attestation Statement | Attestation Statements | 2016-11-30 | PDF 235.4 KB |
| C2PC Letter | Cover Letter(s) | 2016-12-13 | PDF 66.9 KB |
| Authorization Letter from Original Grantee | Cover Letter(s) | 2016-11-30 | PDF 227.1 KB |
| Change in ID Request Letter | Cover Letter(s) | 2016-11-30 | PDF 51.7 KB |
| RF Exposure | RF Exposure Info | 2016-12-13 | PDF 25.2 KB |
| RF Exposure | RF Exposure Info | 2016-12-13 | PDF 25.3 KB |
Application Information
| Application ID | SB5q6styfHByicKzoFHlDQ== |
|---|---|
| Final Action Date | 2016-12-13 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0004968939 |
| Model | 100WMAC |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 802.11ac Dual Band Module |
| Responsible Party | Gerard Thorpe, Manager EMC, gthorpe@cisco.com  , 4085277097 |
| Test Firm | Lisa Tang, Bay Area Compliance Laboratories Corporation, lisat@baclcorp.com  , 408-732-9162 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class 2 Permissive Change described in this filing. Output power listed is average conducted. Device is operating in a 3x3 MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40 and 80 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| SB5q6styfHByicKzoFHlDQ== | 2016-12-13 | Class II permissive change or modification of presently authorized equipment |
| NWjofHGljhZ4Yh0i/oYqKQ== | 2016-12-13 | Class II permissive change or modification of presently authorized equipment |
| fRpAV4niNSfkerbIgHd0Ig== | 2016-11-30 | Change in identification of presently authorized equipment. Original FCC ID: TK4WLE900VX Grant Date: 06/10/2015 |
| XFIaR5O0ML8lOdUCJnProw== | 2016-11-30 | Change in identification of presently authorized equipment. Original FCC ID: TK4WLE900VX Grant Date: 06/10/2015 |
Equipment Authorization
Grants
TCB Grant - Application XFIaR5O0ML8lOdUCJnProw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 11/30/2016 Application Dated: 11/30/2016 |
| Viptela LLC. Cisco Sytems |
| 125 W Tasman Street |
| San Jose, CA 95112 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.151 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.193 | ||
| 38 CC MO ND | 15E | 5500.0 - 5720.0 | 0.196 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.314 |
| Output power listed is average conducted. Device is operating in a 3x3 MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40 and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application XFIaR5O0ML8lOdUCJnProw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Viptela LLC. Cisco Sytems 125 W Tasman Street San Jose, CA 95112 United States |
Date of Grant: 11/30/2016 Application Dated: 11/30/2016 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.151 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.193 | ||
| 38 CC MO ND | 15E | 5500.0 - 5720.0 | 0.196 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.314 |
| Output power listed is average conducted. Device is operating in a 3x3 MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40 and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Viptela LLC. Cisco Sytems |
| 125 W Tasman Street |
| San Jose, CA 95112 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.151 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.314 |
| Class 2 Permissive Change described in this filing. Output power listed is average conducted. Device is operating in a 3x3 MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40 and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application SB5q6styfHByicKzoFHlDQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Viptela LLC. Cisco Sytems 125 W Tasman Street San Jose, CA 95112 United States |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.151 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.314 |
| Class 2 Permissive Change described in this filing. Output power listed is average conducted. Device is operating in a 3x3 MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20, 40 and 80 MHz bandwidth modes. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Viptela LLC. Cisco Sytems |
| 125 W Tasman Street |
| San Jose, CA 95112 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.269 |
| Class 2 Permissive Change described in this filing. Output power listed is average conducted. Device is operating in a 3x3 Multiplexing MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application NWjofHGljhZ4Yh0i/oYqKQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Viptela LLC. Cisco Sytems 125 W Tasman Street San Jose, CA 95112 United States |
Date of Grant: 12/13/2016 Application Dated: 12/13/2016 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.269 |
| Class 2 Permissive Change described in this filing. Output power listed is average conducted. Device is operating in a 3x3 Multiplexing MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 11/30/2016 Application Dated: 11/30/2016 |
| Viptela LLC. Cisco Sytems |
| 125 W Tasman Street |
| San Jose, CA 95112 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.269 |
| Output power listed is average conducted. Device is operating in a 3x3 Multiplexing MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application fRpAV4niNSfkerbIgHd0Ig==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Viptela LLC. Cisco Sytems 125 W Tasman Street San Jose, CA 95112 United States |
Date of Grant: 11/30/2016 Application Dated: 11/30/2016 |
| Attention: Gerard Thorpe , Manager EMC |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI2U100WMAC |
| Name of Grantee: | Viptela LLC. Cisco Sytems |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11ac Dual Band Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.269 |
| Output power listed is average conducted. Device is operating in a 3x3 Multiplexing MIMO configuration as described in this filing. This module is approved in mobile configurations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has a 20 MHz and 40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
