FCC ID 2AI97-K19
Mobile phone
by SHENZHEN HUATONG TECHNOLOGY CO.,LTD.
Grantee Code: 2AI97 Product Code: K19
Latest application date: 2016-08-24
Device Images
FCC ID Device Details
| FCC ID | 2AI97-K19 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | 2AI97 |
| Product Code | K19 |
| Applicant Business | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. 🇨🇳 |
| Equipment Class | Mobile phone |
| Test Firm | Shenzhen NTEK Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-08-24 |
| 824.2-848.8 MHz | Original Equipment | 2016-08-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-08-24 | PDF 469.6 KB |

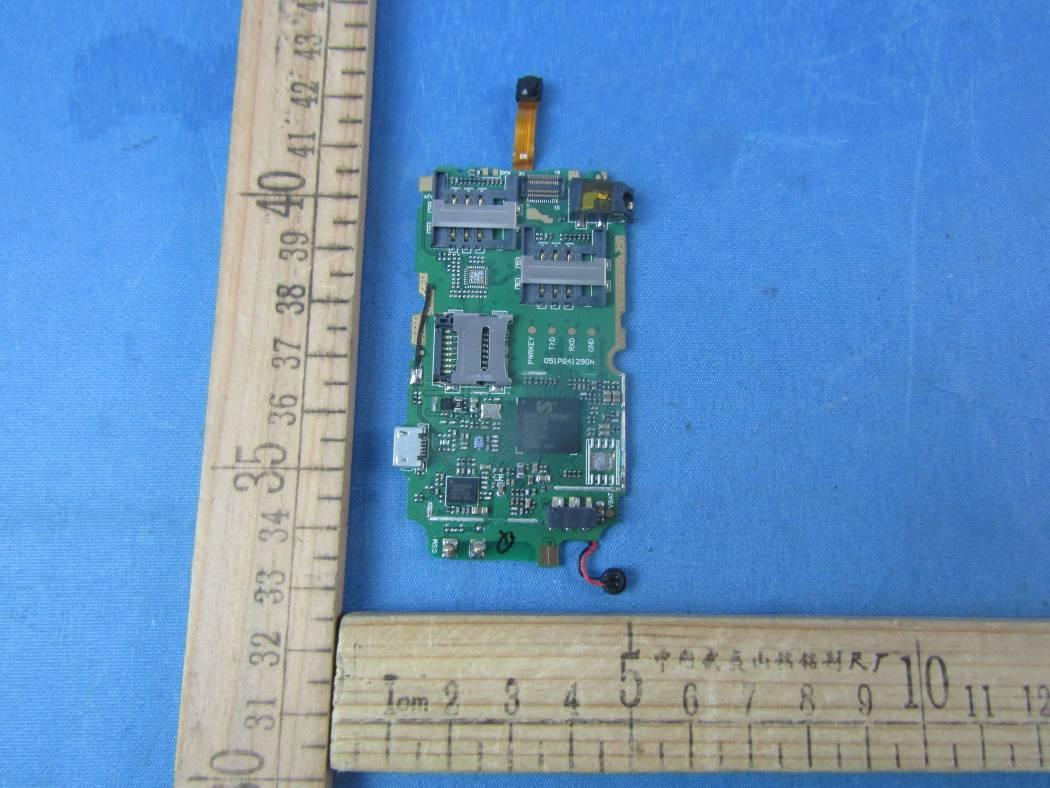

| Internal Photos | Internal Photos | 2016-08-24 | PDF 862 KB |
| External Photos | External Photos | 2016-08-24 | PDF 470.9 KB |
| Label | ID Label/Location Info | 2016-08-24 | PDF 89.3 KB |
| Label Location | ID Label/Location Info | 2016-08-24 | PDF 178.6 KB |

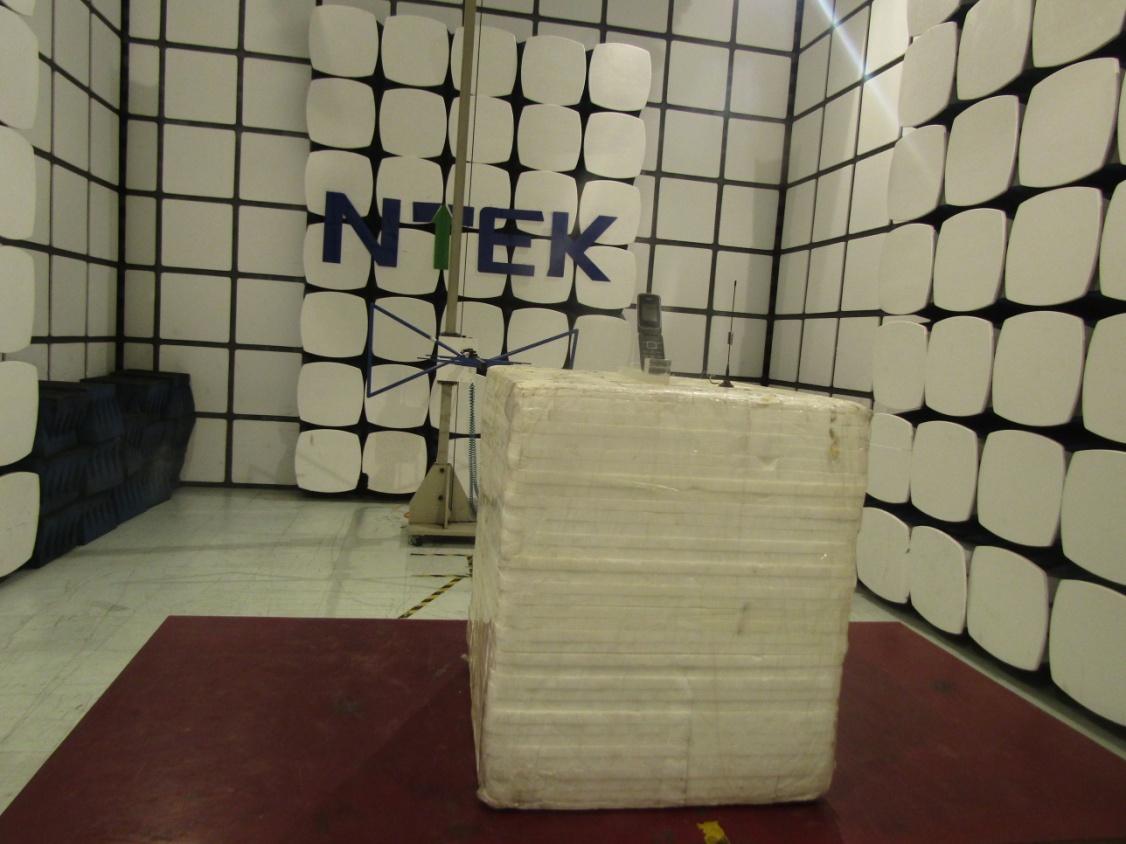

| RF Test Set-Up Photos | Test Setup Photos | 2016-08-24 | PDF 3.2 MB |
| RF Test Set-Up Photos | Test Setup Photos | 2016-08-24 | PDF 189.6 KB |

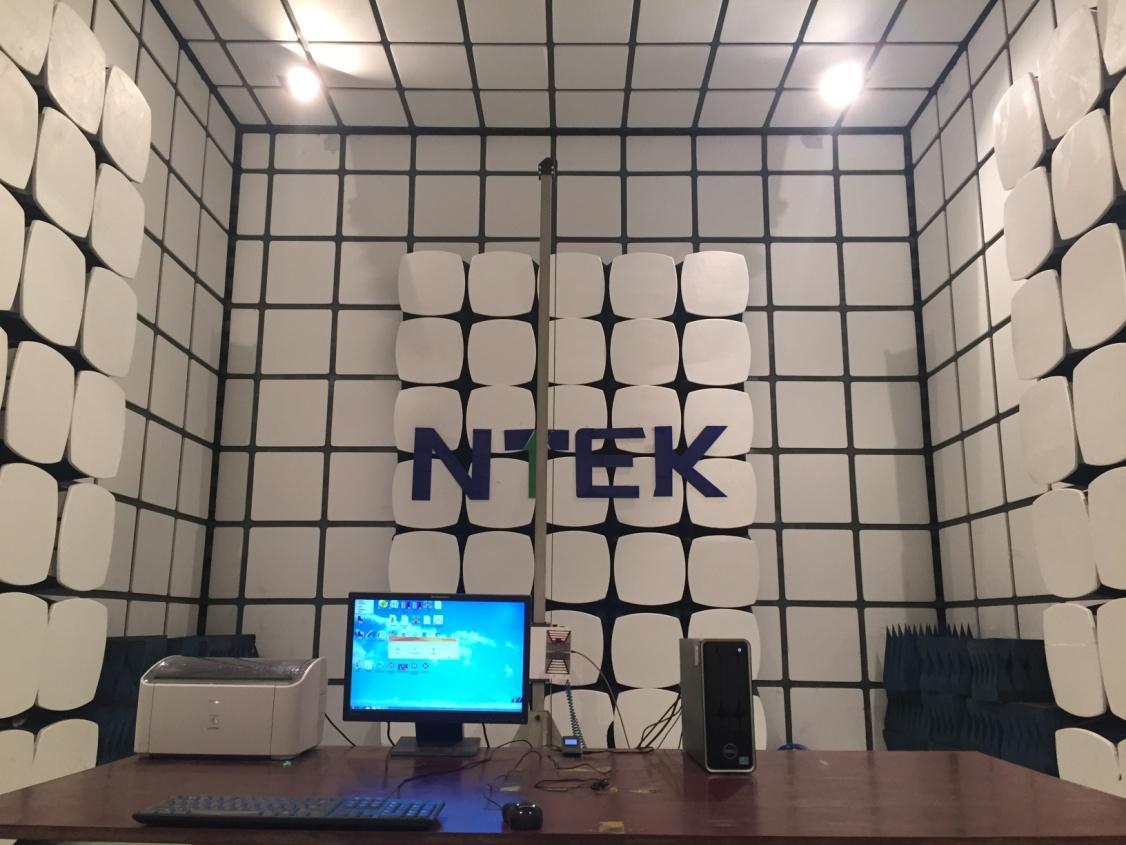

| Test Set-Up Photos | Test Setup Photos | 2016-08-24 | PDF 292.6 KB |
| Part 15B Test Report | Test Report | 2016-08-24 | PDF 1 MB |

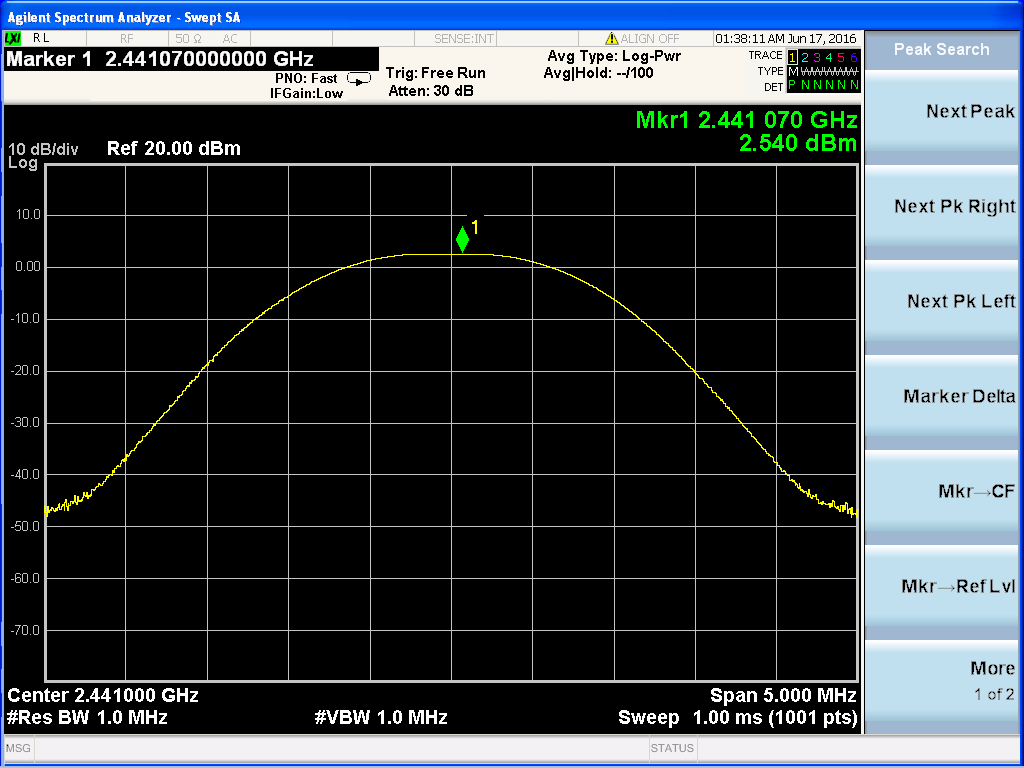

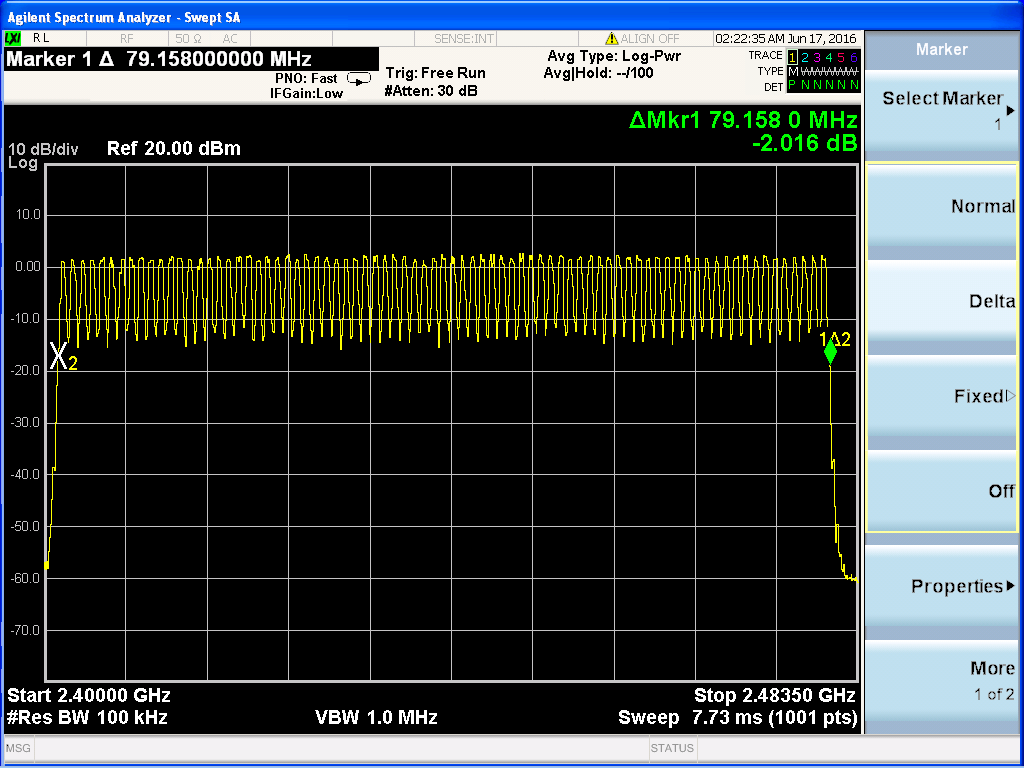

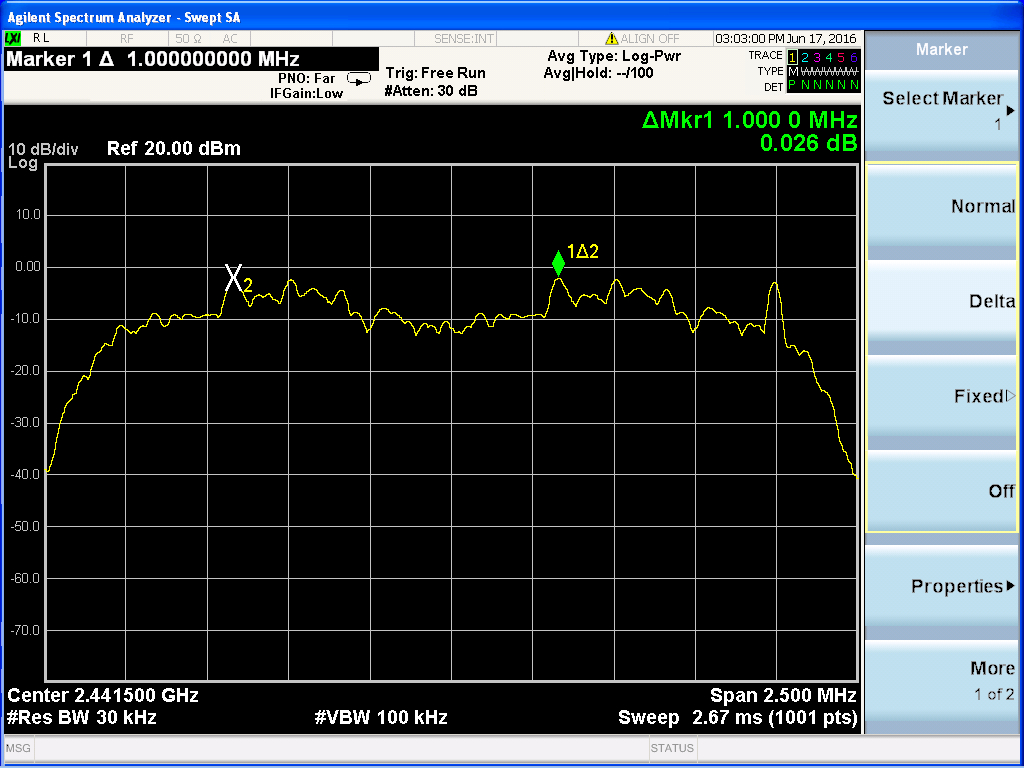

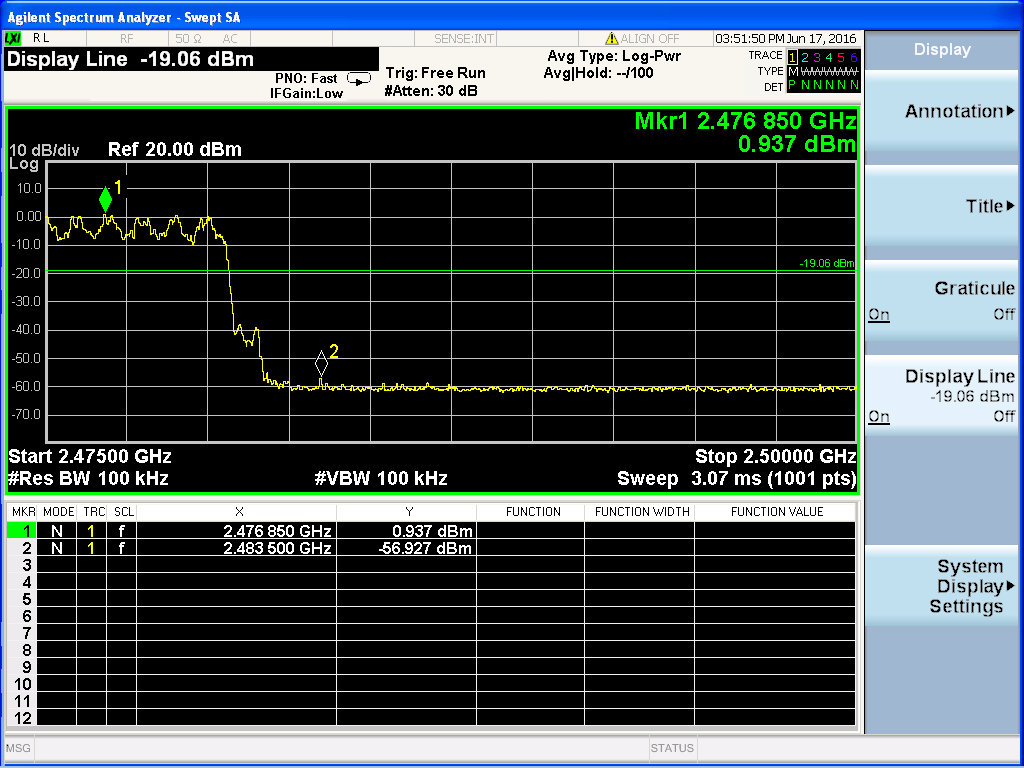

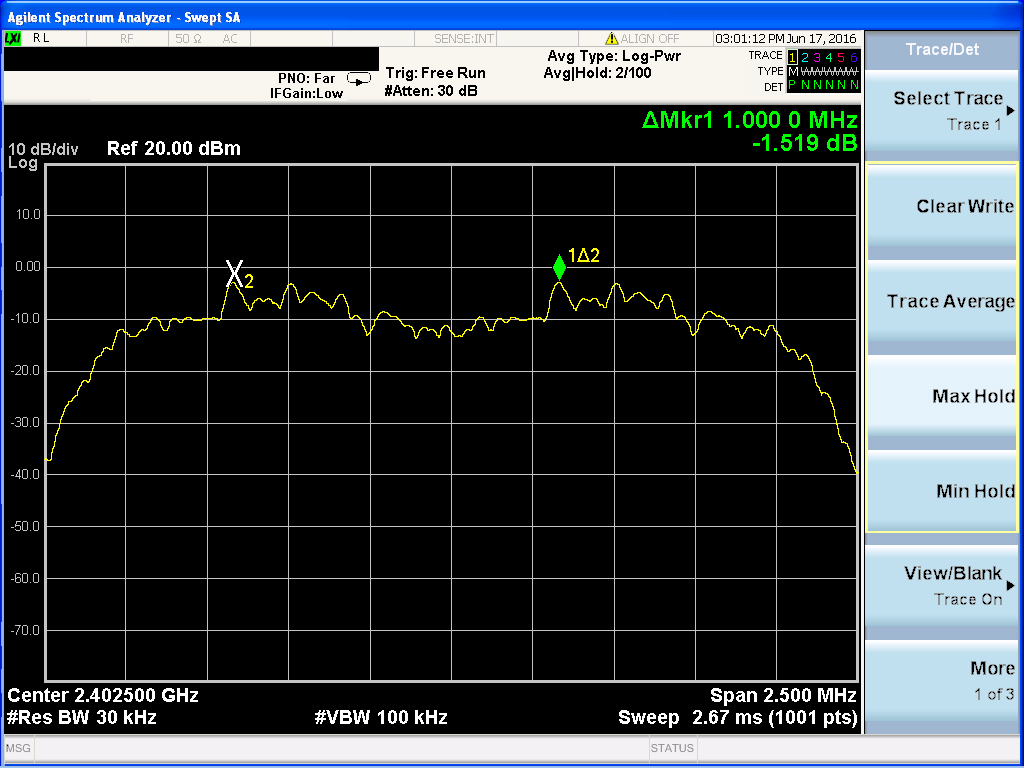

| RF Test Report | Test Report | 2016-08-24 | PDF 2.3 MB |
| RF Test Report | Test Report | 2016-08-24 | PDF 270.5 KB |
| SAR Test Report | RF Exposure Info | 2016-08-24 | PDF 5.5 MB |
| Authorization Letter | Cover Letter(s) | 2016-08-24 | PDF 148.7 KB |
| LTC Letter | Cover Letter(s) | 2016-08-24 | PDF 150.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 148.6 KB | |
| Schematics Metadata only | Schematics | PDF 302.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 204 KB | |
| BOM List Metadata only | Parts List/Tune Up Info | PDF 40.3 KB | |
| Tune-Up Procedure Metadata only | Parts List/Tune Up Info | PDF 101.3 KB |
Application Information
| Application ID | j5dDNXnyhAJYtxvFKxuTBQ== |
|---|---|
| Final Action Date | 2016-08-24 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023145428 |
| Model | K19 |
| Equipment Class | JBP - Part 15 Class B Computing Device Peripheral |
| Device Description | Mobile phone |
| Responsible Party | LHY Liu, feng9621236@163.com  , +860755-83035683 |
| Test Firm | Jason Chen, Shenzhen NTEK Testing Technology Co., Ltd., jason.chen@ntek.org.cn  , (86)-0755-61156588 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| j5dDNXnyhAJYtxvFKxuTBQ== | 2016-08-24 | Original Equipment |
| RYaaf4Ldvwfy7cmTZ0C7sQ== | 2016-08-24 | Original Equipment |
| 0Z6pQgj17hIXMzv48tf7kg== | 2016-08-24 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application RYaaf4Ldvwfy7cmTZ0C7sQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Room2088,20th Floor,CBlock,Electronic Technology |
| Building ,Huaqiang North,Futian Area, |
| Shenzhen, China |
| Attention: LHY Liu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI97-K19 |
| Name of Grantee: | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0018 |
| Power listed is the maximum conducted output power. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application RYaaf4Ldvwfy7cmTZ0C7sQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN HUATONG TECHNOLOGY CO.,LTD. Room2088,20th Floor,CBlock,Electronic Technology Building ,Huaqiang North,Futian Area, Shenzhen, China |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Attention: LHY Liu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI97-K19 |
| Name of Grantee: | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.0018 |
| Power listed is the maximum conducted output power. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Room2088,20th Floor,CBlock,Electronic Technology |
| Building ,Huaqiang North,Futian Area, |
| Shenzhen, China |
| Attention: LHY Liu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI97-K19 |
| Name of Grantee: | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application j5dDNXnyhAJYtxvFKxuTBQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN HUATONG TECHNOLOGY CO.,LTD. Room2088,20th Floor,CBlock,Electronic Technology Building ,Huaqiang North,Futian Area, Shenzhen, China |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Attention: LHY Liu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI97-K19 |
| Name of Grantee: | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | Mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15B | - |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. 775 Montague Expressway Milpitas, CA 95035 |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Room2088,20th Floor,CBlock,Electronic Technology |
| Building ,Huaqiang North,Futian Area, |
| Shenzhen, China |
| Attention: LHY Liu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI97-K19 |
| Name of Grantee: | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile phone |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.0864 | 0.044 PM | 318KGXW | |
| 24E | 1850.2 - 1909.8 | 0.8375 | 0.019 PM | 322KGXW | |
| 22H | 824.2 - 848.8 | 1.0257 | 0.047 PM | 321KG7W | |
| 24E | 1850.2 - 1909.8 | 0.6699 | 0.021 PM | 324KG7W |
| This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations Output power listed is ERP for Part 22 and EIRP for Part 24, For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. Highest reported SAR for Head, Body, simultaneous Transmission are: 0.50W/kg, 1.38W/kg, 1.43W/kg. |
EAS Grant - Application 0Z6pQgj17hIXMzv48tf7kg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
SHENZHEN HUATONG TECHNOLOGY CO.,LTD. Room2088,20th Floor,CBlock,Electronic Technology Building ,Huaqiang North,Futian Area, Shenzhen, China |
Date of Grant: 08/24/2016 Application Dated: 08/24/2016 |
| Attention: LHY Liu |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | 2AI97-K19 |
| Name of Grantee: | SHENZHEN HUATONG TECHNOLOGY CO.,LTD. |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | Mobile phone |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.2 - 848.8 | 1.0864 | 0.044 PM | 318KGXW | |
| 24E | 1850.2 - 1909.8 | 0.8375 | 0.019 PM | 322KGXW | |
| 22H | 824.2 - 848.8 | 1.0257 | 0.047 PM | 321KG7W | |
| 24E | 1850.2 - 1909.8 | 0.6699 | 0.021 PM | 324KG7W |
| This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations Output power listed is ERP for Part 22 and EIRP for Part 24, For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. Highest reported SAR for Head, Body, simultaneous Transmission are: 0.50W/kg, 1.38W/kg, 1.43W/kg. |
